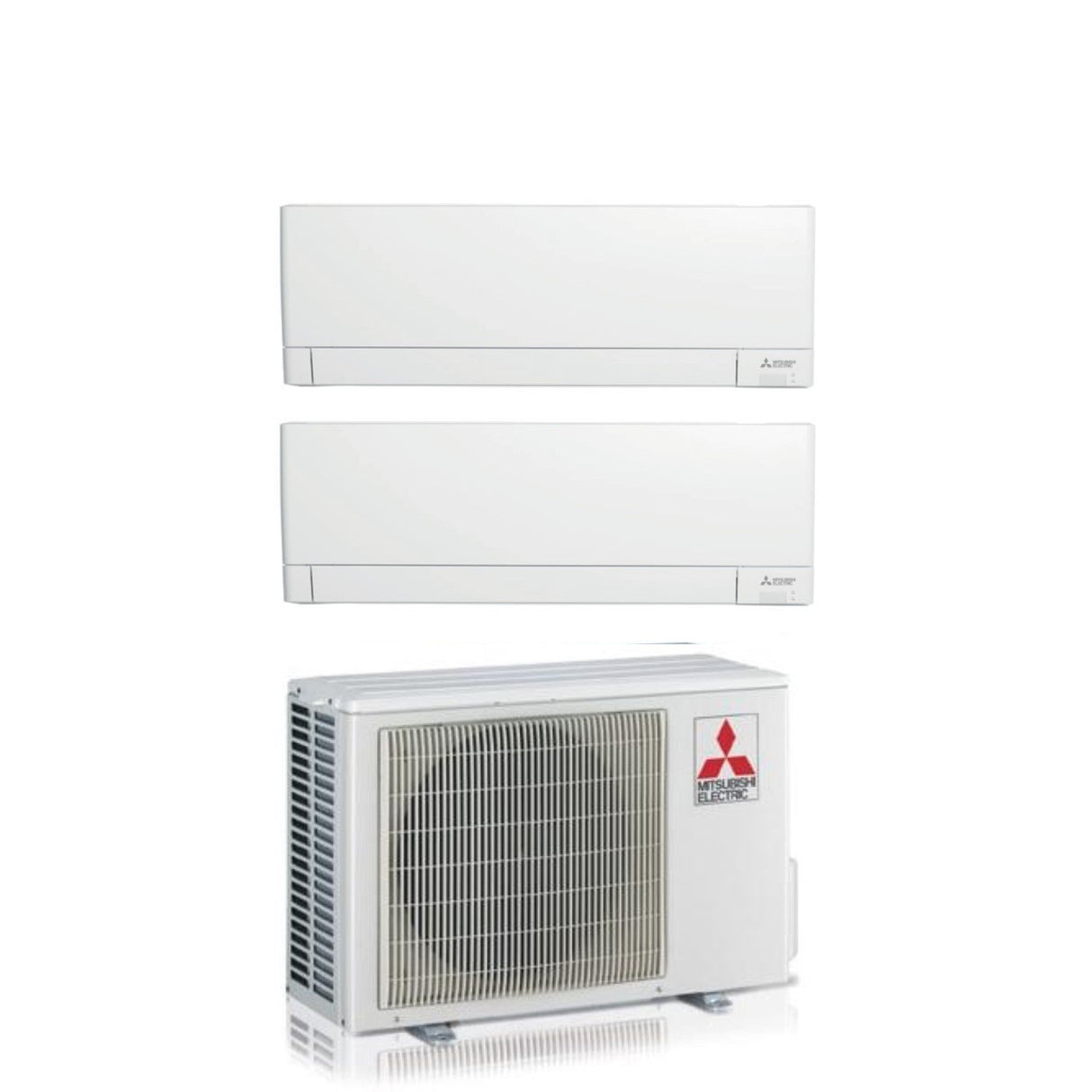

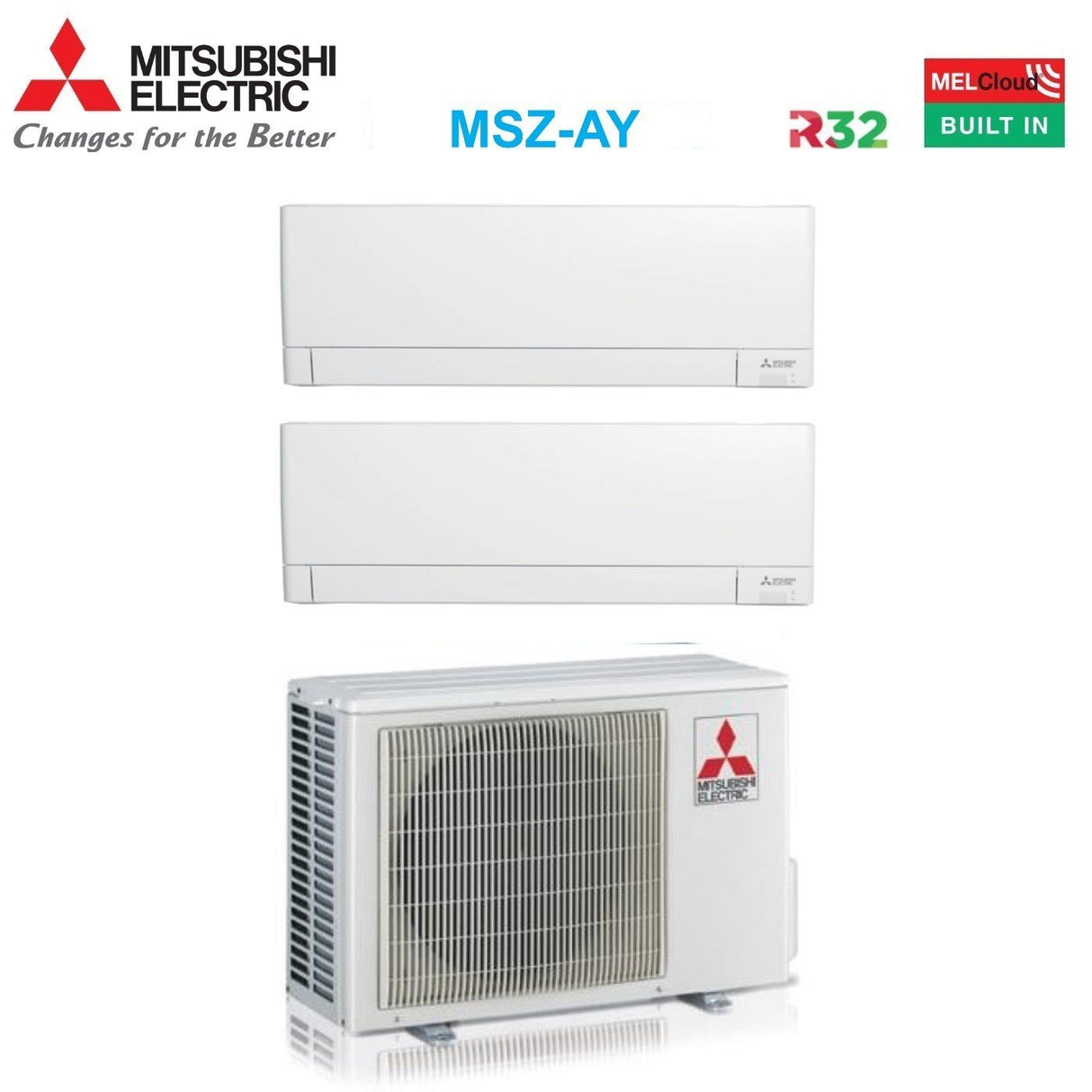

Mitsubishi Electric Dual Split Inverter Air Conditioner Plus Line MSZ-AY series 12+12 btu with MXZ-2F53VF Integrated Wi-Fi R-32 12000+12000 A+++
INDOOR UNIT
1) Model:
- Catalog code Indoor Unit :2x MSZ-AY35VGKP
- Power : 12000 Btu
- Integrated Wi-Fi
Dimensions and weight
- Internal Unit Dimensions (HxWxD): 299x798x245 mm
- Indoor Unit Weight: 11 Kg
Outdoor Unit
Model:
- Catalog code Outdoor Unit : MXZ-2F53VF2/3
- Max indoor units: up to 2 indoor units
Energy efficiency:
- SEER: 8.63
- SCOP: 4.6
- Energy Efficiency Class in Cooling : A+++
- Heating Energy Efficiency Class: A++
- Annual energy consumption in Cooling : 215 kWh/a
- Annual energy consumption in Heating : 973 kWh/a
Performance:
- Cooling Capacity: 5.3 kW
- Heating Capacity: 6.4 kW
- Cooling absorption: 1.4 kW
- Heating absorption: 1.56 kW
- Sound power level : 61 dB(A)
- Sound pressure level : 46~51 dB(A)
Characteristics:
- Power (V/Hz/Φ) : 220~240/50/1
- Refrigerant gas : R-32
- Guaranteed temperature range:
- - Cooling: -10° ~ 46°C
- - Heating: -15° ~ 24° C
Installation data:
- Pipe diameter Liquid : 6.35 mm (1/4") x2
- Gas pipe diameter : 9.52 mm (3/8") x2
- Maximum piping length: 30 m
- Maximum height difference Indoor Unit / Outdoor Unit: 15 m
Dimensions:
- External Unit Dimensions (HxWxD): 550x800x285 mm
- Weight of Outdoor Unit: 37.0 Kg
Multi-split DC Inverter
The Inverter system is an electronic device that allows the speed of the compressor to be varied efficiently and, consequently, the power supplied by the air conditioner, based on the cooling or heating demand.
Compared to traditional fixed speed (On/Off) air conditioners, inverter air conditioners reach the required temperature sooner and keep it stable, without annoying sudden changes, to the full advantage of comfort and electricity consumption.
High seasonal efficiency
Thanks to careful planning and the introduction of R32 refrigerant, the efficiency of the new multi-split outdoor units is significantly increased,
reaching class A+++ in cooling (sizes 2F42,2F53,3F54) and
A++ (sizes 2F42,2F53,3F54) in heating mode.
Maximum Silence for Maximum Comfort
The new MXZ-F multisplit outdoor units reach a new level of operating silence, reducing the sound emission by up to 4dB compared to the previous model in cooling mode and up to 3dB in heating mode.
Connectivity
The extraordinary connectivity available with the new external units allows to satisfy every need. The MXZ-F unit demonstrates all-round versatility , being connectable to most of the indoor unit range of the Residential and Commercial Line, whether they are wall mounted, ceiling cassette or ducted.
Quietness
The new MXZ-F multisplit outdoor units reach a new level of operating silence, reducing the sound emission by up to 4dB compared to the previous model in cooling mode and up to 3dB in heating mode.
R32: reduced environmental impact
Thanks to the use of R32 refrigerant and a reduced pre-charge of the units compared to the previous model, the MXZ-F units introduce a significantly lower quantity of equivalent tons of CO2 into the environment.
Automatic noise reduction mode
By setting this function, it is possible to automatically decrease the noise level of the external unit as the internal loads to be satisfied decrease, such as for example during night cooling.
Auto-correct links
It is enough to press a button (MXZ-3E/F to MXZ-6D) or activate only one indoor unit (MXZ-2E/F) to ensure the correct connection between indoor and outdoor units. In the event of a connection error, the system will automatically correct it

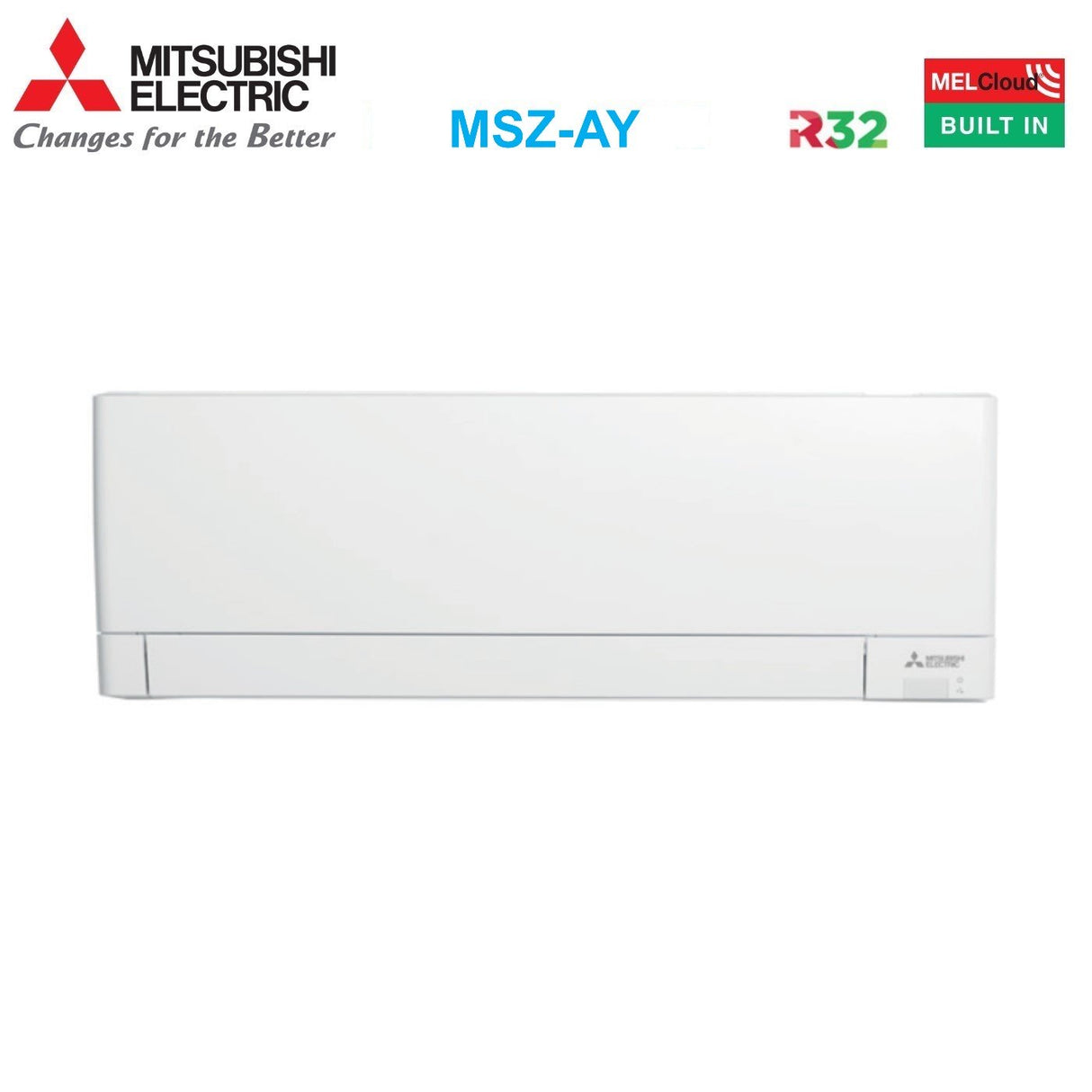

New MSZ-AY Series
The new MSZ-AY model represents a new standard in the world of residential air conditioning. With a renewed aesthetic, quality materials with a "velvety" finish, careful attention to comfort with its only 18dBA of sound pressure and the equipment of the "Plasma Quad Plus" active filtration device, MSZ-AY contains the best Mitsubishi Electric technology in an ultra-compact size.
Self clean mode
The new «Self Clean» function on MSZ-AY allows you to dry the internal unit at the end of the cooling cycle, preventing the formation of mold and bad smells.
Quad PIUS Plasma Filter supplied
The Plasma Quad PLUS system is an active filtration system capable of inhibiting up to 99% of viruses, bacteria, molds and PM2.5 present in the air, up to 98% of allergens and pollen and up to 99.7% of mites and dust.
Optional V Blocking air purifying filter
V Blocking is a new purifying filter that improves the previous silver ion filtering system, adding an antiviral action capable of inhibiting viruses, bacteria, molds and allergens
Dual Barrier Coating
With the MSZ-AY unit, Mitsubishi Electric introduces another revolutionary technology: Dual Barrier Coating. During operation, the dust and impurities introduced during the air conditioning operations are deposited on the internal components, especially the battery and fan, increasing the machine's consumption by up to 18%.
With Dual Barrier Coating the internal components of MSZ-AY are treated with a second protective layer which prevents the deposit of dust and impurities even after long periods of time, reducing consumption and eliminating the need for unit maintenance in relation to this problem.
Silent operation
Environmental comfort is also linked to the sound level and is especially important in bedrooms or studios. The Kirigamine line allows you to guarantee the ideal climate all year round with a sound level that is virtually imperceptible to the human ear. The 18dB(A) achieved by the MSZ-AY model is quieter than the noise generated by leaves rustling in the wind, making the air conditioner effectively inaudible to the occupants of the room.
This is why MSZ-AY is particularly suitable for domestic environments such as bedrooms and living areas, where we spend most of our time and carry out our daily activities.
Night Mode: maximum discretion and silence
By activating the Night Mode function from the remote control, it is possible to set the air conditioner for night-time operation:
* LED brightness reduction
* Mute "beep" sound
* 3dB reduction of external unit sound emission
Air distribution
Thanks to the presence of the motorized louver, it is possible to direct the air flow to achieve maximum comfort in the room in any operating mode (sizes 25-50). Furthermore, the horizontal flow eliminates annoying drafts towards the occupants.
Integrated MEL Ioud
The new MSZ-AY offers the user experience of MelCloud integrated into the air conditioner, allowing the user to remotely manage, thanks to the Wi-Fi controller, the main functions of the air conditioner and monitoring its operation and energy consumption.
Furthermore, thanks to the new integrated wifi adapter, connection with the router is even easier!
Backlit remote control
The backlit remote control allows easy viewing even at night.
Installation template
The new MSZ-AY is equipped with a new installation template. The new template has a large central hole which makes installation easier especially in the presence of predisposition boxes.
Product Guarantee: All products for sale on our site are new and packed. The warranty on this item is 24 months from the date of purchase.
