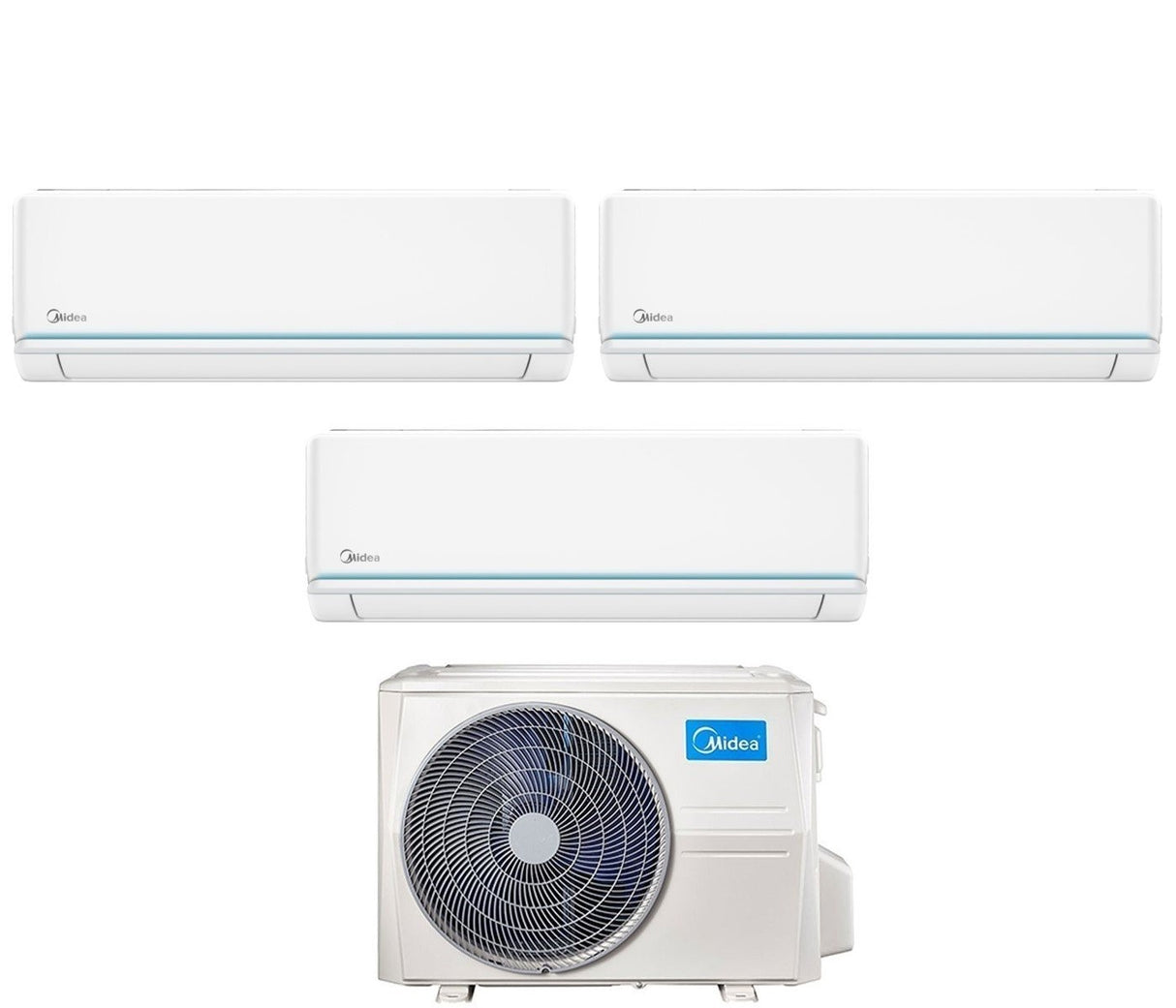

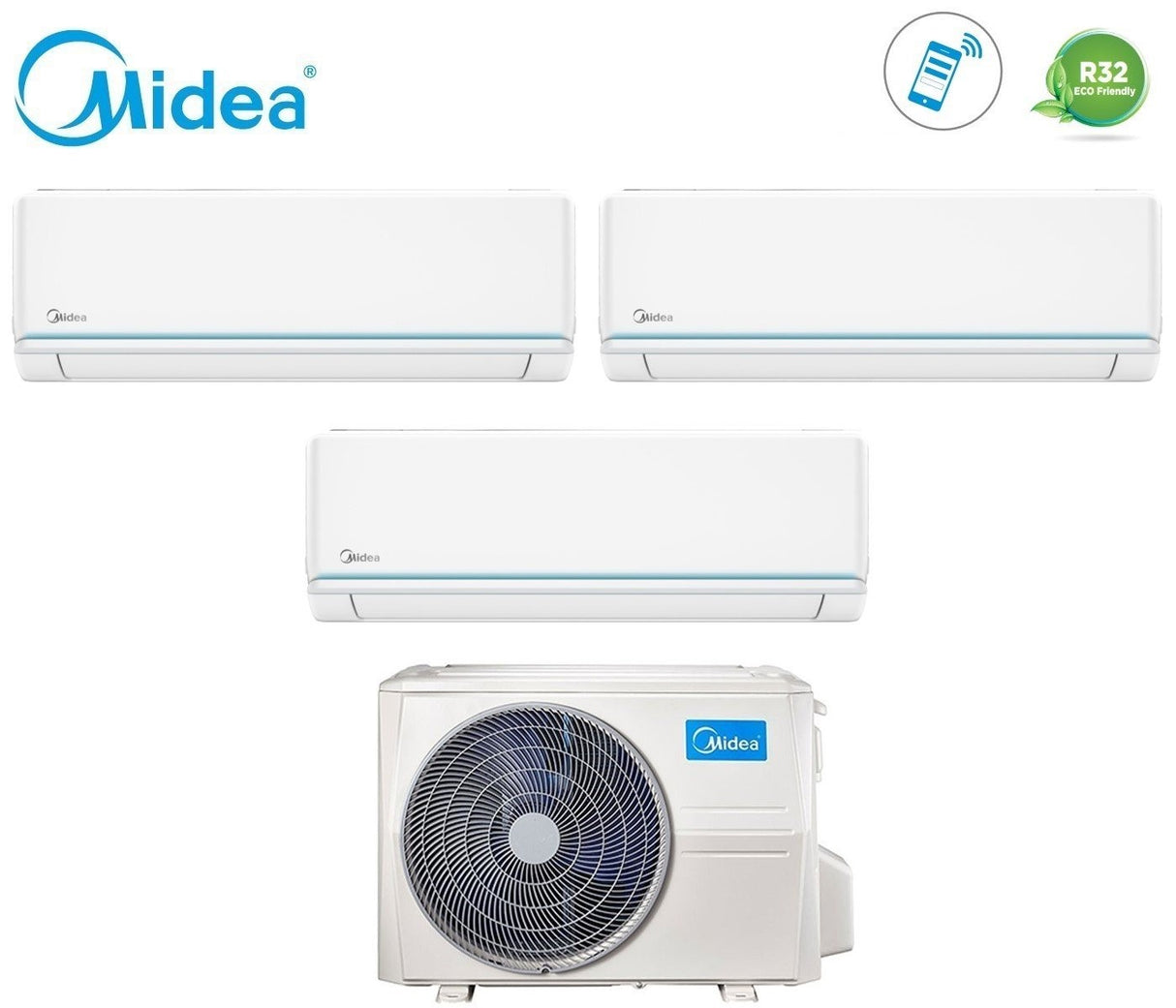

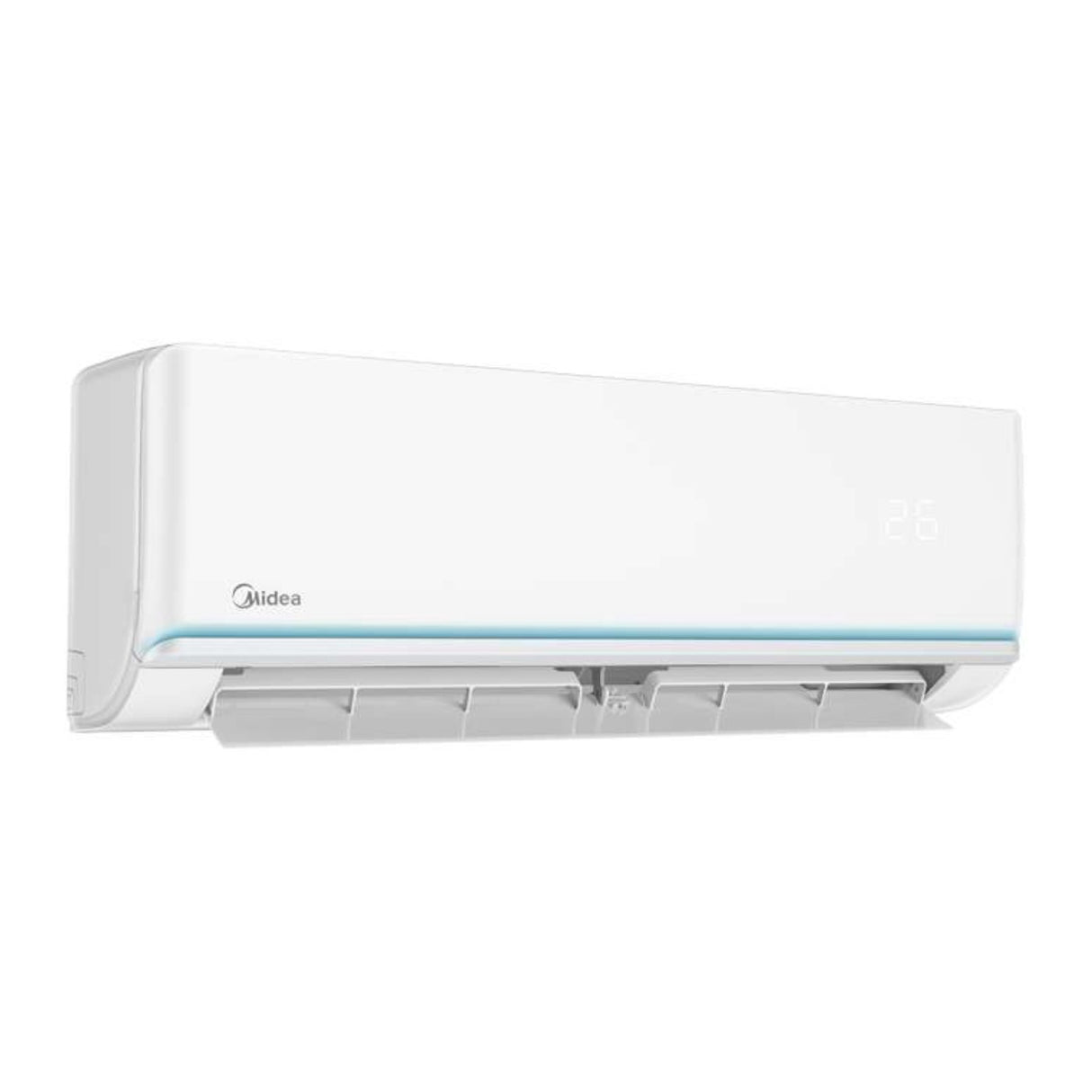

Midea Trial Split Inverter Air Conditioner Evolution Series 9+9+12 With M3of-21hfn8-Q R-32 Wi-Fi Optional 9000+9000+12000

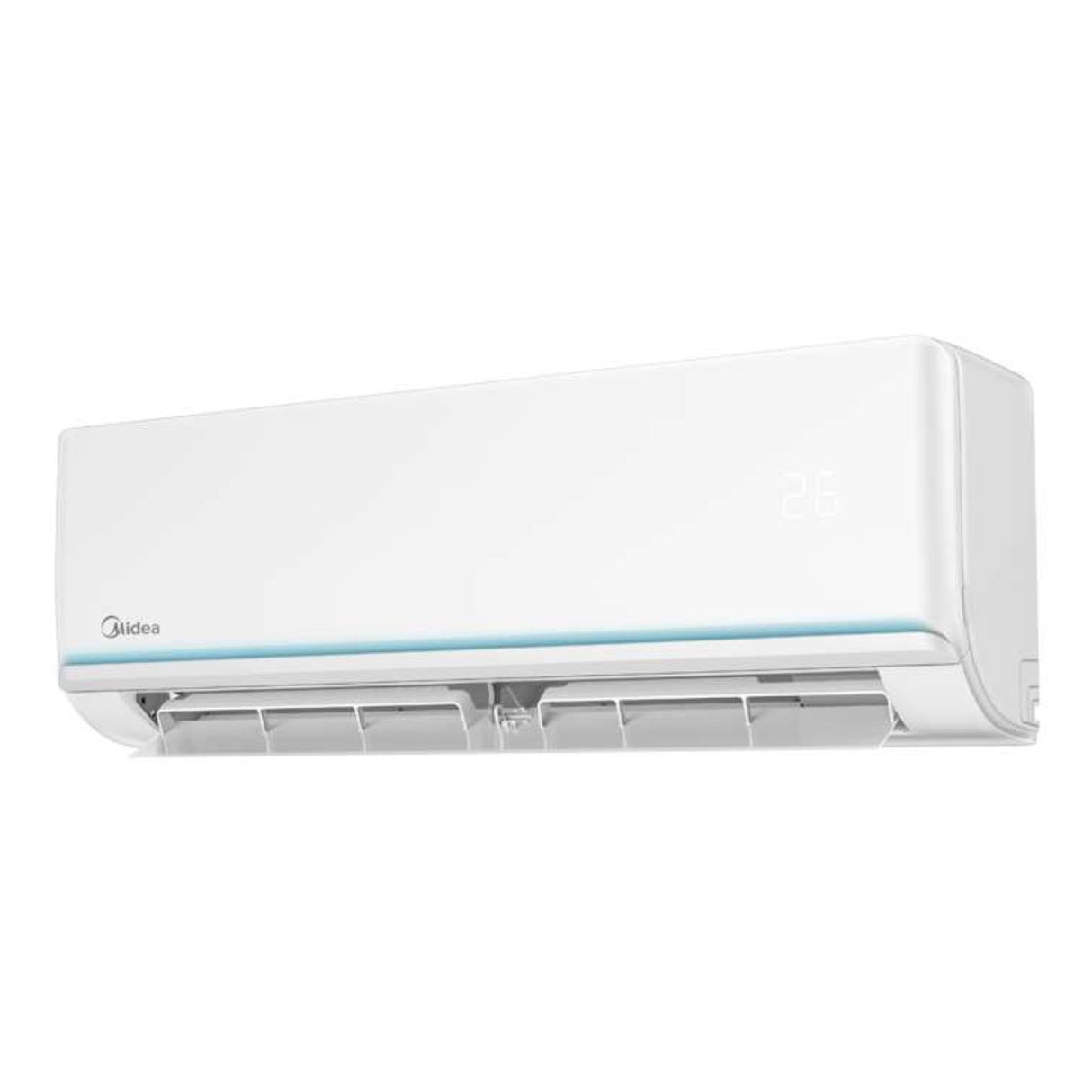

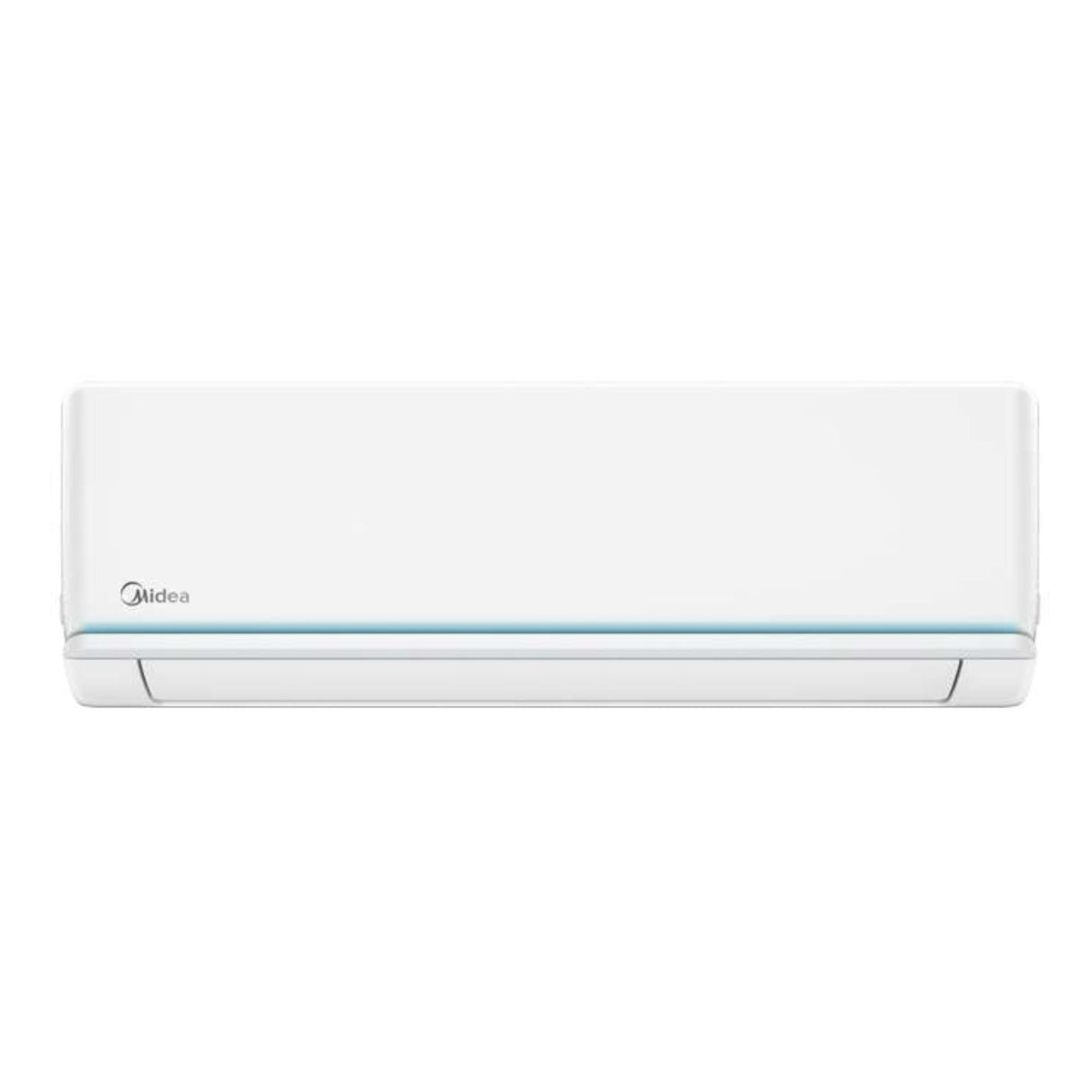

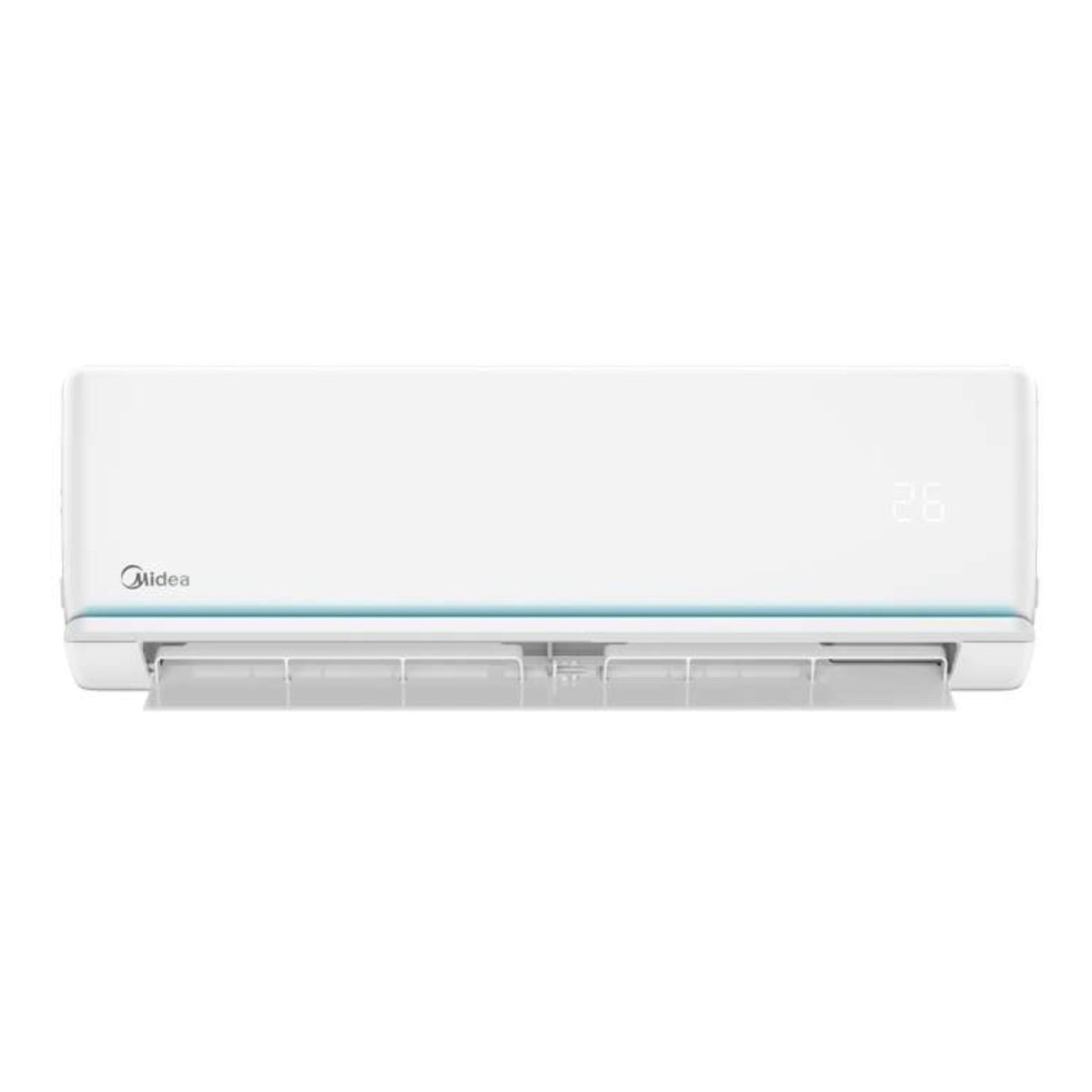

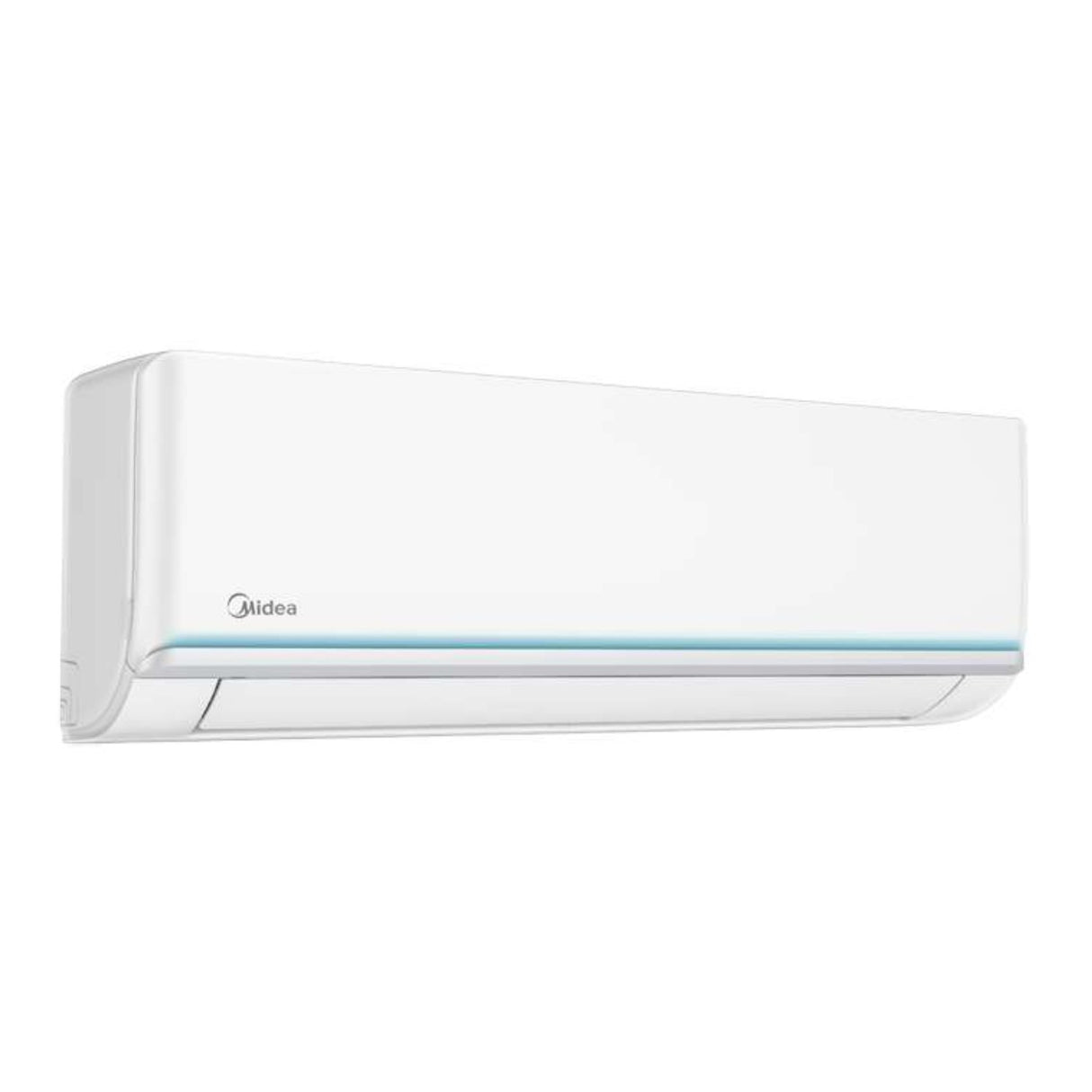

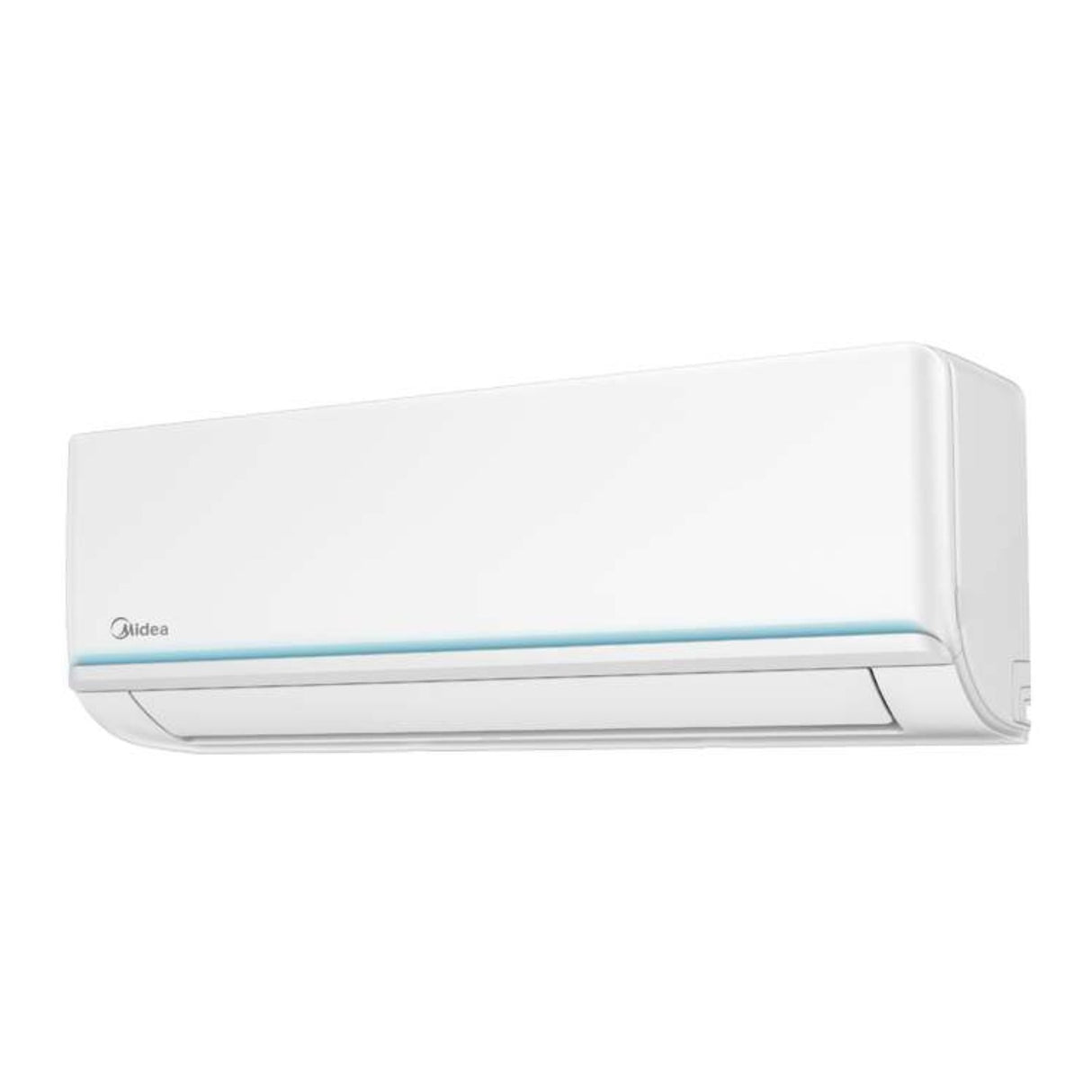

• Indoor Unit Catalog Code : 2x MSAGXAU-09HRDN8
• EAN: 8052705163223
• Power : 9000 Btu
• Cooling Capacity: 2.64 kW
• Heating Capacity: : 2.93 kW
• Air flow: 330~520 m ³ /h
• Sound Power Level : 54 dB(A)
• Sound pressure level : 20~37 dB(A)
• Pipe diameter Liquid : 6.35 mm (1/4")
• Gas pipe diameter: 9.52 mm (3/8")
• Internal Unit Dimensions (LxWxH): 726x210x291 mm
• Indoor Unit Weight: 8.0 Kg
• Optional Wi-Fi CE-SK 105

• Outdoor Unit Catalog Code: M3OF-21HFN8-Q
• EAN : 8052705160109
• Connectable Indoor Units : 3

The evolution of technology. With the Midea Evolution Series air conditioner you can keep control of your domestic consumption thanks to the iECO and GearShift functions, discover true comfort by setting the air conditioner in Follow Me, Breeze Away and Super Cool modes and enjoy your home in safety thanks to the sterilization function for deep cleaning and quick disinfection. Furthermore, thanks to a special anticorrosive treatment, the heat exchanger of the external unit will be resistant to salt air and external atmospheric pollutants.

Self-diagnosis

In the event of a failure, a fault code system allows users to report defects in a simple and clear way to quickly activate the assistance service

1W Stand By

In the event of a prolonged stop, the indoor units completely remove the power supply to the outdoor unit, reducing electricity consumption in the Stand-By phase

Fan linear regulation

The rotation speed of the internal fan, beyond the usual predefined levels of activity, can be adjusted within the values ​​1-100%.

Echo function

This function allows you to limit the rotation frequency of the compressor to reduce the capacity supplied and significantly increase the specific efficiency of the product when used in cooling mode

Refrigerant leak alarm

If the temperatures of the refrigerant circuit are irregular due to refrigerant leaks, a specific fault code (EL-0C) allows to identify this condition

GEAR function

The SMART units are equipped with the GEAR function which allows you to limit the maximum rotation speed of the compressor and the consequent capacity supplied, significantly improving the specific efficiency of the product

Control your climate with your voice

The Right series air conditioner is compatible with Amazon Echo, Google Home, Apple HomeKit.

Controlling comfort in your own home has never been easier. Thanks to the integration with the latest generation technologies Echo Voice Command by Amazon Alexa, Google Home and Apple HomeKit you can "ask" your air conditioner to do the best for you, with Midea.

Midea Smart Kit (Optional)

The indoor units of the Elegance series can be equipped with the CE-SK105 accessory to be managed by a dedicated APP via a WLAN connection

Mono and Multi Indoor Units

The indoor units are multipurpose so that they can be connected in both Mono and Multi configurations. You can therefore decide to install a Mono and add more units in the future.

Follow me function

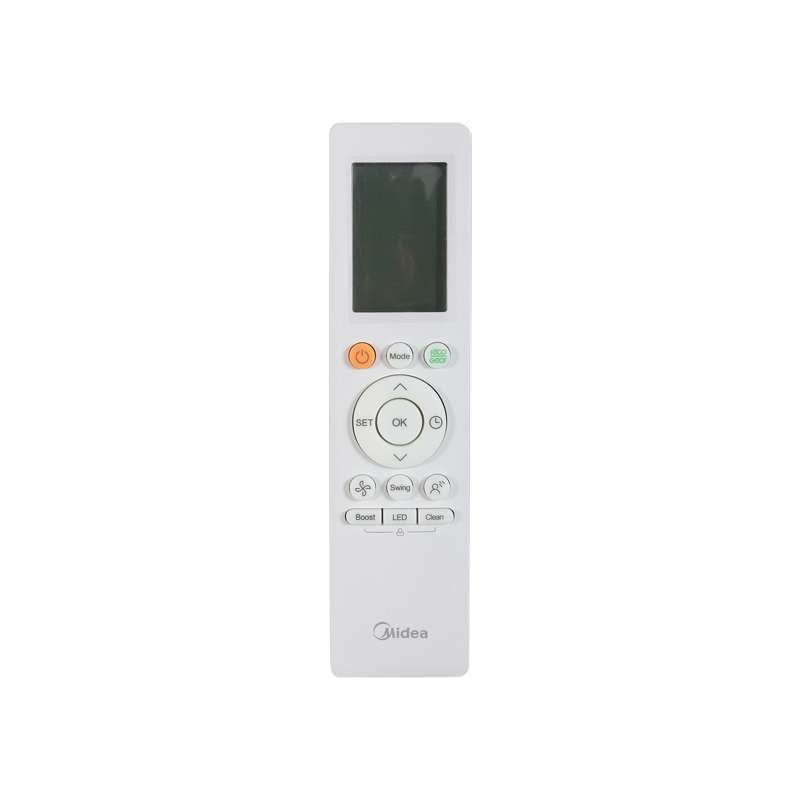

The room temperature can be detected by a special sensor placed in the infrared control, in order to obtain a more precise detection

Emergency function

In the event of a fault in one of the product's sensors, operation can continue in Emergency mode, until the faulty part is replaced

Flap orientation memory

At each restart, the vertical air deflector automatically adjusts to the last used angle

Midea Mutlisplit Outdoor Unit

Midea outdoor units are designed with the highest standards, to combine performance and design, thanks to the innovative diamond-cut shape, with no sharp edges and no visible screws on the front panel. The air expulsion grille, inspired by Archimedes' screw, contains a newly designed fan, designed to reduce noise to a minimum. Finally, the T-shaped rib on the upper panel allows for greater strength and stability

Free Combination

The units of the Multi range can be combined with different types of indoor units of different sizes, in order to obtain the most correct configuration for the installation environment

Condensation control

The units of the Multi line can operate in cooling mode even at low outside temperatures to air-condition all rooms where cooling is needed even in the winter season

Low noise

The adoption of new compressors and latest generation sound-absorbing materials allows the units of the Multi range to be very silent

Electronically controlled expansion valves

The refrigerant flow directed to each indoor unit is managed through an electronically controlled expansion valve, in order to obtain maximum precision in the management of the refrigerant flow

Long piping length

The outdoor units of the multi range admit a long piping length and a very high difference in height

Diamond Design Outdoor Unit

Innovative diamond cut shape with no sharp edges and no visible screws. The air outlet grille contains a newly designed fan to minimize noise.

Diagnostic Monitor

The units have an alphanumeric display which, in addition to indicating the fault codes, allows you to read all the operating parameters of the system to simplify maintenance and assistance operations
