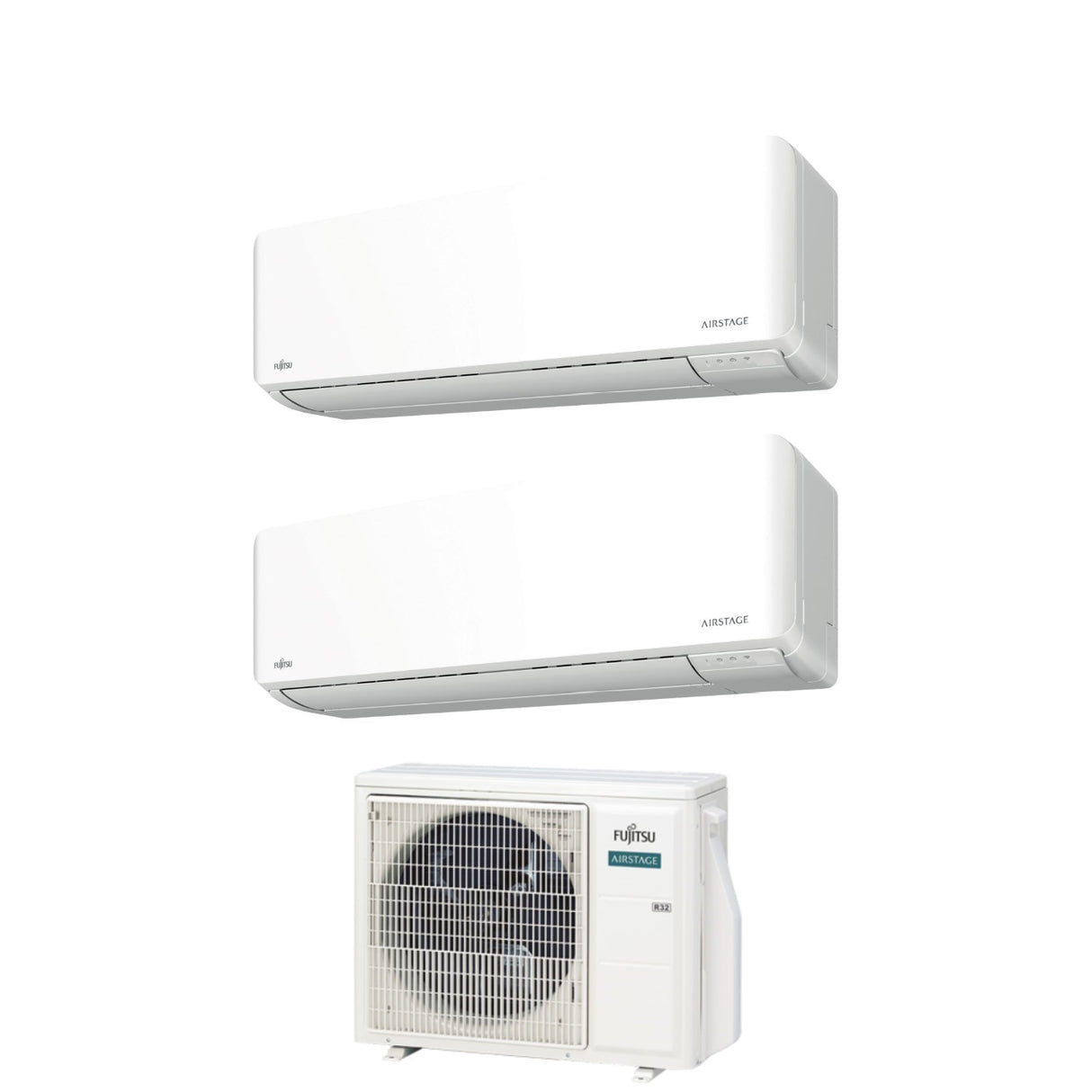

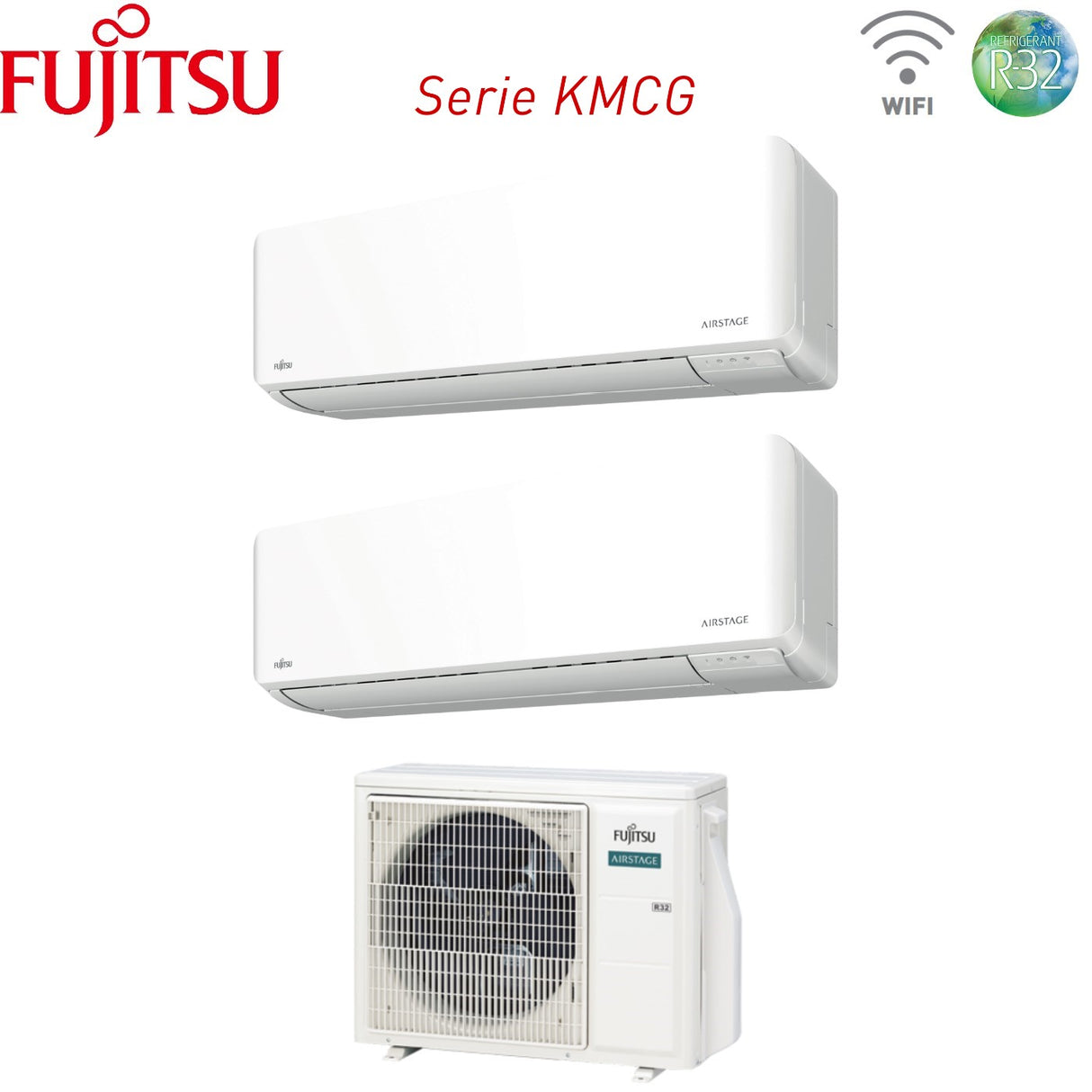

Fujitsu Air Conditioner Dual Split Inverter Series Km 9 + 12 With Aoyg14kbta2r-32 Integrated Wi-Fi 9000 + 12000

• Outdoor unit catalog code : AOYG14KBTA2
• Outdoor unit code: 3NGF7088
• Number of connectable indoor units : Up to 2 indoor units

Energy efficiency

• SEER: 8.7
• SCOP : 4.7
• Energy efficiency class in cooling: A+++
• Energy efficiency class in heating: A++

Performance

• Cooling capacity : 4.0 kW
• Heating capacity: 4.4 kW
• Sound power level : 60~62 dB(A)
• Sound Pressure Level : 47~49 dB(A)

Electrical data

• Power supply (V/Hz/Φ) : 230/50/1
• Refrigerant gas : R-32
• Guaranteed temperature range:
• - Cooling: -10° ~ 46°C
• - Heating: -15° ~ 24°C

Installation data

• Liquid pipe diameter : 6.35 mm (1/4") x2
• Gas pipe diameter : 9.52 mm (3/8") x2
• Maximum piping length: 30 m
• Maximum height difference between indoor unit and outdoor unit: 15 m

Dimensions and weight

• External unit dimensions (HxWxD): 542×799×290 mm
• Outdoor unit weight: 33.0 Kg

High energy saving

High-Tech Components: DC technology is used for the compressor, indoor/outdoor fan motor and inverter control. High efficiency is ensured by a highly efficient heat exchanger, a large fan and a new refrigerant.

New R32 refrigerant

Its low global warming potential (GWP) of one third of the most common refrigerant used for air conditioning, is an advantage for the environment

Fujitsu KM Series

The entire KM range of air conditioners can also be controlled remotely via smartphone and tablet: simply download the free FGLair application, also available in Italian.

The design is characterized by the essentiality of the elegant linear edges: a minimal conception that has allowed Fujitsu Climatizzatori to win the "Good Design Award", in whose evaluation for the assignment of the recognition criteria such as ease of use, basis of product development, functionality and new technologies used.

Slim and elegant design

The slim and elegant shape is achieved thanks to the multi-pass high-density heat exchanger and the high-efficiency fan

Smart control device included

The air conditioner can be controlled from anywhere using the built-in wireless LAN interface. The wireless LAN interface is installed in the indoor unit.

Thanks to the AIRSTAGE Mobile App, you can control the air conditioner anytime, anywhere.

Functions

• Up-down movement of the flaps Automatic opening and closing of the flaps
• Automatic ventilation speed Automatic modification of the ventilation speed according to the temperature required in the room
• Automatic Restart In the event of a momentary power failure, the air conditioner restarts automatically when the power returns
• 10°C HEAT 10°C is the minimum attenuation temperature that can be set in heating
• Automatic switch-off Sleep Night comfort is guaranteed by the gradual regulation of the temperature before the programmed switch-off of the air conditioner
• Daily timer Four possible selections within 24 hours ON, OFF, ON OFF or OFF ON
• Maximum Power Function that allows you to activate the climate control system at maximum power for rapid achievement of comfort
• Automatic cold/heat switching By comparing the room temperature and the set temperature, the air conditioner automatically activates in heating or cooling
• Energy saving Control system for energy saving
• Filter status indicator Allows you to check the cleanliness of the filters

Product Guarantee: All products for sale on our site are new and packed. The warranty on this item is 24 months from the date of purchase.
