ATTENTION The product will be available on order and will be shipped in 10 working days!
Technical features
- Indoor unit catalog code : FAA100A
- Outdoor unit catalog code : RZAG100NV1
- Power : 36000 BtU
- Wi-Fi Optional ( Code BRP069A81 )
- Optional infrared remote control ( Code BRC4C65 )
- Optional White Madoka Wire Control ( Code BRC1H519W )
- Optional Madoka Silver Wire Command ( Code BRC1H519S )
- Optional Madoka Black Wire Command ( Code BRC1H519K )
Energy efficiency:
- SEER: 6.42
- SCOP: 4.01
- Energy Efficiency Class in Cooling: A++
- Heating Energy Efficiency Class: A+
- Annual energy consumption in Cooling : 518 kWh/a
- Annual energy consumption in Heating : 2723 kWh/a
Performance:
- Cooling capacity: 9.5 kW
- Heating capacity: 10.8 kW
- Sound Power Level Indoor Unit : 65 dB(A)
- External Unit Sound Power Level: 66 dB(A)
- Sound Pressure Level Indoor Unit : 41~49 dB(A)
- Sound Pressure Level Outdoor Unit : 47~50 dB(A)
Characteristics:
- Power supply (V,Hz, Ø) : 220~240/50/1
- Refrigerant gas : R-32
- Operating Range:
- Cooling : -20 ~ 52 °C
- Heating : -20 ~ 18°C
Installation data:
- Liquid Pipe Diameter : 9.52 mm (3/8")
- Gas Pipe Diameter: 15.88 mm (5/8")
- Maximum piping length: 85 m
- Maximum height difference Indoor Unit / Outdoor Unit: 30 m
Dimensions and weight:
- Internal Unit Dimensions (HxWxD): 340x1200x240 mm
- Indoor Unit Weight: 17 Kg
- External Unit Dimensions (HxWxD): 870x1100x460 mm
- Weight of Outdoor Unit: 85 Kg

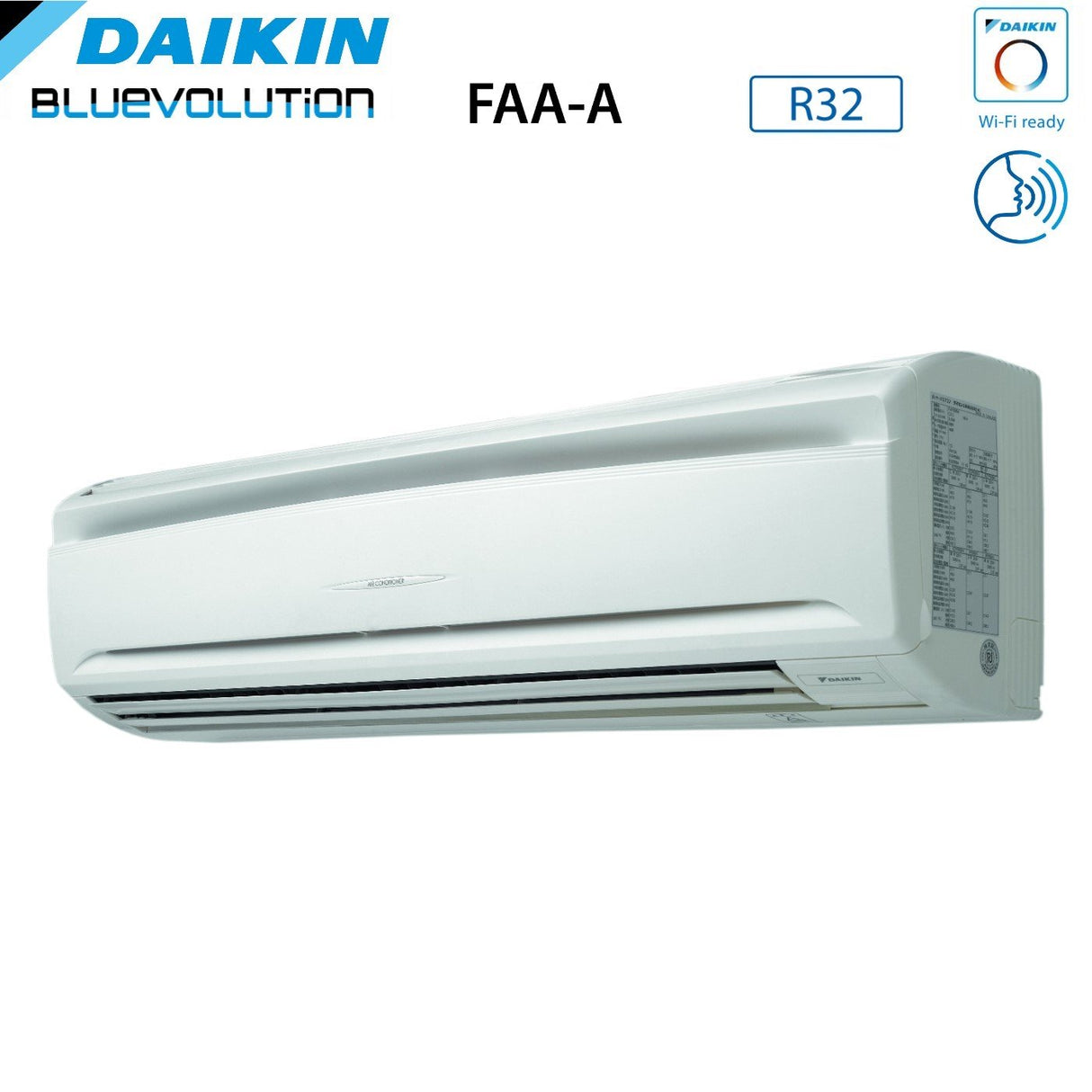

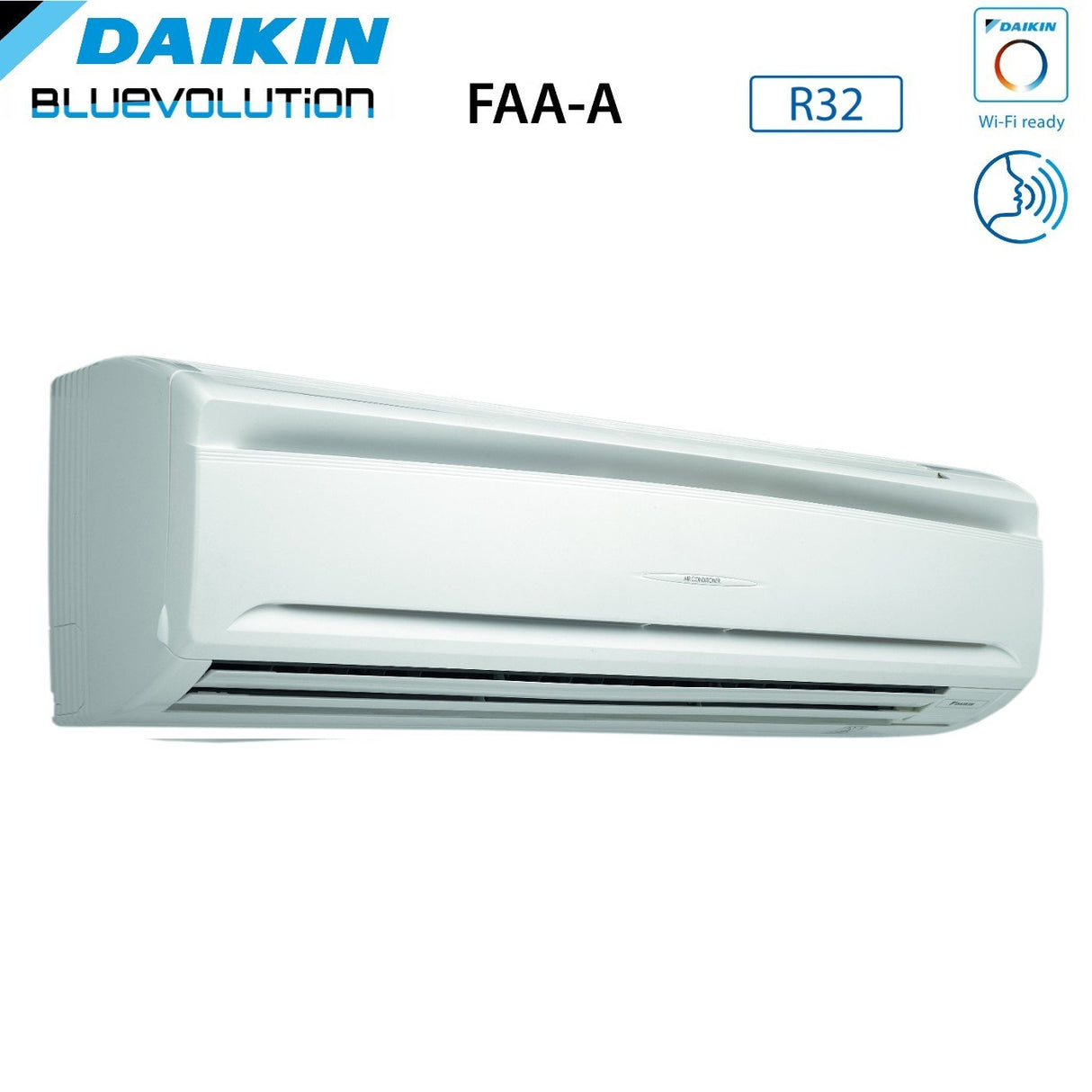

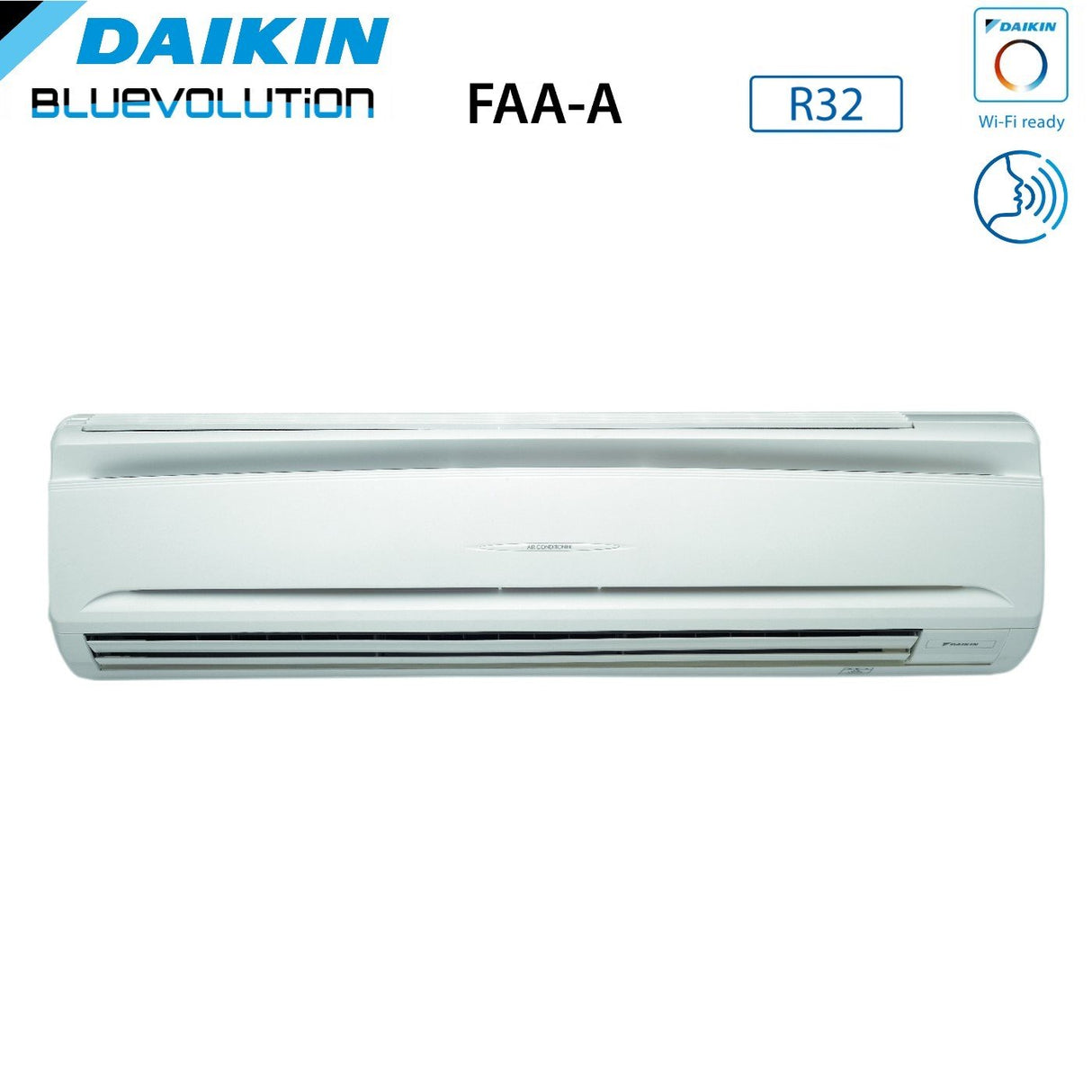

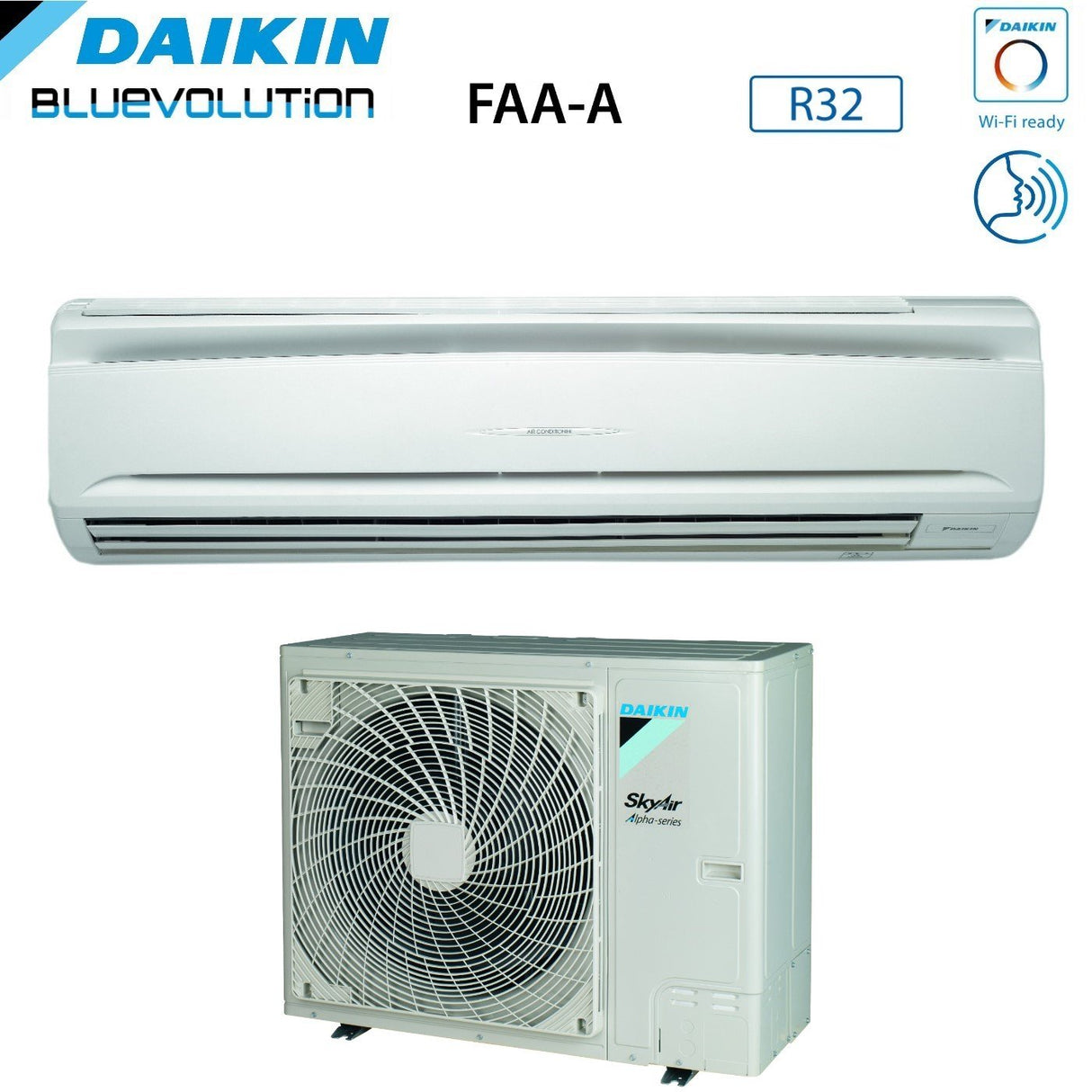

Daikin FAA-A Wall Unit For environments without false ceilings and free floor space
Why choose SkyAir? The better the control, the greater the well-being
Intuitive online control, variable coolant temperature for optimal comfort, customization according to our customers' needs
Flexibility in design
More compact, Quieter, Extended operating range in all climatic conditions
Characteristics
• Combination with Alpha Series Sky Air units ensures the highest levels of quality, efficiency and performance
• Flat front panel with an elegant design in perfect harmony with the furniture and easy to clean
• Suitable for installation in both new buildings and renovation projects
• Air diffused upwards and downwards thanks to the 5 different emission angles available, programmable via the remote control
• Simple maintenance interventions to be carried out from the front of the unit
• Flexible installation as the largest enclosure weighs only 17 kg and piping can be connected to the bottom, left or right side of the unit
Voice Control
The Daikin Residential Controller application is designed for those who live a busy life and want to manage their system via smartphone. To further increase comfort and convenience, the Daikin Residential Controller app is now available with voice control. The ability to control the application hands-free cuts down on necessary clicks and allows for faster drive management than ever before. Transversal and multilingual, voice control can be combined with smart speakers, such as Google Assistant and Amazon Alexa
Unit Always Connected
The unit can be managed via the new Daikin Residential Controller App and compatible with Amazon Alexa and Google Home voice assistants. The Wi-Fi connection is guaranteed thanks to the SD card integrated in the unit
Programming
Set up a schedule to define system operating times, and create up to six different actions per day
Program the room temperature and operating mode
Enable vacation mode to save on energy costs
Monitoring
Get a complete overview of system performance and energy consumption
Check system status
Access energy consumption graphs (daily, weekly, monthly)
Check
Customize the system to fit your lifestyle and year-round comfort needs
Change the ambient temperature
Turn on Powerful mode to boost operation
Feature availability depends on system type, configuration, and mode of operation. The app features are only available if both the Daikin system and the app use a reliable internet connection
Advantages
• Inverters Inverter-driven compressors regulate the speed of the compressor by adapting its operation to actual demand. This allows you to limit stops and restarts by reducing energy consumption (up to 30%) while maintaining more stable temperatures
• "Home Leave" mode It manages the internal temperature during your absence with energy saving, while still guaranteeing room comfort
• Automatic operating mode switching Automatically selects cooling or heating mode to maintain the set temperature
• Automatic vertical swing Possibility to select the automatic vertical movement of the delivery deflectors, to make the air flow and the temperature distribution uniform throughout the room
• Cooling of infrastructures The heat constantly produced by IT equipment and servers can be removed reliably, efficiently and flexibly ensuring maximum life and at the same time offering the best return on investment
• Ventilation only The unit can also be used in ventilation only mode, without cooling or heating
• Fan speed in steps Allows you to select different fan speed values (2 steps)
• Dehumidification program Reduces humidity in the air, avoiding excessive cooling
• Air filter Eliminates dust particles dispersed in the air, improving air quality
• Weekly timer Can be set to start cooling or heating at any time on a daily or weekly basis
• Infrared remote control Allows remote control of the air conditioner functions
• Wired remote control Allows control of the climate control functions
• Centralized remote control Allows management of the climate control functions from a centralized control
• Daikin Residential Controller Possibility of controlling the indoor unit from any location via the app
• Auto restart function After a power failure, the unit automatically restarts with the original settings
• Self-diagnostics Simplifies maintenance by indicating system malfunctions or malfunctions
• Drain pump kit (Optional) Facilitates the evacuation of condensate from the indoor unit
• Twin/triple/double twin application Possibility of connecting 2, 3 or 4 indoor units, even if with different capacities, to a single outdoor unit. All indoor units operate in the same mode (cooling or heating), which can be activated using a single remote control
Product Guarantee: All products for sale on our site are new and packed. The warranty on this item is 24 months from the date of purchase.
