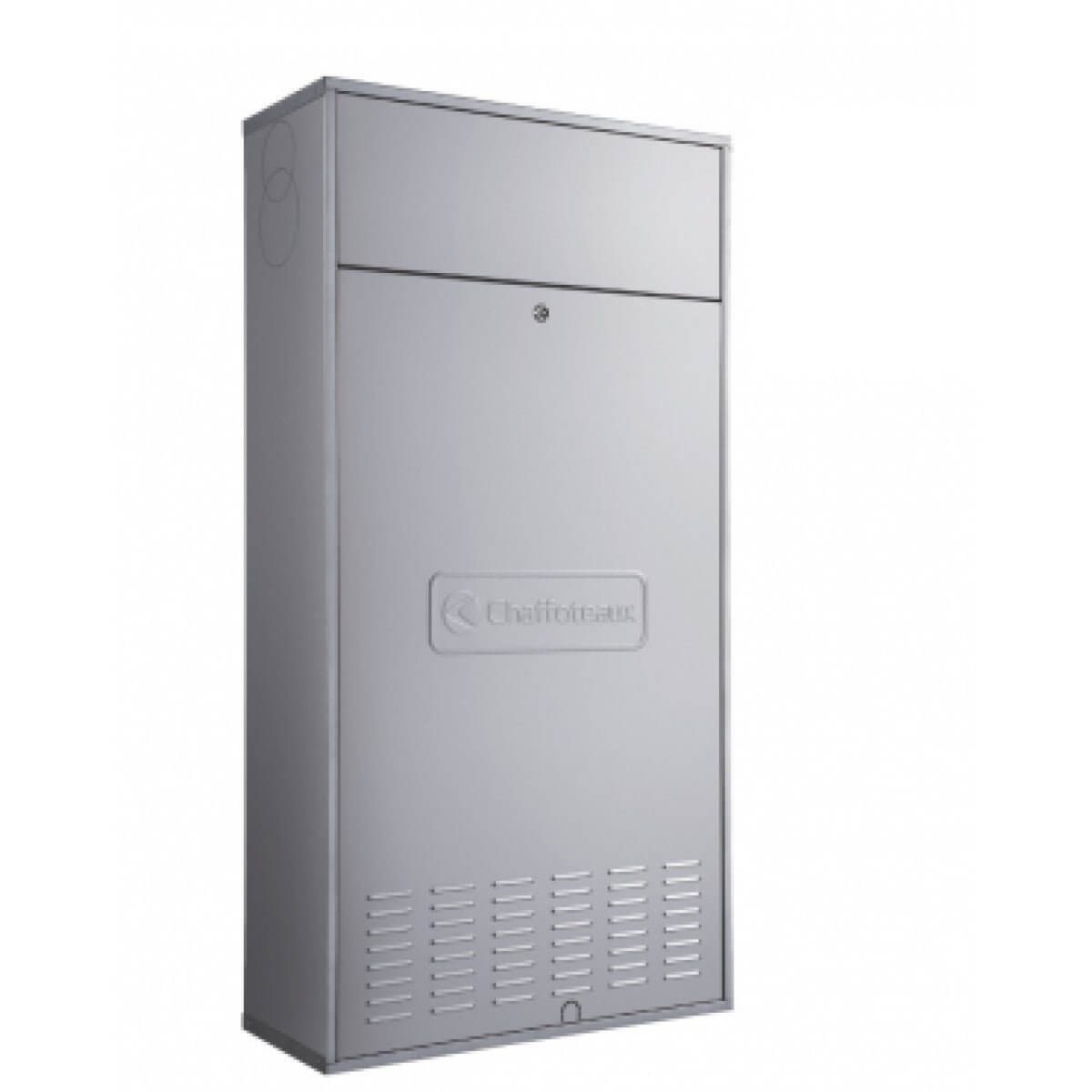

Chaffoteaux Pigma Green Gas Boiler In Ebus2 25 Eu LPG Condensing Complete With Smoke Kit -New Erp

Description

CHAFFOTEAUX PIGMA GREEN BOILER IN Ebus2 25 EU


Energy label specifications according to the European ErP directive
  • Class A heating energy efficiency
  • Sanitary energy efficiency Class A
  • Withdrawal profile: XL

Characteristics of heating/DHW operation:

  • Nominal heat input in heating max/min (Hi) Qn : 22/5.5 kW
  • Useful heat output 80/60°C in heating/DHW max/min: 21.5/5.4 kW
  • Nominal heat input in DHW (60/80°C) max/min: 26/5.5 kW
  • Efficiency at nominal heat input: 97.5%
  • Efficiency at 30% of the nominal heat input: 109%
  • EN13203 sanitary comfort performance stars: ***
  • Energy efficiency stars: (dir 92/42/EEC) ****
  • Expansion vessel capacity: 8 l
  • Port. specific in healthcare (10 min. with ΔT= 30°C): 12.2 l/min
  • Minimum withdrawal: <2 l/min
  • Total absorbed electric power: 78 W
  • Electrical system protection degrees: IP X5D
  • Boiler dimensions hxwxd: mm 771x502x238 ; 30kg
  • Built-in dimensions hxwxd: mm 1140x590x240
  • LPG power supply

PIGMA GREEN IN Ebus2 EU

It is the built-in condensing boiler, with very small dimensions, designed to guarantee exceptional sanitary comfort and high heating performance while respecting the environment and reducing consumption to a minimum.
The built-in unit in sheet metal and the wide range of accessories allow simple and totally concealed installation. Designed to also manage systems with solar integration or with different heating needs in different zones, Pigma Green in Ebus 2 allows you to control the entire system using the Expert Control system manager supplied as standard.


Sanitary comfort

  • Increased plate heat exchanger in stainless steel.
  • 3 stars for sanitary comfort, the maximum required by the EN 13203 standard.
  • 12 l/min (ΔT= 30°C) of domestic hot water flow rate, measured in compliance with the EN 625 standard.
  • DHW circuit managed by four probes and a flowmeter, to eliminate waiting times and have a constant temperature, even in the case of small withdrawals.
  • Perfectly integrable with thermal solar systems, forced and natural circulation
  • Daily and weekly hourly programming of the DHW exchanger pre-heating periods directly from the Expert Control system manager.

Heating comfort

  • Efficiency up to 109% with energy savings up to 35%.
  • 4-star combustion efficiency according to EN 92/42 standard.
  • Automatic regulation system, which can be activated directly from the Remote Control, to obtain the best operating regime in heating in all environmental conditions.
  • Useful thermal power up to 23.5 kW.
  • Modulation ratio 1:5.
  • Reduced polluting emissions, NOx class 5.
  • Heating circuit pressure sensor with display on Expert Control.
  • Modulating circulator to improve acoustic comfort and reduce electricity consumption.
  • Differentiated climatic thermoregulation of 3 circuits, according to the ambient and external temperature.
  • Operation management and programming using the Expert Control system manager: operating modes and temperatures, self-diagnosis, daily and weekly programming, adjustment information and history of the latest faults.

Comfort of use and installation

  • Semi-automatic filling that can be activated by the Expert Control system manager.
  • Expert Control system manager and external probe as standard.
  • Adjustment of the operating parameters directly to the Expert Control system manager.
  • Prepared for the control of system management modules up to 3 circuits at different temperatures.
  • Prepared for the management and integration of thermal solar systems (standard solar probe).
  • IPX5D electrical protection degree and guaranteed operation up to -15°C **.
  • Easy commissioning: automatic de-aeration function and combustion regulation with direct access.
  • Mechanical pressure gauge and filling cock to allow maintenance even without electricity.

Product Warranty All products for sale on our site are new and packed. The warranty on this item is 24 months from the date of purchase.

Chaffoteaux Pigma Green Gas Boiler In Ebus2 25 Eu LPG Condensing Complete With Smoke Kit -New Erp

Product form

CHAFFOTEAUX PIGMA GREEN BOILER IN Ebus2 25 EU Energy label specifications according to the European ErP directive Class A heating... Read more

€1.001,00 Incl. VAT

    Description

    CHAFFOTEAUX PIGMA GREEN BOILER IN Ebus2 25 EU


    Energy label specifications according to the European ErP directive
    • Class A heating energy efficiency
    • Sanitary energy efficiency Class A
    • Withdrawal profile: XL

    Characteristics of heating/DHW operation:

    • Nominal heat input in heating max/min (Hi) Qn : 22/5.5 kW
    • Useful heat output 80/60°C in heating/DHW max/min: 21.5/5.4 kW
    • Nominal heat input in DHW (60/80°C) max/min: 26/5.5 kW
    • Efficiency at nominal heat input: 97.5%
    • Efficiency at 30% of the nominal heat input: 109%
    • EN13203 sanitary comfort performance stars: ***
    • Energy efficiency stars: (dir 92/42/EEC) ****
    • Expansion vessel capacity: 8 l
    • Port. specific in healthcare (10 min. with ΔT= 30°C): 12.2 l/min
    • Minimum withdrawal: <2 l/min
    • Total absorbed electric power: 78 W
    • Electrical system protection degrees: IP X5D
    • Boiler dimensions hxwxd: mm 771x502x238 ; 30kg
    • Built-in dimensions hxwxd: mm 1140x590x240
    • LPG power supply

    PIGMA GREEN IN Ebus2 EU

    It is the built-in condensing boiler, with very small dimensions, designed to guarantee exceptional sanitary comfort and high heating performance while respecting the environment and reducing consumption to a minimum.
    The built-in unit in sheet metal and the wide range of accessories allow simple and totally concealed installation. Designed to also manage systems with solar integration or with different heating needs in different zones, Pigma Green in Ebus 2 allows you to control the entire system using the Expert Control system manager supplied as standard.


    Sanitary comfort

    • Increased plate heat exchanger in stainless steel.
    • 3 stars for sanitary comfort, the maximum required by the EN 13203 standard.
    • 12 l/min (ΔT= 30°C) of domestic hot water flow rate, measured in compliance with the EN 625 standard.
    • DHW circuit managed by four probes and a flowmeter, to eliminate waiting times and have a constant temperature, even in the case of small withdrawals.
    • Perfectly integrable with thermal solar systems, forced and natural circulation
    • Daily and weekly hourly programming of the DHW exchanger pre-heating periods directly from the Expert Control system manager.

    Heating comfort

    • Efficiency up to 109% with energy savings up to 35%.
    • 4-star combustion efficiency according to EN 92/42 standard.
    • Automatic regulation system, which can be activated directly from the Remote Control, to obtain the best operating regime in heating in all environmental conditions.
    • Useful thermal power up to 23.5 kW.
    • Modulation ratio 1:5.
    • Reduced polluting emissions, NOx class 5.
    • Heating circuit pressure sensor with display on Expert Control.
    • Modulating circulator to improve acoustic comfort and reduce electricity consumption.
    • Differentiated climatic thermoregulation of 3 circuits, according to the ambient and external temperature.
    • Operation management and programming using the Expert Control system manager: operating modes and temperatures, self-diagnosis, daily and weekly programming, adjustment information and history of the latest faults.

    Comfort of use and installation

    • Semi-automatic filling that can be activated by the Expert Control system manager.
    • Expert Control system manager and external probe as standard.
    • Adjustment of the operating parameters directly to the Expert Control system manager.
    • Prepared for the control of system management modules up to 3 circuits at different temperatures.
    • Prepared for the management and integration of thermal solar systems (standard solar probe).
    • IPX5D electrical protection degree and guaranteed operation up to -15°C **.
    • Easy commissioning: automatic de-aeration function and combustion regulation with direct access.
    • Mechanical pressure gauge and filling cock to allow maintenance even without electricity.

    Product Warranty All products for sale on our site are new and packed. The warranty on this item is 24 months from the date of purchase.

    Data sheetData sheet
    • peso: 30.0 kg
    • classe energetica produzione acs: A
    • classe energetica riscaldamento: A
    • gas: LPG
    • marca: CHAFFOTEAUX
    • metri quadri : 150
    • modello: PIGMA GREEN IN Ebus2 25 GPL
    • potenza in kw: 25
    • potenza nominale: 25
    • superficie riscaldabile mq: 150
