Technical features Model : Inoa S 24 Reference : 3310664 EU Certificate Number: 0085CU0394 Type of Installation : C10-C13-C23-C33-C43-C53-C63-C83-C93-B23 Gas Category: I2H Energy Performance Nominal heat output in Heating: 4.7 ~ 20.0 kW Heating Thermal Power 60°/80° C : 4,6 ~ 19,6 kW Thermal Power : 4.9 ~ 21.0 kW Nominal heat output in DHW: 4.7 ~ 23.5 kW DHW thermal power: 4.6 ~ 23.0 kW Combustion efficiency : 98.4% Efficiency at nominal heat input 60°/80° C : 88.2 ~ 98 % Efficiency at nominal heat input 30°/50° C : 94.6 ~ 105 % Efficiency at 30% at 30° C Hi : 108.5 % Idle efficiency 60°/80° C : 87.4 ~ 97.1 % Performance Stars : ★★★★ Class : A Maximum shell heat loss ΔT = 30°C : 0.2% Losses to chimney burner in operation: 1.6% Heating Expansion vessel pre-charge pressure: 1 bar Maximum heating pressure : 3 bar Expansion vessel capacity: 8 l High temperature heating temperature : 35° ~ 82° C Low temperature heating temperature : 20° ~ 45° C Domestic hot water DHW temperature : 36° ~ 60° C Specific flow rate in DHW : 11 l/min Instantaneous quantity of hot water ΔT=25°C : 13.2 l/min Instantaneous quantity of hot water ΔT=35°C : 9.4 l/min Stars Sanitary comfort : ★★★ Minimum withdrawal of hot water: 2 l/min Sanitary water pressure: 0.2 ~ 7 bar Withdrawal profile : XL Emissions Residual head : 100 Pa NOx class : 6 Fume temperature G20 at 60/80 : 54° C CO 2 content: 9.4% Maximum flue gas flow rate: 37 Kg/h Excess air : 21% Electrical data Power supply (V,Hz, Ø) : 220~240/50/1 Total absorbed electrical power: 62 W Minimum ambient temperature of use: >0° C Electrical system protection degree: X5D Dimensions and weight Dimensions (HxWxD): 745x400x319 mm Weight : 26Kg Inoa S Compact wall mounted boiler INOA S is the new Chaffoteaux brand condensing boiler, designed to guarantee great performance and high robustness: the primary exchanger in stainless steel and the metal front panel combine efficiency and durability Installation in partially protected places MET/LPG operation with standard kit AP operation with optional kit Compatibility with positive pressure collective flues (C10) Comfort in Heating Primary condensing exchanger in stainless steel. Up to 108% efficiency and 93% seasonal efficiency. 4-star combustion efficiency in compliance with the EN92/42 standard. Modulation range from 20% to 100% of maximum power. Reduced polluting emissions, NOx class 6. High efficiency circulator with continuous modulation to improve acoustic comfort and reduce energy consumption. Arrangement for integration into a heating system via Ebus 2 communication protocol (boilers, solar, system management modules and modulating thermoregulation accessories). Possibility of managing single-temperature and multi-temperature zones via Expert Control. Ready for Chaffolink connectivity. Sanitary comfort Sanitary heat exchanger in stainless steel. Domestic water performance: stars *** Flow rate 13.2 litres/minute with ΔT = 25ºC (24kW) and 16 litres/min with ΔT = 25ºC (29kW). Comfort of use and installation Single-volume structure and metal front panel for greater sturdiness. LCD display and front hydrometer for better accessibility. Front electrical connections. Extremely easy access to components during maintenance (DHW exchanger, hydraulic unit, etc.) Possibility of connection with external probe. Compatible with Expert Control, modulating and on/off accessories. Easier starting: automatic purge function and directly accessible combustion regulation Energy saving and respect for the environment Up to 35% energy savings in combination with a modulating chronothermostat and external probe. 40% reduction in CO 2 emissions Product Guarantee: All products for sale on our site are new and packed. The warranty on this item is 24 months from the date of purchase.

Read more less

Gas water heater AVENIR PLUS LNX SFT 11 Low NOx complete with Methane Fume exhaust kit code 3632443 - NEW Reference 3632443 Category II2H3B/P Nominal heat input 22 kW Minimum heat input 7.8 kW Nominal useful thermal power 19.2 kW Minimum useful thermal power 6.8 kW Nominal flow rate (ΔT 25°C) 11 l/min NOx 45 mg/kWh Maximum hot water temperature 65 °C Maximum absorbed power 29 W Electrical protection degree 29 W Energy class A M pick profile AVENIR PLUS LNX Thermostatic sealed chamber gas water heater, which guarantees total safety and maximum comfort for the user. The innovative design with LCD touch display and the super compact size make it easy to use, install and maintain. The new burner has a staged combustion technology with rich and lean mixtures to keep NOx emissions under control. Low NOx emissions: compliant with the Erp regulation of 09.26.2018 HEALTHCARE COMFORT Thermostatic: thanks to the high-precision NTC probes to detect the water inlet and outlet temperatures and to the DHW flow switch, the temperature remains stable even in the presence of flow rate variations. Versatile: works perfectly even at low hydraulic flow rates (0.1 bar). Intuitive: new large LCD display that is easy to use. SAFETY Maximum safety sealed chamber for non-ventilated systems. Pressure switch for smoke control. Forced flow: flue gas exhaust by fan. Electronic injection and flame control. Standard safety valve (optional safety unit). ENERGY SAVING AND RESPECT FOR THE ENVIRONMENT ECO function: reduces maximum power when not needed to optimize fuel consumption and emissions. Up to 25% less consumption thanks to electronic ignition and flame ionization. Solar kit with thermostatic valve allows the system to be integrated with solar systems. Warranty All products for sale on our site are new and packed. The guarantee on this item is 24 months from the date of purchase.

Read more less

NB: THE BOILER IS BORN WITH METHANE, FOR THE TRANSFORMATION TO LPG, YOU MUST CONTACT THE AREA ASSISTANCE CENTER IN ADVANCE TO KNOW THE RELATED COSTS Chaffoteaux boiler INOA ULTRA 25 CF Open chamber low NOx cod. 3310639 - NEW ErP Technical Characteristics : Rated heat output max/min (Hi) Qn 25.8 / 11.0 kW Useful heating power max/min 23.2 / 9.8 kW Efficiency at nominal power 60/80 Hi 90.1% Efficiency at 30% of nominal power (47 Hi return) 89.9% Outlet temperature range min/max temp. 35-82°C Expansion tank capacity 8l Domestic hot water DHW comfort level (EN 13203) ** Max/min power in DHW mode 24.3 / 9.9 kW Specific flow rate in accordance with EN 625 at ΔT 30º C 11.8 l/min Hot water flow rate at ΔT 25º C 14.2 l/min Electrical data Supply voltage 230 V~ (50 Hz) Maximum absorbed power 52W Electrical protection degree IP X4D Dimensions HxWxD 745x400 x319 mm; 25 kgs INOA ULTRA 25 CF Inoa Ultra, equipped with multifunction LCD display. it contains in its simplicity all the technical characteristics necessary for optimal operation, guaranteeing reliable, practical and safe performance. Low NOx emissions: compliant with the Erp regulation of 09.26.2018 HEALTHCARE COMFORT Sanitary heat exchanger in stainless steel. Flow rate of 14.2 l/min with Δ=25°C. DHW circuit managed by two probes and a DHW flowmeter for better temperature stability based on the type of sampling. HEATING COMFORT High efficiency circulator with continuous modulation to improve acoustic comfort and reduce energy consumption. Heating power of 25 kW. COMFORT OF USE AND INSTALLATION LCD display with display: history, self-diagnosis, operating temperature. Antifreeze function. Compact and perfectly adaptable to any type of home. Quick installation: predisposition for the use of the hydraulic bar (optional). Simplified maintenance: front access to all components. Prepared for integration with solar thermal systems. Prepared for on/off environmental regulation with and without wires. Product Warranty All products for sale on our site are new and packed. The warranty on this item is 24 months from the date of purchase

Read more less

Technical features Energy class in heating: A Energy class in sanitary: A Load profile: XL Heating performance: Thermal input (min./max): 3.7/22 kW Useful power (min./max.): 3.95/21.4 kW Useful thermal efficiency: 98.0 % Idle efficiency (60/80°C): 97.5/87.8 % Heating output max/min (80°C-60°C): 21.4/3.4 kW Performance stars (dir. 92/42/EEC): **** Healthcare performance: Thermal input (min./max): 3.7/28.9 kW DHW thermal power (max/min): 24.9/3.5 kW Heating circuit: Expansion vessel pre-charge pressure: 1 bar Maximum heating pressure: 3 bar Expansion vessel capacity: 8 L Min/max heating temperature (high temperature range): 35 / 82 °C Min/max heating temperature (low temperature range): 20 / 45 °C Healthcare circuit: Min/max domestic hot water temperature: 36 / 90 °C Specific flow rate in sanitary mode (10 min. with ∆T=30°C: 12.1 l/min Instantaneous quantity of hot water ∆T=25°C: 15.5 l/min Instantaneous quantity of hot water ∆T=35°C: 10.4 l/min Sanitary comfort stars (EN13203): *** Minimum withdrawal of hot water: 2 l/min Max/min domestic water pressure: 7.0 / 0.2 bar Electrical data: Protection index IPX5D Class 6 NOx Energy efficiency index of the circulator: EEI ≤ 0.23 Minimum ambient temperature of use: >0°C Total absorbed electric power: 67 W Power supply: METHANE (G20/G30) Dimensions: (HxWxD): 745x400x385mm; Weight: 29.7kg Pigma is the new CHAFFOTEAUX boiler, which is part of the Advance Range, resulting in the category leader with a completely renewed design, using the innovative SpinTech exchanger, electronic combustion control, integrated Chaffolink connectivity and Expert Control and external probe as standard, guaranteeing extremely high performance with extremely low fuel consumption. Can be installed in partially protected places. SpinTech features: Exchanger that works with a stainless steel monospiral New single coil primary heat exchanger in stainless steel Passage sections increased by 142% compared to the previous version 1 m more head Seasonal yield at 94% Class A+ thanks to the standard thermoregulation accessories Performance certified by the TÜV RHEINLAND Group. Give Comfort: Modulation ratio 1:7 Optimized internal silencer SRA function Gas transformation with kit included as standard Ready for Chaffolink connectivity Advantages: Installation in partially protected places Smoke outlets 80, 60, 50 mm Intuitive electrical connections Up to 20% energy savings in combination with Expert Control and the SRA function Up to 30% energy savings by combining Expert Control, the SRA function, the external probe and the radiant floor. Reduced polluting emissions, NOx class 6.

Read more less

Water heater Chaffoteaux Open Chamber mod. BRD LNX 11 Lt Low NOx - NEW ErP Technical Specifications Code: 3632416 Energy class: A Pickup profile: M Typology: Open chamber with natural draft Ignition: Electric (Battery DC 3.0V) Power supply: 230-50V Category: II2H3+ Power supply: methane (G20/21) Performance Minimum/nominal heat input: 9.5/21.5 kW Minimum/nominal operating pressure: 0.15/10 bar Nominal flow rate (∆T 25°C): 11.0 l/min Minimum operating flow: 2.5 l/min ACS performance: Minimum ambient temperature of use: 5°C Sound power: 60dB Electrical protection degree: IPX5 Emissions: Smoke temperature at maximum flow rate: 176°C CO2: NG: 6.5% LPG: 8.5% NOx emissions: 46.5 mg/kWh Dimensions (HxWxD) 617x310x210.8 mm; Weight: 10.2Kg BRD LNX extension The Caffoteaux BRD LNX instantaneous gas water heater is extremely compact, with a completely innovative and elegant design, with mechanical adjustment for simple and quick installation, with electric ignition and flame control. Through an innovative modulation system they allow to obtain an always stable temperature of DHW (Hot Domestic Water). Simple temperature setting, two knobs, one for water flow adjustment, the other for gas level. Advantages: Front maintenance Compact models Mechanical adjustment Safety: Exhaust gas overheating detector “Humid chamber” copper heat exchanger Electronic detection of flame presence Led light that signals the need to change the batteries. Product Guarantee: All products for sale on our site are new and packed. The warranty on this item is 24 months from the date of purchase.

Read more less

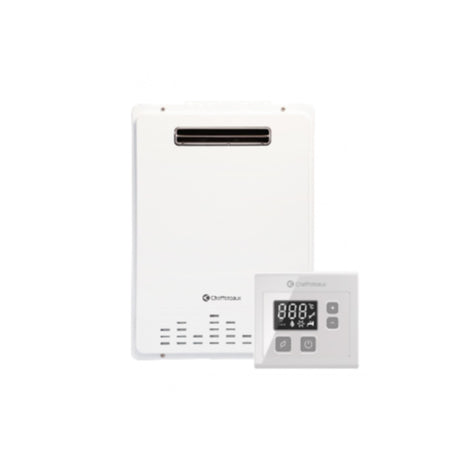

Gas water heater Chaffoteaux Avenir Plus LNX Outdoor 22 liters code 3632470 low NOx LPG Energy class A XL withdrawal profile Product code 3632470 Nominal heat input kW 44 Minimum heat input 8 kW Nominal useful thermal power 37.8 kW Nominal flow rate (ΔT 25°C) 22.0 l/min Maximum hot water temperature 65 °C Minimum ambient temperature of use -20 °C Maximum absorbed power 50 W Power supply 230-50V/Hz LPG Dimensions HxWxD mm 570x394x180 AVENIR PLUS LNX OUTDOOR The thermostatic gas water heater among the most compact on the market for outdoor use. High efficiency thanks to the modulating burner with multiple sections. Maximum safety thanks to installation outside the home, and easier and quicker thanks to the fact that it does not require a smoke outlet. Low NOx emissions: compliant with the Erp regulation of 09.26.2018 COMFORT Modulating: allows for great energy savings and offers greater comfort with one temperature stable in the presence of simultaneous requests for hot water. Thermostatic: high precision NTC probes to measure the cold water inlet temperature e hot water outlet. New standard wired remote control to view and change the temperature. SAFETY Maximum security thanks to installation outside the home. Quick and easy installation thanks to the fact that it does not require a smoke outlet. Standard antifreeze kit and maximum electrical protection IPX5D. Standard safety valve (optional safety group). ENERGY SAVING AND RESPECT FOR THE ENVIRONMENT ECO function: reduces maximum power when not needed to optimize fuel consumption and emissions. Up to 25% less consumption thanks to electronic ignition and flame ionization. Solar kit with thermostatic valve allows the system to be integrated with solar systems. Product Guarantee All products for sale on our site are new and packed. The warranty on this item is 24 months from the date of purchase.

Read more less

Gas water heater AVENIR PLUS LNX SFT 11 Low NOx complete with LPG smoke exhaust kit code 3632444 - NEW Reference 3632444 Category II2H3B/P Nominal heat input 22 kW Minimum heat input 7.8 kW Nominal useful thermal power 19.2 kW Minimum useful thermal power 6.8 kW Nominal flow rate (ΔT 25°C) 11 l/min NOx 45 mg/kWh Maximum hot water temperature 65 °C Maximum absorbed power 29 W Electrical protection degree 29 W Energy class A M pick profile LPG supply AVENIR PLUS LNX Thermostatic sealed chamber gas water heater, which guarantees total safety and maximum comfort for the user. The innovative design with LCD touch display and the super compact size make it easy to use, install and maintain. The new burner has a staged combustion technology with rich and lean mixtures to keep NOx emissions under control. Low NOx emissions: compliant with the Erp regulation of 09.26.2018 HEALTHCARE COMFORT Thermostatic: thanks to the high-precision NTC probes to detect the water inlet and outlet temperatures and to the DHW flow switch, the temperature remains stable even in the presence of flow rate variations. Versatile: works perfectly even at low hydraulic flow rates (0.1 bar). Intuitive: new large LCD display that is easy to use. SAFETY Maximum safety sealed chamber for non-ventilated systems. Pressure switch for smoke control. Forced flow: flue gas exhaust by fan. Electronic injection and flame control. Standard safety valve (optional safety group). ENERGY SAVING AND RESPECT FOR THE ENVIRONMENT ECO function: reduces maximum power when not needed to optimize fuel consumption and emissions. Up to 25% less consumption thanks to electronic ignition and flame ionization. Solar kit with thermostatic valve allows the system to be integrated with solar systems. Warranty All products for sale on our site are new and packed. The guarantee on this item is 24 months from the date of purchase.

Read more less

Chaffoteaux PIGMA ADVANCE EXT 25 condensing boiler complete with methane or LPG fume exhaust kit cod. 3310577 - NEW Reference 3310577 Energy class in heating A + Energy class in sanitary A XL withdrawal profile Characteristics Nominal heat input in heating max/min (Hi) Qn 22.0 / 3.7 kW Nominal heat input in heating max/min (Hs) Qn 24.4 / 4.1 kW Nominal DHW heat input max/min (Hi) Qn 26.0 / 3.7 kW Max/min DHW nominal heat input (Hs) Qn 28.9 / 4.1 kW DHW max/min useful power Pn 24.9 / 3.5 kW Performance stars (dir. 92/42/EEC) **** DHW max/min useful power Pn 24.9 / 3.5 kW Performance stars (dir. 92/42/EEC) **** Instantaneous quantity of hot water ∆T=25°C 15.5 l/min Expansion tank capacity 8l Dimensions Dimensions (Height x Width x Depth) 766 x 505 x 240 mm PIGMA ADVANCE EXT Pigma Advance Ext is the efficient and high-performance solution for outdoors. Equipped with the innovative SpinTech exchanger and ready for connectivity, it is perfect for customers who want accessible comfort. MAXIMUM PERFORMANCE New single coil primary heat exchanger in stainless steel. Passage sections increased by 142% compared to the previous version. 1 m more head. Seasonal yield at 94%. Class A+ thanks to the standard thermoregulation accessories. Performance certified by the TÜV RHEINLAND Group. MAXIMUM COMFORT Modulation ratio 1:7. Optimized internal silencer. SRA function. Gas transformation with kit included as standard. Ready for Chaffolink connectivity. EASY INSTALLATION Minimum operating temperature down to -20°C (-20*C via optional kit code 3318954). Smoke outlets 80, 60, 50 mm. Intuitive electrical connections. ENERGY SAVING AND RESPECT FOR THE ENVIRONMENT Up to 20% energy savings in combination with Expert Control and the SRA function. Up to 30% energy savings by combining Expert Control, the SRA function, the external probe and the radiant floor. Reduced polluting emissions, NOx class 6. Product Warranty All products for sale on our site are new and packed. The warranty on this item is 24 months from the date of purchase.

Read more less

Caratteristiche tecniche Modello : CD2 300 HHP Codice : 3060707 Classe energetica : B Peso netto : 122,0 Kg Accessori Kit flange + heating element 2 kW CD2 HHP : 3078255 Kit passive anode MG : 3078256 Performance Capacità : 279,0 litri Pressione massima di esercizio : 7 bar Dispersioni termiche : 1,62 kW/giorno Serpentino superiore Superficie di scambio : 2,5 m2 Capacità : 13,0 litri Potenza scambiata : 27,9 kW Caduta di pressione a 15 l/min : 80 mbar Serpentino inferiore Superficie di scambio : 1,0 m2 Capacità : 5,0 litri Potenza scambiata : 12,5 kW Caduta di pressione a 15 l/min : 50 mbar   Bollitore per pompe di calore CD2 HHP   Bollitore in acciaio smaltato abbinabile a pompe di calore per la produzione di acqua sanitaria. Anodo attivo e anodo in magnesio di serie. Flangia di ispezione 105 mm. Predisposto per il ricircolo sanitario. Resistenza elettrica e sonda disponibili come accessorio. Disponibile in versione mono serpentino (CD1 HHP) o doppio serpentino (CD2 HHP) per integrazione solare.   Bollitore doppio serpentino con superficie di scambio maggiorata Abbinabile con i modelli di pompa di calore e sistemi ibridi PLUS R-32 per la produzione di acqua sanitaria Serpentino inferiore per integrazione solare Anodo attivo e anodo in magnesio di serie Predisposto per il ricircolo sanitario Flangia di ispezione 105 mm Resistenza elettrica disponibile come accessorio Sonda bollitore disponibile come accessorio Garanzia prodotto : La garanzia su questo articolo è 24 mesi dalla data dell'acquisto.

Read more less

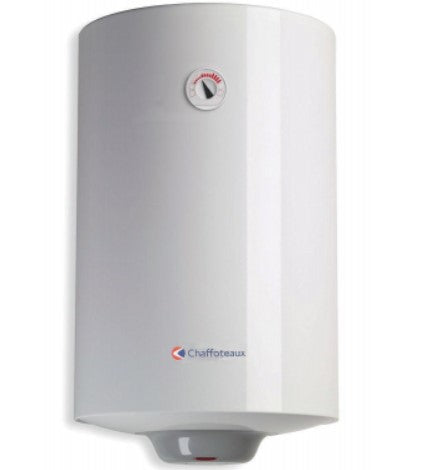

Caratteristiche tecniche Codice prodotto: CHX R EVO 80EU Specifiche etichetta energetica secondo direttiva Europea ErP Classe di efficienza energetica: C Profilo di prelievo: M Performance riscaldamento/sanitario Capacità: 80 litri Installazione: Verticale al muro Potenza: 1200 W Voltaggio: 230 V Tempo di riscaldamento (ΔT=45°C): 3h35 min Pressione max di esercizio: 8 bar Temperatura massima di esercizio : 75°C Protezione: IPX3  Peso Peso : 23 Kg Caratteristiche generali Linea a muro verticale cilindrica con regolazione esterna per unmaggior comfort sanitario.Lo scaldacqua è dotato di una resistenza corazzata, di un anodo dimagnesio e di una caldaia smaltata per una maggior protezione controla corrosione.   COMFORT NELL'USO E NELL'INSTALLAZIONE• Caldaia in acciaio testata a 16 bar con trattamento di smaltatura a polvere.• Anodo di magnesio per proteggere la caldaia dalla corrosione.• Disponibile anche nella versione termoelettrica destra/sinistra e orizzontale.• Lampada spia di funzionamento.• Isolamento in poliuretano senza CFC. Garanzia prodotto : La garanzia su questo articolo è 24 mesi dalla data dell'acquisto.

Read more less

Caratteristiche tecniche Codice prodotto: CHX R EVO 50EU Specifiche etichetta energetica secondo direttiva Europea ErP Classe di efficienza energetica: C Profilo di prelievo: M Performance riscaldamento/sanitario Capacità: 50 litri Installazione: Verticale al muro Potenza: 1200 W Voltaggio: 230 V Tempo di riscaldamento (ΔT=45°C): 2h20 min Pressione max di esercizio: 8 bar Temperatura massima di esercizio : 75°C Protezione: IPX3 Dimensione e peso Dimensione (LxP) : 550x450 mm Peso : 17 Kg Caratteristiche generali Linea a muro verticale cilindrica con regolazione esterna per unmaggior comfort sanitario.Lo scaldacqua è dotato di una resistenza corazzata, di un anodo dimagnesio e di una caldaia smaltata per una maggior protezione controla corrosione.   COMFORT NELL'USO E NELL'INSTALLAZIONE• Caldaia in acciaio testata a 16 bar con trattamento di smaltatura a polvere.• Anodo di magnesio per proteggere la caldaia dalla corrosione.• Disponibile anche nella versione termoelettrica destra/sinistra e orizzontale.• Lampada spia di funzionamento.• Isolamento in poliuretano senza CFC. Garanzia prodotto : La garanzia su questo articolo è 24 mesi dalla data dell'acquisto.

Read more less

Descrizione prodotto Codice prodotto: 3319128 Caratteristiche tecniche Alimentazione elettrica: BUS 8 to 24V max ; Batteria agli ioni di litio Batteria: 3,7 VDC 500 mAh Assorbimento elettrico: ≤30mA Temperatura di funzionamento: 0 ÷ 40°C Temperatura di stoccaggio: -10 ÷ 45°C Umidità: 20% RH ÷ 80% RH Sensore della temperatura: +/- 0,5°C Gradi di protezione: IP 20 Classe del controllo di temperatura: V Contributo all’efficienza energetica % per il riscaldamento degli ambienti: +3% Descrizione Generale Chaffoteaux offre un'ampia gamma di termoregolazione che bilancia in modo intelligente comfort e efficienza energetica. Smart Control Link è il termostato innovativo connesso a ChaffoLink e dal design accattivante, che permette di gestire l'impianto direttamente dallo smartphone. Il nuovo termostato Smart Control Link è dotato di serie del servizio di connettività ChaffoLink, consente la gestione del proprio impianto ovunque e in qualsiasi momento tramite smartphone. Grazie alla semplicità di utilizzo e all'interfaccia intuitiva, la gestione dell'impianto risulterà ancora più facile ed immediata. Garanzia prodotto : Tutti i prodotti in vendita sul nostro sito sono nuovi ed imballati. La garanzia su questo articolo è 24 mesi dalla data dell'acquisto.
