ATTENTION IN THE ABSENCE OF THIS PRODUCT, THE MODEL PIGMA ADVANCE EXT 25 WILL BE SUPPLIED
Overview

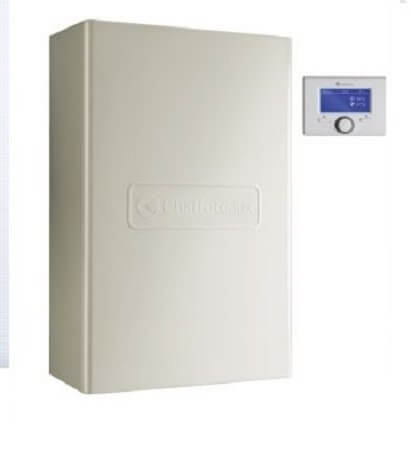

CHAFFOTEAUX PIGMA GREEN EXT Ebus2 25 EU CONDENSING BOILER Cod. 3310443, COMPLETE WITH FUME KIT - NEW ErP 2015: Condensing technology with minimum bulk and maximum installation versatility make Pigma Green Ext Ebus2 EU the best choice where living spaces are you don't want to give up comfort and savings.
Technical specifications
Product code: 3310443
Energy label specifications according to the European ErP directive
Class A heating energy efficiency
Sanitary energy efficiency Class A
Withdrawal profiles: XL
Characteristics of heating/sanitary exercises:
Nominal heat input in heating max/min (Hi) Qn: 22/5.5 kW
Useful heat output 80/60øC in heating/sanitary max/min:ÿ21.5/5.4kW
Nominal heat input in sanitary(60/80øC) max/min:ÿ26/5,5 kW
Efficiency at nominal heat input:ÿ97.5%
Efficiency 30% of nominal heat input:ÿ109%
Sanitary comfort performance starsEN13203: ***
Energy efficiency stars: (dir 92/42/CEE) ****
Capacity of the expansion vessel: 8 lt
Port. specific in healthcare (10 min. with T= 30øC): 12.2 l/min
Minimum withdrawal:ÿ<2ÿl/min
Total absorbed electric power: 76 W
Degrees of protection for the electrical system: IPÿX5D
Dimensions hxwxd: mmÿ766x505x240ÿ; 32kg
METHANE power supply
or
Features list
PIGMA GREEN EXT Ebus2 EU
Condensing technology with minimum bulk maximum installation versatility makes Pigma Green Ext Ebus2 EU the best choice where living spaces are precious and you don't want to give up comfort and savings. Resistant to corrosion, wind and frost, it can be installed anywhere and conveniently control all functions via the standard Expert Control system manager. Pigma Green Ext Ebus2 can be perfectly integrated with solar thermal systems and modules for the management of multi-zone systems, even with different temperatures, to make any design solution simple.
Sanitary comfort
Increased plate heat exchanger in stainless steel.
3-star sanitary comfort, the maximum unexpected by the EN 13203 standard.
12 l/min (T= 30°C) domestic hot water flow rate, measured in compliance with standard EN 625.
Sanitary circuit managed by four probes and a flowmeter, to eliminate waiting times and have a constant temperature, even in the case of small withdrawals.
Perfectly integrable with thermal solar systems, forced and natural circulation
Daily and weekly hourly programming of the DHW exchanger pre-heating periods directly from the Expert Control system manager.
Heating comfort
ÿRendimentfinal 109% with energy savingsfinal 35%.
4-star combustion efficiency according to the EN 92/42 standard.
Automatic regulation system, which can be activated directly from the Remote Control, to obtain the best heating operating regime in all environmental conditions.
Useful thermal power up to 23.5 kW.
Modulation ratio 1:5.
Reduced polluting emissions, NOx class 5.
Heating circuit pressure sensor with display on Expert Control.
Modulating circulatorÿ to improve acoustic comfort and reduce electricity consumption.
Differentiated climatic thermoregulation of 3 circuits, according to the ambient and external temperature.
Operation management and programming through the Expert Control system manager: operating modes and temperatures, self-diagnosis, daily and weekly programming, adjustment information and history of the latest faults.
Convenience of installation use
Semi-automatic fillings that can be activated from the Expert Control system manager.
Expert Control system manager and external probe as standard.
Adjustment of operating parameters directly to Expert Control system manager.
Arranged for the control of 3-circuit system management modules at different temperatures.
Prepared for the management and integration of thermal solar systems (standard solar probe).
Electrical protection degrees IPX5D and operation guaranteed up to -15øC **.
Commissioning made easier: automatic de-aeration function and combustion regulation with direct access.
ERP extension
From 26 September 2015 the directives of the European Commission concerning eco-design and energy labeling will apply.
These two directives aim to achieve savings in one of the most polluting and most energy intensive sectors: construction
For placing on the European market, the directive on ÿeco-designÿ(ErP notcome®ÿEnergy Related Productsÿ¯) imposes a minimum energy efficiency for heating devices and hot water production in domestic premises. The directive applies to:
generators with a capacity of less than 400 kW
water heaters with a capacity of less than 400 kW,
kettles with a capacity of less than 2000 litres
As in the household appliances sector, the energy labelingÿof products, with a capacity of less than 70 kW, will give consumers simple, recognizable information which allows them to make comparisonsÿon the performance and energy consumption of the product they wish to purchase.
The energy label will be included in all boilers, water heaters and storage tanks placed on the market from 26 September 2015.
The information indicated on the energy labelÿwill allow professionals to recommend the right productÿÿindividuals to benefit from the information available.
The user will be able to easily compare the performance of the products.
From 26 September 2015, the label will be present on the following products: boilers, electric water heaters, thermodynamic water heaters, solar water heaters, storage tanks, heat pumps, solar systems and control systems.
The company that supplies the product on the market is required to equip its system devices with the following documentation:
product energy label;ÿ
product data sheet;ÿ
system energy label in addition to that of the product, both if it sells a system that includes the product in question, and if this, in the future, can be sold combined with other additional devices;ÿ
technical data sheet of the system with the parts relating to the products and the system already completed.
First of all, it should be clarified that the reseller can be anyone who sells, rents, offers for rent/sale and exhibits a device/system to the public. Therefore, even professionals such as plumbers, installers, designers can fall into this category. All bound to ensure that:
all appliances and/systems having their respective labels and making sure they are clearly visible;ÿ
all appliances and/systems must always be accompanied by the obligatory technical data sheets;ÿ
every type of advertising material, technical promotional material which shows energy data and price indications, contains an indication of the energy efficiency class.
The new ErP regulations
ENERGY LABELLING:
Appliances for space heating and the production of hot water will have to be equipped with the new energy label which will report the energy class and the main performance data. The energy class must also be mentioned in the technical, commercial and advertising documentation of the appliances.
ECODESIGN (ErP):
The new ErP regulations impose the minimum energy efficiency that space heating and hot water production appliances must achieve in order to obtain the CE mark and be marketed in Europe. These new limits will exclude obsolete technologies from the market, significantly raising the level of energy efficiency of products.
PRODUCT LABEL
There are different labels depending on the type of appliance. Those with efficiency classes A, A+ and A++ certify products with the highest performance. Furthermore, two different classifications are foreseen for domestic heating and for hot water production services, so much so that mixed products must show both classifications. In addition to the energy class, the labels contain other information, so that the end customer can make his choice in the most aware way possible.
SYSTEM LABEL
In addition to the product label, the system label is also providedÿin cases where a series of appliances combined with each other is offered. This label must also be included in the technical and commercial documentation of the system. Those proposing such systems will have to calculate the performance using a predefined calculation algorithm and display the label so as to inform the end user in the best possible way.
