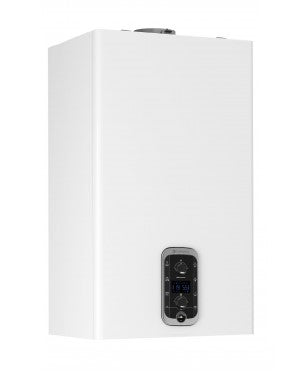

Chaffoteaux Condensing Boiler Mod. Niagara Advance 35 C Low Nox Complete With Methane Fume Exhaust Kit

Chaffoteaux Condensing Boiler mod. NIAGARA ADVANCE 35 C low NOx Complete with Methane Fume exhaust kit

• Code: 3310627
• Power 35 kW
• Energy class in heating A
• Energy class in sanitary A
• Pickup profile XXL
• Dimensions HxWxD 900 x 600 x 460 mm

Technical data

• Nominal heat input in heating max/min (Hs) Qn 34.5/3.5 kW
• Max/min DHW nominal heat input (Hs) Qn 38.3/3.9 kW
• Efficiency at nominal heat input (60/80°C) Hi/Hs 97.5/87.8%
• Performance stars (dir. 92/42/EEC) ****
• NOx class 6
• Expansion tank capacity 8l
• Power supply voltage/frequency 230 / 50 V/Hz
• Degree of protection of the electrical system IP X5D

NIAGARA ADVANCE

Niagara Advance , a concentrate of performance, comfort and compactness, combines the technology of the new Advance range with two 20-litre boilers to meet the most demanding domestic hot water needs.

MAXIMUM PERFORMANCE

• New single coil primary heat exchanger in stainless steel.
• Passage sections increased by 142% compared to the previous version.
• 1 m more head.
• Seasonal yield at 94%.
• Class A+ reachable with thermoregulation.
• Performance certified by the TÜV RHEINLAND Group.

MAXIMUM COMFORT

• Modulation ratio 1:10.
• Optimized internal silencer.
• SRA function.
• Gas transformation with kit included as standard.
• Ready for Chaffolink connectivity.

HEALTHCARE COMFORT

• 40 liter reserve thanks to two stratified stainless steel inter-accumulators.
• Permanent availability of domestic hot water even with discharged inter-tanks.
• Domestic hot water performance ***, maximum level foreseen by the EN 13203 standard.
• Flow rate up to 19.8 l/min with ΔT = 25ºC.
• Integrated 2-litre sanitary expansion tank.

EASY INSTALLATION

• Installation in partially protected places.
• Smoke outlets 80, 60, 50 mm.
• Intuitive electrical connections.

ENERGY SAVING AND RESPECT FOR THE ENVIRONMENT

• Up to 20% energy savings in combination with Expert Control and the SRA function.
• Up to 30% energy savings by combining Expert Control, the SRA function, the external probe and the radiant floor.
• Reduced polluting emissions, NOx class 6.

• peso: 35.0 kg
• classe efficienza energetica: A
• classe energetica produzione acs: A
• classe energetica riscaldamento: A
• gas: Methane
• marca: Chaffoteaux
• metri quadri : 200
• modello: 3310627
• potenza in kw: 25
• potenza nominale: 35
• superficie riscaldabile mq: 200
