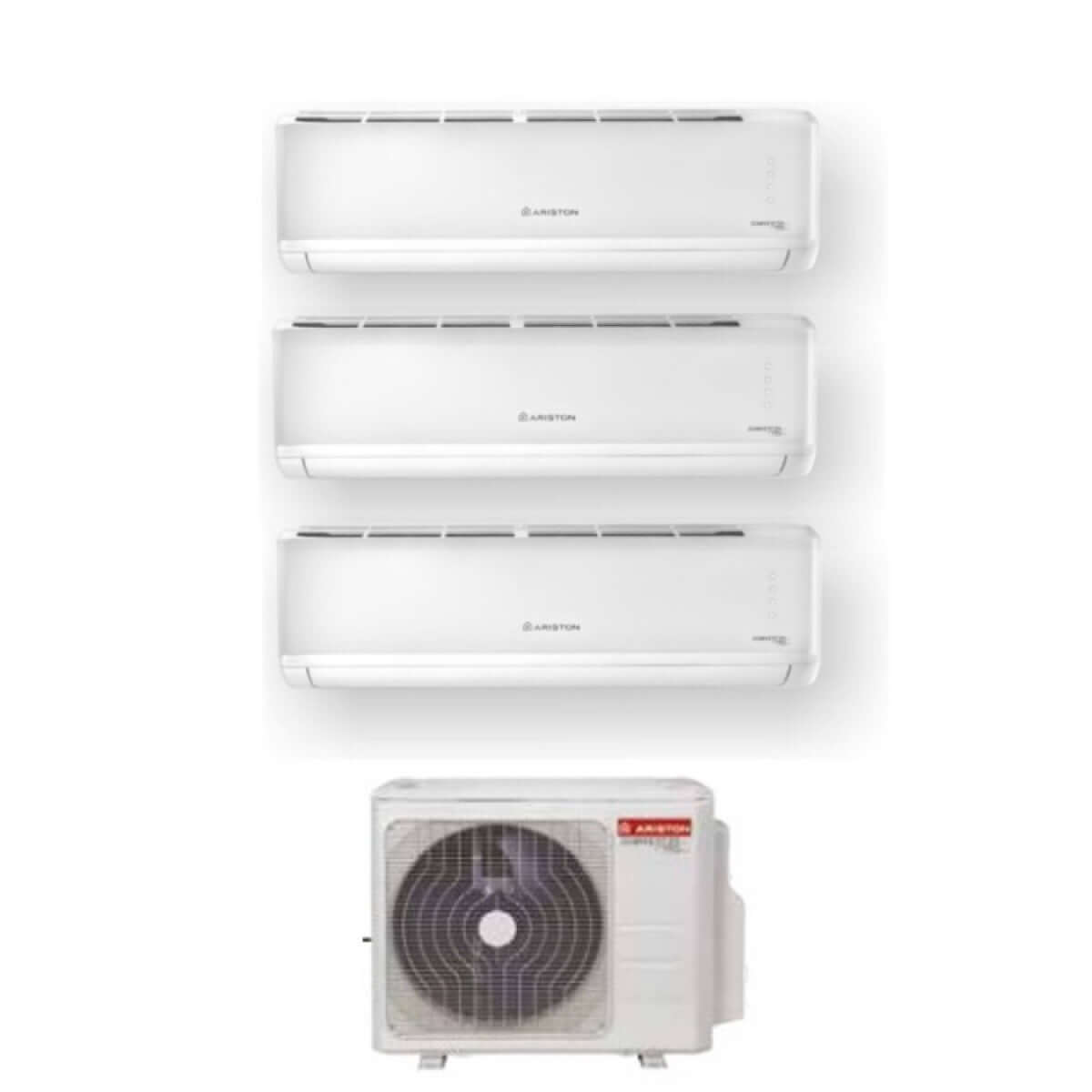

Ariston Trial Split Inverter Air Conditioner Alys 9+9+18 Series With Quad 110 Xd0c-O R-32 Wi-Fi Optional 9000+9000+18000

Important Notice on Regulations for Fluorinated Gases IN ITALY

In accordance with Regulation (EU) No. 517/2014 and Presidential Decree No. 146/2018, equipment containing fluorinated gases that is not hermetically sealed can only be sold if installed by a certified company.

By law, each sale must be recorded in the Fluorinated Gas Database, including a declaration from the buyer ensuring that the installation complies with the regulations. Therefore, before completing the order, it will be necessary to provide this mandatory declaration.

Description

Technical features

Indoor units

1) Model

  • Indoor unit catalog code : 2x ALYS 25 UD0-I
  • Product code : 3381251
  • Power: 9000 btu/h
  • Capacity : 2.5 kW
  • Treated air : 587 m 3 /h
  • Sound pressure level : 23~36 dB(A)
  • Liquid piping diameter : 6.35 mm (1/4")
  • Gas pipe diameter: 9.52 mm (3/8")
  • Internal unit dimensions: 805x194x285 mm
  • Weight : 7.5Kg
  • Wi-Fi Optional

2) Model

  • Indoor unit catalog code : 1x ALYS 50 UD0-I
  • Product code : 3381253
  • Power: 18000 btu/h
  • Capacity : 5.8 kW
  • Treated air : 795 m 3 /h
  • Sound power level : 54 dB(A)
  • Sound pressure level : 23~42 dB(A)
  • Liquid piping diameter : 6.35 mm (1/4")
  • Gas pipe diameter: 12.70 mm (1/2")
  • Internal unit dimensions: 957x213x302 mm
  • Weight : 9.0 Kg
  • Wi-Fi Optional

Outdoor unit

Model:

  • Outdoor unit catalog number : QUAD 110 XD0C-O (3381262)
  • Number of connectable indoor units : Up to 4 indoor units

Energy efficiency

  • SEER : 6.1 (W/W)
  • SCOP : 4.0 (W/W)
  • Annual energy consumption in cooling : 607.8 kW/a
  • Annual energy consumption in heating : 2939 kW/a

Performance

  • Cooling capacity : 10.6 kW
  • Heating capacity : 11.0 kW
  • Sound power level : 65.4 dB(A)
  • Sound pressure level : 63 dB(A)

Electrical data

  • Power (V/Hz/Φ) : 220~240/50/1
  • Refrigerant gas : R-32
  • Guaranteed temperature range:
  • - Cooling: -15° ~ 50°C
  • - Heating: -25° ~ 30° C

Installation data

  • Liquid Pipe Diameter : 6.35mm (1/4") x4
  • Gas pipe diameter : 9.52 mm (3/8") x3 + 12.70 mm (1/2")
  • Maximum piping length: 35 m
  • Maximum difference in height indoor unit / outdoor unit: 15 m

Dimensions:

  • External unit dimensions: 946x410x810 mm
  • Outdoor unit weight: 68.8 Kg

Alys R-32 Quad

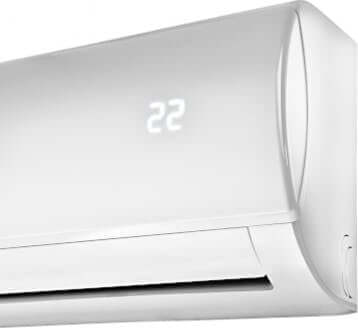

Unità Interna Alys

12 Speed

The product has 12 speeds in all: three settable speeds in addition to the three sub-levels and speeds of the dehumidifier, turbo and silence functions.


Anti-odour filter
Eliminates bacteria and molds and prevents the causes of the most common allergies, capturing the allergens present in the air and breaking down their structure

Low Ambient

Low Ambient Cooling function for cooling


1W Standby

Stand-by mode to optimize consumption up to 80%


Characteristics

  • R32 refrigerant gas
  • 2D INVERTER technology
  • Compatible with ARISTON CLIMA R32 Wi-Fi KIT
  • Memory function
  • BOOSTER function
  • Refrigerant leak sensor
  • SELF-CLEANING function
  • Auto-matching function for multisplit, for a correct hydraulic connection, automatically and in every situation

Product Guarantee: All products for sale on our site are new and packed. The warranty on this item is 24 months from the date of purchase.

Ariston Trial Split Inverter Air Conditioner Alys 9+9+18 Series With Quad 110 Xd0c-O R-32 Wi-Fi Optional 9000+9000+18000

Product form

Technical features Indoor units 1) Model Indoor unit catalog code : 2x ALYS 25 UD0-I Product code : 3381251 Power:... Read more

€1.800,00 Incl. VAT

    Description

    Technical features

    Indoor units

    1) Model

    • Indoor unit catalog code : 2x ALYS 25 UD0-I
    • Product code : 3381251
    • Power: 9000 btu/h
    • Capacity : 2.5 kW
    • Treated air : 587 m 3 /h
    • Sound pressure level : 23~36 dB(A)
    • Liquid piping diameter : 6.35 mm (1/4")
    • Gas pipe diameter: 9.52 mm (3/8")
    • Internal unit dimensions: 805x194x285 mm
    • Weight : 7.5Kg
    • Wi-Fi Optional

    2) Model

    • Indoor unit catalog code : 1x ALYS 50 UD0-I
    • Product code : 3381253
    • Power: 18000 btu/h
    • Capacity : 5.8 kW
    • Treated air : 795 m 3 /h
    • Sound power level : 54 dB(A)
    • Sound pressure level : 23~42 dB(A)
    • Liquid piping diameter : 6.35 mm (1/4")
    • Gas pipe diameter: 12.70 mm (1/2")
    • Internal unit dimensions: 957x213x302 mm
    • Weight : 9.0 Kg
    • Wi-Fi Optional

    Outdoor unit

    Model:

    • Outdoor unit catalog number : QUAD 110 XD0C-O (3381262)
    • Number of connectable indoor units : Up to 4 indoor units

    Energy efficiency

    • SEER : 6.1 (W/W)
    • SCOP : 4.0 (W/W)
    • Annual energy consumption in cooling : 607.8 kW/a
    • Annual energy consumption in heating : 2939 kW/a

    Performance

    • Cooling capacity : 10.6 kW
    • Heating capacity : 11.0 kW
    • Sound power level : 65.4 dB(A)
    • Sound pressure level : 63 dB(A)

    Electrical data

    • Power (V/Hz/Φ) : 220~240/50/1
    • Refrigerant gas : R-32
    • Guaranteed temperature range:
    • - Cooling: -15° ~ 50°C
    • - Heating: -25° ~ 30° C

    Installation data

    • Liquid Pipe Diameter : 6.35mm (1/4") x4
    • Gas pipe diameter : 9.52 mm (3/8") x3 + 12.70 mm (1/2")
    • Maximum piping length: 35 m
    • Maximum difference in height indoor unit / outdoor unit: 15 m

    Dimensions:

    • External unit dimensions: 946x410x810 mm
    • Outdoor unit weight: 68.8 Kg

    Alys R-32 Quad

    Unità Interna Alys

    12 Speed

    The product has 12 speeds in all: three settable speeds in addition to the three sub-levels and speeds of the dehumidifier, turbo and silence functions.


    Anti-odour filter
    Eliminates bacteria and molds and prevents the causes of the most common allergies, capturing the allergens present in the air and breaking down their structure

    Low Ambient

    Low Ambient Cooling function for cooling


    1W Standby

    Stand-by mode to optimize consumption up to 80%


    Characteristics

    • R32 refrigerant gas
    • 2D INVERTER technology
    • Compatible with ARISTON CLIMA R32 Wi-Fi KIT
    • Memory function
    • BOOSTER function
    • Refrigerant leak sensor
    • SELF-CLEANING function
    • Auto-matching function for multisplit, for a correct hydraulic connection, automatically and in every situation

    Product Guarantee: All products for sale on our site are new and packed. The warranty on this item is 24 months from the date of purchase.
    Data sheetData sheet
    • peso: 75.0 kg
    • classe energetica raffreddamento: A++
    • classe energetica riscaldamento: A+
    • gas: R-32
    • marca: Ariston
    • modello: ALYS 9+9+18 110_1
    • potenza btu: 9000+9000+18000
    • superficie riscaldabile mq: 25/25/50
