Technical features
- Model : ZTQ12000
- Internal unit Ean code: 8019101724618
- External unit Ean code: 8019101724601
- Power : 12000 Btu
Energy efficiency
- SEER : 6.1
- SCOP : 4.0
- Energy Efficiency Class in Cooling : A++
- Heating Energy Efficiency Class: A+
Performance
- Cooling Capacity: 3.40 kW
- Heating Capacity: 3.42 kW
- Treated Air Internal Unit: 550 m 3 /h
- Sound Power Level Indoor Unit : 32~50 dB(A)
- External Unit Sound Power Level: 60 dB(A)
Electrical data
- Power supply (V,Hz, Ø) : 220~240/50/1
- Refrigerant gas : R32
- Operating range : 16 - 31°C
Installation data
- Pipe diameter Liquid : 6.35 mm (1/4")
- Gas pipe diameter: 9.52 mm (3/8")
- Maximum piping length: 15 m
- Maximum height difference Indoor Unit / Outdoor Unit: 10 m
Dimensions and weight
- Internal Unit Dimensions (WxHxD): 777x250x201 mm
- Indoor Unit Weight: 8.0 Kg
- External Unit Dimensions (WxHxD): 777x498x290 mm
- Weight of Outdoor Unit: 24.0 Kg
5 year warranty on the compressor
All Zephir® clima products are protected by a 5-year warranty and a national network of 145 technical assistance centers
Zephir ADVANCE
The importance of the inverter
The Inverter technology allows the modulation of the power supplied by the air conditioner in proportion to the actual request for "cold" or "heat", possible by increasing or decreasing the rotation speed of the compressor. This eliminates the continuous starts and stops of the engine (classic on / off air conditioner) with electricity savings between 30 and 60% over eight hours of continuous operation

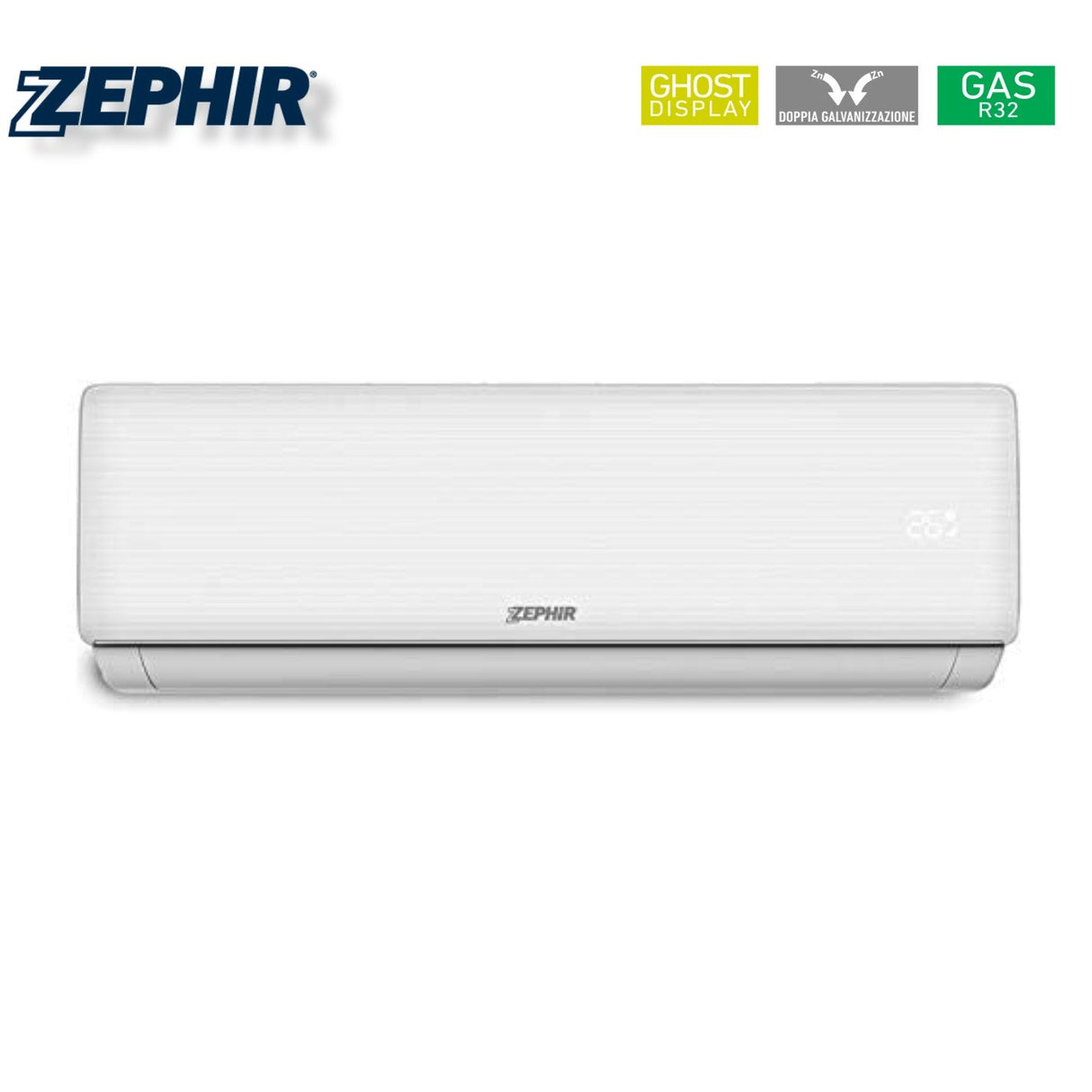

Ghost Display
The air conditioner display is located under the white panel and can be read transparently when the unit is switched on. The visual effect is of great impact, minimal and very elegant. The display can be turned off at any time so as not to generate light, for example at night
Antibacterial filters for quality air
Many bacteria often end up hibernated by the low internal temperature of the appliances, to then be released again into the domestic environment as soon as the air conditioners are turned off and stop producing cold. The filters in our appliances guarantee clean and healthy recycled air because they prevent the proliferation of bacteria during peak heat and seasonal humidity
Auto-Restart function
In the event of a power failure, this function restarts the air conditioner and restores the previously set conditions
Independent dehumidification
A very useful function that allows you to use the air conditioner without starting the cooling mode, guaranteeing the same satisfaction but with lower electricity consumption. Often, in fact, to defeat even the heaviest heat, it is enough to lower the humidity and decrease the temperature by 3 degrees. Not to mention that reducing the humidity level in the rooms improves air quality and positively affects the well-being and health of the whole family
Galvanization
Over time any metal is subject to deterioration. Bad weather or simple prolonged exposure outdoors generate oxide on surfaces, damaging metals to the point of making them unsightly. For this reason, all the external units of Zephir air conditioners are treated with a double "Galvanization" process which consists in the application of one or more layers of zinc on the steel in order to guarantee complete protection of the surface
Galvanizing is therefore an additional security that prolongs the life of our air conditioners and always makes them beautiful
The SENDZIMIR method (Continuous Hot Galvanization)
It is a hot-dip galvanizing process of the sheets that make up our outdoor units, which are thus coated with a protective layer of zinc. The metal is immersed in a ceramic tank which contains molten zinc at a temperature of about 700°C to which lead and aluminum are usually added, the first as a fluidifying element and the second to favor the adhesion of the zinc to the steel. Before passing into the zinc, the sheet metal is subjected to a degreasing treatment in order to eliminate surface impurities. Subsequently, to eliminate the iron oxides, it is pickled in hydrochloric acid. Once the coating phase has been completed, the metal is ready for the subsequent profiling process
Characteristics
- R32 ecological gas with very low environmental impact
- High performance air filters with activated carbon
- Energy saving function -15%
-
Double drainage for installation on both sides
-
Double electroplating for high strength and durability
Functions
