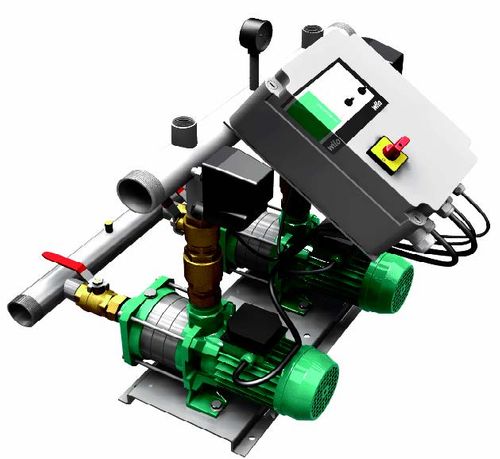

Water Booster Group With Pressure Switches Wilo Three-Phase P2 0.75 Kw Coe-2mhil305-Dm/Bc 2982793

Description

Water booster set with Wilo three-phase P2 pressure switches 0.75 kW COE-2MHIL305-DM/BC 2982793


General characteristics

  • Brand: Wilo
  • Model: COE-2MHIL305-DM/BC
  • Code: 2982793

Data sheet

Hydraulic data

  • Supply pressure: 6 bar
  • operating pressure max. p: 10 bars
  • Pressure-side pipe connection DNd: G 2
  • Pipe connection on the suction side DNs: G 2
  • Number of pumps: 2
  • Number of standby pumps: 0
  • Number of service pumps: 2
  • Fluid temperature min. Tmin: 5 °C
  • max temperature temperature Tmax: 55 °C
  • ambient temperature min. Tmin: 0 °C
  • ambient temperature max. Tmax: 40°C

Engine data

  • Mains power supply: 3~400V, 50Hz
  • Voltage tolerance: ±10%
  • P2 motor rated power: 0.75 kW
  • Rated Current IN: 1.95A
  • Nominal speed n: 2900 1/min
  • Insulation class: F
  • Degree of protection: IP54
  • Engine efficiency ?m 50% ?M 50%: 79.5%
  • Engine efficiency ?m 75% ?M 75%: 80.7%
  • Engine efficiency ?m 100% ?M 100%: 80.7%

Materials

  • Pump body: Cast iron
  • Impeller: PPE/PS-GF30
  • Shaft: Stainless steel
  • Mechanical seal: Q1BE3GG
  • Gasket material: EPDM
  • Manifold material: 1.0026, zinc plated

Description

Water supply system with 2 fixed performance high head centrifugal pumps, mounted in parallel and arranged horizontally, in the version with ventilated motor of the MHIL series, with normal suction. Ready for connection with stainless steel collectors, mounted on plinth, equipped with a BC command device.

For fully automatic water supply and pressure boosting in residential buildings and small businesses.

For pumping drinking water and clean industrial water, as well as other aqueous solutions which do not chemically or mechanically attack the materials used and which do not contain abrasive or fibrous substances.

Product specificity/advantages

• High operational safety thanks to the system with two horizontal MHIL multistage pumps with stainless steel hydraulic system

• High-efficiency EC motor with IE3 class for three-phase motors from 0.75 kW and above

• Drinking water approval (DHW) for pumps with wetted parts made of stainless steel

• Easy to use thanks to the Basic Control command station with all the necessary functions

Equipment/function

  • For each system, two pumps of the MHIL 3 to MHIL 5 series with standardized motor IE3 for 3~ motors and IE1 for 1~ motors
  • Wetted parts are corrosion resistant
  • Base in galvanized steel
  • Galvanized steel manifolds
  • Shut-off valve on the suction and discharge side of each pump
  • Check valve on the discharge side of each pump
  • Pressure switch, discharge side
  • Pressure gauge, delivery side
  • Optional protection against water shortage, suction side
  • Automatic pump control specific for the management of fixed performance pumps with the control unit

BasicControl , housed in a plastic case.

The electromechanical technology used guarantees the functions required for operation. Start/stop of pumps by pressure switch; protection against lack of water, motor protection switch, cyclical pump switching, delay in switching off the pumps. An LED indicator provides information on any alarms and on the operation of the pumps and has an operating mode selector.


Product Guarantee: All products for sale on our site are new and packed. The warranty on this item is 24 months from the date of purchase.

Water Booster Group With Pressure Switches Wilo Three-Phase P2 0.75 Kw Coe-2mhil305-Dm/Bc 2982793

Product form

Water booster set with Wilo three-phase P2 pressure switches 0.75 kW COE-2MHIL305-DM/BC 2982793 General characteristics Brand: Wilo Model: COE-2MHIL305-DM/BC Code:... Read more

€1.330,00 Incl. VAT

    Description

    Water booster set with Wilo three-phase P2 pressure switches 0.75 kW COE-2MHIL305-DM/BC 2982793


    General characteristics

    • Brand: Wilo
    • Model: COE-2MHIL305-DM/BC
    • Code: 2982793

    Data sheet

    Hydraulic data

    • Supply pressure: 6 bar
    • operating pressure max. p: 10 bars
    • Pressure-side pipe connection DNd: G 2
    • Pipe connection on the suction side DNs: G 2
    • Number of pumps: 2
    • Number of standby pumps: 0
    • Number of service pumps: 2
    • Fluid temperature min. Tmin: 5 °C
    • max temperature temperature Tmax: 55 °C
    • ambient temperature min. Tmin: 0 °C
    • ambient temperature max. Tmax: 40°C

    Engine data

    • Mains power supply: 3~400V, 50Hz
    • Voltage tolerance: ±10%
    • P2 motor rated power: 0.75 kW
    • Rated Current IN: 1.95A
    • Nominal speed n: 2900 1/min
    • Insulation class: F
    • Degree of protection: IP54
    • Engine efficiency ?m 50% ?M 50%: 79.5%
    • Engine efficiency ?m 75% ?M 75%: 80.7%
    • Engine efficiency ?m 100% ?M 100%: 80.7%

    Materials

    • Pump body: Cast iron
    • Impeller: PPE/PS-GF30
    • Shaft: Stainless steel
    • Mechanical seal: Q1BE3GG
    • Gasket material: EPDM
    • Manifold material: 1.0026, zinc plated

    Description

    Water supply system with 2 fixed performance high head centrifugal pumps, mounted in parallel and arranged horizontally, in the version with ventilated motor of the MHIL series, with normal suction. Ready for connection with stainless steel collectors, mounted on plinth, equipped with a BC command device.

    For fully automatic water supply and pressure boosting in residential buildings and small businesses.

    For pumping drinking water and clean industrial water, as well as other aqueous solutions which do not chemically or mechanically attack the materials used and which do not contain abrasive or fibrous substances.

    Product specificity/advantages

    • High operational safety thanks to the system with two horizontal MHIL multistage pumps with stainless steel hydraulic system

    • High-efficiency EC motor with IE3 class for three-phase motors from 0.75 kW and above

    • Drinking water approval (DHW) for pumps with wetted parts made of stainless steel

    • Easy to use thanks to the Basic Control command station with all the necessary functions

    Equipment/function

    • For each system, two pumps of the MHIL 3 to MHIL 5 series with standardized motor IE3 for 3~ motors and IE1 for 1~ motors
    • Wetted parts are corrosion resistant
    • Base in galvanized steel
    • Galvanized steel manifolds
    • Shut-off valve on the suction and discharge side of each pump
    • Check valve on the discharge side of each pump
    • Pressure switch, discharge side
    • Pressure gauge, delivery side
    • Optional protection against water shortage, suction side
    • Automatic pump control specific for the management of fixed performance pumps with the control unit

    BasicControl , housed in a plastic case.

    The electromechanical technology used guarantees the functions required for operation. Start/stop of pumps by pressure switch; protection against lack of water, motor protection switch, cyclical pump switching, delay in switching off the pumps. An LED indicator provides information on any alarms and on the operation of the pumps and has an operating mode selector.


    Product Guarantee: All products for sale on our site are new and packed. The warranty on this item is 24 months from the date of purchase.
