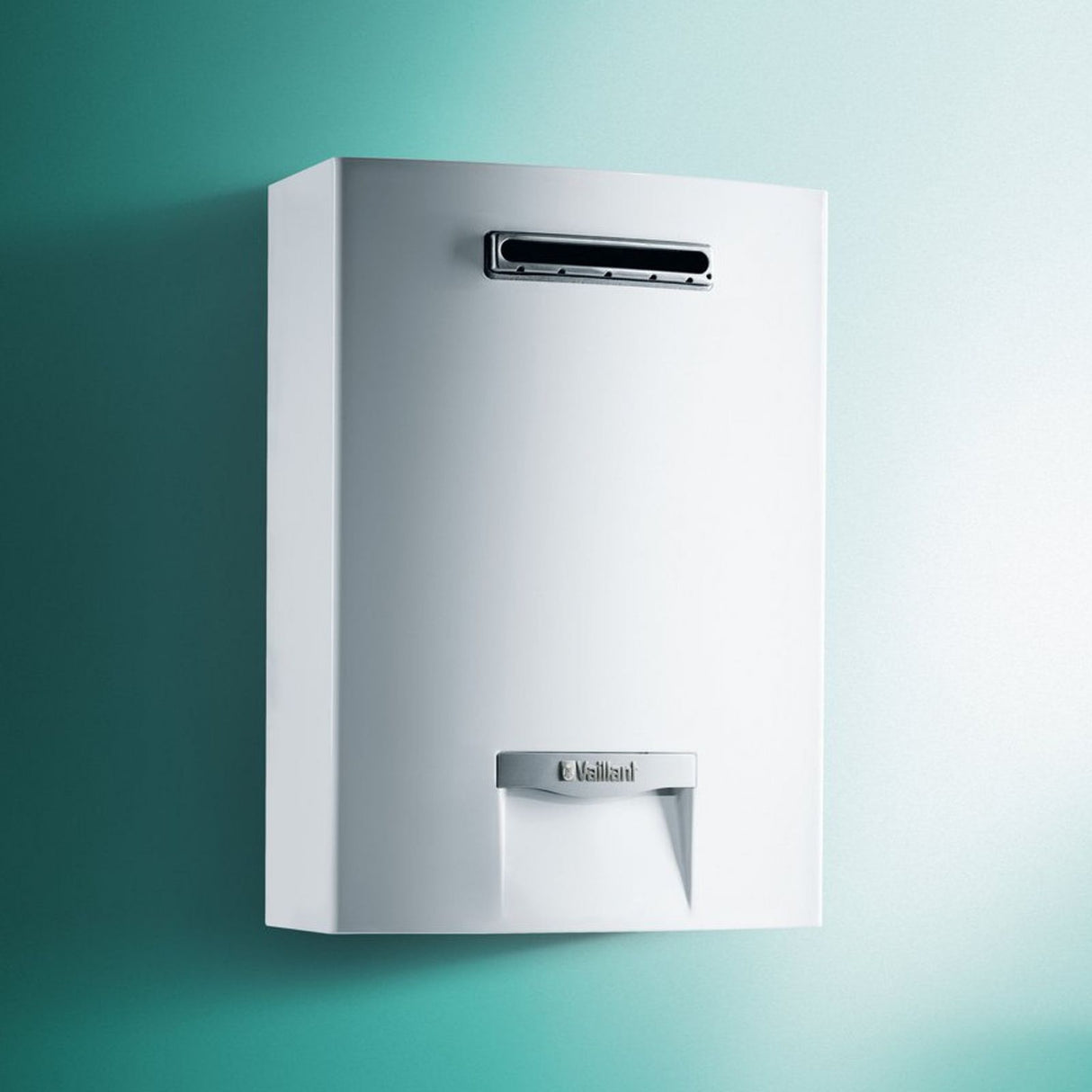

Gas water heater Vaillant Outsidemag 16-5/1-5 LPG Offer !!

Description

Technical features

Sanitary efficiency class: A;
Sanitary load profile: XL;

Performance:
Domestic hot water production (ΔT = 25K): 16.0 l/min;
Domestic hot water production (ΔT = 35K): 11.4 l/min;
Minimum hot water flow rate: 2.5 l/min;

Thermal power (min/max): 7.7 - 31.0 kW;
Power supply: 230/50V/Hz;
Total electric power: 123W;
Electric power without antifreeze device: 51 W;

Inlet gas pressure: 20/37 mbar;
Methane fumes discharge temperature (min.max): 100/200 °C;
Maximum operating overpressure: 10 bar;
Admissible operating pressure range (min./max): 0.2/10 bar;
DHW temperature (min.max): 38-60 °C;

Sanitary fittings: G 1/2" inch;
Gas connection: G 1/2" inch;
Fume exhaust connection: 60/100 mm;

Sound Power: 68 dBA;
Minimum operating temperature: -25°C;
IP degree of protection IP X5D;
Power supply: LPG or Propane gas (G31);

Dimensions

(HxWxL): 609x180x453 mm; Weight: 21.0 Kg;

General characteristics

Vaillant OutSide Mag water heater designed to always guarantee the same temperature of the water being dispensed.
A particular feature of this water heater is its easy installation for outdoors, not even requiring connections to the flue, thanks to a facade drain already integrated in the front panel, it also guarantees very high resistance to atmospheric agents and the coldest temperatures (up to -25°C).
Studied in detail, also through a modern and innovative design built with high efficiency materials, which not only fit into any environment, but through the front air intake always ensures the correct oxygen supply to ensure that the device work properly.


All managed by a high technology that through a display or Touch interface, simple and intuitive to use, allows the rapid management of your comfort, and has a special function that through a loud acoustic signal, warns you in case there is an overflow from the tub during ACS output.

Advantages:
New version with improved performance;
Extremely compact dimensions;
Wide modulation range;
Perfect dispensing temperature stability;
Design and intuitive touch screen;

Gas water heater Vaillant Outsidemag 16-5/1-5 LPG Offer !!

Product form

Technical features Sanitary efficiency class: A; Sanitary load profile: XL; Performance: Domestic hot water production (ΔT = 25K): 16.0 l/min;... Read more

€330,00 Incl. VAT

    Description

    Technical features

    Sanitary efficiency class: A;
    Sanitary load profile: XL;

    Performance:
    Domestic hot water production (ΔT = 25K): 16.0 l/min;
    Domestic hot water production (ΔT = 35K): 11.4 l/min;
    Minimum hot water flow rate: 2.5 l/min;

    Thermal power (min/max): 7.7 - 31.0 kW;
    Power supply: 230/50V/Hz;
    Total electric power: 123W;
    Electric power without antifreeze device: 51 W;

    Inlet gas pressure: 20/37 mbar;
    Methane fumes discharge temperature (min.max): 100/200 °C;
    Maximum operating overpressure: 10 bar;
    Admissible operating pressure range (min./max): 0.2/10 bar;
    DHW temperature (min.max): 38-60 °C;

    Sanitary fittings: G 1/2" inch;
    Gas connection: G 1/2" inch;
    Fume exhaust connection: 60/100 mm;

    Sound Power: 68 dBA;
    Minimum operating temperature: -25°C;
    IP degree of protection IP X5D;
    Power supply: LPG or Propane gas (G31);

    Dimensions

    (HxWxL): 609x180x453 mm; Weight: 21.0 Kg;

    General characteristics

    Vaillant OutSide Mag water heater designed to always guarantee the same temperature of the water being dispensed.
    A particular feature of this water heater is its easy installation for outdoors, not even requiring connections to the flue, thanks to a facade drain already integrated in the front panel, it also guarantees very high resistance to atmospheric agents and the coldest temperatures (up to -25°C).
    Studied in detail, also through a modern and innovative design built with high efficiency materials, which not only fit into any environment, but through the front air intake always ensures the correct oxygen supply to ensure that the device work properly.


    All managed by a high technology that through a display or Touch interface, simple and intuitive to use, allows the rapid management of your comfort, and has a special function that through a loud acoustic signal, warns you in case there is an overflow from the tub during ACS output.

    Advantages:
    New version with improved performance;
    Extremely compact dimensions;
    Wide modulation range;
    Perfect dispensing temperature stability;
    Design and intuitive touch screen;

    Data sheetData sheet
    • peso: 20.0 kg
    • gas: LPG
    • litri: 16
    • marca: VAILLANT
    • modello: SCALD_185906
