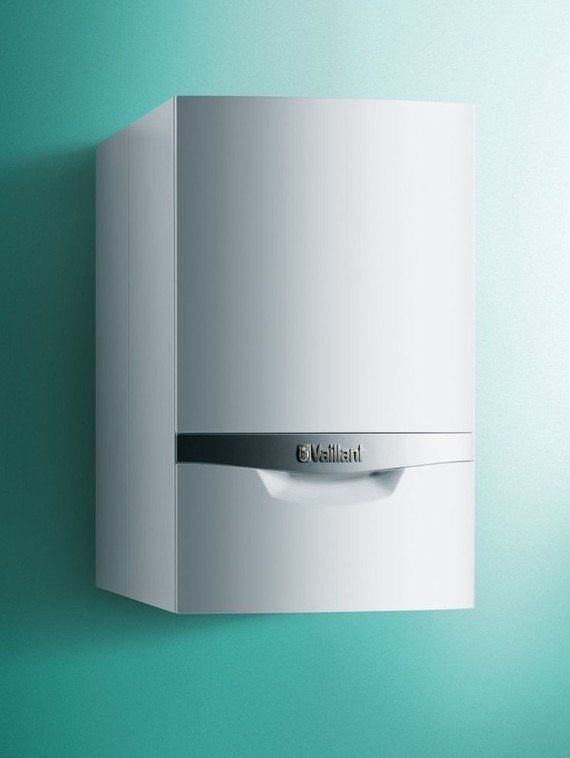

Vaillant Ecotec Plus Condensing Boiler Vmi 346/5-5 With Kettle Complete With Fumes Kit - Erp LPG

NB: IN THE ABSENCE OF THE PRODUCT THE FOLLOWING MODEL VMI 35 WILL BE SHIPPED

VAILLANT ecoTEC PLUS CONDENSING BOILER VMI 346/5-5 with boiler COMPLETE WITH FUME KIT - ErP LPG

Technical features

• ErP energy class (Heating and DHW): class A
• Sanitary load profile - XL
• For heating and domestic hot water production
• Forced draft sealed chamber
• Nominal thermal power in sanitary kW 34
• DHW nominal heat input kW 34
• Performance stars (according to Dir. 92/42CEE) - ****
• Consumption at nominal power Natural gas m3 /h 3.7
• Expansion vessel capacity 10 l
• Maximum water content in the system l 180
• Storage tank setting temperature °C 35 - 65
• Boiler nominal volume l 20
• Minimum water flow l/min 1.5

• Hot water withdrawal capacity (ΔT = 30K) l/10min 199
• Domestic hot water comfort stars (prEN 13203) - ***
• Dimensions (hxpxl) mm 720x567x440; 59.5kg
• Power supply V/Hz 230/50
• Total electric power W 115
• Sound power dBA 49
• IP degree of protection IP X4 D
• NOx class - 5
• Version: CNG (0010019531)
• To view more product information CLICK HERE
• General characteristics
• Vaillant condensing boiler

With the strategic plan 20/20/20, Europe has the objective of producing 20% ​​less CO2, using 20% ​​more renewable energy and consuming 20% ​​less primary energy. All this by 2020. To achieve these objectives, the EU has issued the ErP Directive (energy related products) which specifies the minimum eco-design requirements for equipment that uses energy, including energy efficiency.

The world of heating will also be affected by this revolutionary change. In fact, from 2015 the energy efficiency of boilers will be based on new performance indexes that will take into account seasonal performance. Among the most significant changes to the new methodology for measuring seasonal efficiency are the introduction of different nominal temperatures, operation also at partial loads and in standby mode. The new methodology will make it possible to evaluate the performance of a boiler in real conditions, based on the level of efficiency calculated over an entire year.

ecoTEC PLUS with boiler

Little space and a large family? ecoTEC plus with built-in wall-mounted boiler is the boiler designed to satisfy a high demand for hot water when spaces do not allow for the installation of external boilers.

• The VMW ecoTEC plus with actoSTOR CL 20 S integrable storage tank are available in power ratings of: 30 and 34 kW.

• This stratification boiler is a real hot water reserve that can be installed very easily and quickly directly between the wall and the boiler. An exceptional solution that ensures the quantity of water needed is always available and without sudden changes in temperature.

• The boiler system with storage tank is very simple to assemble: first install the actoSTOR CL wall-mounted storage tank and the related pipes supplied for domestic water, then hang the ecoTEC plus VMW wall-mounted boiler on the storage tank. The dimensions are very small 70cm high, 44cm wide and 55cm deep.

• The stratification storage tank guarantees the same performance as a storage tank with a 60-litre coil but with considerably reduced spaces. The combination with ecoTEC plus allows you to exclude the storage tank functionality by making the boiler work instantaneously; this allows a considerable saving on gas consumption.

• New electronics and a very high efficiency pump make ecoTEC plus the wall-mounted condensing boiler that consumes less on the European market. ecoTEC plus is compatible with all Vaillant components and accessories already on the market. The new design is simple and intuitive.

Product Guarantee
All products for sale on our site are new and packed. The warranty on this item is 24 months from the date of purchase.

• peso: 35.0 kg
• classe energetica produzione acs: A
• classe energetica riscaldamento: A
• gas: LPG
• marca: Vaillant
• metri quadri : 250
• modello: CALD_391
• potenza in kw: 34
• potenza nominale: 34
• superficie riscaldabile mq: 250
