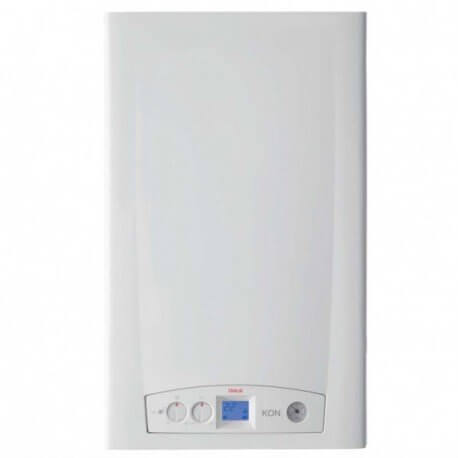

Unical Kon C24 Condensing Gas Boiler + Smoke Kit - Erp

Description

Technical features

Seasonal efficiency class for heating: Class A
Sanitary seasonal efficiency class: Class A
Declared load profile: M
Nominal useful power: kW 22.6
Minimum useful power: 2.9 kW
Combustion efficiency at nominal load 97.2%
Combustion efficiency at reduced load 98.6%
Minimum pressure of the heating circuit bar 0.5
Maximum pressure of the heating circuit bar 3
Minimum flow rate of the heating circuit. (∆t 20 °C) 1.2 l/min
Specific sanitary water flow rate (∆t 30 °C) 11.2 l/min
Total capacity of expansion tank 8 l
IP X5D degree of protection
Power supply: methane

Characteristics

Exchanger/Condenser in Aluminium/Silicon/Magnesium

Ignition and electronic flame control with single electrode

Modulation ratio 1:8

Fully electronic total premix burner with constant combustion ratio (both the gas valve and the fan)

HWS “Hot Water Speed”: to eliminate the delay in DHW production

Secondary exchanger in stainless steel with 12 "thermal length" plates, optimized for condensation, 14 plates (mod. 28-35)

Operation down to -15°

Modulating circulator according to the power request managed by the high-efficiency on-board electronics

Unical Kon C24 Condensing Gas Boiler + Smoke Kit - Erp

Product form

Technical features Seasonal efficiency class for heating: Class A Sanitary seasonal efficiency class: Class A Declared load profile: M Nominal... Read more

€785,00 Incl. VAT

    Description

    Technical features

    Seasonal efficiency class for heating: Class A
    Sanitary seasonal efficiency class: Class A
    Declared load profile: M
    Nominal useful power: kW 22.6
    Minimum useful power: 2.9 kW
    Combustion efficiency at nominal load 97.2%
    Combustion efficiency at reduced load 98.6%
    Minimum pressure of the heating circuit bar 0.5
    Maximum pressure of the heating circuit bar 3
    Minimum flow rate of the heating circuit. (∆t 20 °C) 1.2 l/min
    Specific sanitary water flow rate (∆t 30 °C) 11.2 l/min
    Total capacity of expansion tank 8 l
    IP X5D degree of protection
    Power supply: methane

    Characteristics

    Exchanger/Condenser in Aluminium/Silicon/Magnesium

    Ignition and electronic flame control with single electrode

    Modulation ratio 1:8

    Fully electronic total premix burner with constant combustion ratio (both the gas valve and the fan)

    HWS “Hot Water Speed”: to eliminate the delay in DHW production

    Secondary exchanger in stainless steel with 12 "thermal length" plates, optimized for condensation, 14 plates (mod. 28-35)

    Operation down to -15°

    Modulating circulator according to the power request managed by the high-efficiency on-board electronics

    Data sheetData sheet
    • peso: 30.0 kg
    • classe energetica produzione acs: A
    • classe energetica riscaldamento: A
    • gas: Methane
    • marca: Unical
    • metri quadri : 120
    • modello: CALD_3840
    • potenza in kw: 24
    • potenza nominale: 24
    • superficie riscaldabile mq: 120
