icon Air Conditioner Toshiba Quadri Split Inverter Seiya Series 7+7+10+13 (7+7+9+12) Ras-4m27u2avg-E R-32 Wi-Fi Optional 7000+7000+10000+13000 (7000+7000+9000+ 12000) | CaldaieMurali

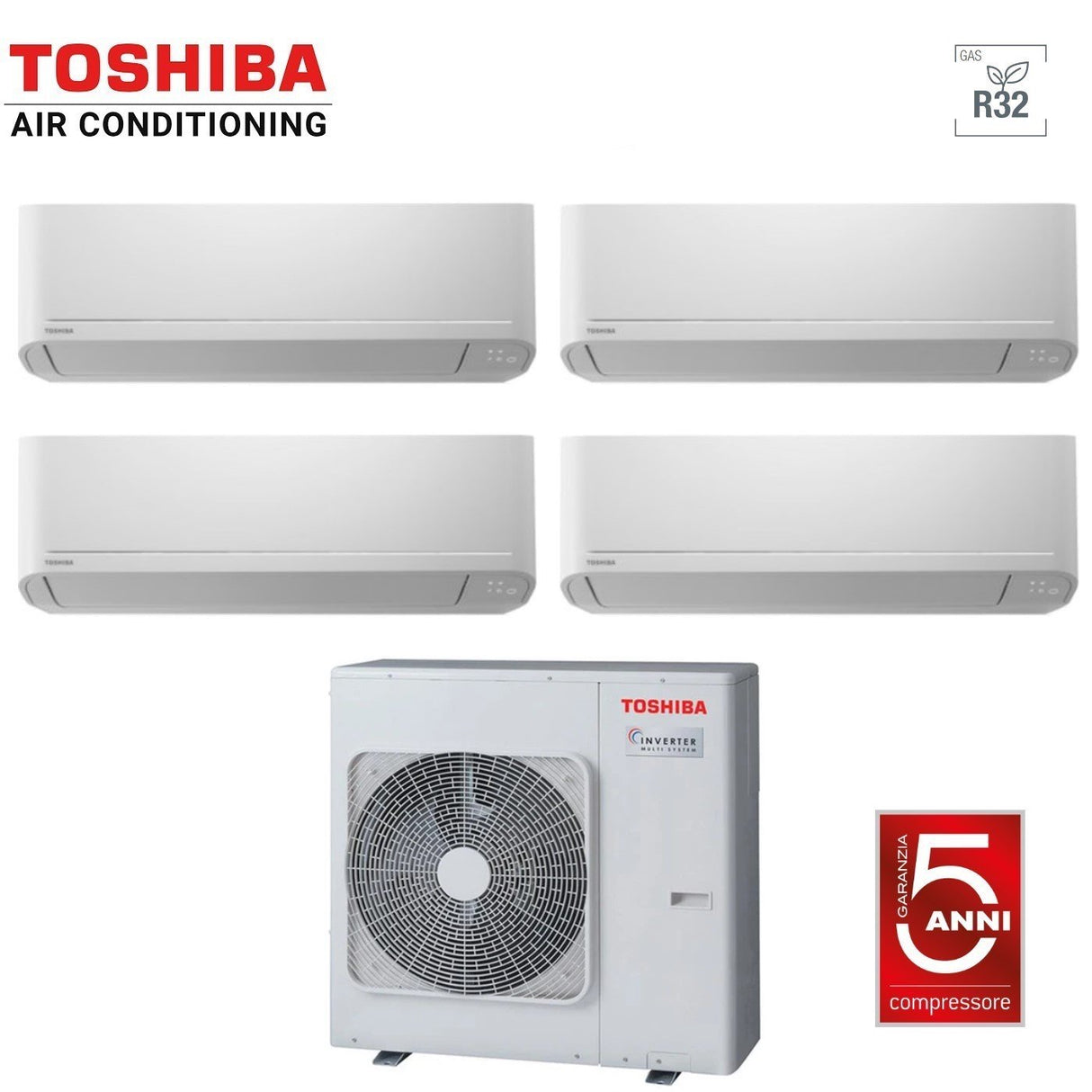

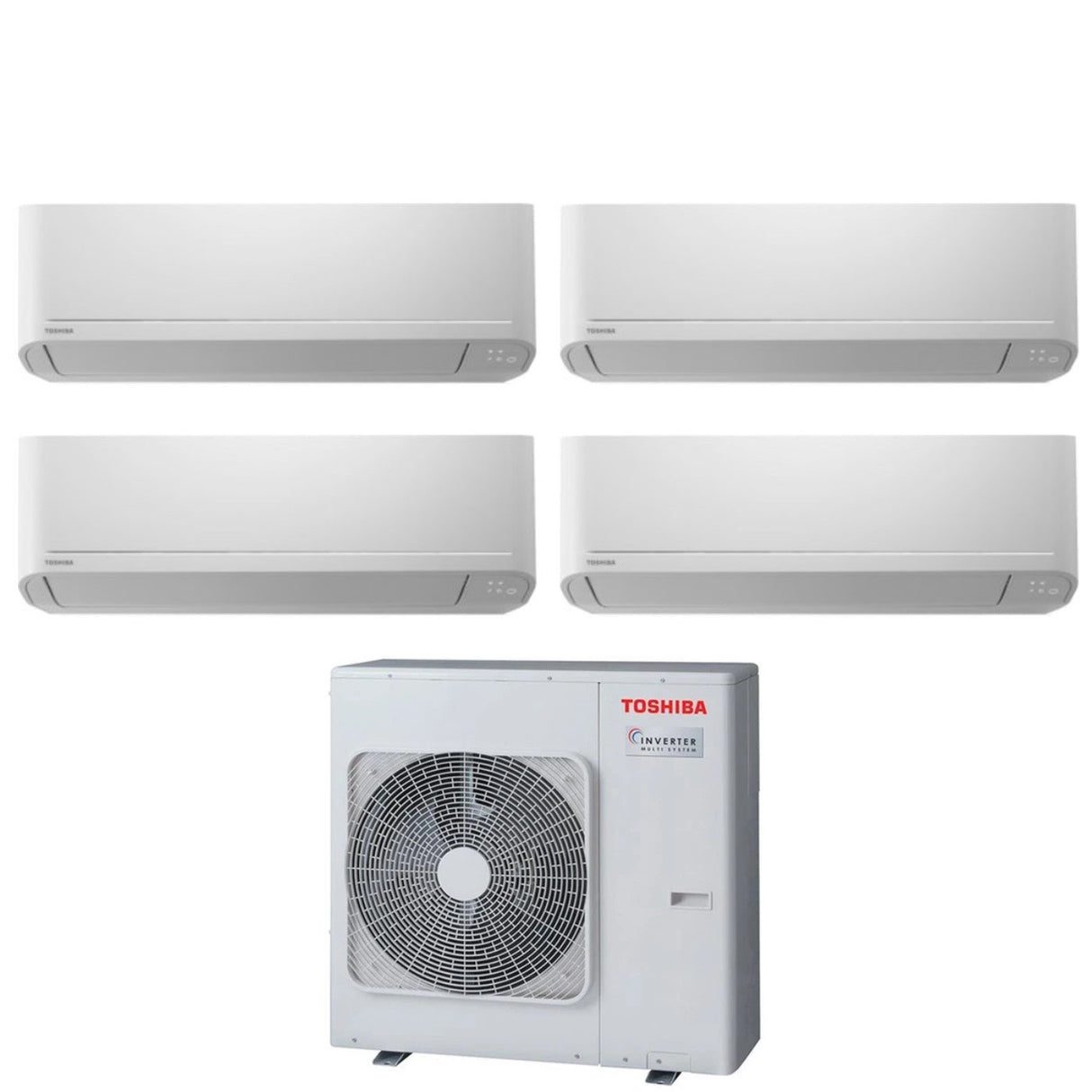

Air Conditioner Toshiba Quadri Split Inverter Seiya Series 7+7+10+13 (7+7+9+12) Ras-4m27u2avg-E R-32 Wi-Fi Optional 7000+7000+10000+13000 (7000+7000+9000+ 12000)

Important Notice on Regulations for Fluorinated Gases IN ITALY

In accordance with Regulation (EU) No. 517/2014 and Presidential Decree No. 146/2018, equipment containing fluorinated gases that is not hermetically sealed can only be sold if installed by a certified company.

By law, each sale must be recorded in the Fluorinated Gas Database, including a declaration from the buyer ensuring that the installation complies with the regulations. Therefore, before completing the order, it will be necessary to provide this mandatory declaration.

Description

Technical features

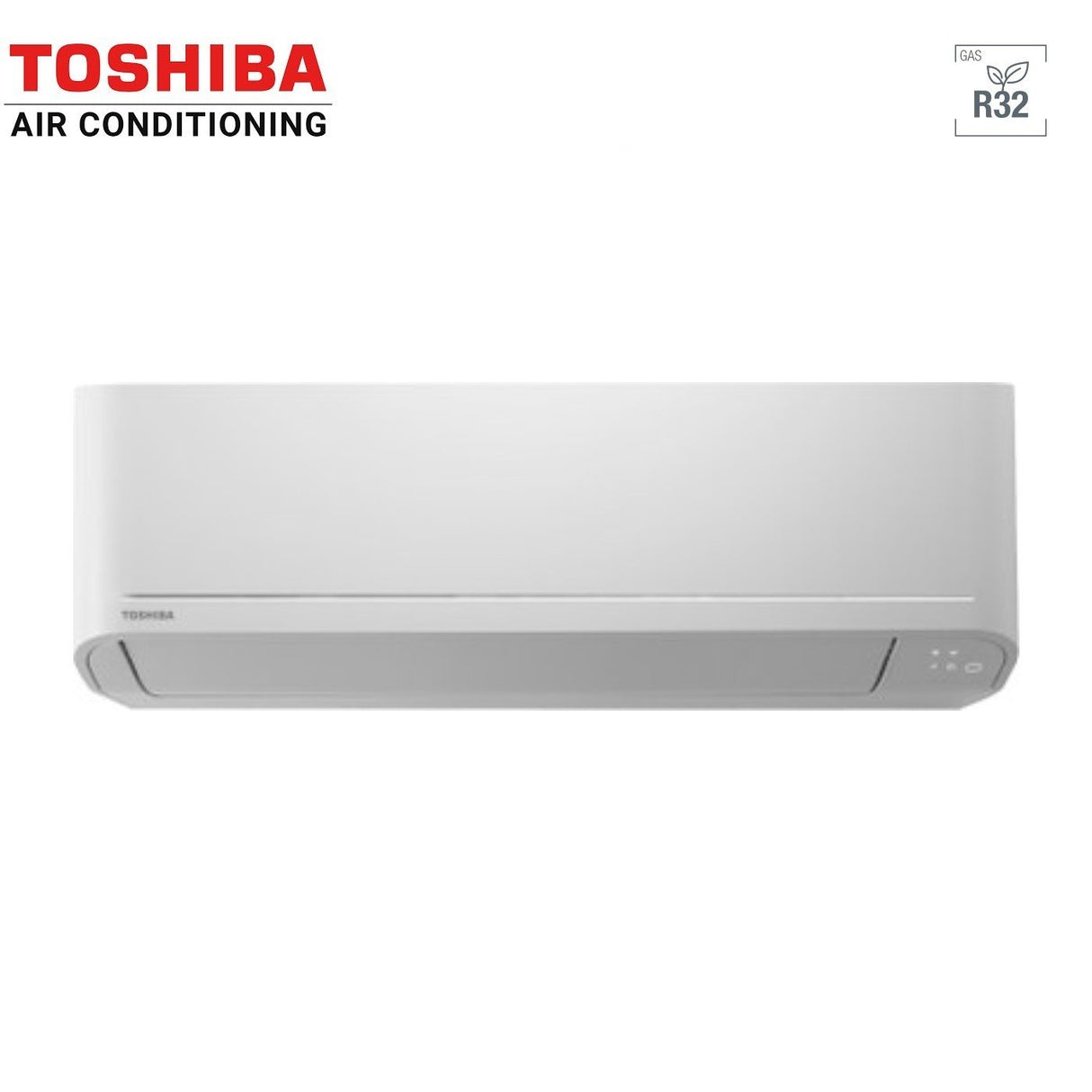

Indoor Units

1) Model

  • Indoor unit product code : 2x RAS-B07E2KVG-E
  • Power : 7000 Btu
  • Cooling Capacity: 2.0 kW
  • Heating Capacity: 2.5 kW
  • Cooling absorption: 0.53 kW
  • Heating absorption: 0.64 kW
  • Treated Air : 500 m 3 /h
  • Sound power level : 51 dB(A)
  • Sound Pressure Level : 19 ~ 38 dB(A)
  • Pipe diameter Liquid : 6.35 mm (1/4")
  • Gas pipe diameter: 9.52 mm (3/8")
  • Internal unit dimensions (HxWxD): 288x770x225 mm
  • Indoor unit weight: 9 Kg
  • Wi-FiOptional : RB-N106S-G sold separately

2) Model

  • Indoor unit product code : 1x RAS-B10E2KVG-E
  • Power : 9000 Btu
  • Cooling Capacity: 2.5 kW
  • Heating Capacity: 3.2 kW
  • Cooling absorption: 0.70 kW
  • Heating absorption: 0.86 kW
  • Treated air : 510 m 3 /h
  • Sound power level : 52 dB(A)
  • Sound Pressure Level : 20 ~ 39 dB(A)
  • Pipe diameter Liquid : 6.35 mm (1/4")
  • Gas pipe diameter: 9.52 mm (3/8")
  • Internal unit dimensions (HxWxD): 288x770x225 mm
  • Indoor unit weight: 9 Kg
  • Wi-FiOptional : RB-N106S-G sold separately

3) Model

  • Indoor unit product code : 1x RAS-B13E2KVG-E
  • Power : 12000 Btu
  • Cooling Capacity: 3.3 kW
  • Heating Capacity: 3.6 kW
  • Cooling absorption: 1.10 kW
  • Heating absorption: 0.92 kW
  • Treated Air : 540 ~ 560 m 3 /h
  • Sound Power Level : 54 ~ 55 dB(A)
  • Sound Pressure Level : 20 ~ 42 dB(A)
  • Pipe diameter Liquid : 6.35 mm (1/4")
  • Gas pipe diameter: 9.52 mm (3/8")
  • Internal unit dimensions (HxWxD): 288x770x225 mm
  • Indoor unit weight: 9 Kg
  • Wi-FiOptional : RB-N106S-G sold separately

Outdoor Unit

Model:

  • Catalog number: RAS-4M27U2AVG-E
  • Maximum number of combinable indoor units: 4

Energy efficiency:

  • SEER: 6.11
  • SCOP: 4.26
  • Energy Efficiency Class in Cooling : A++
  • Heating Energy Efficiency Class: A++

Performance:

  • Cooling Capacity: 8.0 kW
  • Heating Capacity: 9.0 kW
  • Cooling absorption: 2.29 kW
  • Heating absorption: 1.93 kW
  • Sound power level Cooling : 63 dB(A)
  • Sound power level Heating : 64 dB(A)
  • Sound pressure level Cooling : 48 dB(A)
  • Sound pressure level Heating : 49 dB(A)

Characteristics:

  • Power (V/Hz/Φ) : 220~240/50/1
  • Refrigerant gas : R-32
  • Guaranteed temperature range:
  • - Cooling: -10° ~ 46°C
  • - Heating: -15° ~ 24° C
Installation Data:
  • Pipe diameter Liquid : 6.35 mm (1/4") x4
  • Gas pipe diameter: 9.52 mm (3/8") 2x + 12.70 mm (1/2") 2x
  • Maximum piping length: 70 m
  • Maximum difference in height indoor unit / outdoor unit: 15 m

Dimensions and weight:

  • External Unit Dimensions (HxWxD): 890x900x320 mm
  • Weight of Outdoor Unit: 72.0 kg

Toshiba guarantee, for a climate of trust

5 Year Warranty
Toshiba 's guarantee can be found at https://www.toshibaclima.it/landing-garanzia

Multisplit Toshiba NATUR32 Uncompromising comfort and performance

Toshiba multisplit systems are the ideal and eco-friendly solution for those who want to cool and heat several rooms in the name of absolute comfort.

Guarantee of Quality and Reliability

Innovation, efficiency, high reliability, energy saving and respect for the environment. These solid values they form the core of everything Toshiba makes. For more than 50 years, Toshiba has been offering its customers guaranteed accuracy and the experience of flawless Japanese quality

The installation of a single outdoor unit brings significant advantages, not only in terms of reducing the space occupied, but also in terms of acoustics, for a quieter environment for yourself and for those who live next door

Flexibility and Performance

The choice between the different systems is wide and allows you to air-condition and heat from 2 up to 5 rooms and, thanks to the 8 different families of indoor units, to choose the unit that best suits your decor

Toshiba's reliable and innovative technology ensures the highest levels of efficiency, up to class A++ both in hot and cold . The multisplit systems guarantee high energy efficiency both at full and partial loads, which makes it possible to reach high SEER (up to 6.90) and SCOP (up to 4.60) values.

These performances are due to the renowned DC Twin Rotary compressor and inverter control. The cooling and heating capacity is precisely determined at all times thanks to the inverter control which regulates the compressor speed down to very low rpm.

This technology allows you to maintain the desired temperature, as well as reducing energy requirements and noise levels. The operating range in cooling is up to -10°C, while in heating up to -20°C (from 3M26 up to -15°C)

Efficient, ultra-performing systems

Thanks to the vast range of indoor units, multisplit systems are the ideal solution for domestic and commercial installations where a single low-consumption, silent and easy-to-locate outdoor unit can serve from two to five rooms.

A Solution for every Need

All Toshiba indoor units offer high-level comfort and operational features, adaptable to any environment , regardless of size and function. In addition, they have an understated elegance that blends and harmonises with contemporary or traditional décor. In addition to the well-known wall-mounted and floor console indoor units, the range consists of ductable, perfect for architectural environments with particular aesthetic requirements, and cassettes, ideal for small commercial applications and shops.


Toshiba Seiya Experience the sound of silence

Toshiba Seiya is a silent solution that uses the new Toshiba Inverter technologies and R32 compressor technologies to offer cooling and heating performance up to energy class A++ , guaranteeing real energy savings and comfort all year round.

Design and reliability

Innovation, efficiency, high reliability, energy saving, respect for the environment. These are Toshiba's solid values. For over 50 years, Toshiba has provided its customers with the precision and expertise guaranteed by impeccable Japanese quality.

Welcome to energy class A++

The performance - price ratio of Seiya makes it a unique product on the market. The range boasts performance in both cooling and heating up to class A++, which means optimal comfort with very low energy consumption

Silence is golden

Toshiba is constantly engaged in product innovation to ensure air conditioning excellence in line with user expectations. To reduce noise and improve comfort, Seiya's Silent function halves the sound level of the outdoor unit, while the Quiet function reduces the noise of the indoor unit for a peaceful night's sleep

Comfort every day

Seiya was designed with maximum comfort in mind. It offers exclusive features and high performance that make everyday comfort a reality for everyone

Toshiba's innovative inverter technology

Toshiba's innovative rotary compressor technology combines exemplary performance with outstanding reliability. By minimizing fluctuations to ensure a constant temperature, it increases efficiency while eliminating noise. Toshiba Inverter technology allows you to adjust the heating and cooling capacity at any time, adjusting the compressor speed as needed


Your smart air conditioner for limitless comfort

The Toshiba Home AC Control app gives you full control over the features that ensure your comfort. Once you install it on your smartphone or tablet, it will be easy to use, both at home and on the go.

WiFi Haori

Comfort at home and wherever you are

Personalize your comfort, setting the optimal level of cooling or heating for the whole family at any time, both from home and remotely. The smart and intuitive app, used at home, is a second tool for controlling the air conditioner; used outside the home it allows you to activate the functions in advance to obtain personalized comfort in line with your lifestyle!

  • Monitor energy consumption
  • Compatible with Google Assistant and Amazon Alexa voice recognition systems

Silence inside and outside the house

QUIET mode , for a quiet life. The indoor unit operates at the lowest noise level. Switch to super-low fan speed, thus reducing the sound of the indoor unit by 3dB(A) compared to low speed

SEIYA's SILENT mode allows you to reduce the noise level of the outdoor unit. Both you and your neighbors can enjoy peaceful sleep. With a simple button on the remote control it is possible to decrease the sound pressure level of the outdoor unit by -5dB(A) , without sacrificing the required cooling/heating speed

Uncompromising Quality Ultra Fresh Filter

The Fresh Filter captures up to 85% of PM2.5 for a healthier environment. Some studies have shown a close correlation between exposure to fine particulate matter and lung disease or the worsening of chronic disease

PM2.5 refers to particulate matter caused by air pollution that is less than 2.5 micrometres in diameter


Wellness at your fingertips

Preset Allows you to memorize your favorite functions and activate them with a single key

Operating modes You can choose between Automatic, Heating, Cooling and Dehumidification modes

Fix & Swing Optimal airflow control with choice between fixed and swinging louver positions.

Silent CDU #1 & #2 Two levels of noise reduction of the outdoor unit.

Antifreeze function (8°C) Allows you to protect your home and furnishings from the effects of frost when you are away from home for a long time

Fan There are five fixed speeds available plus the Automatic one which leaves the control to the air conditioner

Comfortable Sleep To ensure a peaceful and noise-free sleep, increase the set temperature by one degree after one hour and another degree after the second until morning

Silent mode With the press of a single button the fan speed is reduced to a minimum for a low noise level of the indoor unit

High power Maximum power to reach the desired temperature in the shortest possible time

ECO Automatically adjusts the room temperature setting, so as to reduce the operating load of the unit and thus save energy

Defrost on Demand The defrost function ensures that the unit can be used in even the most extreme conditions, eliminating the ice simply by pressing the button on the remote control

Timer ON-OFF Toshiba remote control provides convenient auto start and stop operation, programmable up to 12 hours

Wired solution Allows the remote control to be wired to the unit, ideal for wall mounting in commercial applications.
