Technical Features
Internal Units
1) Model

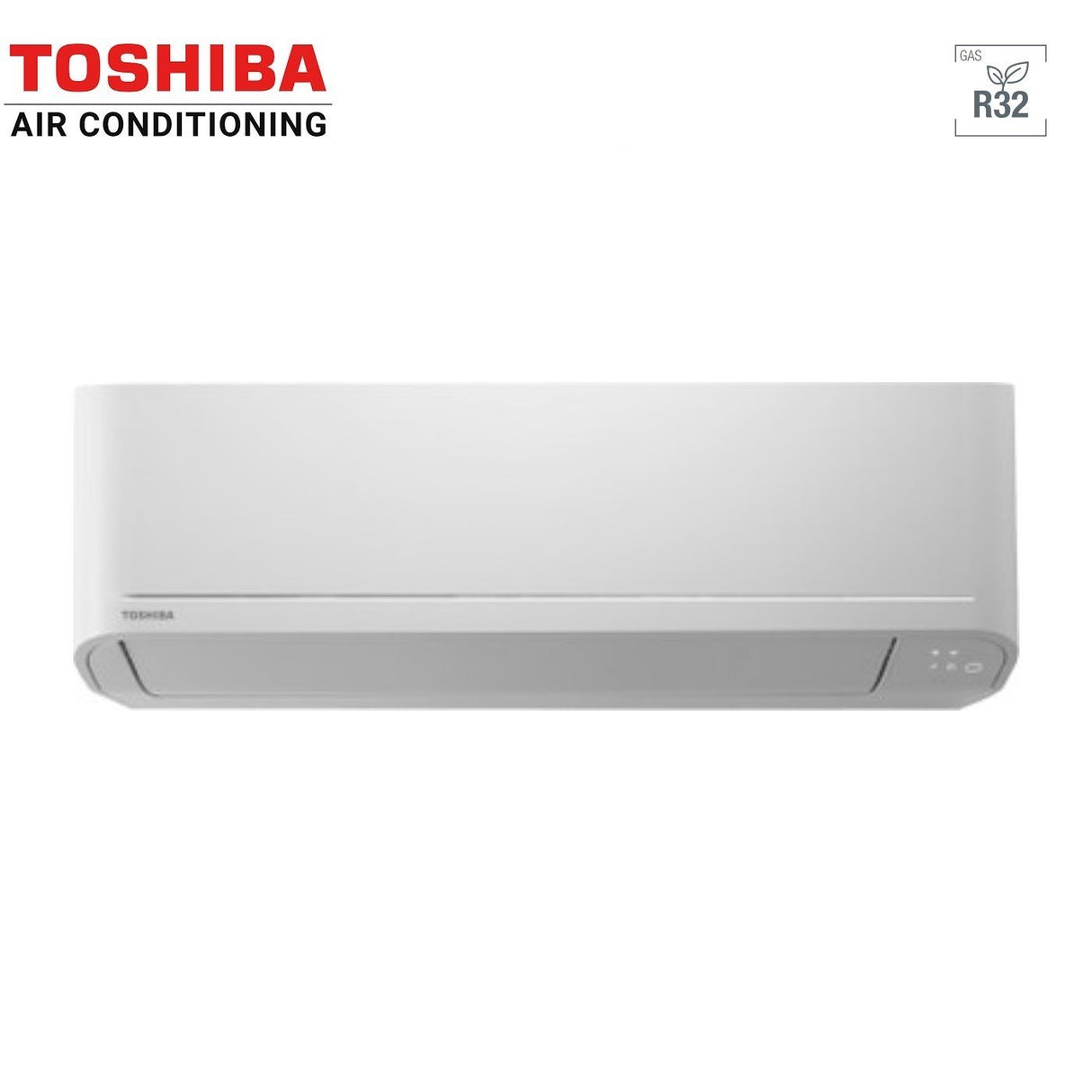

- Indoor unit product code: 2x RAS-B10E2KVG-E
- Power: 9000 Btu
- Cooling capacity: 2.5 kW
- Heating capacity: 3.2 kW
- Cooling Power Consumption: 0.70 kW
- Heating absorption: 0.86 kW
- Treated Air: 510 m3 /h
- Sound power level: 52 dB(A)
- Sound pressure level : 20 ~ 39 dB(A)
- Liquid Pipe Diameter: 6.35mm (1/4")
- Gas pipe diameter: 9.52 mm (3/8")
- Internal unit dimensions (HxWxD): 288x770x225 mm
- Internal unit weight: 9 Kg
- Wi-Fi Optional: RB-N106S-G sold separately
2) Model
- Indoor unit product code: 3x RAS-B13E2KVG-E
- Power: 12000 Btu
- Cooling capacity: 3.3 kW
- Heating capacity: 3.6 kW
- Cooling Power Consumption: 1.10 kW
- Heating absorption: 0.92 kW
- Treated Air: 540 ~ 560 m 3 /h
- Sound Power Level : 54 ~ 55 dB(A)
- Sound pressure level : 20 ~ 42 dB(A)
- Liquid Pipe Diameter: 6.35mm (1/4")
- Gas pipe diameter: 9.52 mm (3/8")
- Internal unit dimensions (HxWxD): 288x770x225 mm
- Internal unit weight: 9 Kg
- Wi-Fi Optional: RB-N106S-G sold separately
External Unit
Model:

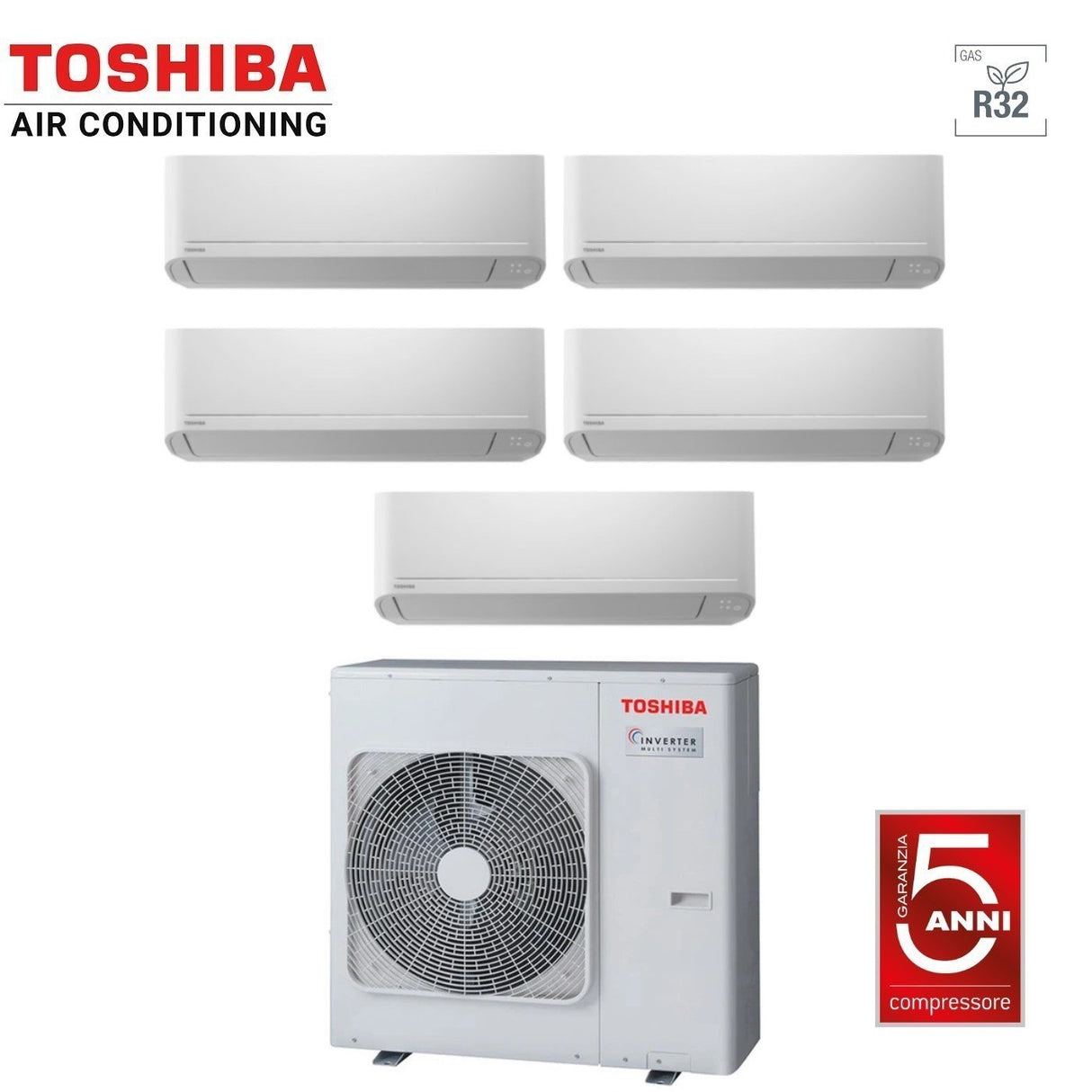

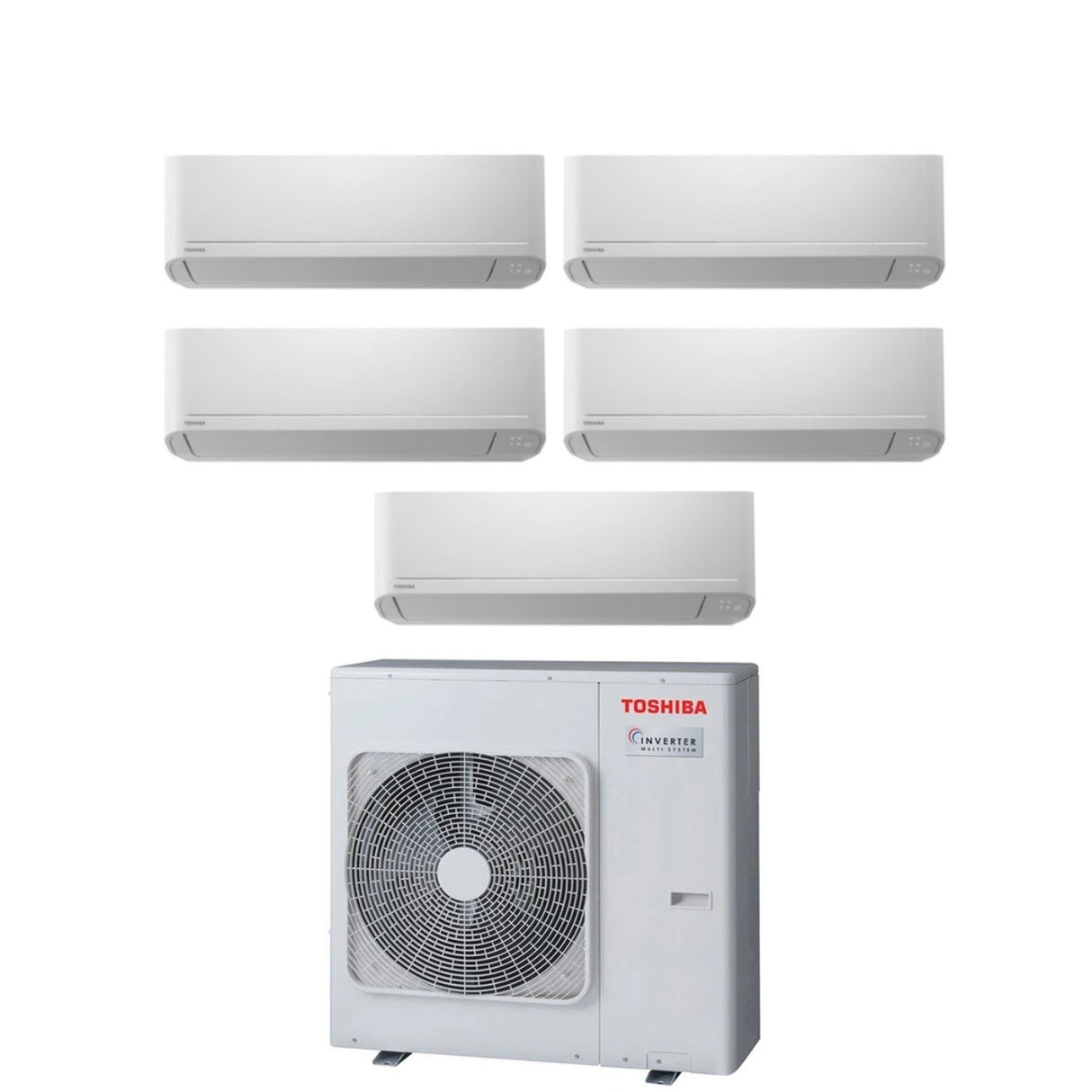

- Catalog Code : RAS-5M34U2AVG-E
- Maximum number of indoor units that can be combined: 5
Energy Efficiency:
- SEER: 6.31
- SCOP: 4.08
- Energy Efficiency Class in Cooling: A++
- Energy Efficiency Class in Heating: A+
Performance:
- Cooling capacity : 10.0 kW
- Heating capacity: 12.0 kW
- Cooling Power Consumption: 2.98 kW
- Heating absorption: 2.83 kW
- Sound power level Cooling : 67 dB(A)
- Sound power level Heating: 68 dB(A)
- Sound pressure level Cooling : 52 dB(A)
- Sound pressure level Heating: 55 dB(A)
Characteristics:
- Power supply (V/Hz/Φ) : 220~240/50/1
- Refrigerant gas: R-32
- Guaranteed temperature range:
- - Cooling: -10° ~ 46° C
- - Heating: -15° ~ 24° C
Installation Data:
- Liquid Pipe Diameter: 6.35mm (1/4") x5
- Gas pipe diameter: 9.52 mm (3/8") 3x + 12.70 mm (1/2") 2x
- Maximum pipe length: 80 m
- Maximum height difference between internal unit and external unit: 15 m
Dimensions and Weight:
- External Unit Dimensions (HxWxD): 890x900x320 mm
- External Unit Weight: 78.0 kg
Toshiba warranty, for a climate of trust
Toshiba NATUR32 Multisplit Comfort and Performance without compromise
Toshiba multisplit systems are the ideal, eco-friendly solution for those who want to cool and heat multiple rooms in absolute comfort.
Quality and Reliability Guarantee
Innovation, efficiency, high reliability, energy saving and respect for the environment. These solid values are at the core of everything Toshiba does. For over 50 years, Toshiba has been offering its customers the guaranteed precision and experience of impeccable Japanese quality
Installing a single external unit brings significant advantages, not only in terms of reducing the space occupied, but also in terms of acoustics, for a quieter environment for yourself and for those who live next door.
Flexibility and Performance
The choice between the different systems is wide and allows you to air condition and heat from 2 to 5 rooms and, thanks to the 8 different families of internal units, to choose the unit that best suits your decor.
Toshiba's reliable and innovative technology ensures the highest levels of efficiency, up to class A++ both in heating and cooling . Multisplit systems guarantee high energy efficiency both at full load and partial loads, which allows to reach high SEER values (up to 6.90) and SCOP (up to 4.60)
These performances are due to the renowned DC Twin Rotary Compressor and inverter control. The cooling and heating capacity is precisely determined at all times thanks to the inverter control which regulates the compressor speed down to very low speeds.
This technology allows you to maintain the desired temperature, as well as reducing energy requirements and noise levels. The operating range in cooling is up to -10°C, while in heating up to -20°C (from 3M26 onwards -15°C)
Efficient, Ultra-Performing Systems
Thanks to the wide range of internal units, multisplit systems are the ideal solution for those domestic and commercial installations where a single external unit, low consumption, silent and easily placed, can serve from two to five rooms.
A Solution for Every Need
All Toshiba indoor units offer high-level operational and comfort features, adaptable to any environment , regardless of size and function. Furthermore, they have a discreet elegance that blends and harmonizes with contemporary or traditional furnishings. In addition to the well-known wall-mounted and floor console type indoor units, the range consists of ducted units, perfect for architectural environments with particular aesthetic needs, and cassette units, ideal for small commercial applications and shops.
Toshiba Seiya Experience the sound of silence
Toshiba Seiya is a silent solution that uses the new Toshiba Inverter technologies and R32 compressor technologies to offer cooling and heating performance up to energy class A++ , ensuring real energy savings and comfort all year round.
Design and reliability
Innovation, efficiency, high reliability, energy saving, respect for the environment. These are the solid values of Toshiba. For over 50 years, Toshiba has provided its customers with the precision and expertise guaranteed by impeccable Japanese quality.
Welcome to the A++ energy class
The performance-price ratio of Seiya makes it a unique product on the market. The range boasts performance in both cooling and heating up to class A++, which means optimal comfort with very low energy consumption.
Silence is golden
Toshiba is constantly committed to product innovation to ensure air conditioning excellence in line with user expectations. To reduce noise and improve comfort, Seiya's Silent function halves the sound level of the outdoor unit, while the Quiet function reduces the noise of the indoor unit for a peaceful night's sleep
Comfort every day
Seiya was designed with maximum comfort in mind. It offers exclusive features and high performance that make everyday comfort a reality for everyone.
Toshiba's innovative inverter technology
Toshiba's innovative rotary compressor technology combines exemplary performance with exceptional reliability. By minimising fluctuations to ensure a constant temperature, it increases efficiency while eliminating noise. Toshiba Inverter technology allows you to adjust the heating and cooling capacity at any time by adjusting the compressor speed according to your needs.
Your smart air conditioner for unlimited comfort
The Toshiba Home AC Control app gives you complete control over the functions that ensure your comfort. Once installed on your smartphone or tablet, it is easy to use, both at home and on the go.
Comfort at home and wherever you are
Personalize your comfort by setting the optimal level of cooling or heating for the whole family at any time, both at home and remotely. The smart and intuitive app, used at home, is a second tool to control the air conditioner; used away from home, it allows you to activate the functions in advance to obtain personalized comfort in line with your lifestyle!
- Monitor energy consumption
- Compatible with Google Assistant and Amazon Alexa voice recognition systems
Silence inside and outside the house
QUIET mode , for a quiet life. The indoor unit operates at the lowest noise level. It switches to super-low fan speed, thus reducing the sound of the indoor unit by 3dB(A) compared to low speed.
SEIYA's SILENT mode allows you to reduce the noise level of the outdoor unit. Both you and your neighbors can enjoy peaceful sleep. With a simple button on the remote control, you can reduce the sound pressure level of the outdoor unit by -5dB(A) , without sacrificing the required cooling/heating speed.
Quality without compromise Ultra Fresh Filter
The Fresh Filter captures up to 85% of PM2.5 for a healthier environment. Some studies have shown a close correlation between exposure to fine particulate matter and lung disease or the worsening of chronic diseases
PM2.5 refers to particulate matter caused by air pollution that is smaller than 2.5 micrometers in diameter.
Wellbeing at your fingertips
Preset Allows you to store your favorite functions and activate them with a single button
Operating modes You can choose between Automatic, Heating, Cooling and Dehumidification modes.
Fix & Swing Optimal airflow control with a choice between fixed and swinging louver positions.
Silent CDU #1 & #2 Two levels of noise reduction of the outdoor unit.
Anti-freeze function (8°C) Allows you to protect your home and furnishings from the effects of frost when you are away from home for a long time.
Fan There are five fixed speeds available plus the Automatic one which leaves the air conditioner in control
Comfortable Sleep To ensure a peaceful and noise-free sleep, it increases the set temperature by one degree after one hour and another degree after the second until the morning.
Silent mode With the press of a single button, the fan speed is reduced to minimum for low noise level of the indoor unit
High power Maximum power to reach the desired temperature in the shortest possible time
ECO Automatically adjusts the room temperature setting, reducing the operating load of the unit and thus saving energy.
Defrost on demand The defrost function ensures that the unit can be used even in the most extreme conditions, eliminating ice simply by pressing the remote control button.
ON-OFF Timer The Toshiba remote control provides convenient automatic start and stop operation, programmable up to 12 hours
Wired Solution Allows you to wire the remote control to the unit, ideal for wall mounting in commercial applications.
Product Warranty: All products for sale on our site are new and packaged. The warranty on this item is 24 months from the date of purchase.
