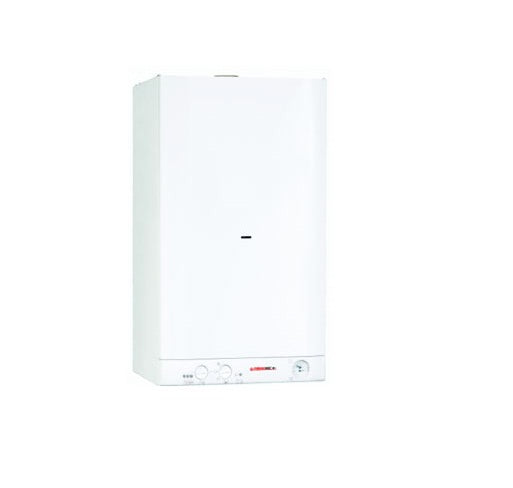

icon CALDAIA THERMOMEC LUCY mod. R-MHP S 24 kW METANO A CONDENSAZIONE PREMISCELATA + KIT FUMI Kit Fumi Sdoppiato | CaldaieMurali

CALDAIA THERMOMEC LUCY mod. R-MHP S 24 kW METANO A CONDENSAZIONE PREMISCELATA + KIT FUMI Kit Fumi Sdoppiato

Description

Caratteristiche Tecniche

Performance in riscaldamento:
Portata termica (min/nom.): 2.7/25 kW;
Potenza utlile: 24.4 kW;
Temperatura (min./max): 40/85 °C;
Pressione (min./max): 0.3/3 bar;

Performance in sanitario:
Portata termica nom. sanitario: 25 kW;
Potenza utile (60/80 °C): 24.4 kW;
Temperatura (min./max): °C 35/55;
Pressione (min./max): 0.3/10 bar;
Portata massima Δt=25°C 13.9 l/min;
Portata massima Δt=30°C 10.0 l/min;

Potenza elettrica alla portata termica nom: 65 W;
Potenza elettrica a riposo: 3 W;
Capacità totale del vaso d'espansione: 8 l;
Grado di protezione elettrica IPX5D;

Composto da:
Pannello comandi a scomparsa con manopole ergonomiche e display retro illuminato;
Scambiatore sanitario a piastre in acciaio INOX;
Pompa ad alta efficienza a basso consumo energetico;
Scheda elettronica per:
Regolazione della frequenza in accensione;
Selezione modalità circolatore;
Smaltimento inerzia termica circuito primario regolabile;
Flussostato sanitario magnetico;
Pressostato riscaldamento assoluto;
Immunità dai radiodisturbi;
Flussostato magnetico sanitario;
Pressostato riscaldamento assoluto;
Possibilità di integrare la caldaia con sistemi solari OPTIONAL THERMOMEC.

Funzioni:
Funzione spazzacamino;
By pass automatico integrato;
Antigelo;
Antibloccaggio circolatore;

Caratteristiche Generali

La caldaia R-MHP S a condensazione è studiata per gli impianti comuni,inoltre abbinando MULTIzone la si rende facilmente adattabile ai nuovi impianti a pavimento, MULTIzone è l'apparato per distribuzione dell’acqua calda di riscaldamento in più stanze. R-MHP è la caldaia tradizionale, ma con rendimenti nettamente superiori alle comuni caldaie a parità di temperatura di funzionamento. La caldaia R-MHP S è composta da un RECUPERATORE DI CALORE incorporato in alluminio, che presenta una serpentina con delle alette che permettono un elevata superficie di scambio, ed ha un dispositivo di controllo che assicura lo scarico corretto della condensa. Questo sistema permette l'accumulo di calore emanato dai fumi di scarico prima di fuoriuscire, riscaldando cosi l'acqua diretta nello scambiatore primario.

Comandi:
Tasto estate/inverno/off;
Manometro;
Temperatura riscaldamento e sanitario visualizzati sul display;
Diagnostica guasti e stato di blocco visualizzati sul display;
Pulsante reset;
Regolatore di temperatura sia per riscaldamento che per sanitario;
Predisposizione per comando remoto;
Connessioni elettriche facilmente accessibili;
Predisposizione per sonda esterna.

Dimensioni

(AxLxP):803x400x350 mm; Peso: 42.5 Kg

CALDAIA THERMOMEC LUCY mod. R-MHP S 24 kW METANO A CONDENSAZIONE PREMISCELATA + KIT FUMI Kit Fumi Sdoppiato

Product form

Caratteristiche Tecniche Performance in riscaldamento:Portata termica (min/nom.): 2.7/25 kW;Potenza utlile: 24.4 kW;Temperatura (min./max): 40/85 °C;Pressione (min./max): 0.3/3 bar;Performance in sanitario:Portata... Read more

€683,00 Incl. VAT

    Description

    Caratteristiche Tecniche

    Performance in riscaldamento:
    Portata termica (min/nom.): 2.7/25 kW;
    Potenza utlile: 24.4 kW;
    Temperatura (min./max): 40/85 °C;
    Pressione (min./max): 0.3/3 bar;

    Performance in sanitario:
    Portata termica nom. sanitario: 25 kW;
    Potenza utile (60/80 °C): 24.4 kW;
    Temperatura (min./max): °C 35/55;
    Pressione (min./max): 0.3/10 bar;
    Portata massima Δt=25°C 13.9 l/min;
    Portata massima Δt=30°C 10.0 l/min;

    Potenza elettrica alla portata termica nom: 65 W;
    Potenza elettrica a riposo: 3 W;
    Capacità totale del vaso d'espansione: 8 l;
    Grado di protezione elettrica IPX5D;

    Composto da:
    Pannello comandi a scomparsa con manopole ergonomiche e display retro illuminato;
    Scambiatore sanitario a piastre in acciaio INOX;
    Pompa ad alta efficienza a basso consumo energetico;
    Scheda elettronica per:
    Regolazione della frequenza in accensione;
    Selezione modalità circolatore;
    Smaltimento inerzia termica circuito primario regolabile;
    Flussostato sanitario magnetico;
    Pressostato riscaldamento assoluto;
    Immunità dai radiodisturbi;
    Flussostato magnetico sanitario;
    Pressostato riscaldamento assoluto;
    Possibilità di integrare la caldaia con sistemi solari OPTIONAL THERMOMEC.

    Funzioni:
    Funzione spazzacamino;
    By pass automatico integrato;
    Antigelo;
    Antibloccaggio circolatore;

    Caratteristiche Generali

    La caldaia R-MHP S a condensazione è studiata per gli impianti comuni,inoltre abbinando MULTIzone la si rende facilmente adattabile ai nuovi impianti a pavimento, MULTIzone è l'apparato per distribuzione dell’acqua calda di riscaldamento in più stanze. R-MHP è la caldaia tradizionale, ma con rendimenti nettamente superiori alle comuni caldaie a parità di temperatura di funzionamento. La caldaia R-MHP S è composta da un RECUPERATORE DI CALORE incorporato in alluminio, che presenta una serpentina con delle alette che permettono un elevata superficie di scambio, ed ha un dispositivo di controllo che assicura lo scarico corretto della condensa. Questo sistema permette l'accumulo di calore emanato dai fumi di scarico prima di fuoriuscire, riscaldando cosi l'acqua diretta nello scambiatore primario.

    Comandi:
    Tasto estate/inverno/off;
    Manometro;
    Temperatura riscaldamento e sanitario visualizzati sul display;
    Diagnostica guasti e stato di blocco visualizzati sul display;
    Pulsante reset;
    Regolatore di temperatura sia per riscaldamento che per sanitario;
    Predisposizione per comando remoto;
    Connessioni elettriche facilmente accessibili;
    Predisposizione per sonda esterna.

    Dimensioni

    (AxLxP):803x400x350 mm; Peso: 42.5 Kg

    Data sheetData sheet
    • peso: 35.0 kg
    • marca: Thermomec
    • modello: CALD_1994
