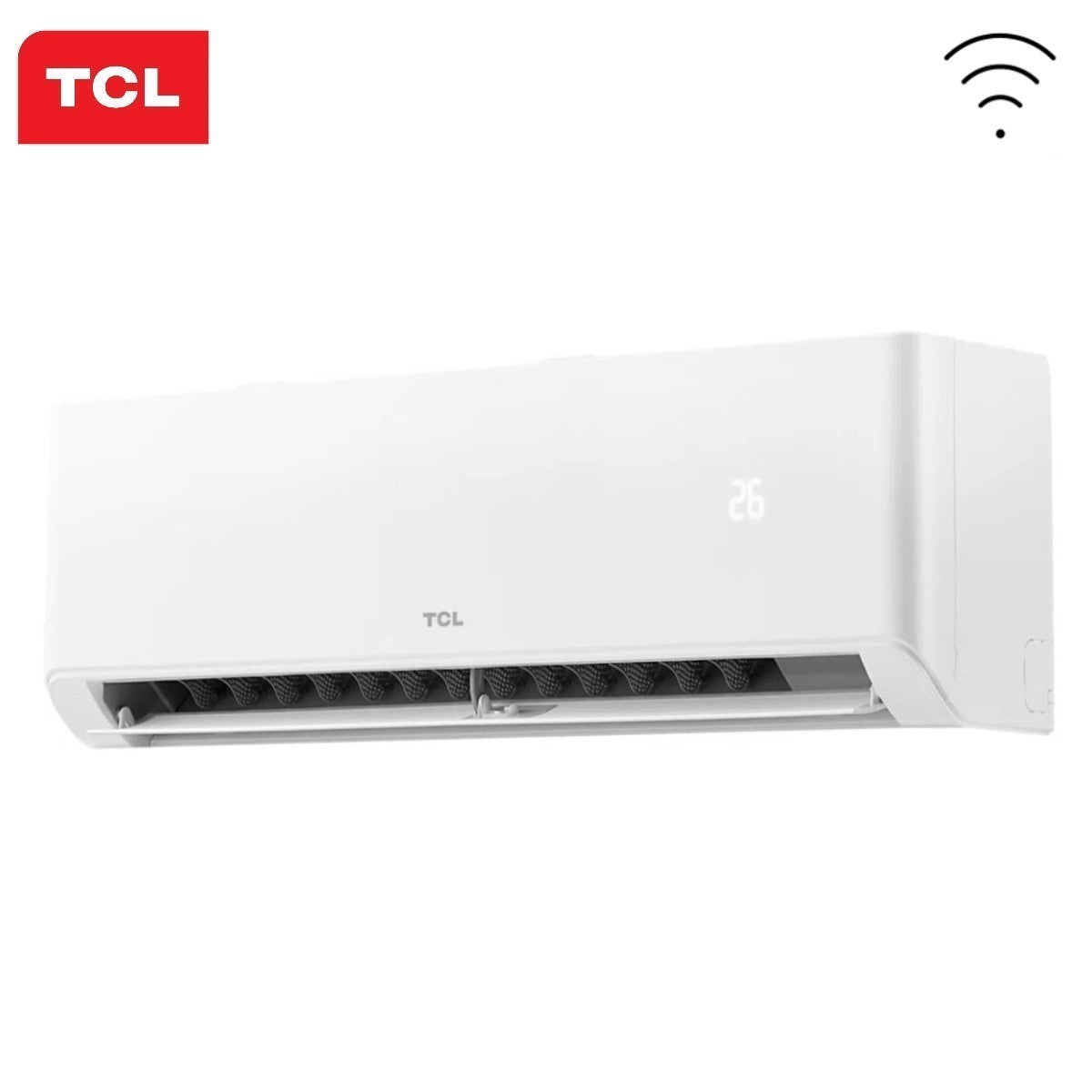

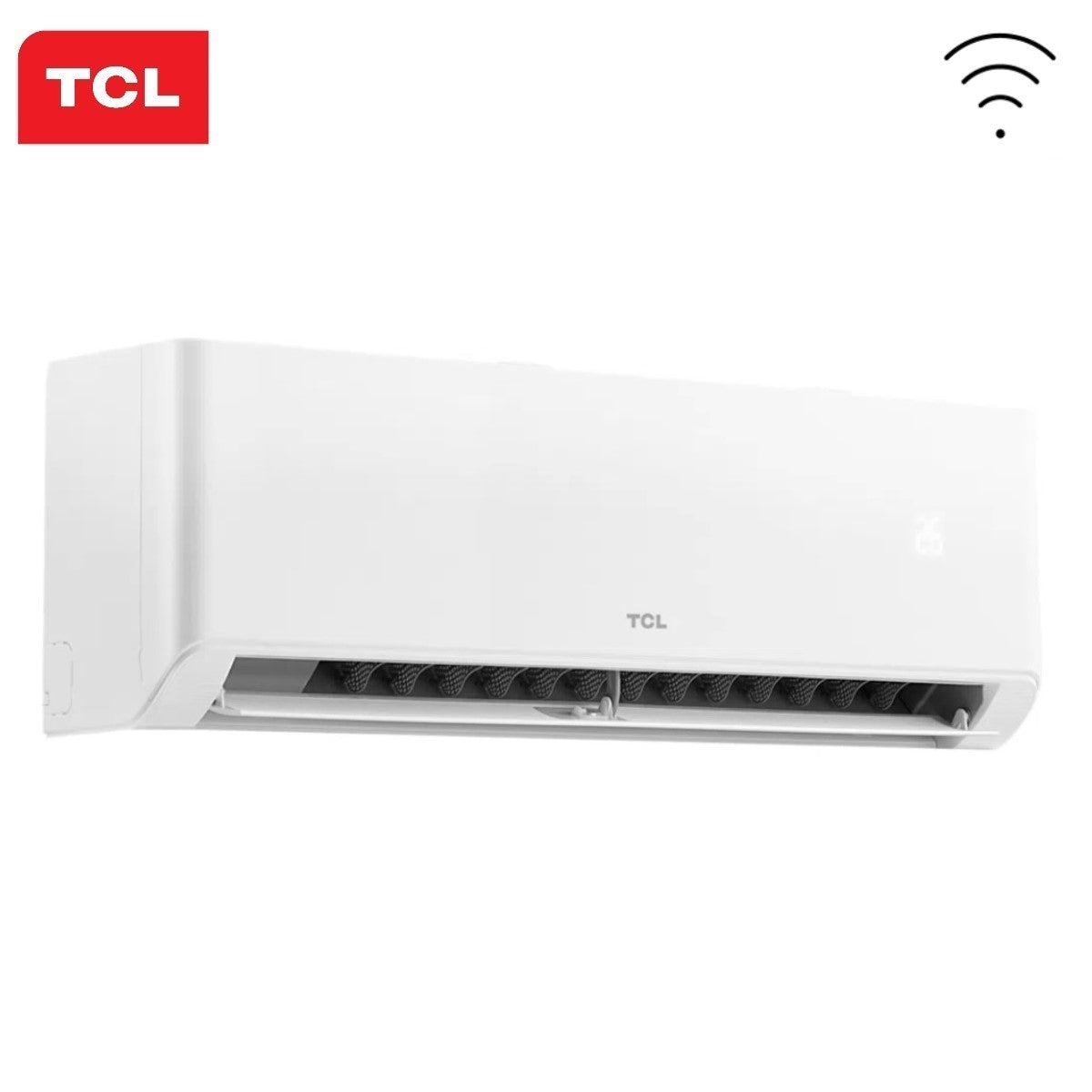

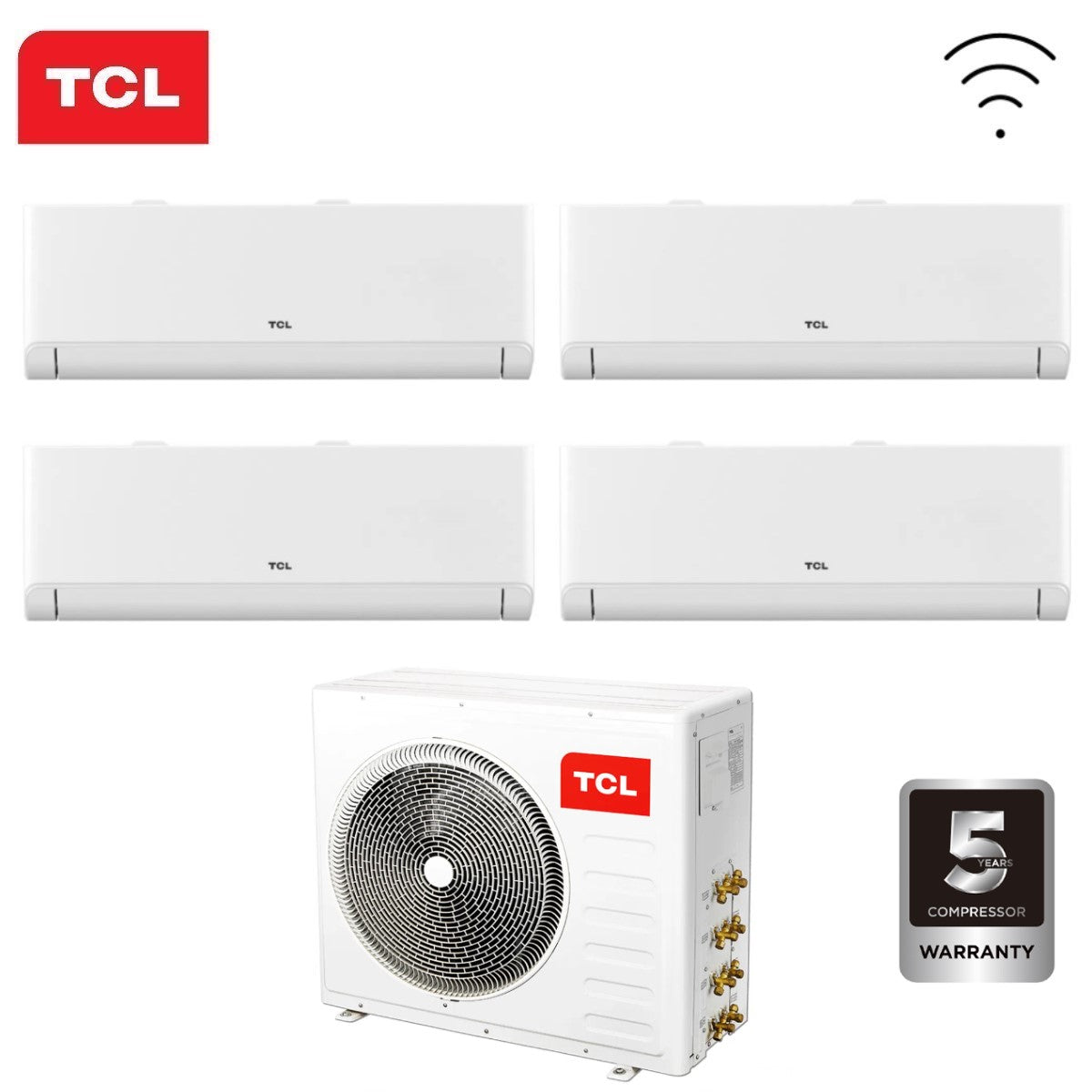

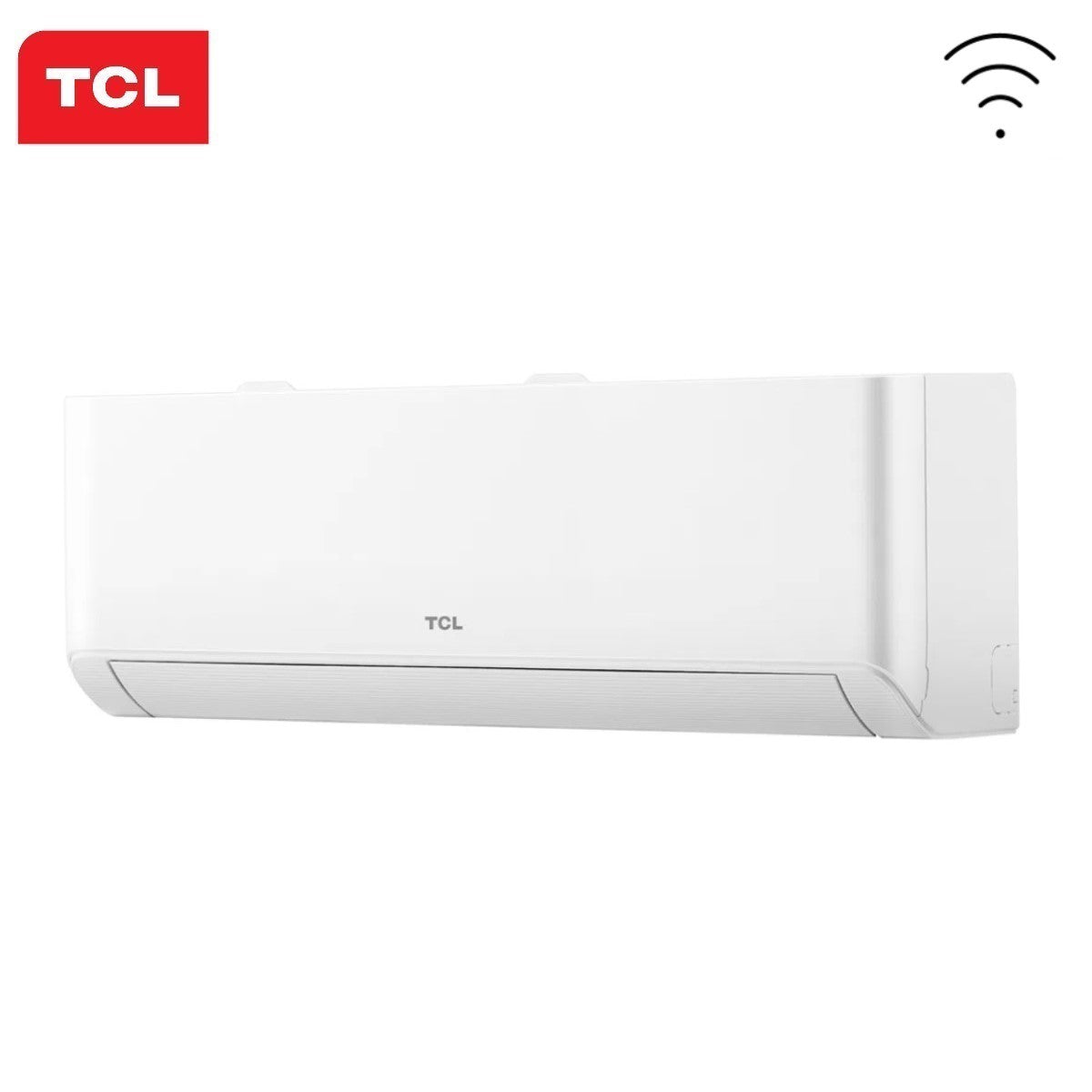

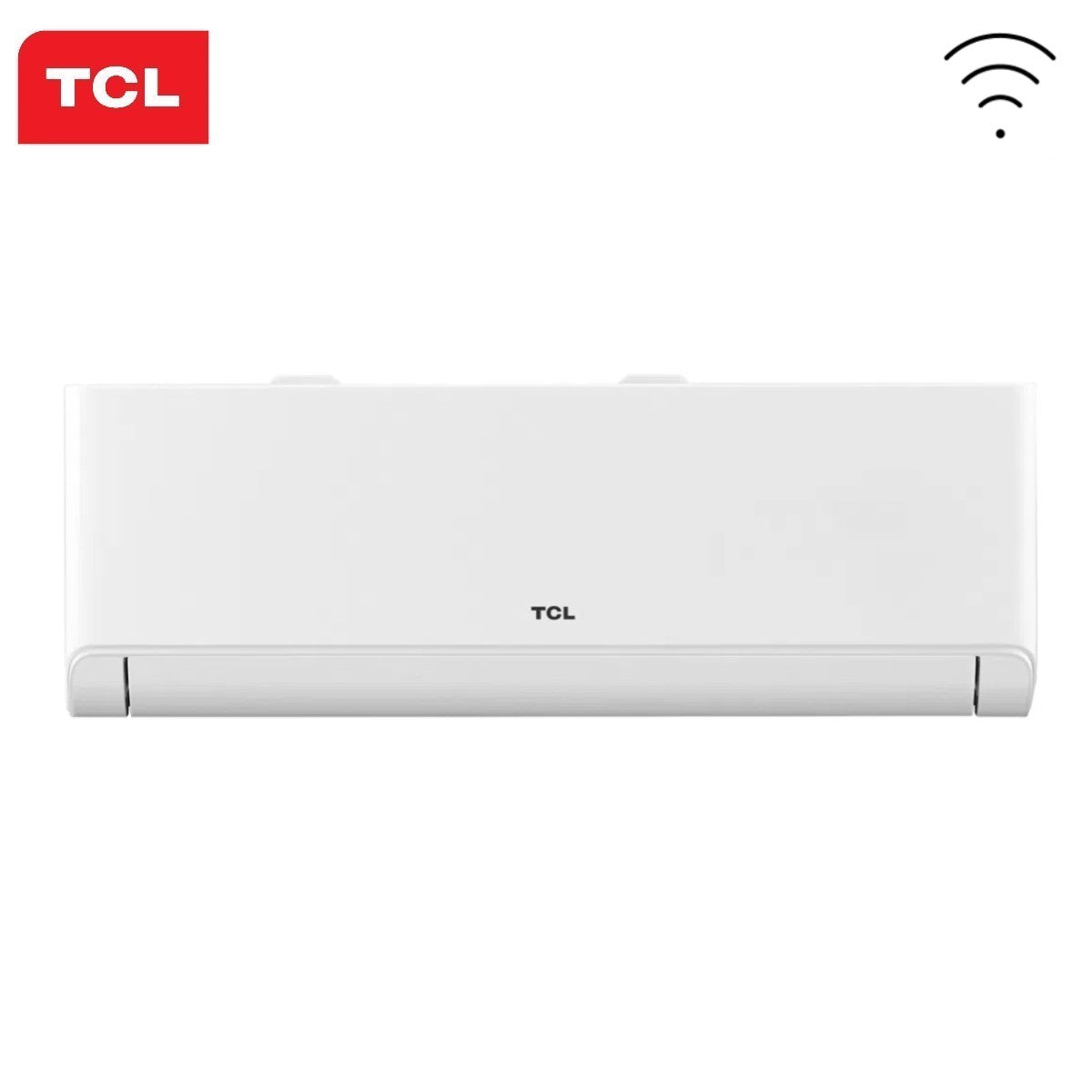

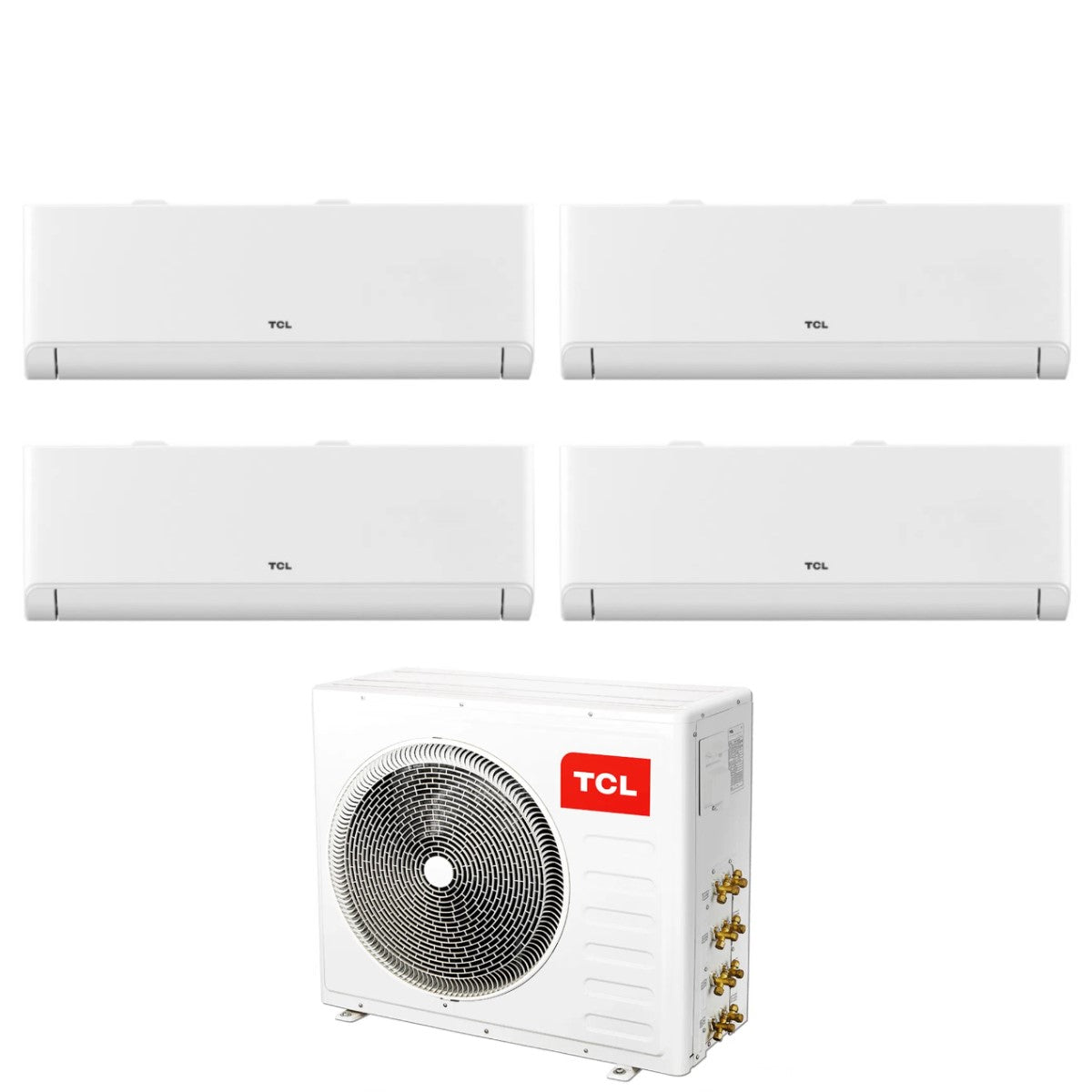

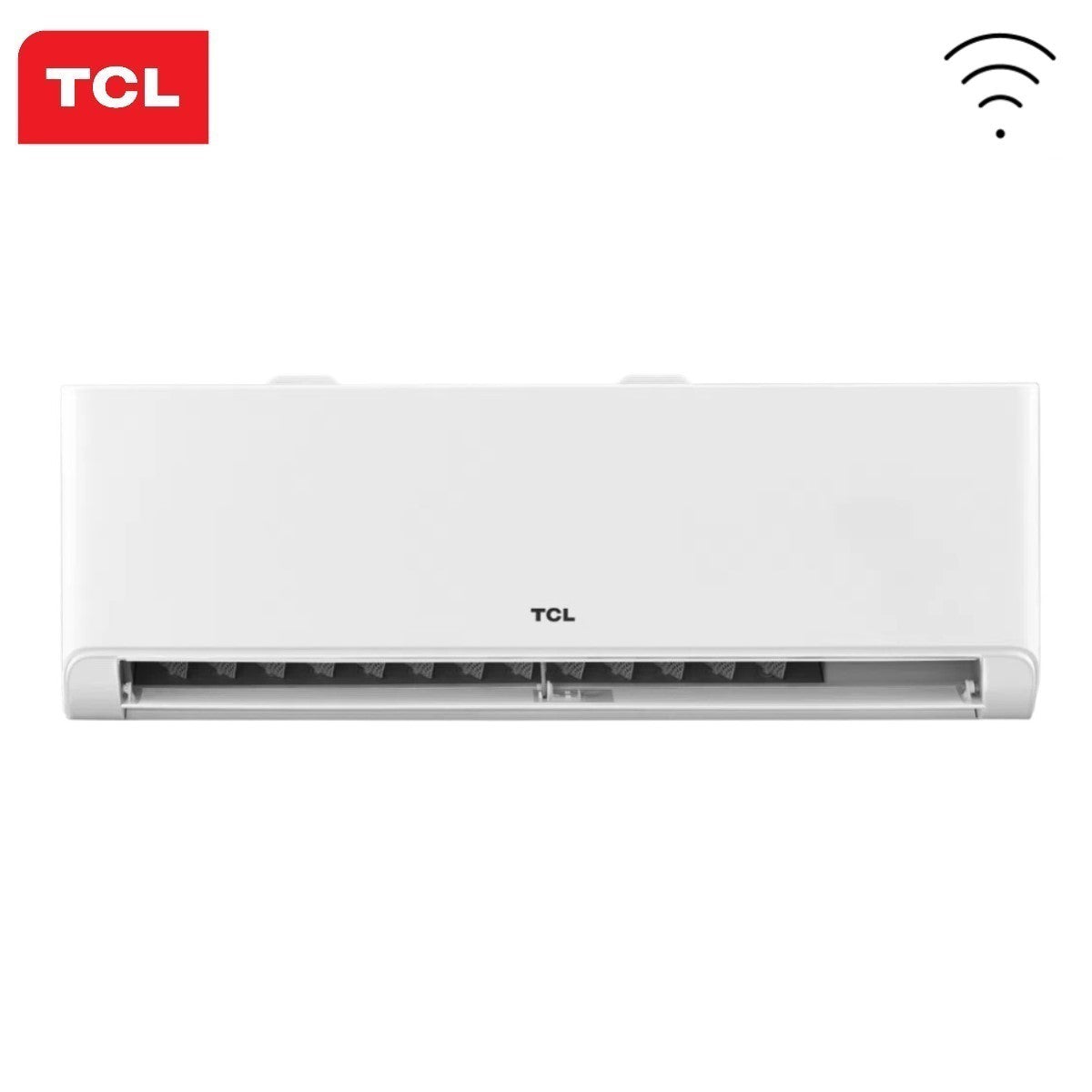

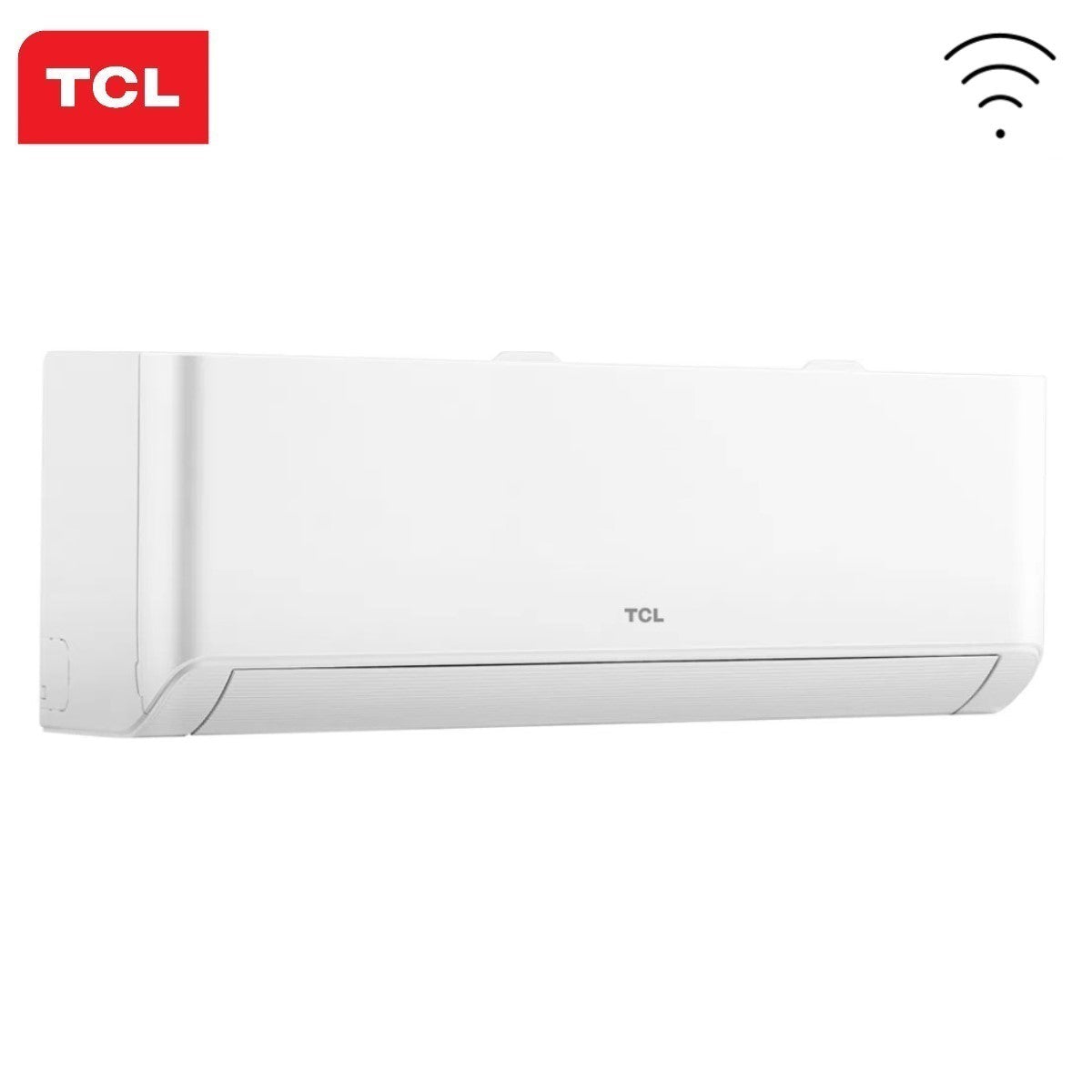

Air Conditioner TCL Quadri Split Inverter BREEZEIN series 9+12+12+12 with MT3240 R-32 Integrated Wi-Fi 9000+12000+12000+12000

5 year compressor warranty

Multisplit TCL air conditioners High performance and energy saving

Rapid cooling and heating

The high-frequency compressor ensures rapid achievement of comfort, with the air reaching the desired temperature more quickly: 30 seconds to reach 18° C and 60 seconds to reach 40° C. Turn it on, set the temperature you prefer and enjoy the ideal climate in no time.

TCL AI inverter technology

AI Inverter is an advanced algorithm derived from TCL's proprietary technology. It is energy efficient, quickly reaches the set temperature and keeps it stable within ±0.5°C. AI inverter saves up to 60% energy. Improved energy efficiency by 30%, fast cooling or heating, i.e. 90 seconds for cold or warm air output under full load, precise temperature control.

Gentle Wind A gentle airflow ensures tailor-made comfort

Enjoy more comfortable cooling with Gentle Wind mode. Micro holes in the air direction vanes create a gentle and gentle airflow. For a comfortable and cozy cooling experience, without cold air currents while still providing effective cooling.

4-Step Cleaning

From fogging, frosting, to sterilizing and drying. Deep Cleaning uses water molecules in the air to remove dust, dirt and other impurities. The automatic program is efficient, simple and a superior way to enjoy cleaner air - just press the button

IOT Wi-Fi Control Anytime, Anywhere Compatible with Google Home and Alexa

By pressing a button on the remote control, you can activate the indoor unit's 4-step cleaning cycle: the product alternates between cooling, defrosting, heating the water that has formed, and drying. Deep cleaning uses water molecules to clean dust, dirt, and other impurities. The automatic program is efficient and simple.

Intelligent airflow

Cooling

The airflow directed towards the horizontal direction descends from the ceiling to create immersive cooling.

Heating

The flow of warm air rises from the floor evenly

Energy saving ECO mode for energy saving and environmental protection

ECO mode activates an optimized program with room temperature at 26°C to maximize efficiency. Be kind to the environment, save on electricity bills but enjoy the coolness during hot summer days

Simplified installation and maintenance Quick installation

Simple and solid mounting plate with lifting supports. Convenient access for easy installation.

Quick PCB board replacement in just 3 steps

• Open the front panel.
• Remove the cover from the electrical panel.
• Remove the electronic board for replacement.

Simplified installation

Only 3 pieces, no screws to remove, installation in less time. The air exhaust grille can be disassembled without even removing a screw.

Easy disassembly and cleaning

Disassembling and cleaning an air conditioner is not as complicated as you might think, and can be completed in three steps.

Certified cooling even at extremely high temperatures

BreezeIN keeps you cool even in the hottest summer. Stay cool no matter what the outside temperature is. The air-cooled product's electrical panel ensures optimal cooling even at 53°C outside temperature and a cooling capacity equal to the nameplate up to 50°C outside temperature.

Certified heating even at extremely low temperatures

BreezeIN keeps you warm even in the coldest winter. Even at outdoor temperatures as low as -20℃, BreezeIN is able to heat the rooms effectively. This innovative feature ensures a clean and healthy indoor environment, allowing users to enjoy maximum comfort and well-being.

Hotel mode

Fire alarm

In the event of a fire alarm, the air conditioner is able to automatically stop automatically. This ensures the safety of the occupants, preventing the product from continuing to operate in the presence of flames and smoke. This function aligns with emergency safety protocols.

Door contact

The Breezeln series indoor units are equipped with a socket that can be connected to an external device for managing a door contact. In this case, it is possible to operate the unit only when the guest is present and stop it automatically when the room is vacated.

Window contact

The same socket can also be used for applications with window contacts: in this way it is possible to automatically stop the product when the window is opened.

Optional wired control

The indoor units have a socket for direct connection of wired control. This is particularly useful in hotel rooms or in contexts where you do not want to leave the infrared remote control available to users.

BMS function

This feature allows you to integrate and control up to 30 air conditioning units through a single computer. BMS stands for Building Management System, which is a computer-based control system used to monitor and manage various functions of the building.

Filter cleaning indicator Indication of the need to clean the filter

BreezeIN keeps you informed about the status of the air filter. When the filter is dirty, the indoor unit display will show "CL" and send a reminder via the TCL Home app.

Self-diagnosis and refrigerant leak alarm

Enjoy peace of mind with your BreezeIN's Self-Diagnosis feature! It proactively identifies potential issues, including refrigerant leaks, and alerts you with a code displayed on the indoor unit's display. Plus, get real-time notifications right on your phone. Rest assured knowing your air conditioner will operate reliably.
