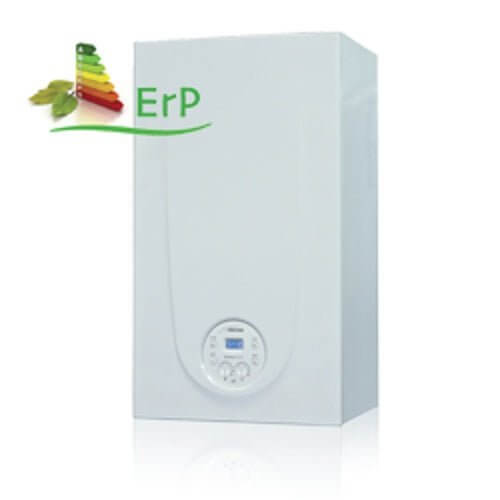

SIME BRAVA ONE 25 HE METHANE condensing BOILER COMPLETE WITH FUME EXHAUST KIT
- For heating and domestic hot water production
- DHW thermal power kW 4.0÷24.0
- Heating thermal power (50-30°C) kW 4.3÷21.4
- Efficiency class (EEC 92/42): ****
- Continuous DHW flow rate Δt 30°c: 11.2 l/min
- Heating energy efficiency class: A
- Dimensions (h x w x d): 700 x 400 x 250 mm; 28.3kg
- METHANE version
GOOD ONE
- Premixed condensing boiler
- Wide modulation range
- Stainless steel coil exchanger
- Extremely compact dimensions
- Three-piece cloak
- DHW management with dedicated probe
- Retroactive combustion control with electronic gas valve
- Can be installed outdoors and recessed using accessories (see page 78)
- 2 versions with 24.0 and 28.0 kW domestic hot water production
- Integrated climatic regulation
Incredible dimensions for its potential
The particularly compact dimensions are the most evident feature of the new Brava Slim and Brava One: 70 cm x 40 cm x 25 cm for almost all models, up to 35 kW of power. A unique result on the market! For example, comparing the condensing versions with previous models, there is an average decrease in volume of over 30%
You will sleep soundly
With Brava Slim and Brava One, Sime adopts the brass hydraulic group on all the boilers in the range. Brass, synonymous with quality, reliability and long life, guarantees peaceful sleep. The new hydraulic group also introduces the order of connections according to the DIN standard, adopted by the majority of European manufacturers, a further guarantee of maximum installation flexibility of Brava Slim and Brava one.
For every action the perfect reaction
Boiler manufacturers have always been concerned with developing the most efficient and ecological combustion. The passage of time often nullifies these efforts, lowering the quality of the combustion due to uncontrollable physical drifts. An active control of the combustion allows
maintain the system within predefined efficiency, safety and emissions limits. The system is based on two fundamental components: the ignition electrode and the control electronics. The electrode, immersed in the flame, acts as a combustion control sensor providing feedback to the electronics that regulates combustion continuously. Advantages:
Simple commissioning, high reliability and low maintenance over time
Maximum safety in the event of poor exhaust gas evacuation or recirculation of unburnt gases (not detectable by traditional systems)
Better control of combustion drifts caused by machining tolerances, oxidation and insulation losses
No mechanical settings: electronic calibration of the gas valve
Increased reliability by eliminating the air pressure switch in traditional combustion boilers
Easier natural gas/LPG changeover via a simple parameter in condensing boilers and safe operation in the event of using the wrong gas
Versatile and adaptable to any environment
The extremely compact dimensions of Brava Slim and Brava One offer maximum assembly flexibility: all condensing and sealed chamber models from 25 to 35 kW are suitable for outdoor or recessed installation using simple accessories.
Product Guarantee
All products for sale on our site are new and packed. The warranty on this item is 24 months from the date of purchase.
