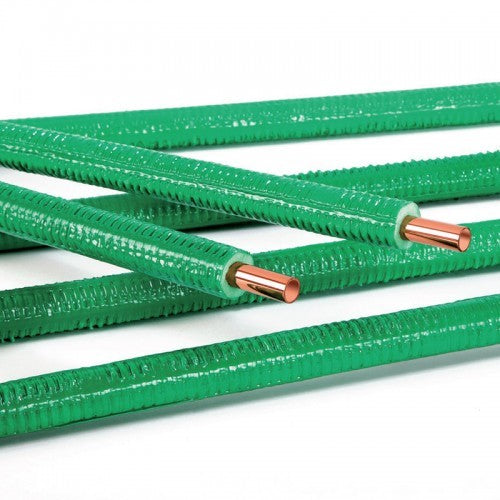

Copper Pipe Smisol One Sctubes For Heating 50 Meters 10x1 Mm Coated In Expanded Polyethylene

Description

Technical Features
  • Dimensions External Diameter: 10 mm
  • Thickness: 1.0mm
  • Roll Length: 50m
  • Minimum Coating Thickness: 6 mm
  • Burst Pressure : 44.88MPa
  • Working Pressure : 11.22MPa
  • Water content: 0.050 l/m

SMISOL®One Versatile and professional

It is the copper tube produced according to the EN 1057 standard, pre-insulated during production with expanded polyethylene with a closed cell structure of regular and uniformly distributed dimensions. The insulating sheath is also protected externally by a special polyethylene film. Insulated according to Law 10/91 and related implementing decree (DPR412/93), for the distribution of the heat transfer fluid inside heated environments . The insulating sheath is produced in full compliance with the European Regulation EEC/EU 2037/2000 which requires the use of expanded insulating sheaths without the use of CFCs and HCFCs, gases harmful to health and the environment.
The production process ensures the absolute adhesion of the insulating sheath to the external wall of the copper tube, so as to avoid the formation of cavities that negatively affect the thermal insulation capacity. The production process of the tube, coated directly in line, guarantees the absolute malleability of the product and ease of installation. Furthermore, to protect the end consumer, in compliance with EU Regulation 305/2011 for construction products (CPR), the EN1057-compliant copper tubes produced by SCT are marked with the CE mark . A further guarantee of compliance with current legislation is given by obtaining the UNI-IGQ Quality mark


Internal Protection

It has proven bacteriostatic properties , which make it the ideal material for water-sanitary networks, in order to prevent bacterial proliferation such as Legionellosis. SMISOL® One complies with DM174/04 (GU 166 of 17/07/04) which defines the conditions to which materials in contact with drinking water must respond.
It is subjected, during the production phase, to a patented passivation and stabilization treatment of the internal wall which makes it absolutely reliable in compliance with the drinkability parameters set by the European legislation on transported drinking water (European Directive 98/83 and DL 31/01). It has a carbon residue C <0.06 mg/dm2, much lower than that set by the EN 1057 standard, which establishes a carbon content C ≤0.20 mg/dm2


External Protection

The insulating sheath is made of closed-cell expanded PE compliant with Reg. EEC/EU 2037/2000 (without the use of CFC and HCFC) with an external film in green polyethylene and corrugated on the surface. The coating has a fire behaviour of class BL-s1-d0 according to EN 13501-1


Coating Features

  • Thermal conductivity: λ ≤0.040 W/m°C.
  • Average coating density: 30 kg/m3
  • Min. coating thickness: 6 mm (9 mm for diameter 22 x 1 mm) continuously monitored with laser gauge.
  • Free from ammonia residues.
  • Excellent resistance to external chemical agents
  • Non-flammable class BL-s1-d0 according to EN 13501-1
  • Free from CFCs and HCFCs (Reg. EEC/EU 2037/2000)

One


Product Warranty: All products for sale on our site are new and packaged. The warranty on this item is 24 months from the date of purchase.

Copper Pipe Smisol One Sctubes For Heating 50 Meters 10x1 Mm Coated In Expanded Polyethylene

Product form

Technical Features Dimensions External Diameter: 10 mm Thickness: 1.0mm Roll Length: 50m Minimum Coating Thickness: 6 mm Burst Pressure :... Read more

€270,00 Incl. VAT

    Description

    Technical Features
    • Dimensions External Diameter: 10 mm
    • Thickness: 1.0mm
    • Roll Length: 50m
    • Minimum Coating Thickness: 6 mm
    • Burst Pressure : 44.88MPa
    • Working Pressure : 11.22MPa
    • Water content: 0.050 l/m

    SMISOL®One Versatile and professional

    It is the copper tube produced according to the EN 1057 standard, pre-insulated during production with expanded polyethylene with a closed cell structure of regular and uniformly distributed dimensions. The insulating sheath is also protected externally by a special polyethylene film. Insulated according to Law 10/91 and related implementing decree (DPR412/93), for the distribution of the heat transfer fluid inside heated environments . The insulating sheath is produced in full compliance with the European Regulation EEC/EU 2037/2000 which requires the use of expanded insulating sheaths without the use of CFCs and HCFCs, gases harmful to health and the environment.
    The production process ensures the absolute adhesion of the insulating sheath to the external wall of the copper tube, so as to avoid the formation of cavities that negatively affect the thermal insulation capacity. The production process of the tube, coated directly in line, guarantees the absolute malleability of the product and ease of installation. Furthermore, to protect the end consumer, in compliance with EU Regulation 305/2011 for construction products (CPR), the EN1057-compliant copper tubes produced by SCT are marked with the CE mark . A further guarantee of compliance with current legislation is given by obtaining the UNI-IGQ Quality mark


    Internal Protection

    It has proven bacteriostatic properties , which make it the ideal material for water-sanitary networks, in order to prevent bacterial proliferation such as Legionellosis. SMISOL® One complies with DM174/04 (GU 166 of 17/07/04) which defines the conditions to which materials in contact with drinking water must respond.
    It is subjected, during the production phase, to a patented passivation and stabilization treatment of the internal wall which makes it absolutely reliable in compliance with the drinkability parameters set by the European legislation on transported drinking water (European Directive 98/83 and DL 31/01). It has a carbon residue C <0.06 mg/dm2, much lower than that set by the EN 1057 standard, which establishes a carbon content C ≤0.20 mg/dm2


    External Protection

    The insulating sheath is made of closed-cell expanded PE compliant with Reg. EEC/EU 2037/2000 (without the use of CFC and HCFC) with an external film in green polyethylene and corrugated on the surface. The coating has a fire behaviour of class BL-s1-d0 according to EN 13501-1


    Coating Features

    • Thermal conductivity: λ ≤0.040 W/m°C.
    • Average coating density: 30 kg/m3
    • Min. coating thickness: 6 mm (9 mm for diameter 22 x 1 mm) continuously monitored with laser gauge.
    • Free from ammonia residues.
    • Excellent resistance to external chemical agents
    • Non-flammable class BL-s1-d0 according to EN 13501-1
    • Free from CFCs and HCFCs (Reg. EEC/EU 2037/2000)

    One


    Product Warranty: All products for sale on our site are new and packaged. The warranty on this item is 24 months from the date of purchase.

    Data sheetData sheet
    • peso: 5.0 kg
    • marca: SCTubes
    • modello: Smisol One 10x1
