Smisol Frio Copper Pipe Schubes For Chilled Water 25 Meters 22 X 1 Mm Coated In Polyethylene

Description

Technical features
  • Dimensions External Diameter: 22 mm
  • Thickness : 1mm
  • Roll length : 25m
  • Minimum Coating Thickness: 10 mm
  • Burst Pressure: 20.40 MPa
  • Working Pressure: 5.10 MPa
  • Water Content: 0.314 l/m

SMISOL® Frio Fears neither heat nor cold

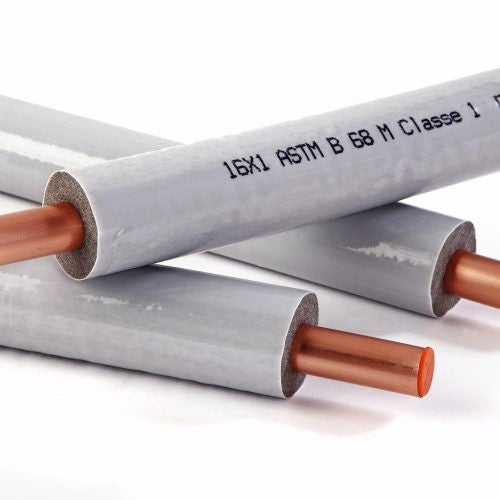

It is the copper pipe produced according to the EN 12735-1 standard (and ASTM B 68/M), and is pre-insulated in closed cell expanded polyethylene of regular dimensions and uniformly distributed (UNI EN 14114). It is distributed in rolls, having the dimensions of the pipe diameter in millimeters. The insulating sheath is produced in full compliance with the European Regulation EEC/EU 2037/2000 which imposes the use of expanded insulating sheaths without the use of CFCs and HCFCs, gases harmful to health and the environment. The thickness of the sheath is also sized in such a way as to satisfy the multiple needs of this application sector. In consideration of the particular specificity of the field of use, special attention is paid to the external protective film in polyethylene aimed at preventing the formation of condensation on the external wall of the product.


Inner surface

The internal surface of the copper tube is shiny, clean and dry , fundamental characteristics of a product normally available on the market for industrial use. This peculiarity allows to obtain an integrated system with the terminal elements of the system. The particular internal cleanliness of SMISOL® Frio is safeguarded by closing the ends of each roll with caps, directly during production.


External Protection

Covering in closed cell expanded polyethylene with an average value of the resistance factor to the diffusion of water vapor "µ" greater than 15000 . The insulating sheath is produced in full compliance with the European Regulation EEC/EU 2037/2000 which imposes the use of expanded insulating sheaths without the use of CFC and HCFC, gases harmful to health and the environment and has a fire behavior class BL-s1-d0 according to EN 13501-1.


Coating Features

  • Thermal conductivity : λ ≤0.040 W/m°C.
  • Average value of the resistance factor to the diffusion of water vapor "µ" greater than 15000.
  • Average density of the coating: 33 kg/m3.
  • Free from ammonia residues.
  • Excellent resistance to external chemical agents.
  • Non flammable class BL-s1-d0 according to EN 13501-1
  • Free from CFC and HCFC (Reg. CEE/UE 2037/2000)

Directions For Design
To avoid possible condensation phenomena on the pipe, it is necessary to check the environmental conditions in which the product is installed: relative humidity of the environment, temperature of the environment and of the fluid inside the pipe. In this regard, verification through the Psychrometric diagram is recommended
Smisol Frio

Fields of Use
  • Refrigeration.
  • Transport of heat transfer liquids for multifunctional systems

Product Guarantee: All products for sale on our site are new and packed. The warranty on this item is 24 months from the date of purchase.

Smisol Frio Copper Pipe Schubes For Chilled Water 25 Meters 22 X 1 Mm Coated In Polyethylene

Product form

Technical features Dimensions External Diameter: 22 mm Thickness : 1mm Roll length : 25m Minimum Coating Thickness: 10 mm Burst... Read more

€410,00 Incl. VAT

    Description

    Technical features
    • Dimensions External Diameter: 22 mm
    • Thickness : 1mm
    • Roll length : 25m
    • Minimum Coating Thickness: 10 mm
    • Burst Pressure: 20.40 MPa
    • Working Pressure: 5.10 MPa
    • Water Content: 0.314 l/m

    SMISOL® Frio Fears neither heat nor cold

    It is the copper pipe produced according to the EN 12735-1 standard (and ASTM B 68/M), and is pre-insulated in closed cell expanded polyethylene of regular dimensions and uniformly distributed (UNI EN 14114). It is distributed in rolls, having the dimensions of the pipe diameter in millimeters. The insulating sheath is produced in full compliance with the European Regulation EEC/EU 2037/2000 which imposes the use of expanded insulating sheaths without the use of CFCs and HCFCs, gases harmful to health and the environment. The thickness of the sheath is also sized in such a way as to satisfy the multiple needs of this application sector. In consideration of the particular specificity of the field of use, special attention is paid to the external protective film in polyethylene aimed at preventing the formation of condensation on the external wall of the product.


    Inner surface

    The internal surface of the copper tube is shiny, clean and dry , fundamental characteristics of a product normally available on the market for industrial use. This peculiarity allows to obtain an integrated system with the terminal elements of the system. The particular internal cleanliness of SMISOL® Frio is safeguarded by closing the ends of each roll with caps, directly during production.


    External Protection

    Covering in closed cell expanded polyethylene with an average value of the resistance factor to the diffusion of water vapor "µ" greater than 15000 . The insulating sheath is produced in full compliance with the European Regulation EEC/EU 2037/2000 which imposes the use of expanded insulating sheaths without the use of CFC and HCFC, gases harmful to health and the environment and has a fire behavior class BL-s1-d0 according to EN 13501-1.


    Coating Features

    • Thermal conductivity : λ ≤0.040 W/m°C.
    • Average value of the resistance factor to the diffusion of water vapor "µ" greater than 15000.
    • Average density of the coating: 33 kg/m3.
    • Free from ammonia residues.
    • Excellent resistance to external chemical agents.
    • Non flammable class BL-s1-d0 according to EN 13501-1
    • Free from CFC and HCFC (Reg. CEE/UE 2037/2000)

    Directions For Design
    To avoid possible condensation phenomena on the pipe, it is necessary to check the environmental conditions in which the product is installed: relative humidity of the environment, temperature of the environment and of the fluid inside the pipe. In this regard, verification through the Psychrometric diagram is recommended
    Smisol Frio

    Fields of Use
    • Refrigeration.
    • Transport of heat transfer liquids for multifunctional systems

    Product Guarantee: All products for sale on our site are new and packed. The warranty on this item is 24 months from the date of purchase.

    Data sheetData sheet
    • peso: 1.0 kg
    • marca: SCTubes
    • modello: Smisol Frio 22 x 1
