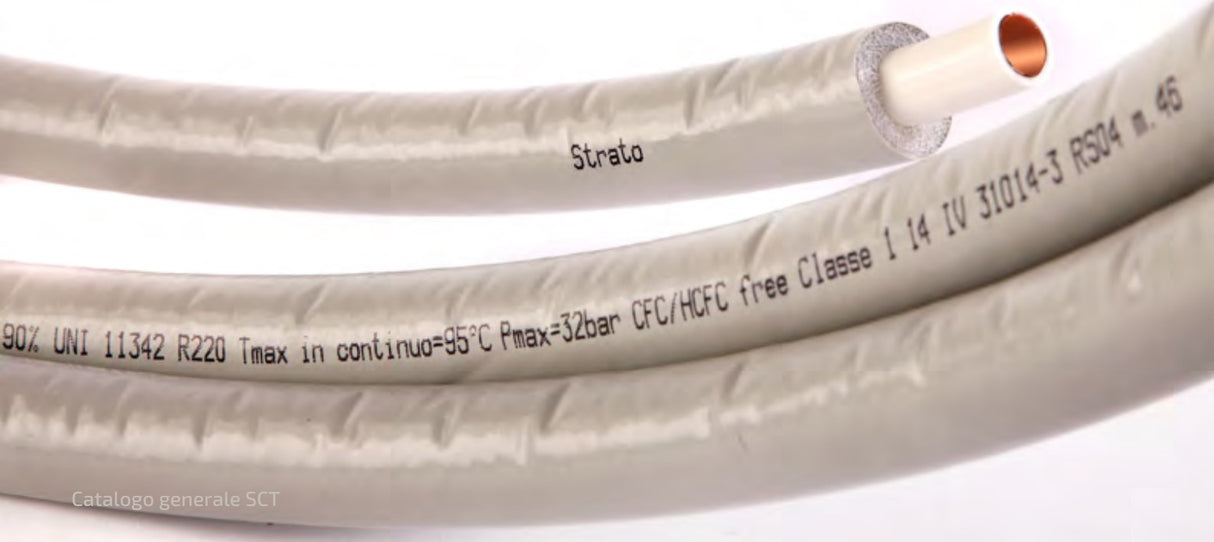

Multilayer Copper Pipe Scubes Insulated Layer For Heating 50 Meters 20 X 2 Mm Coated With Copper Core

Description

Technical features
  • Dimensions External Diameter: 20 mm
  • Thickness : 2mm
  • Roll length : 50m
  • Coating Thickness : 6 mm
  • Operating Pressure : 25 bar
  • Water Content: 0.201 l/m
  • Minimum Bending Radius with Bending Machine: 80 mm
  • Minimum Manual Bending Radius: 120 mm
Technical characteristics of the tube
  • Internal Contact Material: Copper Cu-DHP (Cu:99.9% min. P: 0.015 ÷ 0.040%) according to DM 174/04 (Regulation concerning materials in contact with drinking water)
  • Inner surface roughness: 1.5 μm
  • Outer layer : PE-RT
  • Maximum Operating Temperature: 95 °C continuously
  • Breaking load: R. min. ≥ 220 Mpa (N/mm2 )
  • Percent elongation: (A5 min.) : 40%
Technical Characteristics Of Insulation
  • Insulating material : Closed-cell expanded cross-linked polyethylene (PE-X).
  • Thermal conductivity of the insulation (λ) : 0.039 W/mK
  • Average density of the insulation : 30 kg/m3
  • Resistance to water vapor diffusion (μ) : > 9000
  • Behavior in fire : Class 1 (DM 26/06/84)
  • Resistance to chemical agents : Very Good (ASTM 543-56 T)
  • Acoustic absorption : ~60% (DIN 4109 300-2500Hz)

SMISOL® Strato To give you more we put our soul into it

A noble, safe, performing, tested, hygienic, bacteriostatic core, a copper core.

Strato represents the evolution of pipes for the transport of drinking water and for heating radiators. A product that combines the lightness and ease of installation of traditional multilayer with the unique performance of copper pipes in terms of resistance to pressure and high temperatures, hygiene and bacteriostatic properties, low pressure drops and reduced internal roughness .

Strato is manufactured according to the UNI 11342 standard: "Seamless copper and polyethylene composite pipes for fluid adduction", it is obtained through the co-extrusion of a specific reduced thickness copper pipe with an indissoluble polyethylene layer. It is then externally insulated with an insulating covering in closed cell expanded polyethylene in compliance with Law 10/91, implementing decree DPR 412/93 and subsequent updates.

The quality of the raw material used and the characteristics of the coating make the product particularly suitable for the distribution of drinking water (in compliance with DM 174/04) and for heating systems with high temperature radiators. Ease of installation and bending, absence of memory effect , lightness, excellent quality/price ratio , wide choice of fittings to combine, reliability and safety, make Strato the truly innovative solution among the latest generation pipes for plumbing and sanitary uses.

Strato


Fields of Use

  • Drinking water distribution
  • Radiator heating
  • Chilled water distribution

In compliance with and within the limits established by the regulations


Advantages

  • Resistance to pressure and high temperatures : Strato is not afraid of sudden increases in pressure, since its metallic nature gives it very high mechanical resistance
  • Hygiene and bacteriostatic : It is totally hygienic and fights bacterial proliferation. It complies with DM 174/04: drinking water comes into contact only with the copper surface, guaranteeing the absence of odors and flavors
  • Absence of welds: The copper tube contained inside is obtained through a continuous drawing process, unlike traditional multilayers which involve the longitudinal union of the aluminum layer through different technologies
  • Total impermeability and 100% barrier to oxygen: Its metal core makes it impermeable to gases: there is no risk of leaks and/or contamination from inside to outside and vice versa. In heating systems, the presence of oxygen which can attack boilers, pump impellers or other metal parts is avoided
  • Flexibility and workability: Strato can be bent by hand even with reduced bending radii and does not undergo any memory effect, maintaining the acquired shape
  • Low linear thermal expansion coefficient: Unlike plastic pipes, thermal expansion is extremely limited, thus guaranteeing dimensional stability even when the temperature of the fluid transported varies
  • Low pressure drops: Strato has an extremely low internal roughness (1.5μm compared to 7μm of traditional multilayers). This means lower load losses and a lower tendency to suffer limescale deposits

Junction Technology
Strato is compatible with all fittings produced according to the EN 1254-8 standard normally used with multilayer pipes.
The peculiarity of Strato is that of offering an "open" solution and therefore not being bound to any specific connection. Different combinations are available, compatible with the most important brands of fittings on the market, including full bore ones. The latter solution makes it possible to adopt smaller pipe sections, with savings both in terms of pipe cost and masonry work. Different types of mechanical fittings can be used (press, quick fit, tighten)
Installation
Cut to Size : Cutting, calibration and deburring can be performed with accessories commonly on the market.
Bending : The Strato tube can be easily bent by hand or with a normal copper tube bender.
Junction : Different types of mechanical fittings (press fit, quick fit, compression) available on the market can be used.
Installazione
Coating Features

Rivestimento


Product Guarantee: All products for sale on our site are new and packed. The warranty on this item is 24 months from the date of purchase.

Multilayer Copper Pipe Scubes Insulated Layer For Heating 50 Meters 20 X 2 Mm Coated With Copper Core

Product form

Technical features Dimensions External Diameter: 20 mm Thickness : 2mm Roll length : 50m Coating Thickness : 6 mm Operating... Read more

€355,00 Incl. VAT

    Description

    Technical features
    • Dimensions External Diameter: 20 mm
    • Thickness : 2mm
    • Roll length : 50m
    • Coating Thickness : 6 mm
    • Operating Pressure : 25 bar
    • Water Content: 0.201 l/m
    • Minimum Bending Radius with Bending Machine: 80 mm
    • Minimum Manual Bending Radius: 120 mm
    Technical characteristics of the tube
    • Internal Contact Material: Copper Cu-DHP (Cu:99.9% min. P: 0.015 ÷ 0.040%) according to DM 174/04 (Regulation concerning materials in contact with drinking water)
    • Inner surface roughness: 1.5 μm
    • Outer layer : PE-RT
    • Maximum Operating Temperature: 95 °C continuously
    • Breaking load: R. min. ≥ 220 Mpa (N/mm2 )
    • Percent elongation: (A5 min.) : 40%
    Technical Characteristics Of Insulation
    • Insulating material : Closed-cell expanded cross-linked polyethylene (PE-X).
    • Thermal conductivity of the insulation (λ) : 0.039 W/mK
    • Average density of the insulation : 30 kg/m3
    • Resistance to water vapor diffusion (μ) : > 9000
    • Behavior in fire : Class 1 (DM 26/06/84)
    • Resistance to chemical agents : Very Good (ASTM 543-56 T)
    • Acoustic absorption : ~60% (DIN 4109 300-2500Hz)

    SMISOL® Strato To give you more we put our soul into it

    A noble, safe, performing, tested, hygienic, bacteriostatic core, a copper core.

    Strato represents the evolution of pipes for the transport of drinking water and for heating radiators. A product that combines the lightness and ease of installation of traditional multilayer with the unique performance of copper pipes in terms of resistance to pressure and high temperatures, hygiene and bacteriostatic properties, low pressure drops and reduced internal roughness .

    Strato is manufactured according to the UNI 11342 standard: "Seamless copper and polyethylene composite pipes for fluid adduction", it is obtained through the co-extrusion of a specific reduced thickness copper pipe with an indissoluble polyethylene layer. It is then externally insulated with an insulating covering in closed cell expanded polyethylene in compliance with Law 10/91, implementing decree DPR 412/93 and subsequent updates.

    The quality of the raw material used and the characteristics of the coating make the product particularly suitable for the distribution of drinking water (in compliance with DM 174/04) and for heating systems with high temperature radiators. Ease of installation and bending, absence of memory effect , lightness, excellent quality/price ratio , wide choice of fittings to combine, reliability and safety, make Strato the truly innovative solution among the latest generation pipes for plumbing and sanitary uses.

    Strato


    Fields of Use

    • Drinking water distribution
    • Radiator heating
    • Chilled water distribution

    In compliance with and within the limits established by the regulations


    Advantages

    • Resistance to pressure and high temperatures : Strato is not afraid of sudden increases in pressure, since its metallic nature gives it very high mechanical resistance
    • Hygiene and bacteriostatic : It is totally hygienic and fights bacterial proliferation. It complies with DM 174/04: drinking water comes into contact only with the copper surface, guaranteeing the absence of odors and flavors
    • Absence of welds: The copper tube contained inside is obtained through a continuous drawing process, unlike traditional multilayers which involve the longitudinal union of the aluminum layer through different technologies
    • Total impermeability and 100% barrier to oxygen: Its metal core makes it impermeable to gases: there is no risk of leaks and/or contamination from inside to outside and vice versa. In heating systems, the presence of oxygen which can attack boilers, pump impellers or other metal parts is avoided
    • Flexibility and workability: Strato can be bent by hand even with reduced bending radii and does not undergo any memory effect, maintaining the acquired shape
    • Low linear thermal expansion coefficient: Unlike plastic pipes, thermal expansion is extremely limited, thus guaranteeing dimensional stability even when the temperature of the fluid transported varies
    • Low pressure drops: Strato has an extremely low internal roughness (1.5μm compared to 7μm of traditional multilayers). This means lower load losses and a lower tendency to suffer limescale deposits

    Junction Technology
    Strato is compatible with all fittings produced according to the EN 1254-8 standard normally used with multilayer pipes.
    The peculiarity of Strato is that of offering an "open" solution and therefore not being bound to any specific connection. Different combinations are available, compatible with the most important brands of fittings on the market, including full bore ones. The latter solution makes it possible to adopt smaller pipe sections, with savings both in terms of pipe cost and masonry work. Different types of mechanical fittings can be used (press, quick fit, tighten)
    Installation
    Cut to Size : Cutting, calibration and deburring can be performed with accessories commonly on the market.
    Bending : The Strato tube can be easily bent by hand or with a normal copper tube bender.
    Junction : Different types of mechanical fittings (press fit, quick fit, compression) available on the market can be used.
    Installazione
    Coating Features

    Rivestimento


    Product Guarantee: All products for sale on our site are new and packed. The warranty on this item is 24 months from the date of purchase.

    Data sheetData sheet
    • peso: 5.0 kg
    • marca: SCTubes
    • modello: Strato 20x2
    Icon for coinShipping cost

    Shipping costs vary according to the weight of the order.

    Consult the tables with the weights for Italy and for the smaller islands and disadvantaged areas.
