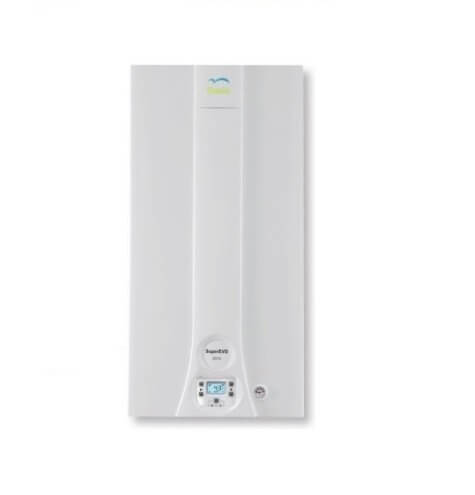

SAVIO SuperEVOdens 24 S* METHANE CONDENSING Boiler Complete with Fume Exhaust Kit - ErP
ErP specifications
- Class B heating energy efficiency
- Sanitary energy efficiency Class A
- Withdrawal profile: XL
- Heating/DHW nominal heat input: 25 kW
- Heating/DHW maximum useful power: 24.4 kW
- Yield name 60°/80°C: 97.4%
- Yield at 30% load: 98.9%
- High yields (★★★★ compliant with yield directive 92/42 EEC and Legislative Decree 311/06)
- NOx class 2
- Weighted NOx: 166 mg/kWh
- Minimum/maximum heating temperature: 40/85°C
- Minimum/maximum heating pressure 3.0/0.3 bar
- Expansion vessel capacity 8 l (total)
- Minimum/maximum domestic hot water temperature 35/60°C
- Maximum flow rate (ΔT=25K)/(ΔT=35K): 13.9/10 l/min
- Specific sanitary flow rate (ΔT=30 K): 11.6 l/min
- Voltage / Power at nominal heat input V~/ W 230/82
- IPX4D degree of protection
- Dimensions HxWxD 803x400x350; 42.5 kgs
- Power supply: methane or LPG
Standard
- Digital electronic room thermostat
- Boiler support bracket and paper template
- Condensate collection siphon
- Quick instruction to the user
SuperEVO dens
SuperEVOdens is the condensing boiler designed for traditional systems and easily adaptable to new underfloor systems using SIMpatico, a hot water distribution device for heating
Savings and ease of use
SuperEVOdens maintains the simplicity of management, programming and regulation of the traditional boiler and imports the savings of the condensing boiler deriving from the recovery of heat from the fumes. The heat recovery unit preheats the system water with the heat released by the fumes, heat which in traditional boilers is dispersed into the environment. This recovery of energy from the fumes, at typical operating temperatures of radiator systems, leads SuperEVOdens to have higher yields than traditional boilers.
- High yields (in compliance with yield directive 92/42 EEC and Legislative Decree 311/06)
- Copper lamellar primary heat exchanger with large exchange surface and double circulation
- Aluminum heat recovery unit to exploit the heat of the fumes and transfer it to the water
- Sanitary plate heat exchanger in stainless steel
- High efficiency pump with low energy consumption
- Digital control panel with backlit display
- Electronic card for:
- Restart frequency adjustment
- Adjustable primary circuit thermal inertia disposal
- Circulator mode selection
- Circulator anti-seize
- Antifreeze safety
- Chimney sweep function
- Integrated automatic by-pass
- 8 liter expansion vessel
- Immunity to radio interference
- Magnetic sanitary flow switch
- Absolute heating pressure switch
- IPX4D degree of protection
High circulation primary exchanger
It is the element that distinguishes the entire Savio range. It favors the flow of water into the heating system and, thanks to its reduced hydraulic resistance, adapts the boiler to the system and facilitates the transmission of heat to the radiators.
Heat recovery
The heat recovery recovers the heat from the fumes before they are expelled and preheats the water directed to the primary exchanger. The recuperator is made of aluminium, has a finned coil which determines a large exchange surface and has a device to ensure that the boiler discharges the condensate correctly
Command panel
- Summer/winter/off selector
- Heating temperature regulator
- DHW temperature regulator
- Digital and analog pressure reading
- DHW and heating temperature visualization from the display
- Display of fault diagnostics, block status and fault history
- Recommended fill display
- Display annual periodic maintenance expiry
Product Warranty All products for sale on our site are new and packed. The warranty on this item is 24 months from the date of purchase.
