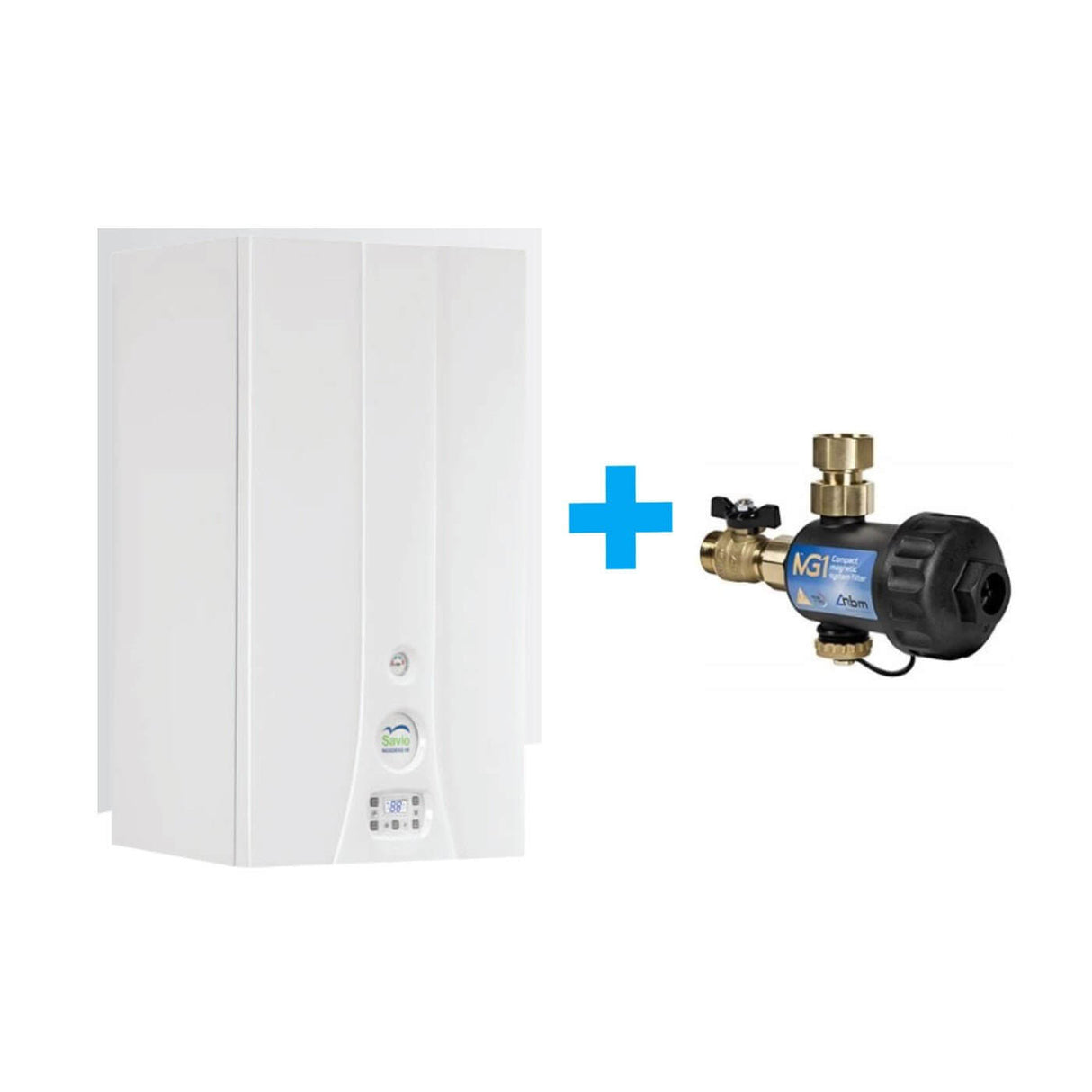

SAVIO INOXDENS HE 25S* Condensing Boiler Complete With LPG Fume Exhaust Kit RBM FREE !!
ErP specifications
- Class A heating energy efficiency
- Sanitary energy efficiency Class A
- Withdrawal profile: XL
- Characteristics of heating/DHW operation:
- Heating/DHW nominal heat input: 21.0/26.0 kW
- Heating/DHW maximum useful power 60°/80°C: 20.3/25.1 kW
- Heating/DHW maximum useful power 30°/50°C: 22.4/22.4 kW
- Yield name 60°/80°C: 96.6%
- Yield at 30% load: 107.6%
- Energy Efficiency ★★★★
- NOx class 6
- Weighted NOx: 45 mg/kWh
- Minimum/maximum heating temperature: 25/80°C
- Minimum/maximum heating pressure 3.0/0.3 bar
- Expansion tank capacity 7.0 l (total)
- Minimum/maximum domestic hot water temperature 35/60°C
- Maximum flow rate (ΔT=25 K)/(ΔT=35 K): 14.4/10.3 l/min
- Specific sanitary flow rate (ΔT=30 K): 12 l/min
- Voltage / Power at nominal heat input V~/ W 230/99
- Degree of protection IPX5D
- Dimensions HxWxD 700x400x290; 31 Kgs
- Power supply: LPG
INOXDENS
The perfect compact boiler for underfloor systems and radiator systems
The adjustable maximum useful power parameter in heating meets the needs of modern construction without compromising the comfort required in the production of domestic hot water. In fact, this function makes it possible to limit the maximum useful power in heating, independently of the useful DHW power.
INOXDENS HE is the new Savio range of wall-mounted condensing boilers: excellent performance thanks to the new heat exchanger and ease of use thanks to the digital control panel with large display.
Available in the versions for heating and domestic hot water production and for heating only INOXDENS HE presents a complete range of powers, 20 and 30 kW combi models and 16 KW SV models, in the same extremely compact dimensions (700 x 400 x 290 mm). INOXDENS HE has its strong point in the innovative heat exchanger designed to provide long-lasting high yields digital control panel, designed to communicate with the user in an easy and comfortable way. Like the entire Savio condensing range, INOXDENS HE allows you to obtain maximum savings from climatic thermoregulation, based on the system in which the boiler is installed.
- High yields (★★★★ compliant with yield directive 92/42 EEC and Legislative Decree 311/06)
- Sanitary comfort (★★★ EN 13203)
- Primary condensing exchanger in stainless steel with steel lining to offer maximum resistance to corrosion
- Total premix burner, built in stainless steel (Class NOx 6)
- Modulation 1:5 CNG and also LPG
- Sanitary plate heat exchanger in stainless steel
- 7 liter expansion tank
- High efficiency pump with low energy consumption
- Maximum power adjustable according to the system
- Degree of protection IPX5D
- Can be installed in a partially protected place
- Integration with Savio solar systems, using a solar kit
- Digital control panel with backlit display
- Analog pressure reading
- Arrangement for remote control and external probe.
High regulation single coil primary heat exchanger
Savio introduces the new stainless steel heat exchanger for condensing boilers to the market: Round. Round is a compact monothermal heat exchanger based on a stainless steel coil with an oval section. The heat exchanger consists of a combustion chamber, condensing area and an insulated metal disc protected with silicone ceramic fiber which separates the two areas. By using a single strip of stainless steel to produce the coil, including inlet/outlet fittings, the following benefits are achieved:
- Accumulation of dirt and debris is avoided
- The water flow is uniformly distributed and guarantees a homogeneous heat exchange
- The water flow is constant for a longer life of the product
- Reduction of pressure drops with optimized circuit
