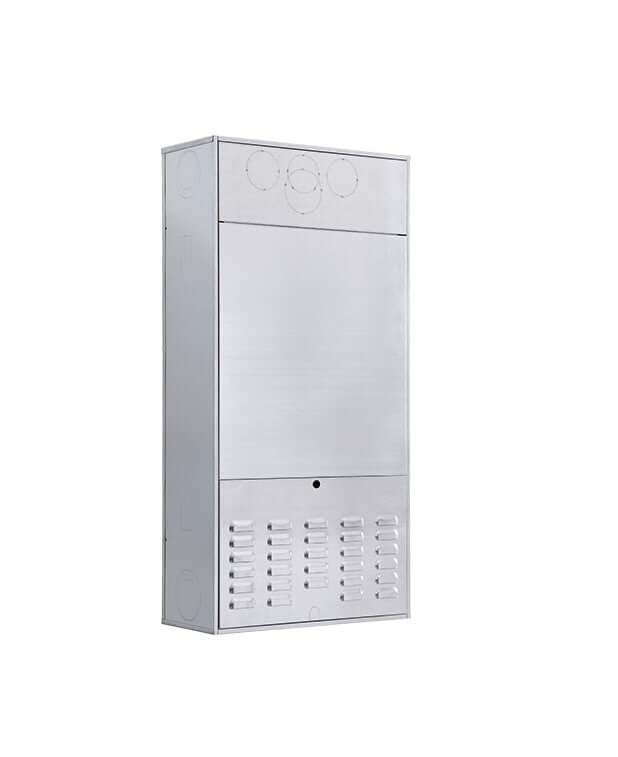

optional box
Savio Edilia HE 25 built-in LPG condensing boiler complete with low NOx flue exhaust kit Cassone Optional
- Model: Edilia HE
- LPG product code 10302.1024.1
- Energy class A
ErP specifications
- Heating/DHW nominal heat input 21.0 / 26.0 kW
- Heating/DHW maximum useful power 60°/80°C * 20.3 / 25.1 kW
- Energy Efficiency ★★★★
- NOx class 6
- Minimum/maximum heating pressure bar 0.3 / 3.0
- Minimum/maximum DHW pressure bar 0.3 / 10.0
- Degree of protection n° IPX5D
- Height x Width x Depth mm 1200x600x240
EDILIA
Edilia HE is the new Savio range of built-in condensing boilers . Excellent performance and high yields that last over time thanks to the innovative heat exchanger. Ease of use thanks to the digital control panel with display designed to communicate with the user easily and comfortably.
Available in versions for heating and domestic hot water production Edilia HE presents a complete range of powers, 20 and 35 kW combi models in the same extremely compact dimensions: 1200 x 600 x 240 mm.
Both versions of Edilia HE are in class A , therefore they benefit from the tax deduction according to current legislation.
Main features
- High yields (★★★★ compliant with yield directive 92/42 EEC and Legislative Decree 311/06)
- Sanitary comfort (★★★ EN 13203)
- Primary condensing exchanger in stainless steel with steel lining to offer maximum resistance to corrosion
- Total premix burner, built in stainless steel (Class NOx 6)
- Modulation 1:5 CNG and also LPG
- Sanitary plate heat exchanger in stainless steel
- 7 l expansion vessel for mod. 25S and 10 l for mod. 35S
- High efficiency pump with low energy consumption
- Maximum power adjustable according to the system
- Degree of protection IPX5D
- Recessed installation in the wall
- Integration with Savio solar systems, using a solar kit
- Digital control panel with backlit display
- Analog reading of the pressure on the machine, digital on the remote
- Arrangement for remote control (optional) and external probe as standard
High circulation single coil primary heat exchanger
Savio introduces the new stainless steel heat exchanger for condensing boilers to the market: Round . Round is a compact monothermal heat exchanger based on a stainless steel coil with an oval section.
The heat exchanger consists of a combustion chamber, condensing area and an insulated metal disc protected with silicone ceramic fiber which separates the two areas. By using a single stainless steel strip to produce the coil, including inlet/outlet fittings, the following benefits are achieved:
- Accumulation of dirt and debris is avoided
- The water flow is uniformly distributed and guarantees a homogeneous heat exchange
- The water flow is constant for a longer life of the product
- Reduction of pressure drops with optimized circuit
The ease of cleaning and the sturdiness of this exchanger are one of the main strengths of the product since it can be used on new systems but also on old systems in the event of renovations .
Round integrates the round flow function in which the water produces a centrifugal cleaning effect on the internal walls of the single coil. The absence of circuits in parallel guarantees an easy "washing" operation of the exchanger and the elimination of any air present in the system circuit.
Thermoregulation
By connecting the external probe (standard) and the remote control (optional) directly to the boiler, climatic regulation can be used. Edilia HE will adapt the system water temperature to the external climatic conditions, ensuring that the desired room temperature is reached without waste and optimizing consumption .
By using the climatic regulation, the regulation efficiency is also raised, giving greater value to your home .
