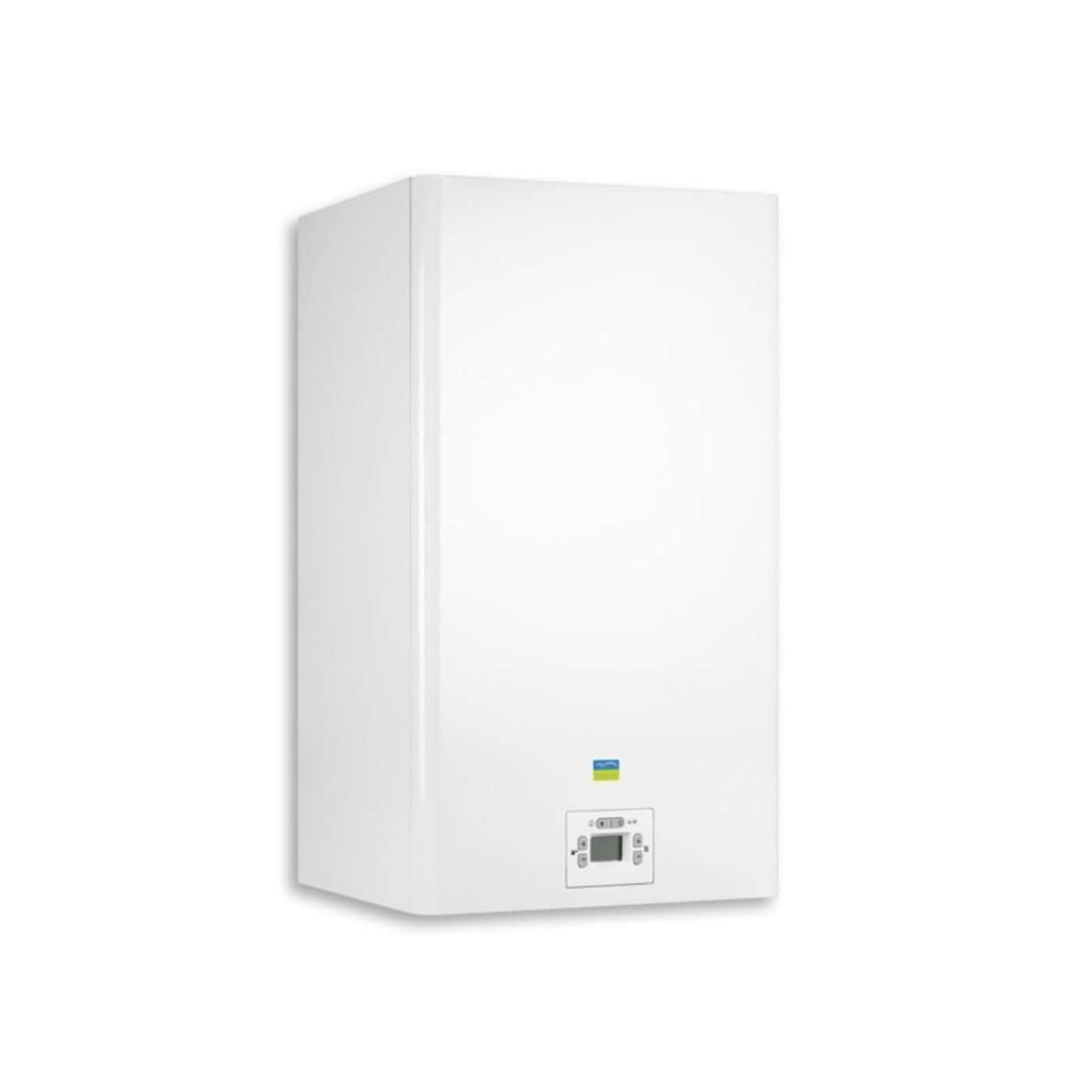

Savio Actadens 25 SA Condensing Boiler Complete With Low Nox Methane Fume Exhaust Kit - New

Description

SAVIO INOXDENS HE 25S* Condensing Boiler Complete With Methane Fume Exhaust Kit - NEW ErP


  • Code 10312.0214.0
  • Acta Dens model
Performance
  • DHW nominal heat input kW (kcal/h) 26.0 (22356)
  • Nominal heat input * heating kW (kcal/h) ) 21.0 (18057)
  • Maximum useful power in heating 60/80° kW (kcal/h) 20.5 (17627)
  • Useful power in DHW 60/80° kW (kcal/h) 25.4 (21840)
  • Efficiency at 100% load (50/30 °C) % 106.8
  • Sanitary flow rate ∆t =25°K l/min 14.7
  • 8 liter expansion vessel
  • NOx class 6
Dimensions
  • Dimensions HxWxD mm 703x400x325

actaDENS


Acta Dens completes the Savio range with premixed condensing: perfect for radiator systems and suitable for radiant systems with mixing groups. ActaDens is the compact condensing boiler that ensures high yields, low consumption and respect for the environment. Available for heating and domestic hot water production, in power ratings of 25 and 30 kW.

Main features

  • Primary condensing exchanger in stainless steel with steel lining to offer maximum resistance to corrosion
  • Total premix burner, stainless steel (Nox Class 6)
  • Modulation 1:5 CNG and also LPG
  • Sanitary plate heat exchanger in stainless steel
  • 8 liter expansion vessel
  • High efficiency pump with low energy consumption
  • Can be installed in a partially protected place
  • Integration with SAVIO solar systems, using a solar kit
  • Analog pressure reading
  • Arrangement for remote control and external probe
High circulation single coil primary heat exchanger

Savio introduces the new stainless steel heat exchanger for condensing boilers to the market: Round. Round is a compact monothermal heat exchanger based on a stainless steel coil with an oval section. The heat exchanger consists of a combustion chamber, condensing area and an insulated metal disc protected with silicone ceramic fiber which separates the two areas. Using a single stainless steel strip to produce the coil, including inlet / outlet connections, the following advantages are obtained: The accumulation of dirt and debris is avoided The water flow is uniformly distributed and guarantees a homogeneous heat exchange Reduction of pressure drops with optimized circuit. The ease of cleaning and the robustness of this exchanger are one of the main strengths of the product since it can be used on new systems but also on old systems in the event of renovations. Round integrates the round flow function in which the water produces a centrifugal cleaning effect on the internal walls of the single coil. The absence of circuits in parallel guarantees an easy "washing" operation of the exchanger and the elimination of any air present in the system circuit.

Control panel:
  • Summer/winter/off selector
  • Heating temperature regulator
  • DHW temperature regulator
  • Analog pressure reading
  • DHW and heating temperature visualization from the display
  • Display of fault diagnostics, block status and fault history
The display operates in the following modes:
  • INFO – information available on the operating status and error history
  • FREE programming – programmable parameters for generator/system adjustment and User SET
  • INSTALLER programming - generator parameters
  • ASSISTANCE programming - Authorized Assistance Center parameters

Product Warranty All products for sale on our site are new and packed. The warranty on this item is 24 months from the date of purchase.

Savio Actadens 25 SA Condensing Boiler Complete With Low Nox Methane Fume Exhaust Kit - New

Product form

SAVIO INOXDENS HE 25S* Condensing Boiler Complete With Methane Fume Exhaust Kit - NEW ErP Code 10312.0214.0 Acta Dens model... Read more

€820,00 Incl. VAT

    Description

    SAVIO INOXDENS HE 25S* Condensing Boiler Complete With Methane Fume Exhaust Kit - NEW ErP


    • Code 10312.0214.0
    • Acta Dens model
    Performance
    • DHW nominal heat input kW (kcal/h) 26.0 (22356)
    • Nominal heat input * heating kW (kcal/h) ) 21.0 (18057)
    • Maximum useful power in heating 60/80° kW (kcal/h) 20.5 (17627)
    • Useful power in DHW 60/80° kW (kcal/h) 25.4 (21840)
    • Efficiency at 100% load (50/30 °C) % 106.8
    • Sanitary flow rate ∆t =25°K l/min 14.7
    • 8 liter expansion vessel
    • NOx class 6
    Dimensions
    • Dimensions HxWxD mm 703x400x325

    actaDENS


    Acta Dens completes the Savio range with premixed condensing: perfect for radiator systems and suitable for radiant systems with mixing groups. ActaDens is the compact condensing boiler that ensures high yields, low consumption and respect for the environment. Available for heating and domestic hot water production, in power ratings of 25 and 30 kW.

    Main features

    • Primary condensing exchanger in stainless steel with steel lining to offer maximum resistance to corrosion
    • Total premix burner, stainless steel (Nox Class 6)
    • Modulation 1:5 CNG and also LPG
    • Sanitary plate heat exchanger in stainless steel
    • 8 liter expansion vessel
    • High efficiency pump with low energy consumption
    • Can be installed in a partially protected place
    • Integration with SAVIO solar systems, using a solar kit
    • Analog pressure reading
    • Arrangement for remote control and external probe
    High circulation single coil primary heat exchanger

    Savio introduces the new stainless steel heat exchanger for condensing boilers to the market: Round. Round is a compact monothermal heat exchanger based on a stainless steel coil with an oval section. The heat exchanger consists of a combustion chamber, condensing area and an insulated metal disc protected with silicone ceramic fiber which separates the two areas. Using a single stainless steel strip to produce the coil, including inlet / outlet connections, the following advantages are obtained: The accumulation of dirt and debris is avoided The water flow is uniformly distributed and guarantees a homogeneous heat exchange Reduction of pressure drops with optimized circuit. The ease of cleaning and the robustness of this exchanger are one of the main strengths of the product since it can be used on new systems but also on old systems in the event of renovations. Round integrates the round flow function in which the water produces a centrifugal cleaning effect on the internal walls of the single coil. The absence of circuits in parallel guarantees an easy "washing" operation of the exchanger and the elimination of any air present in the system circuit.

    Control panel:
    • Summer/winter/off selector
    • Heating temperature regulator
    • DHW temperature regulator
    • Analog pressure reading
    • DHW and heating temperature visualization from the display
    • Display of fault diagnostics, block status and fault history
    The display operates in the following modes:
    • INFO – information available on the operating status and error history
    • FREE programming – programmable parameters for generator/system adjustment and User SET
    • INSTALLER programming - generator parameters
    • ASSISTANCE programming - Authorized Assistance Center parameters

    Product Warranty All products for sale on our site are new and packed. The warranty on this item is 24 months from the date of purchase.

    Data sheetData sheet
    • peso: 40.0 kg
    • classe energetica produzione acs: A
    • classe energetica riscaldamento: A+
    • gas: Methane
    • marca: Wise
    • metri quadri : 150
    • modello: ACTADENS 25S METANO
    • potenza in kw: 25
    • potenza nominale: 25
    • superficie riscaldabile mq: 150
