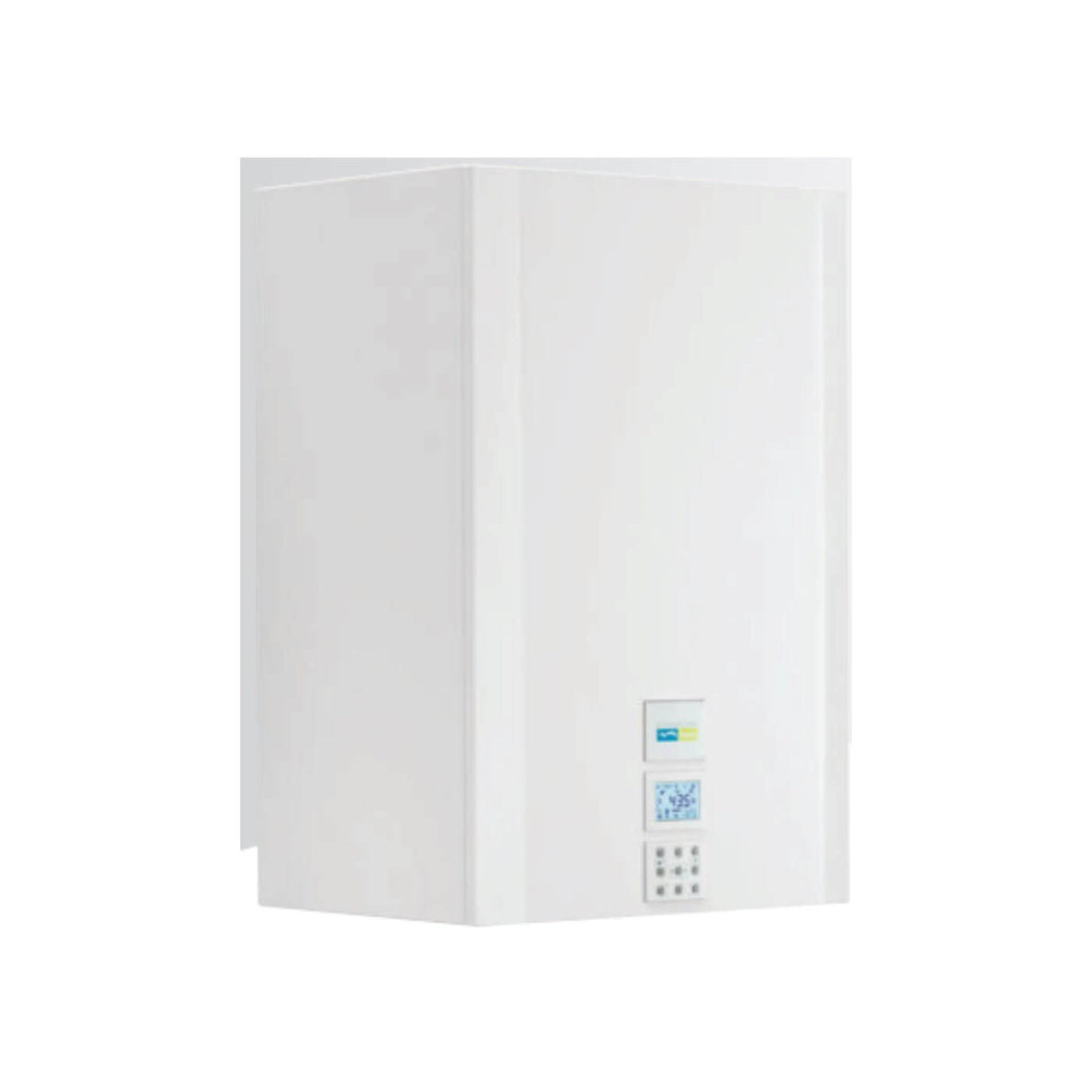

Savio Condensing Boiler Evodens Max He 25s With 45 Lt Methane Or LPG Boiler

Savio Condensing Boiler EVOdens MAX HE 25S With 45 lt METHANE or LPG boiler

• Model: Evodens Max HE

Energy label specifications according to the European ErP directive

• Class A heating energy efficiency
• Sanitary energy efficiency Class A
• Withdrawal profile: XL


Characteristics of heating/DHW operation:

• Heating/DHW nominal heat input: 25.0 / 30.0 kW
• Heating/DHW maximum useful power: 24.3 / 29.1 kW
• Yield name 60°/80°C: 97.0%
• Yield at 30% load: 107.6%
• High yields (**** compliant with yield directive 92/42 EEC and Legislative Decree 311/06)
• NOx class 6
• Weighted NOx: 44 mg/kWh
• Minimum/maximum heating temperature: 25/85°C
• Minimum/maximum heating pressure 3.0/0.3 bar
• Expansion vessel capacity 8 l (total)
• Minimum/maximum domestic hot water temperature 35/60°C
• Boiler nominal capacity 45 l
• Maximum flow rate (ΔT=25K) / (ΔT=35K): 17.6 / 12.3 l/min
• Specific sanitary flow rate (ΔT=30 K): 15.0 l/min
• Voltage / Power at nominal heat input V~/ W 230/100
• Degree of protection IPX5D
• Dimensions HxWxD 900x600x400
• Power supply: methane or LPG

Evodens Max HE

Large and immediate production of domestic hot water despite being a small-sized boiler The EVODENS MAX HE boilers with porcelain-coated glass tank were created to satisfy the most demanding users: large and immediate production of domestic hot water despite being a small-sized boiler. The accumulation boiler , together with the latest generation condensing primary exchanger , ensure the supply of domestic hot water in continuous service always at the desired temperature. For this reason, Evodens Max HE boilers are the ideal solution for the comfort of the whole family.

Characteristics:

• High yields (**** compliant with yield directive 92/42 EEC and Legislative Decree 311/06)
• Sanitary comfort (*** EN 13203)
• Primary condensing exchanger in stainless steel with plastic coating to offer maximum resistance to corrosion
• Total premix burner, built in stainless steel (Class NOx 6)
• Modulation 1:10 CNG and also LPG
• High efficiency PWM pump with low power consumption with variable speed
• Maximum power adjustable according to the needs of the system
• Glass-porcelain steel boiler with convenient flange for inspection and cleaning
• Removable magnesium anode
• External insulation of the cylinder in expanded polyurethane
• Standard two-litre sanitary expansion tank
• Degree of protection IPX5D
• Can be installed in a partially protected place
• Integration with Savio solar systems, using a solar kit
• Innovative digital control panel with graphic interface and buttons
• Digital pressure reading by pressure transducer
• Arrangement for remote control and external probe
• Possibility of remotely managing a zone valve in the case of multi-zone systems

Single coil primary heat exchanger

Savio produces the new Steelcoil exchanger made up of a stainless steel spiral enclosed in an aluminum shell. Thanks to the large exchange surface of the loop, a greater thermal efficiency is guaranteed with a lower pressure drop and easier cleaning. The ease of cleaning and the sturdiness of this exchanger are one of the main strengths of the product since it can be used on new systems but also on old systems in the event of renovations.

Control panel

• peso: 45.0 kg
• classe energetica produzione acs: A
• classe energetica riscaldamento: A
• gas: Methane/LPG
• lunghezza: 1
• marca: Wise
• metri quadri : 150
• modello: EVODENS MAX HE 25S
• potenza in kw: 25
• potenza nominale: 25
• superficie riscaldabile mq: 150
