Overview

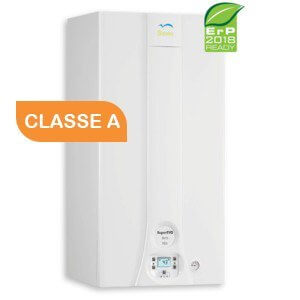

SAVIO SuperEVOdens 24 S* CONDENSING BOILER COMPLETE WITH FUME EXHAUST KIT - NEW CLASS A MODEL - ERP
Technical specifications
o Model: SuperEVOdens 24 S*
Energy label specifications according to the European ErP directive
o Class A heating energy efficiency
o Domestic energy efficiency profile XL Class A
o Withdrawal profile: XL
Characteristics of heating/DHW operation:
o Heating / domestic hot water nominal heat input kW 25.0
o Heating / domestic hot water maximum useful power kW 24.4
o Efficiency at nominal heat input (60/80°C): 97.4%
o Efficiency at nominal heat input (30/50°C): 97.1%
o Efficiency at 30% at 30°C: 98.9%
o Energy efficiency n° ????
o Minimum / maximum heating temperature ** °C 40 / 85
o Expansion vessel capacity (total / useful) l 8.0 / 4.0
o Minimum / maximum domestic hot water temperature °C 35 / 60
o Maximum flow rate (T=25 K) / (T=35 K) l/min 13.9 / 10.0
o Specific sanitary flow rate (T=30 K) *** l/min 11.6
o Total absorbed electric power W 65
o Degree of protection n° IPX4D
o Dimensions (HxWxD) mm 803x400x350
o NOx class n° 2
o Power supply: METHANE
Main features
SuperEVO dens
SuperEVOdens is the condensing boiler designed for traditional systems and easily adaptable to new underfloor systems using SIMpatico, a hot water distribution system for heating.
Characteristics:
o High yields (in compliance with yield directive 92/42 EEC and Legislative Decree 311/06)
o Copper lamellar primary heat exchanger with large exchange surface and double circulation
o Aluminum heat recovery unit to exploit the heat of the fumes and transfer it to the water
o Sanitary plate heat exchanger in stainless steel
o High efficiency pump with low energy consumption
o Digital control panel with backlit display
o Electronic card for:
o Adjustment of restart frequency
- Adjustable primary circuit thermal inertia disposal
- Circulator mode selection
- Circulator anti-seize
- Antifreeze safety
- Chimney sweep function
o Integrated automatic by-pass
o Immunity to radio interference
o Magnetic sanitary flow switch
o Absolute heating pressure switch
o IPX4D degree of protection
Savings and ease of use
SuperEVOdens retains the simplicity of management, programming and regulation of the traditional boiler and imports the savings of the condensing boiler deriving from the recovery of heat from the fumes. The heat recovery unit preheats the system water with the heat released by the fumes, heat which in traditional boilers is dispersed into the environment. This recovery of energy from the fumes, at typical operating temperatures of radiator systems, leads SuperEVOdens to have higher yields than traditional boilers. Main features
High circulation primary exchanger
It is the element that distinguishes the entire Savio range. It favors the flow of water into the heating system and, thanks to its reduced hydraulic resistance, adapts the boiler to the system and facilitates the transmission of heat to the radiators.
Heat recovery
The heat recovery recovers the heat from the fumes before they are expelled and preheats the water directed to the primary exchanger. The recuperator is made of aluminium, has a finned coil which determines a large exchange surface and has a device to ensure that the boiler correctly discharges the condensate.
Thermoregulation
By connecting the external probe (optional) directly to the boiler, climatic regulation can be used. SuperEVOdens will adapt the system water temperature to the external climatic conditions, ensuring that the desired room temperature is reached without waste and optimizing consumption. By using the climatic regulation, the regulation efficiency is also raised, giving greater value to your home.
Eco-design directive
After very long negotiations, the Ecodesign regulation was approved which introduces a new energy labeling on the minimum efficiency standards for boilers. In particular, an energy classification from A+ to G is envisaged for space heating appliances and from A to G for domestic hot water production appliances. Hence the obligation to install only condensing boilers, heat generators capable of recovering a large part of the latent heat contained in the fumes which, otherwise, would be dispersed in the chimney as occurs in traditional boilers. The recovered heat is transferred to the heating system, allowing to reach an efficiency of 106% against 92% of the traditional boiler and 84/85% of an old traditional generator. The installation obligation concerns boiler manufacturers who will no longer be able to place non-condensing boilers on the market starting from 26 September 2015. This means that starting from this date, anyone who wants to install a boiler in their own home will only have to install models condensing. Only a particular type of non-condensing boiler will continue to be produced which is technically called "open chamber" to be installed when it is not possible to replace an old boiler with a condensing boiler due to problems related to the collective flue of some multi-family buildings .
What is Energy Labeling?
Products for heating water and the environment represent around 30% of internal energy consumption in Europe.
Designing eco-friendly products and promoting high performance technologies to end users in 2020 will lead to:
o An annual energy saving equivalent to 56 million tons of oil, quantifiable to the savings obtained if the water and environmental heating systems of two large nations such as Italy were deactivated.
As of 26 September 2015, ErP regulation and energy labeling will be applied in Europe to water and space heating products (boilers, heat pumps, micro-CHP devices, water heaters, and water storage tanks hot)¹.
How to read energy labels
There are different labels, based on the type and functions of the product (water heating or space heating only or both, and in this case the label must show both classifications).
In addition to the energy class, the label provides other information that could be useful for understanding which product has the least environmental impact (for example power and consumption in different climatic zones, noise, etc.).
It is possible to increase the energy efficiency of hot water production and space heating by connecting several products and accessories in one system. In this case it is necessary to prepare a system label in addition to that relating to the single product
Warranty
All products for sale on our site are new and packed. The warranty on this item is 24 months from the date of purchase.
