Overview

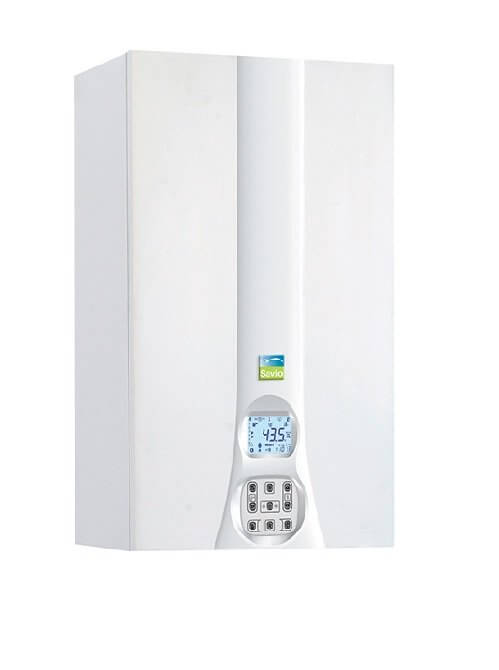

SAVIO evoDENS HE 25S* CONDENSING BOILER COMPLETE WITH KIT FOR LPG METHANE FUME EXHAUST - NEW ErP;ÿSTAINLESS STEEL wall-mounted condensing boilerÿ
Technical specifications
Model:ÿevoDENS HE
Product codeÿLPG: 103021021000
Product codeÿMETHANE: 103121029000
Technical features:
Heating/sanitary nominal heat inputkW 20.0 / 26.0
Yield name 60ø/80øC * % 96.7
Yield min. 60ø/80øC * % 92.4
NOx class no. 6
Minimum / maximum heating temperature****øC 25 / 80
Minimum / maximum heating pressurebar 3.0 / 0.3
Capacity of the expansion vessel (total / useful) l 7.0 / 3.5
Maximum flow rate (T=25 K) / (T=35 K) l/min 14.4 / 10.3
Specific sanitary flow rate (T=30 K) ***** l/min 12.0
Voltage / Power at nominal heat input V~/ W 230/100
Power at rest (stand-by) W 5
Degrees of protection nø IPX5D
Dimensions HxWxDÿmm 700x400x290; 32.7Kg
Boiler water content l 2
Main features
EvoDENS HE
The new range of wall-mounted condensing boilers: excellent performance thanks to the new heat exchanger
Evodens HEÿis the new SAVIO range ofÿwall-mounted condensing boilersÿ: excellent performance thanks to the new heat exchanger and ease of use thanks to the digital control panel with large displays. Available in versions for heating and domestic hot water production and for heating onlyÿEvodens HEÿpresents a complete range of powers, 25 and 35 kW combi models and 25 and 35 SV models, in the same extremely compact dimensions (700 x 400 x 290 mm).ÿ
Evodens HEÿhas the strong point in the innovative heat exchanger designed to provide high yields that last in the digital control panel, designed to communicate with the user in an easy and comfortable way.
Like the entire SAVIO condensing range, ÿEvodens HEÿallows you to obtain maximum savings from climatic thermoregulation, based on the system in which the boiler is installed.
MAIN FEATURES:
High yields (in compliance with yield directive 92/42ÿCEE and Legislative Decree 311/06)
Sanitary comfort( EN 13203)
Primary condensing exchanger in stainless steelÿwith aluminum linings to offer maximumÿresistance to corrosion
Total premix burner, built in stainless steel (Class NOx 5)
Modulation 1:10 Methane also LPG
Sanitary plate heat exchanger in stainless steel
7 liter expansion tanks
High efficiency PWM pump with low power consumption variable speed
Maximum power adjustable according to the system
Degrees of protection IPX5D
Can be installed in a partially protected place
Integration with Savio solar systems, using a solar kit
Innovative digital control panel
Digital pressure reading
Arrangement for remote control of external probe
Possibility of managing a zone valve by means of a remote control in the case of multi-zone systems.
High circulation single coil primary exchangerÿSavi produces the new Steelcoil compound exchanger with a stainless steel spiral enclosed in an aluminum shell. Thanks to the large exchange surface of the coil, greater thermal efficiency is guaranteed with less loss of charge and easier cleaning. The ease of cleaning and the sturdiness of this exchanger are one of the main strengths of the product which can be used on new systems but also on old systems in the case of renovations. Steelcoil integrates the round flow function in which the water produces a centrifugal cleaning effect on the internal walls of the monspira. Does the absence of parallel circuits guarantee an easy cleaning operation? of the exchanger and the elimination of any air present in the system circuit.
CONTROL PANEL
Summer/winter/off selector
Heating temperature regulator
Sanitary temperature regulator
Digital pressure reading
Domestic hot water and heating temperature visualization from the display
Display of fault diagnostics, fault history block status
Refill ViewÿRecommended Refill Guide
Display of months remaining until annual maintenance is due
External temperature displayÿ(with external probe connected) andÿindication of external probeÿconnected and K value set
Flame modulation display
Visualization of SavioÿSOLCONTROL solar control unit connected to EVODENSÿHE, active solar pump and solar integration
DHW comfort functionÿselectable by means of a dedicated keyÿand programmable
Ingressdirectl the INFO menu dedicated to the user.
Thermoregulation
By connecting the external probe and the remote control (optional) directly to the boiler, climatic regulation can be used. EVODENS HE will adapt the water temperature of the system to the external climatic conditions, guaranteeing the achievement of the desired room temperature without waste and optimizing consumption. By using climatic regulation, the regulation efficiency also rises, giving greater value to your home.
Ecodesign directive: from 2015 on new condensing boilers
In fact, after very long negotiations, the ÿEcodesign regulationÿ was approved, which introduces a new energy labeling on minimum efficiency standards for boilers.ÿIn particular, an energy classification from A+ to G is envisaged for space heating appliances and from A to G for appliances for the production of domestic hot water. ÿHence the obligation to installÿonly condensing boilers, heat generators capable of recovering a large part of the latent heat contained in the fumes which, otherwise, would be dispersed in the chimneyÿas occurs in traditional boilers. The recovered heat is transferred to the heating system, making it possible to achieve a yield of 106% with 92% of the traditional boiler and 84/85% of an oldÿÿtraditional generator.ÿThe installation obligation concerns manufacturers of boilers which will no longer be able to place on the market non-condensing starting from 26 September 2015. This means that starting from this date, anyone who wants to install a boiler in their own home will have to install only condensing models. Only one particular type of non-condensing boiler will continue to be produced which is technically called open room? to be installedÿ when it is not possible to replace an old boiler with a condensing boilerÿdue to problems related to the collective flueÿof some multi-family buildings.
Products for heating water and the environment represent around 30% of the world's energy consumption in Europe.ÿ
Designing eco-friendly products and promoting high performance technologies to end users in 2020 will lead to:
An annual energy saving equivalent to 56 million tons of oil, quantifiable to the savings obtained if the water and environmental heating systems of two large nations like Italy were deactivated.
As of 26 September 2015, the ErP regulation and ÿenergy labelingÿwill be applied in Europe to water and space heating products (boilers, heat pumps, micro-CHP devices, water heaters, and hot water storage tanks) u.
How to read energy labels
There are different labels, based on the type and function of the product (only room water heating of both, and in this case the label must bear both classifications).
In addition to the energy class, the label provides other information that could be useful for understanding which product has the least environmental impact (for example power and consumption in different climatic zones, noise levels, etc.).
It is possible to increase the energy efficiency of hot water production and space heating by connecting several products and accessories in one system. In this case it is necessary to prepare a system label in addition to that relating to the single product
