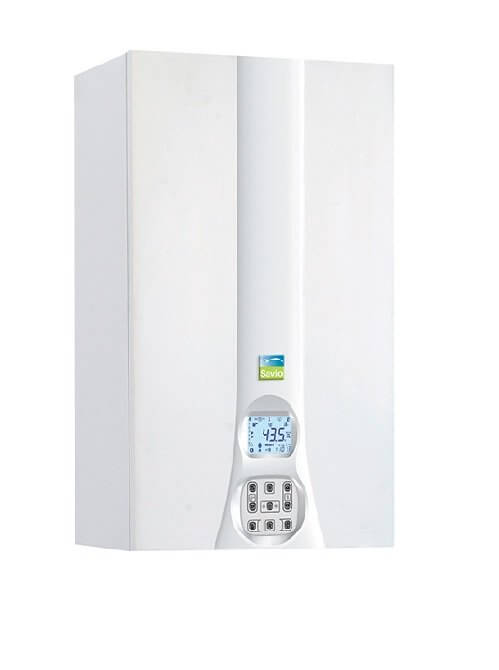

Gas Boiler Savio Evodens E 25s* Condensing Complete Kit For LPG Fume Exhaust - New Erp

Overview

SAVIO evoDENS E 25S* CONDENSING BOILER COMPLETE WITH KIT FOR LPG LPG FUMES EXHAUST - NEW ErP

Technical specifications

Model:ÿevoDENS

Product codeÿLPG: 103021010300

Product codeÿLPG: 103121017300

Characteristics of heating/sanitary exercises:

Heating/DHW nominal heat inputÿ20.0 / 25.0

Minimum heating/DHW heat inputÿ6.0

Yield name 60ø/80øC % 97.4

Yield min. 60ø/80øC % 97.4

Efficiency 30% at 30°C: 101.5

Energy efficiencynøÿ

Minimum / maximum heating temperature**øC 25 / 85

Minimum / maximum heating pressurebar 0.3 / 3.0

Capacity of the expansion vessel (total / useful) l 7.0 / 3.5

Minimum / maximum sanitary temperatureøC 35 / 55

Sanitary minimum / maximum pressurebarÿ0.3 / 10.0

Maximum flow rate (T=25 K) / (T=35 K) l/minÿ15.9 / 11.4

Voltage / Power at nominal heat input V ~ÿ230 ~ / 98

Power at minimum thermal capacity W 9

Power at rest (stand-by) W 5

Degrees of protection nø IPX5D

Dimensions HxWxD:ÿ700x400x290 mm; 31.5 kgs

Boiler water content 2.0 l

Main features

evoDENS

The new Savidi range of high efficiency wall mounted boilers dedicated to residential buildings.

A complete range of powers, 24, 28 and 32 kW, for heating and the production of domestic hot water, inÿextremely compact dimensionsÿ (700 x 400 x 325 mm) makes Evodens a product suitable for different comfort needs.ÿEvodensÿe endowed with an aesthetic innovativeÿand a newÿimmediate and simpleÿto use interface. New functions make ÿEvodens an integral part of a system and facilitate its installation.

Exchangers: Primary heat exchanger in copper, high circulation lamellar. Sanitary heat exchanger in stainless steel plates

digital control panel:ÿInnovative digital control panel with graphical interface and buttons

Ecodesign directive: from 2015 on new condensing boilers

In fact, after very long negotiations, the ÿEcodesign regulationÿ was approved, which introduces a new energy labeling on minimum efficiency standards for boilers.ÿIn particular, an energy classification from A+ to G is envisaged for space heating appliances and from A to G for appliances for the production of domestic hot water. ÿHence the obligation to installÿonly condensing boilers, heat generators capable of recovering a large part of the latent heat contained in the fumes which, otherwise, would be dispersed in the chimneyÿas occurs in traditional boilers. The recovered heat is transferred to the heating system, making it possible to achieve a yield of 106% with 92% of the traditional boiler and 84/85% of an oldÿÿtraditional generator.ÿThe installation obligation concerns manufacturers of boilers which will no longer be able to place on the market non-condensing starting from 26 September 2015. This means that starting from this date, anyone who wants to install a boiler in their own home will have to install only condensing models. Only one particular type of non-condensing boiler will continue to be produced which is technically called open room? to be installedÿ when it is not possible to replace an old boiler with a condensing boilerÿdue to problems related to the collective flueÿof some multi-family buildings.

Products for heating water and the environment represent around 30% of the world's energy consumption in Europe.ÿ

Designing eco-friendly products and promoting high performance technologies to end users in 2020 will lead to:

An annual energy saving equivalent to 56 million tons of oil, quantifiable to the savings obtained if the water and environmental heating systems of two large nations like Italy were deactivated.

As of 26 September 2015, the ErP regulation and ÿenergy labelingÿwill be applied in Europe to water and space heating products (boilers, heat pumps, micro-CHP devices, water heaters, and hot water storage tanks) u.

How to read energy labels

There are different labels, based on the type and function of the product (only room water heating of both, and in this case the label must bear both classifications).

In addition to the energy class, the label provides other information that could be useful for understanding which product has the least environmental impact (for example power and consumption in different climatic zones, noise levels, etc.).

It is possible to increase the energy efficiency of hot water production and space heating by connecting several products and accessories in one system. In this case it is necessary to prepare a system label in addition to that relating to the single product

Warranty

All products for sale on our site are new and packed. The guarantee on this article is 24 months from the date of purchase.

• peso: 35.0 kg
• classe energetica produzione acs: A
• classe energetica riscaldamento: A
• gas: LPG
• marca: Wise
• metri quadri : 150
• modello: EVODENS E 25S GPL
• potenza in kw: 25
• potenza nominale: 25
• superficie riscaldabile mq: 150
