Split Air-Water Heat Pump Climatehub Samsung Ae120rxydeg/Eu + Ae260rnwmeg/Eu Boiler Of 260 Liters With Control Included

Description

IN CASE OF NO IMMEDIATE AVAILABILITY, THE PRODUCT WILL BE ORDERED AND SHIPPED IN 10 WORKING DAYS.


FIRST START-UP FREE!

Technical features

  • Internal unit code: AE260RNWMEG/EU ( 260 liter boiler )
  • Outdoor unit code : AE120RXYDEG/EU
  • Premium Wired Controller MWR-WW10N Included
Indoor unit
  • Rated power : 0.2 kW
  • Nominal absorption: 0.9 kW
  • Volume : 260 litres
  • Water Flow : 7 ~ 48 l/min
  • Water pressure : 3 bars
  • Flow Switch Flow Limits : 5 ~ 60 l/min
  • Safety valve pressure : 7 bar
  • Expansion vessel volume: 8 litres
  • Sound power : 26 dB(A)
  • Sound pressure : 40dB(A)
  • Pump type : UPMM 25-9.5
  • Delivery temperature :
  • - Cooling : 5° ~ 25° C
  • - Heating : 15° ~ 65° C
Installation data
  • Pipe diameter Liquid : 6.35 mm (1/4")
  • Gas pipe diameter: 15.88 mm (3/8")
  • Heating pipes diameter: 28 mm
  • Diameter of DHW pipes : 22 mm

Dimensions and weight

  • Internal unit dimensions (WxHxD): 595x1800x700 mm
  • Indoor unit weight: 146.0 Kg
Outdoor Unit

Energy efficiency

  • SEER: 5.22
  • SCOP: 4.69
Performance
  • Cooling Capacity: 12.0 kW
  • Heating Capacity: 12.0 kW
  • Sound Power Level : 64 ~ 65 dB(A)
  • Sound pressure level : 50 dB(A)

Electrical data

  • Power supply (V,Hz, Ø) : 220~240/50/1
  • Refrigerant gas : R32

Dimensions and weight

  • External unit dimensions (WxHxD): 940x1420x330 mm
  • Outdoor unit weight: 110.0 Kg

Samsung Heat Pumps EHS Split System

It is the split air-water solution consisting of an external condensing unit associated with a hydronic module, for the production of DHW and heating.

Why choose the EHS Split system? A solution with high effi ciency and maximum fl exibility

Perfect for every application requirement: the EHS SPLIT allows, through a separate water kit, to produce domestic hot water, underfloor heating/cooling and to supply low temperature radiators


High performance even at low temperatures

The EHS SPLIT system is equipped with an inverter compressor capable of delivering up to 90% of its nominal capacity even with an external temperature of -10°C. Operation is guaranteed with external temperatures down to -25°C.

Concrete curing function

When the unit is installed and the radiant panels installed, the concrete curing function can facilitate the curing of the concrete with delivery water temperatures that automatically adapt to this purpose.

Silent function

The silent function allows the noise of the external machine to be reduced in 4 progressive steps up to 35 dB, ideal for operation at night. The activation can be programmed through the Command panel. Only for 6 and 9 kWx EHS Split

Emergency mode

In the event of an interruption in the operation of the outdoor unit, the ClimateHub guarantees the production of domestic hot water and heating thanks to the included resistors

Photovoltaic contact & Smart Grid

It allows you to optimize the self-consumption of electricity produced by the photovoltaic panels. The contact is already set up on the hydronic modules and in the ClimateHub of the Samsung EHS systems.


Components and Integrated Solutions

The special water heater is a system that allows the production of domestic hot water using a heat pump by integrating a storage tank with a capacity of up to 300L. The domestic hot water storage has class C, with ABS coating. The 4-connection flywheel is 58L, with foaming treatment. The compact flywheel, on the other hand, is 35 L insulated in EPP material

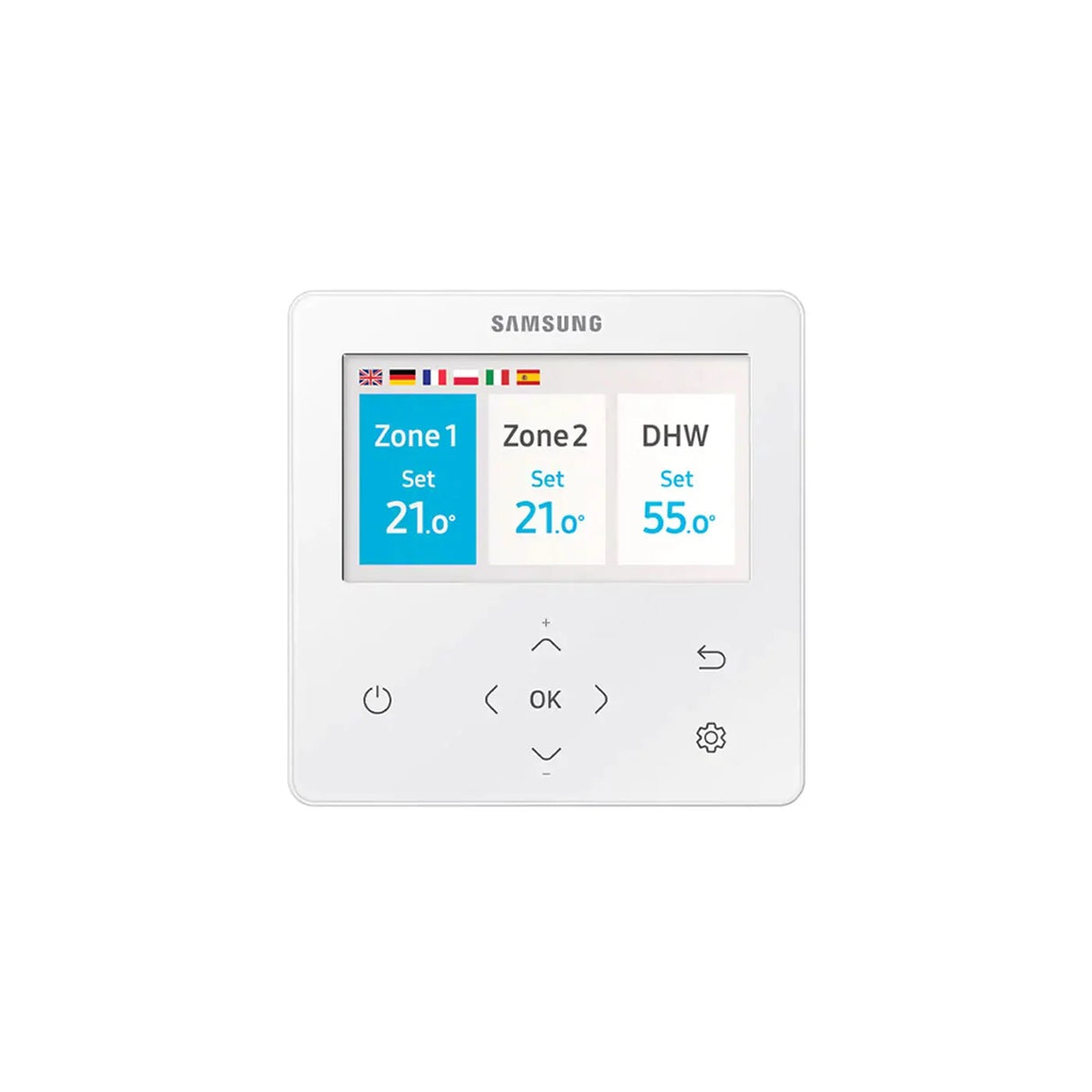

Full control via MWR-WW10N

The adjustment control of the EHS R32 system allows simplified and intuitive management of all settings

Estimate of consumption: The user can view directly on the control how much energy is consumed and produced by the system

Double climatic curve: Once the climatic curve has been set, the delivery temperature to the system is automatically adjusted according to the external temperature, adapting the heat input to the heating needs of the building. Thus, the best performance in terms of comfort is guaranteed by keeping the room temperature constant; moreover, thermal dispersions and energy waste are reduced

Multi-zone management: Using the command, it is possible to create and manage two zones with different delivery temperatures


The components

Samsung EHS ClimateHub R32 is the integrated indoor system that allows heating, cooling and domestic hot water production in association with heat pump outdoor units of the EHS Split and Mono R32 series. The ClimateHub system includes all the main hydraulic components inside: in this way it is possible to save useful space inside the home

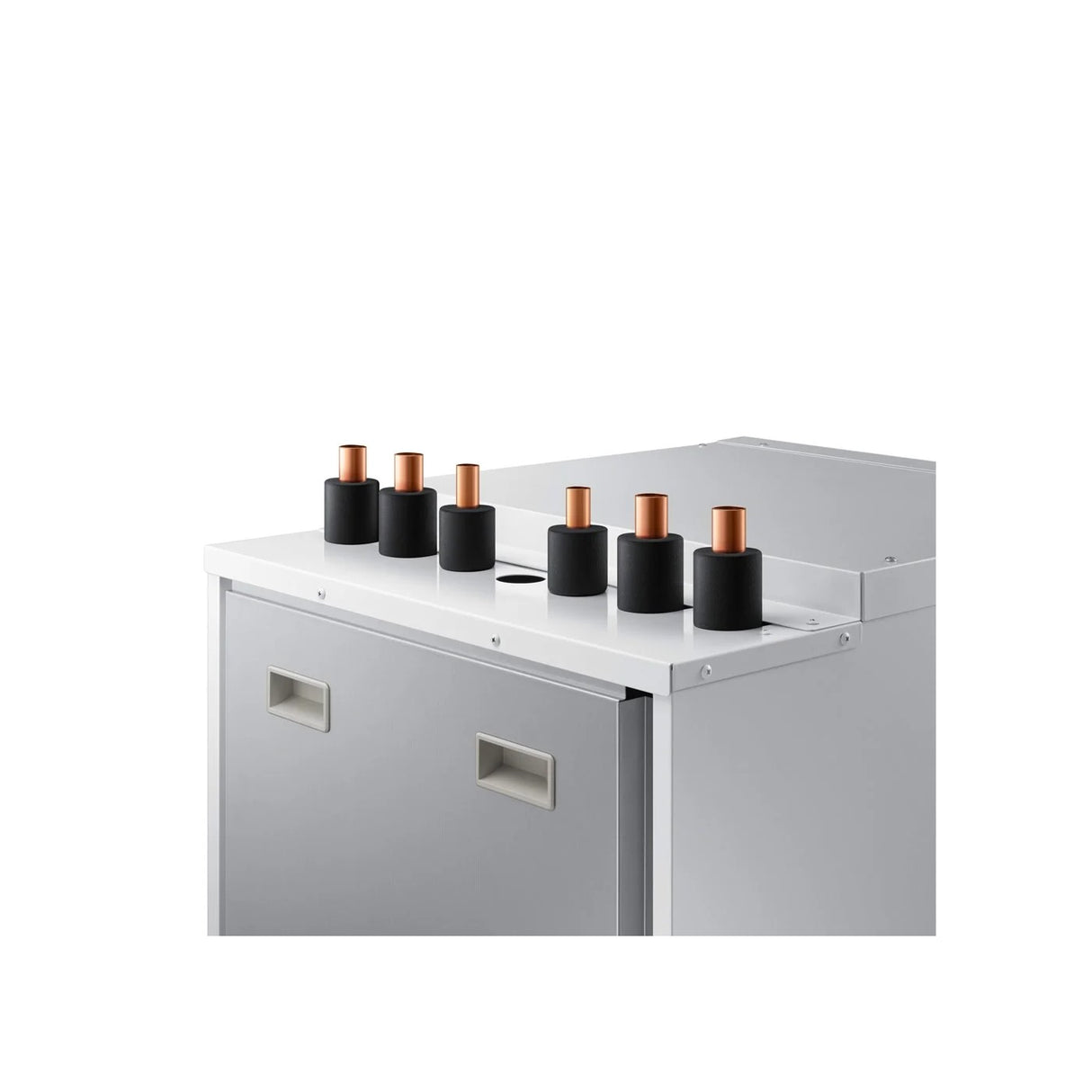

Attacks Placed in the upper part for a simplifi ed installation. The 260-litre ClimateHubs are set up for recirculation of the DHW circuit

Exchanger High efficiency exchanger with brazed plates

Backup resistor 2 kW or 6 kW

Circulation pump Included with PWM inverter control, 25LPM/7mAq

Electronic flowmeter Allows, in combination with the MWR-WW10N wired control, an estimation of consumption

8 liter expansion tank

Contact Photovoltaic & Smart Grid

Legionella resistance


Product Guarantee: All products for sale on our site are new and packed. The warranty on this item is 24 months from the date of purchase.
