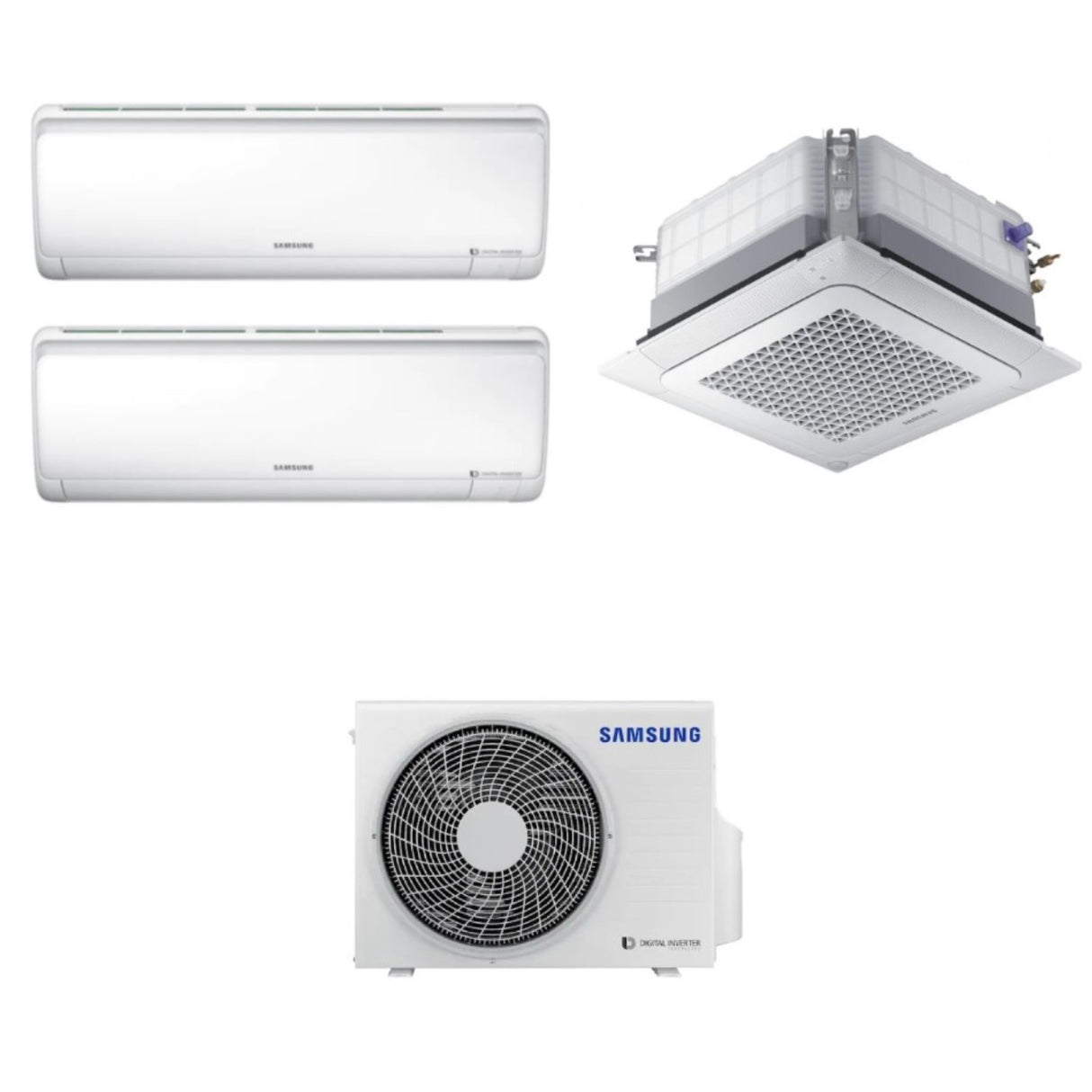

Samsung Air Conditioner Trial Split Inverter Series Maldives Quantum 9000 + 9000 + Cassette 12000 With Aj052mcj3eh / Eu R410 With Panel And Remote Control Included 9 + 9 + 12

Description

Technical features

Indoor Units

1) Model

  • Internal Unit Catalog Code: 2x AR09NXFPEWQN
  • Power : 9000 Btu
  • Cooling Capacity: 2.5 kW
  • Liquid Piping Diameter: 6.35 mm (1/4")
  • Gas Pipe Diameter: 9.52 mm (3/8")
  • Internal Unit Dimensions (WxHxD): 820x285x215 mm

2) Model

  • Internal Unit Catalog Code: 1x AC035NNNDKH/EU
  • Power : 12000 Btu
  • Ceiling tile code: PC4SUFMAN (Included)
  • Wireless Command Code: MIM-H03N (Included)
  • Cooling Capacity: 3.50 kW
  • Heating capacity: 4.00 kW
  • Treated Air Indoor Unit: 9.2 m³/min
  • Indoor Unit Sound Power Level : 50 dB(A)
  • Liquid Piping Diameter: 6.35 mm (1/4")
  • Gas Pipe Diameter: 9.52 mm (3/8")
  • Internal Unit Dimensions (WxHxD): 575x250x575 mm
  • Indoor Unit Weight: 11.4 kg
  • Optional Wi-Fi Card ( Code MIM-H03N )
Outdoor Unit

Model:

  • External Unit Catalog Code: AJ052MCJ3EH/EU
  • Connectable Indoor Units : 3

Performance:

  • Cooling Capacity: 5.2 kW
  • Heating Capacity: 6.3 kW
  • Sound Pressure Level Outdoor Unit : 46~47 dB(A)
  • Sound Power Level Outdoor Unit : 61 dB(A)

Characteristics:

  • Power (V/Hz/Φ) : 220~240/50/1
  • Refrigerant gas : R-410
  • Operating range :
  • - Cooling : -5° ~ 48° C
  • - Heating : -15°~ 24° C
Installation Data:
  • Pipe diameter Liquid : 6.35 mm (1/4") x2
  • Gas pipe diameter: 9.52 mm (3/8") + 12.70 mm (1/2")
  • Maximum piping length: 50 m
  • Maximum height difference Indoor Unit and Outdoor Unit: 15 m

Dimensions and weight:

  • External Unit Dimensions (WxHxD): 880x638x310 mm
  • Weight of Outdoor Unit: 49 Kg

MALDIVES QUANTUM

The new Samsung air conditioner with a refined design is the perfect solution for a modern and elegant living environment and is able to give a touch of style to your life with unparalleled beauty.

The MALDIVES have very low energy consumption ; they produce a relaxing well -being thanks to the maintenance of a constant temperature without sudden changes ; they contribute to the protection of our planet because they respect the environment .

The new high-density filter removes even the smallest and most microscopic dust particles and transforms polluted air into absolutely pure and clean air. Even the cleaning of the filter is carried out in the purest way since it is enough to wash it under the jet of water.

MALDIVES air conditioners offer a series of functions which enhance their practicality of use

Filter 3 care, a precious ally against allergies

The new generation filter removes the most common harmful agents from the air, helping to create a healthy and comfortable home atmosphere.

How it works : The triple action filter has a special anti-bacteria, anti-allergy and anti-virus coating and can be easily removed for cleaning

Color and style with an inimitable design

The new Samsung air conditioner with a refined design is the perfect solution for a modern and elegant living environment and is able to give a touch of style to your life with unparalleled beauty.

Automatic adjustment of horizontal and vertical flow

A breath, a caress The air diffusion system uses special fins to distribute the flow uniformly and rapidly in the indicated direction


MINI WINDFREE CASSETTE

Refreshes quickly without direct air jets

The new WindFree air distribution system is the only one that transforms the powerful and direct air flow, often the cause of muscle pain and colds, into enveloping coolness.

Samsung Air Conditioner Trial Split Inverter Series Maldives Quantum 9000 + 9000 + Cassette 12000 With Aj052mcj3eh / Eu R410 With Panel And Remote Control Included 9 + 9 + 12

Product form

Technical features Indoor Units 1) Model Internal Unit Catalog Code: 2x AR09NXFPEWQN Power : 9000 Btu Cooling Capacity: 2.5 kW... Read more

€1.697,00 Incl. VAT

    Description

    Technical features

    Indoor Units

    1) Model

    • Internal Unit Catalog Code: 2x AR09NXFPEWQN
    • Power : 9000 Btu
    • Cooling Capacity: 2.5 kW
    • Liquid Piping Diameter: 6.35 mm (1/4")
    • Gas Pipe Diameter: 9.52 mm (3/8")
    • Internal Unit Dimensions (WxHxD): 820x285x215 mm

    2) Model

    • Internal Unit Catalog Code: 1x AC035NNNDKH/EU
    • Power : 12000 Btu
    • Ceiling tile code: PC4SUFMAN (Included)
    • Wireless Command Code: MIM-H03N (Included)
    • Cooling Capacity: 3.50 kW
    • Heating capacity: 4.00 kW
    • Treated Air Indoor Unit: 9.2 m³/min
    • Indoor Unit Sound Power Level : 50 dB(A)
    • Liquid Piping Diameter: 6.35 mm (1/4")
    • Gas Pipe Diameter: 9.52 mm (3/8")
    • Internal Unit Dimensions (WxHxD): 575x250x575 mm
    • Indoor Unit Weight: 11.4 kg
    • Optional Wi-Fi Card ( Code MIM-H03N )
    Outdoor Unit

    Model:

    • External Unit Catalog Code: AJ052MCJ3EH/EU
    • Connectable Indoor Units : 3

    Performance:

    • Cooling Capacity: 5.2 kW
    • Heating Capacity: 6.3 kW
    • Sound Pressure Level Outdoor Unit : 46~47 dB(A)
    • Sound Power Level Outdoor Unit : 61 dB(A)

    Characteristics:

    • Power (V/Hz/Φ) : 220~240/50/1
    • Refrigerant gas : R-410
    • Operating range :
    • - Cooling : -5° ~ 48° C
    • - Heating : -15°~ 24° C
    Installation Data:
    • Pipe diameter Liquid : 6.35 mm (1/4") x2
    • Gas pipe diameter: 9.52 mm (3/8") + 12.70 mm (1/2")
    • Maximum piping length: 50 m
    • Maximum height difference Indoor Unit and Outdoor Unit: 15 m

    Dimensions and weight:

    • External Unit Dimensions (WxHxD): 880x638x310 mm
    • Weight of Outdoor Unit: 49 Kg

    MALDIVES QUANTUM

    The new Samsung air conditioner with a refined design is the perfect solution for a modern and elegant living environment and is able to give a touch of style to your life with unparalleled beauty.

    The MALDIVES have very low energy consumption ; they produce a relaxing well -being thanks to the maintenance of a constant temperature without sudden changes ; they contribute to the protection of our planet because they respect the environment .

    The new high-density filter removes even the smallest and most microscopic dust particles and transforms polluted air into absolutely pure and clean air. Even the cleaning of the filter is carried out in the purest way since it is enough to wash it under the jet of water.

    MALDIVES air conditioners offer a series of functions which enhance their practicality of use

    Filter 3 care, a precious ally against allergies

    The new generation filter removes the most common harmful agents from the air, helping to create a healthy and comfortable home atmosphere.

    How it works : The triple action filter has a special anti-bacteria, anti-allergy and anti-virus coating and can be easily removed for cleaning

    Color and style with an inimitable design

    The new Samsung air conditioner with a refined design is the perfect solution for a modern and elegant living environment and is able to give a touch of style to your life with unparalleled beauty.

    Automatic adjustment of horizontal and vertical flow

    A breath, a caress The air diffusion system uses special fins to distribute the flow uniformly and rapidly in the indicated direction


    MINI WINDFREE CASSETTE

    Refreshes quickly without direct air jets

    The new WindFree air distribution system is the only one that transforms the powerful and direct air flow, often the cause of muscle pain and colds, into enveloping coolness.

    Data sheetData sheet
    • peso: 75.0 kg
    • marca: Samsung
    • modello: MLD + CASSETTA 9+9+12 R410
