Technical features
Indoor Units
1) Model
- Windfree EVO series
- Internal Unit Product Code : 4 x AR09RXPXBWKNEU
- Power 9000 btu
- Treated Air: 9.3 m 3 /min
- Sound Pressure Level : 19/37 dB(A)
- Sound Power Level : 54 dB(A)
- Internal Unit Dimensions (HxWxD): 828x267x265 mm
- Indoor Unit Weight: 9.4 Kg
2) Model
- Windfree EVO series
- Internal unit product code : 1 x AR18RXPXBWKNEU
- Power 18000 btu
- Treated Air: 15.9 m 3 /min
- Sound Pressure Level : 25/41 dB(A)
- Sound Power Level : 58 dB(A)
- Internal Unit Dimensions (HxWxD): 1065x301x311 mm
- Indoor Unit Weight: 13.2 Kg
Outdoor Unit
Model:
- Catalog code: AJ100RCJ4EG/EU
- Matchable indoor units: 5
Energy efficiency
- Energy efficiency class Cooling : A++
- Heating energy efficiency class: A+
- Annual Energy Consumption Cooling
- Annual Heating Energy Consumption
Performance
-
Cooling Capacity : 10.0 kW
- Heating Capacity: 12.0 kW
- Sound Pressure Outdoor Unit : -
- External Unit Sound Power : 70 dB(A)
- Operating range Cooling : -10°~46° C
- Heating operating range : -15°~24° C
Characteristics
- Refrigerant gas : R32
- Pipe diameter Liquid : 6,35 mm 5x (1/4")
- Gas pipe diameter: 9.52 mm 2x (3/8") - 12.70 3x (1/2")
- Maximum piping length : 25 m
- Maximum height difference Indoor Unit / Outdoor Unit: 7.5 m
Dimensions and weight
- External Unit Dimensions (WxHxD): 940x998x330 mm
- Weight of Outdoor Unit: 77 Kg

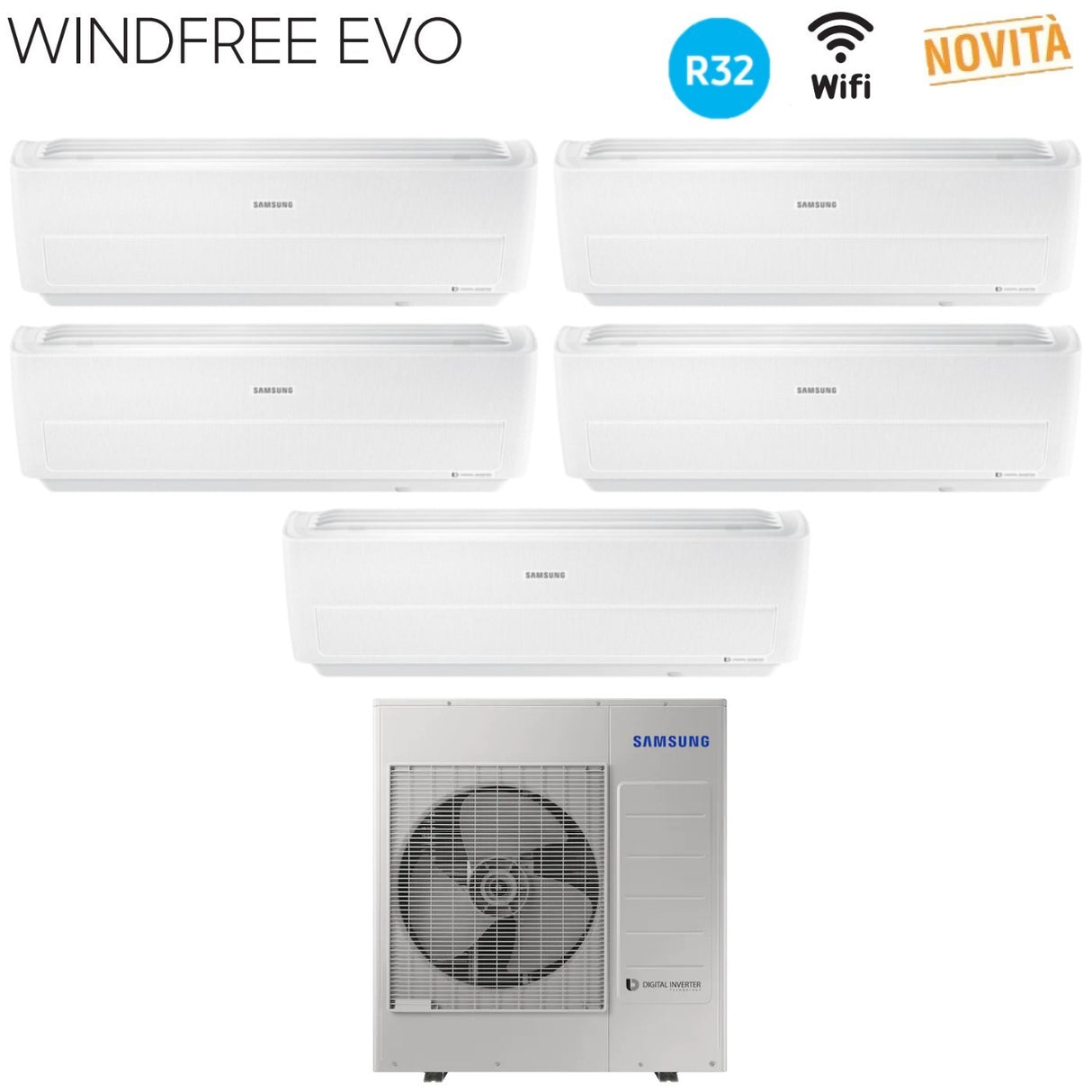

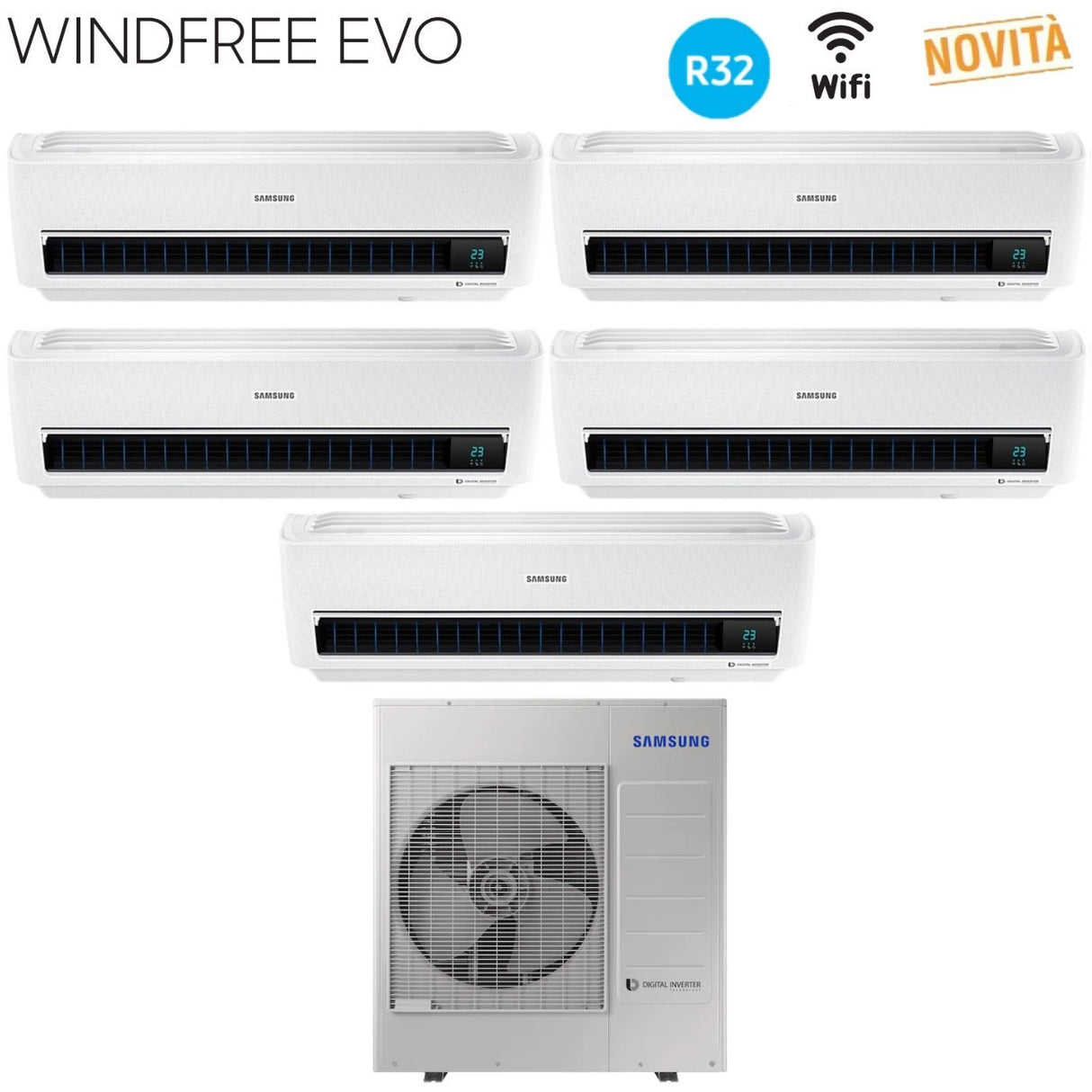

WindFree EVO
Refreshes quickly without direct air jets
The new WindFree air distribution system is the only one that transforms the powerful and direct air fl ow, often the cause of muscle pain and colds, into enveloping coolness.
Goodbye annoying air jets only the pleasure of the climate you want
PHASE 1 THEY REACH TEMPERATURE QUICKLY THANKS TO THE TRIANGLE DESIGN
By starting the 2 Step Cooling mode, simply select the temperature and the air conditioner will independently set the maximum power, using the large central distribution vent to quickly reach the goal.
PHASE 2 KEEP THE TEMPERATURE WITH THE COMFORT OF WINDFREE
Once the set temperature has been reached, the climate control system reduces power, closes the central distribution vent and uses the small holes on the front of the chassis to spread fresh air evenly and maintain the desired temperature without causing unpleasant shivering.
21000 Microholes
On the front of the air conditioner there are 21,000 micro-holes from which fresh air comes out uniformly.
The fresh you want without any hassle
WindFree is ideal for maintaining the desired temperature while avoiding the classic drawbacks associated with the use of air conditioning.
Dehumidification function
The dehumidification function allows you to eliminate humidity from the rooms, creating a pleasant atmosphere.
Smart control
The practical functionality of the Samsung Smart Home App allows you to activate the air conditioner even when you are not at home to create the ideal climate to better enjoy moments of relaxation.
Significant savings
Thanks to its characteristics, Wind Free air conditioners allow you to reduce energy consumption by 70%, consequently reducing costs.
Digital Inverters
Depending on the needs, the compressor automatically adjusts its power, reducing energy waste.
Triangle design
Thanks to the innovative triangular structure, the cooling of the air is 38% faster, guaranteeing you maximum comfort even faster. Thanks to the wider return and delivery vents and the more powerful air flow, guaranteed by a larger and specially shaped fan, the air conditioner allows you to cool the room quickly.
NOVELTY
- Air conditioner that works with R32 gas, a new type of environmentally friendly refrigerant.
- The WindFree system, thanks to 21,000 micro-holes located on the front surface of the air conditioner, allows for a more uniform and delicate diffusion of fresh air without direct air jets.
- The exclusive Smart Control technology allows you to manage the main functions of the air conditioner using an app that can be installed on your smartphone or PC, even when you are away from home.
- The noise level of just 19 db(A) is made possible by the use of advanced technologies and by an internal unit designed to minimize any type of vibration or noise.
PURIFICATION
- SPi AIR PURIFIER The innovative technology produces active hydrogen which, together with the oxygen ions, neutralizes the harmful particles that cause allergies and respiratory problems, guaranteeing always pure and healthy air.
- The Easy Filter of Samsung air conditioners is located on the outside, at the top. So it's easier to take out, clean and put back without having to open any lid or pull hard to detach it.
SAVINGS
- The Digital Inverter compressor modulates the power according to actual needs, significantly reducing energy waste compared to traditional compressors.
- The new and exclusive 8-Pole Inverter ensures more effective and efficient operation with less vibration and noise, cooling the rooms more quickly and also reducing consumption.
- The innovative Twin Rotary BLDC compressor, equipped with two rotors, guarantees better balancing, reduction of vibrations, greater silence, high yields and energy savings.
- The practical Personal Use mode is ideal for air conditioning a single area, with significant energy and cost savings.
DESIGN
- The triangular design allows for a larger impeller, a wider intake grille and a larger delivery surface. The room is cooled faster and more evenly.
- The elegant and luminous digital display, visible only when the air conditioner is on, reveals the temperature of the room in which the internal unit is installed.
COMFORT
- The air conditioner works at maximum power to quickly reach the desired temperature. Then direct the fins up to keep them as comfortable as possible.
- Auto Change Over automatically selects the operating mode (cooling or heating) required to maintain the set temperature.
- Just press the appropriate button and the special fins distribute the air flow evenly and quickly in the desired direction.
- The function regulates the room temperature by reproducing the body temperature curve during the night, thus ensuring a more comfortable rest.
- The dehumidification function allows you to eliminate humidity from the rooms, creating a pleasant atmosphere.
- The function, which starts automatically once the air conditioner is switched off, eliminates humidity in the internal unit, preventing the proliferation of mould, bacteria and bad odours.
Product Guarantee: All products for sale on our site are new and packed. The warranty on this item is 24 months from the date of purchase
