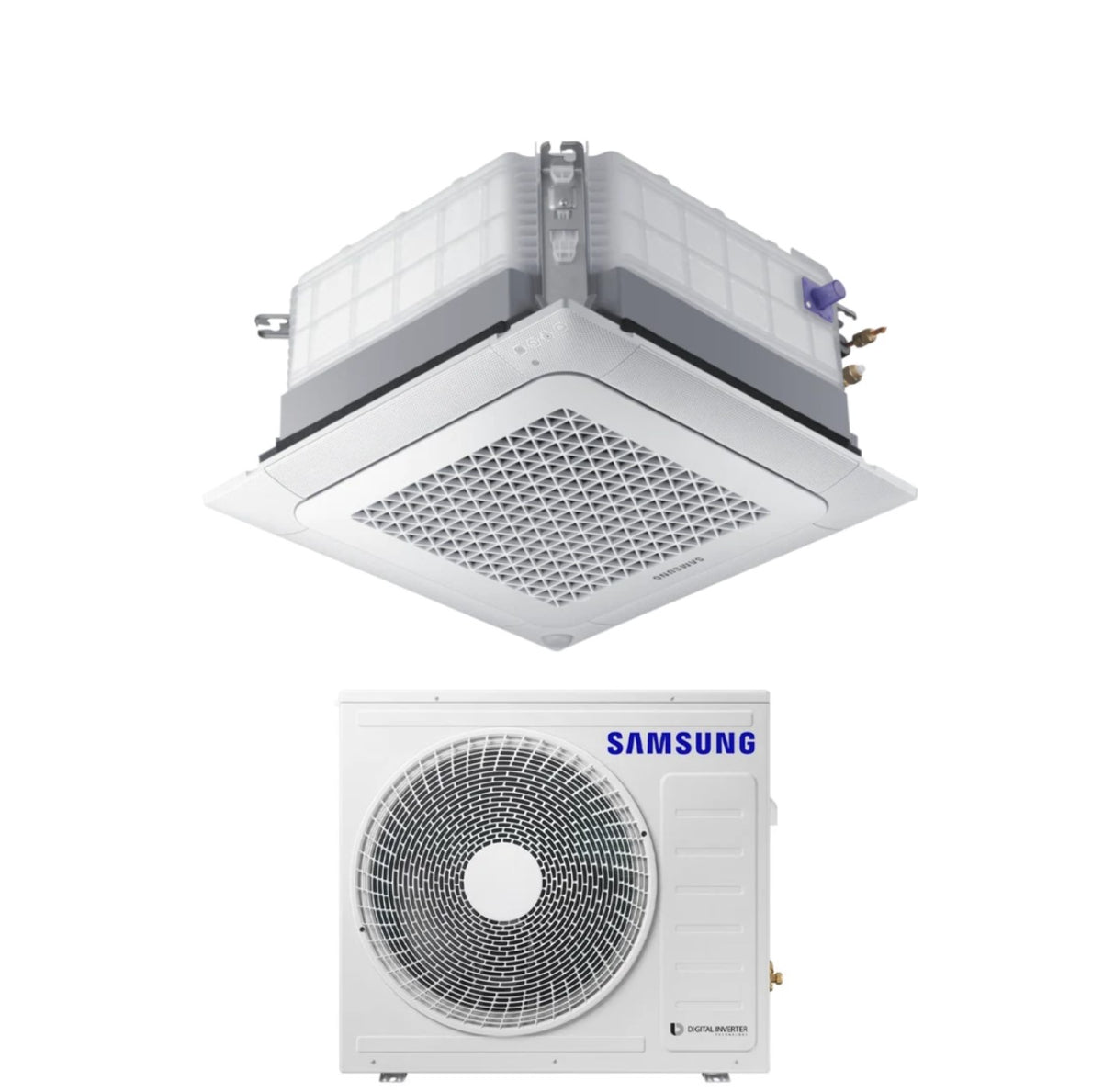

Samsung Air Conditioner Mini Cassette 4 Ways Windfree 24000 Btu Ac071rnndkg R-32 Wi-Fi Optional With Panel Included

Description

Technical features

Model

  • Indoor unit catalog code : AC071RNNDKG/EU
  • Outdoor unit catalog code : AC071RXADKG /EU
  • Power : 24000 Btu
  • Panel included : PC4SUFMAN
Optional accessories
  • Wireless command included : AR-EH03E
  • Wired command : MWR-SH11N
  • Wi-Fi card : MIM-H04EN
  • Motion sensor : MCR-SMD

Energy efficiency

  • SEER: 6.1
  • SCOP: 3.8
  • Energy efficiency class in cooling: A+
  • Energy efficiency class warming up : a

Performance

  • Cooling capacity : 6.80 kW
  • Capacity in heating : 7.50 kW
  • Absorption cooling: 2.75 kW
  • Absorption heating : 2.80 kW
  • Indoor unit treated air: 11.5 m³/min
  • Indoor unit sound power level : 58 dB(A)
  • Sound power level outdoor unit : 65 dB(A)
  • Sound pressure level outdoor unit : 49 ~ 51dB(A)
  • Sound pressure level indoor unit : 36 ~ 42dB(A)

Electrical data

  • Power supply (V,Hz, Ø) : 220~240/50/1
  • Refrigerant gas : R-32
  • Operating range
  • - Cooling: -15° ~ 50°C
  • - Heating: -20° ~ 24° C
Installation data
  • Liquid pipe diameter: 6.35 mm (1/4")
  • Gas pipe diameter: 15.88 mm (5/8")
  • Maximum piping length: 50 m
  • Maximum difference in height indoor unit / outdoor unit: 30 m

Dimensions and weight

  • Indoor unit dimensions (WxHxD): 575x250x575 mm
  • Indoor unit weight : 12 kg
  • Panel dimensions (WxHxD): 620x46x620 mm
  • Panel weight: 2.7 Kg
  • External unit dimensions (WxHxD): 880x798x310 mm
  • Outdoor unit weight: 51 Kg

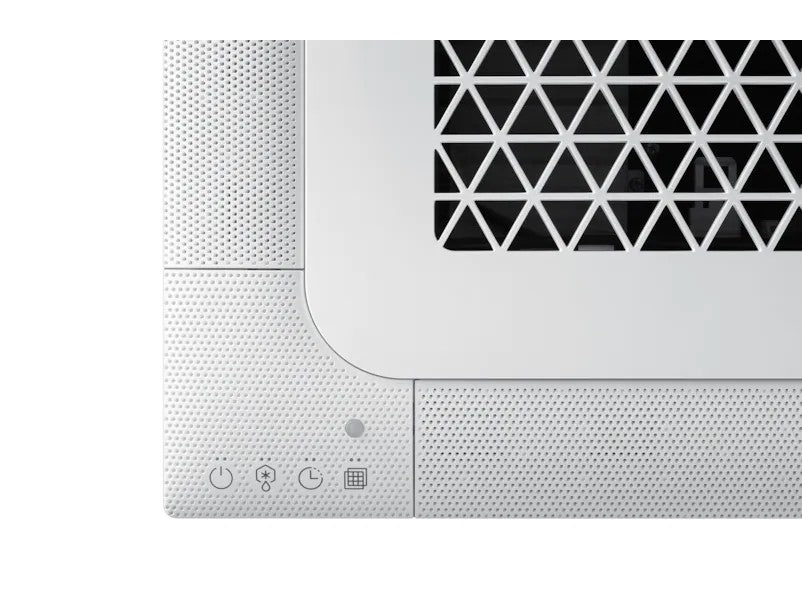

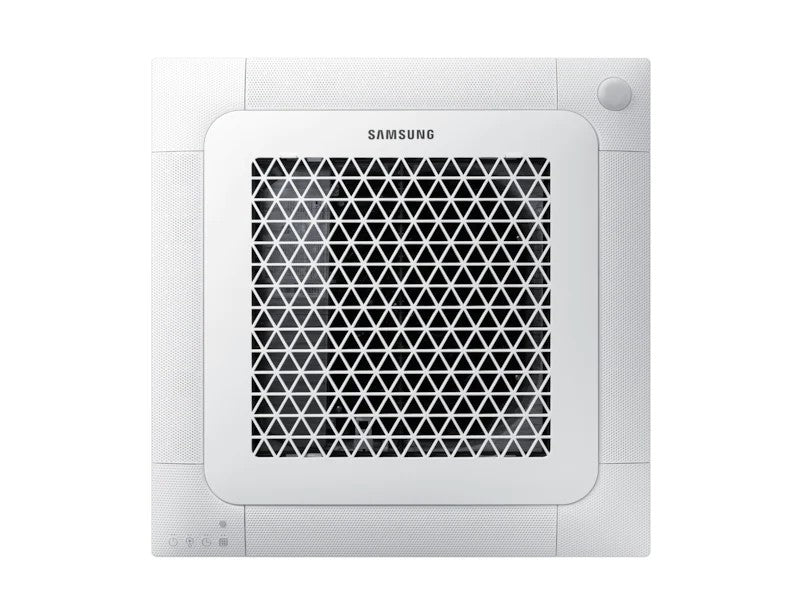

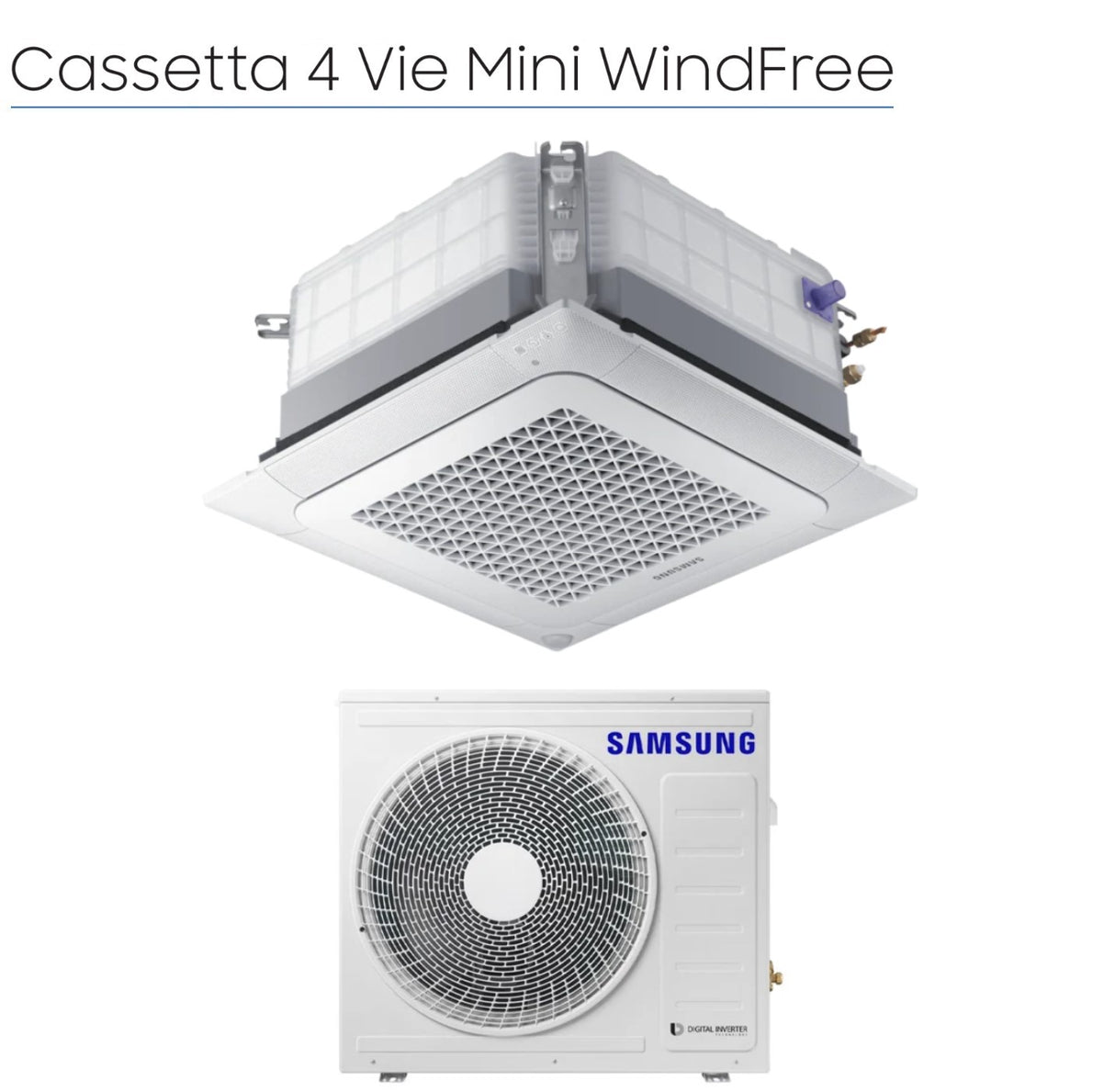

Samsung 4-Way WindFree Mini Cassette


Refresh yourself, but without WindFree TM air

Wind-Free™ Cooling technology effectively maintains a pleasant level of freshness, without annoying direct cold air jets. Cold air is gently dispersed through the 15672 micro holes, so as not to create too hot or too cold weather.

Cassetta Samsung


Optimized Operation with MDS Motion Detection Sensor

The motion detection sensor allows for customized airflow and energy-efficient operation

Cassetta Samsung


Product Guarantee: All products for sale on our site are new and packed. The warranty on this item is 24 months from the date of purchase.

Samsung Air Conditioner Mini Cassette 4 Ways Windfree 24000 Btu Ac071rnndkg R-32 Wi-Fi Optional With Panel Included

Product form

Technical features Model Indoor unit catalog code : AC071RNNDKG/EU Outdoor unit catalog code : AC071RXADKG /EU Power : 24000 Btu Panel... Read more

€1.810,00 Incl. VAT

    Description

    Technical features

    Model

    • Indoor unit catalog code : AC071RNNDKG/EU
    • Outdoor unit catalog code : AC071RXADKG /EU
    • Power : 24000 Btu
    • Panel included : PC4SUFMAN
    Optional accessories
    • Wireless command included : AR-EH03E
    • Wired command : MWR-SH11N
    • Wi-Fi card : MIM-H04EN
    • Motion sensor : MCR-SMD

    Energy efficiency

    • SEER: 6.1
    • SCOP: 3.8
    • Energy efficiency class in cooling: A+
    • Energy efficiency class warming up : a

    Performance

    • Cooling capacity : 6.80 kW
    • Capacity in heating : 7.50 kW
    • Absorption cooling: 2.75 kW
    • Absorption heating : 2.80 kW
    • Indoor unit treated air: 11.5 m³/min
    • Indoor unit sound power level : 58 dB(A)
    • Sound power level outdoor unit : 65 dB(A)
    • Sound pressure level outdoor unit : 49 ~ 51dB(A)
    • Sound pressure level indoor unit : 36 ~ 42dB(A)

    Electrical data

    • Power supply (V,Hz, Ø) : 220~240/50/1
    • Refrigerant gas : R-32
    • Operating range
    • - Cooling: -15° ~ 50°C
    • - Heating: -20° ~ 24° C
    Installation data
    • Liquid pipe diameter: 6.35 mm (1/4")
    • Gas pipe diameter: 15.88 mm (5/8")
    • Maximum piping length: 50 m
    • Maximum difference in height indoor unit / outdoor unit: 30 m

    Dimensions and weight

    • Indoor unit dimensions (WxHxD): 575x250x575 mm
    • Indoor unit weight : 12 kg
    • Panel dimensions (WxHxD): 620x46x620 mm
    • Panel weight: 2.7 Kg
    • External unit dimensions (WxHxD): 880x798x310 mm
    • Outdoor unit weight: 51 Kg

    Samsung 4-Way WindFree Mini Cassette


    Refresh yourself, but without WindFree TM air

    Wind-Free™ Cooling technology effectively maintains a pleasant level of freshness, without annoying direct cold air jets. Cold air is gently dispersed through the 15672 micro holes, so as not to create too hot or too cold weather.

    Cassetta Samsung


    Optimized Operation with MDS Motion Detection Sensor

    The motion detection sensor allows for customized airflow and energy-efficient operation

    Cassetta Samsung


    Product Guarantee: All products for sale on our site are new and packed. The warranty on this item is 24 months from the date of purchase.

    Data sheetData sheet
    • peso: 70.0 kg
    • classe energetica raffreddamento: A++
    • classe energetica riscaldamento: A+
    • gas: R-32
    • marca: Samsung
    • metri quadri : 60 - 80 m2
    • modello: AC071RNNDKG_1
    • potenza btu: 24000
    • superficie riscaldabile mq: 70
