Technical features
Model:
- Indoor unit model : AC052NNNDKH/EU
- Outdoor unit model : AC052MXADKH/EU
- Ceiling tile code: PC4SUFMAN (Included)
- Wireless Command Code: MIM-H03N (Included)
- Optional Wi-Fi Card ( Code MIM-H03N )
- Wired Command : MWR-SH11N (Optional)
Energy efficiency:
- SEERS: 6.5
- SCOP: 4.1
- Energy Efficiency Class (Cooling) : A++
- Energy Efficiency Class (Heating) : A+
Performance:
- Std Cooling Capacity : 5.0 kW
- Std Capacity In Heating: 5.50 kW
- Cooling absorption;: 1.53 kW
- Heating absorption: 1.52 kW
- Treated Air Indoor Unit: 10.5 m³/min
- Indoor Unit Sound Power Level : 56 dB(A)
- Sound Power Level Outdoor Unit : 48 dB(A)
Characteristics:
- Power (Ø, V, Hz): 1.220-240.50
- Refrigerant gas : R410A
- Pipe diameter Liquid : 6.35 mm (1/4")
- Gas pipe diameter: 12.7 mm (1/2")
- Pipe length Max : 30 m
- Max height difference Indoor Unit/Outdoor Unit: 20 m
Dimensions and weight:
- Internal Unit Dimensions (WxHxD): 575x250x575 mm
- Indoor Unit Weight: 11.6 kg
- Panel dimensions (WxHxD): 620x57x620 mm
- Panel Weight: 2.7 Kg
- External Unit Dimensions (WxHxD): 880x638x310 mm
- Weight of Outdoor Unit: 43.8 Kg

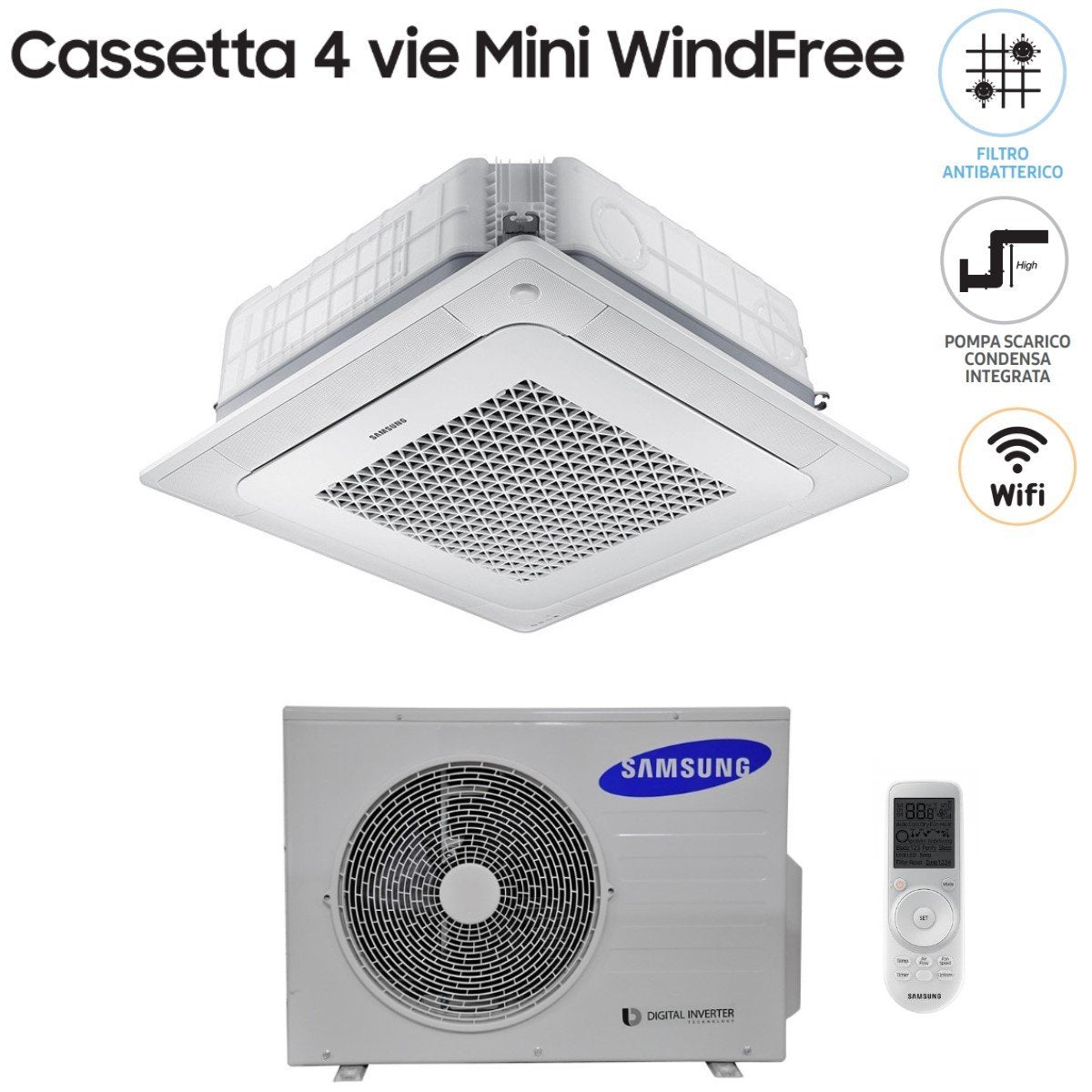

MINI WINDFREE CASSETTE
Refreshes quickly without direct air jets
The new WindFree air distribution system is the only one that transforms the powerful and direct air flow, often the cause of muscle pain and colds, into enveloping coolness.
Wind-Free™ cooling
Wind-Free™ technology uses thousands of micro-holes located on the front surface of the air conditioner to spread the air delicately and uniformly throughout the room, generating air conditioning that is always fresh and pleasant, without ever being cold
Greater range
With the larger fins, the diffusion of air is more uniform and rapid.
Motion detection sensor (optional)
The new Motion Detection Sensor* ensures an adapted direction of the airflow, so you can select the desired comfort level, and promotes efficient operation by detecting temperature and movement in the room.
Product Guarantee: All products for sale on our site are new and packed. The warranty on this item is 24 months from the date of purchase.
