Technical features
Energy label specifications according to the European ErP directive
- Heating energy class: A
- Nominal thermal power (kW) 20
- Noise level indoors (dB) 40
- Domestic hot water profile / energy class: XL/A
- Heat generator + climate control unit package label: A
Characteristics of heating/DHW operation:
- Code: REB-KA2529FF
- Forced flow sealed chamber
- Nominal thermal power (kW) 23.8
- Nominal heat input on Sanitary PCI (kW) 29.0
- EN677 efficiency on PCI (80-60°C) (%) 96.1
- EN677 efficiency on PCI (50-30°C) (%) 103.5
- Marking of NOx pollution class 5
- Expansion vessel content (l) 8
- Heating maximum operating temperature (°C) 80
- Domestic hot water delivery (ΔT=35°C) (l/min) 11.6
- Domestic hot water delivery (ΔT=25°C) (l/min) 16.3
- Dimensions (W x H x D) (mm) 440x660x280; 31kg
- Version: CNG
- Complete with Mirai Standard remote control
General characteristics
I looked

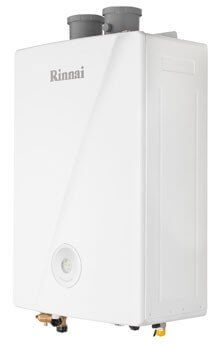

Domestic instantaneous condensing gas heat generator for heating and domestic hot water. Complete with intelligent digital Mirai Standard remote control with adjustment and self-diagnosis function.
Advantages
- Energy class A.
- Climatic probe integrated inside
- Copper heat exchanger with large passage section
- Integrated siphon which, with the addition of granules, neutralizes the acidity of the condensate
- First ignition free of charge by an authorized technical assistance centre
- Rinnai Antifreeze as standard up to -20°C
- IPX5D protection
Mirai Standard Command (Standard)
The standard Mirai remote control is included as standard on MIRAI range-domestic boilers.
Installable in the same room as the boiler or in another room according to your preferences, the thermostat is the brain of the boiler. Elegant in design, easy to use also thanks to the colored display, the control panel shows the operating temperature, the methods of use and allows you to easily adjust all the basic operating parameters of the boiler, such as the desired room temperature or that of the shower. It is possible to integrate the thermostat with a chronothermostat.
This regulator is in class 5, an element that contributes to ensuring that Mirai boilers can benefit from the 65% tax benefits provided by the 2018 Ecobonus.
Mirai WiFi (optional)
To manage and control the MIRAI range-domestic boiler in complete freedom, anywhere and at any time, there is the accessory Mirai Wi-Fi control.
Thanks to the dedicated Rinnai APP MY RINNAI , available for Apple and Android smartphones, setting and modifying boiler operation has never been so simple.
With the APP, you can turn the boiler on or off from any distance, reset it in the event of a malfunction, receive status notifications and change the settings for unexpected changes in plans, such as a last minute dinner out, or set the alarm clock which, synchronizing with that of the smartphone, it activates the boiler ten minutes before waking up in the morning, to have the shower immediately hot.
From the same APP it is also possible to manage the operation of several boilers at the same time, for example one's own and that of elderly parents, or the house in the mountains and enable several family members to control a boiler.
With the purchase of the Wi-Fi control, you immediately get a free 4-year warranty extension (on spare parts) and protect your boiler from any unforeseen events. Wi-Fi benefits from the 65% tax bonus as a home automation tool.
ErP Ready
Rinnai's commitment is aimed at an eco-sustainable future. For this reason all our products are "ERP Ready" or already in line with the European classification legislation in force since 26 September 2015. ErP, acronym of Energy related Products (products connected to the use of energy), identifies the Directive 2009/ 125/EC aimed at reducing the energy consumption of products through eco-compatible design.
The Directive establishes very precise reference points for the manufacture of eco-compatible products and defines the minimum mandatory requirements of energy and environmental performance for instruments that use energy.
The goal is to reach the famous 20-20-20 by 2020. This repetition of the number 20 serves to more easily remind everyone of the three central focuses:
- -increase the energy efficiency of energy-consuming machines by 20%
- - reduce carbon dioxide (CO2) emissions into the atmosphere by 20%
- -reach a percentage of renewable energies on final consumption of 20%
Since 26 September 2015, appliances for winter air conditioning and domestic hot water production have been accompanied by an energy label.
ELD directive: all clear on the label
The European Union has made the new energy labeling system mandatory to allow consumers to immediately understand the level of environmental compatibility of individual products. The ELD or Labeling Directive ( 2010/30/CE ) in fact provides that each item subject to the ErP Directive is equipped with a label to highlight not only the energy efficiency class but also other performances such as sound power, use, thermal power.
Rinnai actively participates in these adjustments, happy to make its contribution to a more eco-sustainable world
Product Guarantee: All products for sale on our site are new and packed. The warranty on this item is 24 months from the date of purchase.
