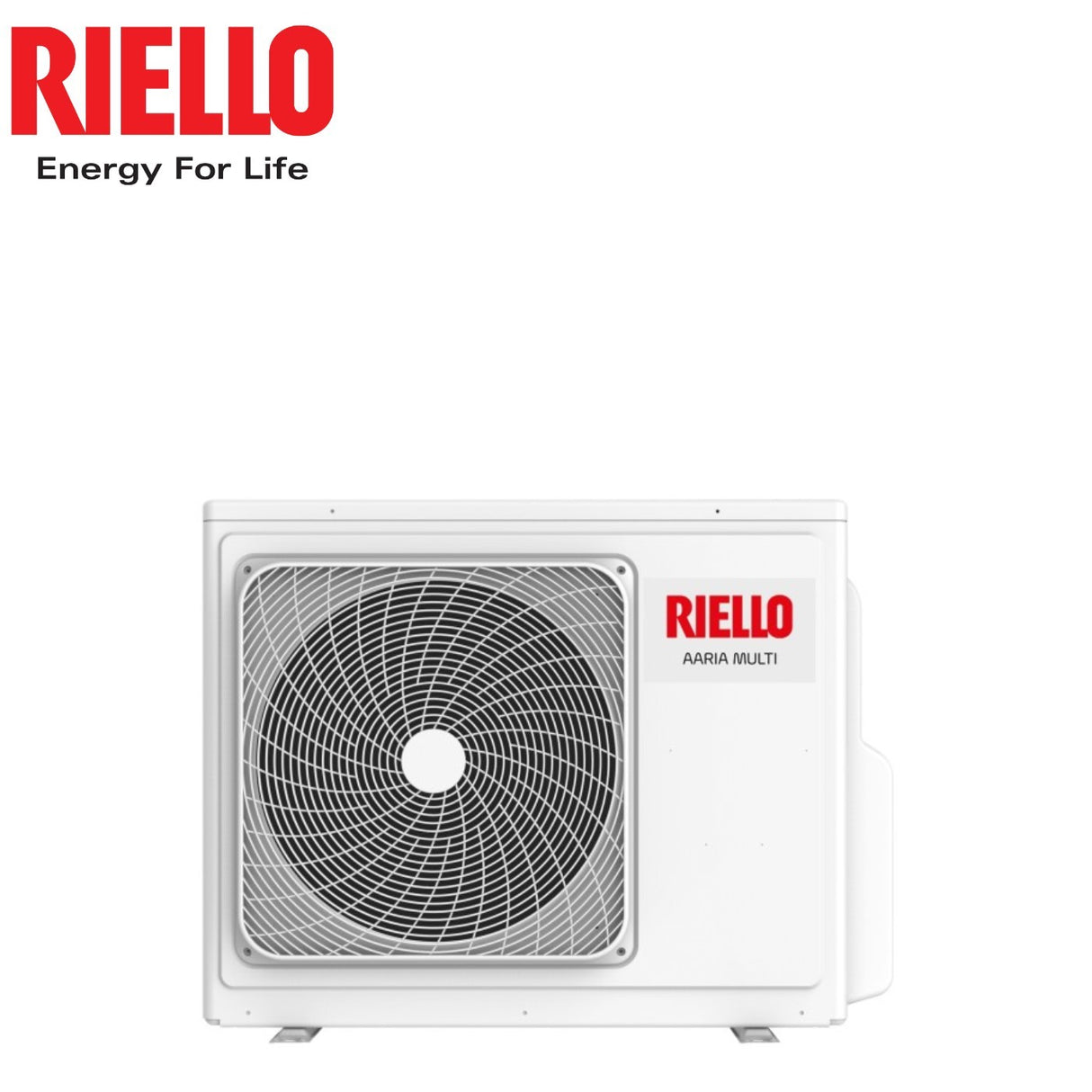

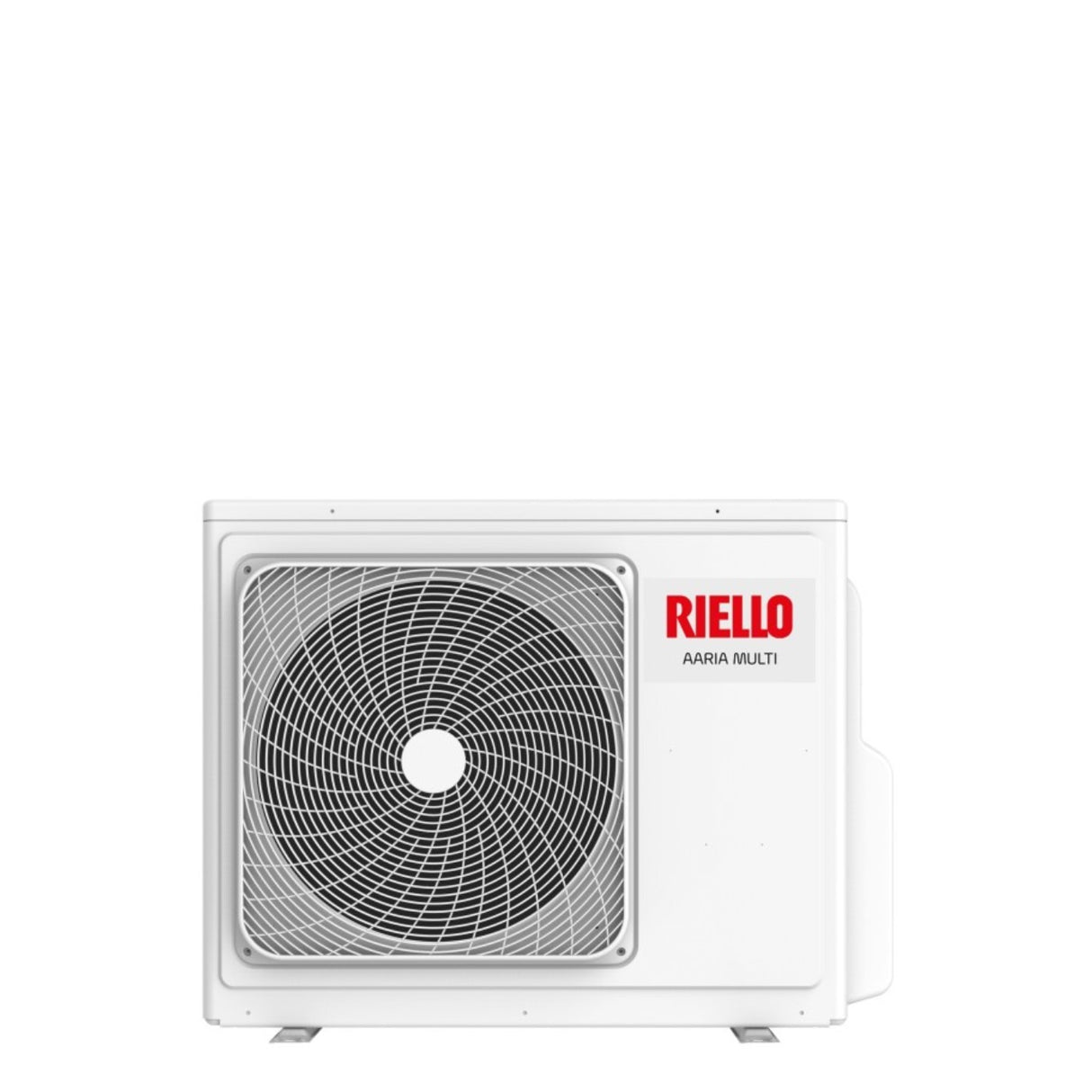

Riello Outdoor Unit Multisplit Motor Inverter AARIA MULTI 370 P Trial Split R-32 A++/A+

External unit

Model:

• Catalog code: AARIA MULTI 370 P
• Maximum number of internal units: 3

Performance and energy data in cooling

• Nominal capacity: 7.0 kW
• Nominal absorbed power: 1.78 kW
• SEER: 7.50
• Energy class: A++
• Annual energy consumption: 332 kWh/a

Performance and energy data in heating average climate profile

• Nominal capacity: 7.60 kW
• Nominal absorbed power: 1.84 kW
• SCOP: 4.20
• Energy class: A+
• Annual energy consumption: 2012 kWh/a

Characteristics

• R32 refrigerant
• Electrical supply V-Ph-Hz: 220-240/1/50
• Twin Rotary Compressor (DC Inverter)
• Maximum air flow: 3000 m³/h
• Sound power: 66 dB(A)
• Sound pressure: 53 dB(A)

Hydraulic data

• Liquid/gas pipe Ø mm 3x6.35 / 3x9.52
• Max total pipe length: 60m
• Max single line UE-UI piping length: 25m
• Max height difference UI - UE: 15 m
• Max height difference IU - IU: 15 m

Dimensions

• External Unit Dimensions (HxWxD): 700 x 890 x 340 mm
• External Unit Weight: 54 Kg

AARIA MULTI PLUS

AARIA Multi Plus is the ideal solution for residential and commercial applications for which perfect climate maintenance is required.

The range has been designed to serve multiple rooms with the use of a single external unit. The main feature is given by the flexibility of the choices of internal units with a wide choice between wall-mounted, cassette and ducted. AARIA MULTI PLUS is available in the version from 5 to 8.5 kW of cooling power supplied, guaranteeing cutting-edge energy performance. The unit with low environmental impact R32 refrigerant reaches energy efficiency values ​​equal to class A++/A+ , thanks to Inverter technology. The outdoor unit in pre-painted metal with action against atmospheric agents is equipped with plastic connection covers and front grille. The compressor is of the Twin Rotary type with high efficiency and capable of reducing vibrations to a minimum.

Efficiency and Versatility

AARIA MULTI PLUS multisplit outdoor unit, to connect up to 4 indoor units, with a single outdoor unit. The use of the new R32 refrigerant gas, with low environmental impact, allows the achievement of efficiency values ​​equal to A++ in cooling and A+ in heating.

Multisplit Riello AARIA Design and efficiency for domestic and small commercial air conditioning

Technology

For over 30 years Riello has offered the market a wide choice of air conditioners. This experience allows us to offer solutions for summer and winter air conditioning capable of guaranteeing the best comfort and maximum efficiency. In particular, Inverter technology allows you to adapt the power absorbed by the air conditioner continuously, reducing or increasing it based on needs.

Product guarantee: All products on sale on our site are new and packaged. The warranty on this item is 24 months from the date of purchase.

• peso: 50.0 kg
• classe energetica raffreddamento: A++
• classe energetica riscaldamento: A+
• conto termico 3 0: Conto_Termico_3.0
• gas: R-32
• lunghezza: 1
• marca: Riello
• modello: AARIA MULTI 370 P
