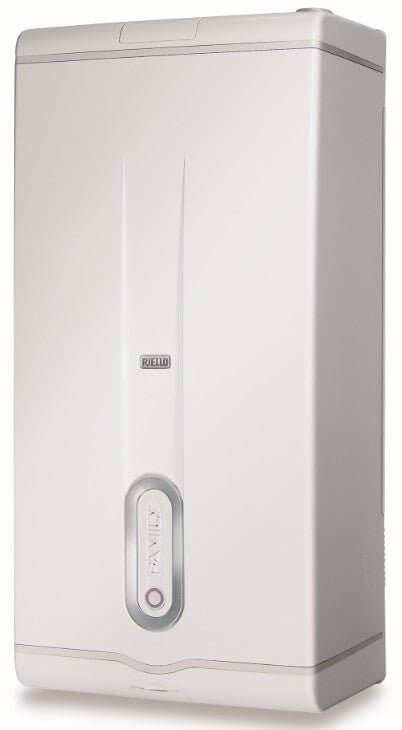

RIELLO FAMILY EXTERNA CONDENS 3.0 KIS METHANE CONDENSING BOILER COMPLETE WITH FUME KIT - NEW ErP
Technical features
- Product code: 20102940
- Energy label specifications according to the European ErP directive
- Class A heating energy efficiency
- Sanitary energy efficiency profile XL Class A
- Characteristics of heating/DHW operation:
- Furnace thermal power (heating) min-max: 3.2÷25 kW
- Useful thermal power (sanitary) min-max: 3.2÷30 kW
- Energy efficiency (92/42/EEC) ****
- Useful efficiency at Pn* (50°C-30°C): 106.8%
- Profit return 30% (47th return): 107.9%
- Sealed chamber, forced draught
- Quantity of hot water with Δt 25°C: 17.2 l/min
- Minimum domestic water flow rate: 2 l/min
- Dimensions (hxlxp) mm 1002 x 475 x 311 ; 50 Kgs
- Electrical protection degree: IP X5D
- NOx class: 5
- Power supply: METHANE
Family Remote Control, supplied as standard
FAMILY EXTERNAL CONDENS
- Yield ****
- Low polluting emissions
- Aluminum condenser, with premix burner
- Models for combined instantaneous and storage heating
- For outdoor installations in the open
Family Externa Condens is an outdoor wall-mounted boiler that can be installed totally in the open. The new primary heat exchanger completely made of aluminum with front access to the combustion chamber ensures better efficiency and durability. It is available with powers from 3.2 to 30 kW.
Characteristics:
- Modulation ratio 1:10 (minimum power 3.2 kW) which allows the boiler to respond to all heat requests
- Modulating circulator, low consumption (IEE≤0.20)
- 3 Stars in sanitary comfort according to EN 13203
- Family Remote Control, supplied as standard, allows management of all boiler functions directly from inside the home
- Antifreeze up to -15°C
- Remote alarm system that allows remote signaling of the boiler lockout status
- Special Family functions: Wellness key, Memory key, Touch&Go function,
- Intelligent system filling
- Standard external probe.
The FAMILY Remote Control kit (remote control panel) is the tool that allows you to manage the boiler remotely. The panel monitors the boiler, storage tank and room temperatures, monitors and supervises the operating regimes, the activation times and signals any anomalies.
The remote control panel can be configured as:
Chronothermostat (factory confi guration): it will work according to the standard heating program or according to the personalized one. In this configuration the control panel tries to keep the room at two temperature levels (comfort and reduced), passing from one to the other at times established by the user.
Thermostat: heating is activated when the temperature detected by the room probe (contained in the control panel) is lower than the one set, regardless of the memorized heating program.
