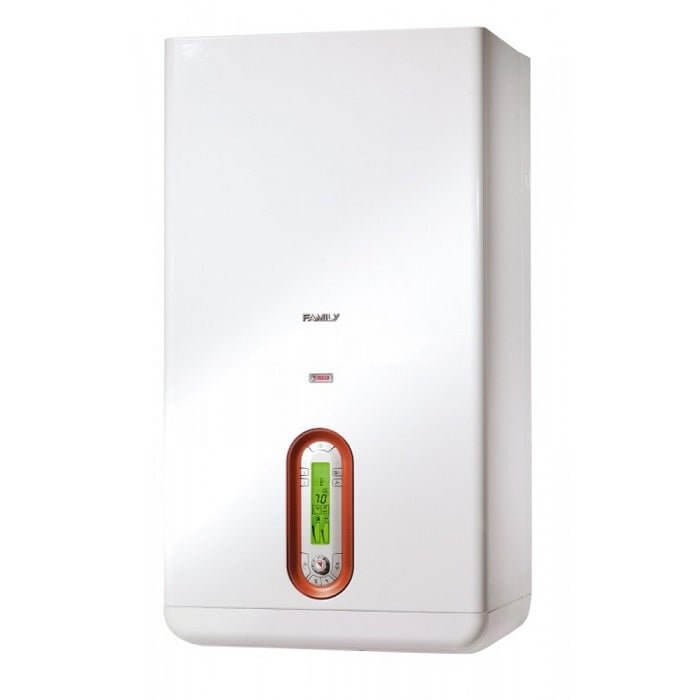

RIELLO FAMILY AR 35 KIS LPG CONDENSING BOILER COMPLETE WITH FUME KIT - NEW ErP
Technical features
Product code: 20100513
Energy label specifications according to the European ErP directive
- Class B heating energy efficiency
- Sanitary energy efficiency profile XL Class A
- Characteristics of heating/DHW operation:
- Furnace thermal power (heating) min-max: 9.9÷34.8 kW
- Useful heat output (sanitary) min-max: 9.9÷34.8 kW
- Energy efficiency (92/42/EEC) ****
- Useful efficiency at Pn* (50°C-30°C): 97.5%
- Profit return 30% (47th return): 96.5%
- Sealed chamber, forced draught
- Quantity of hot water with Δt 25°C: 20 l/min
- Minimum domestic water flow rate: 2 l/min
- Dimensions (hxlxp) mm 845 x 500 x 332 ; 48 kgs
- Electrical protection degree: IP X5D
- NOx class: 2
- Power supply: METHANE
FAMILY AR
Yield ****
Combined models for heating and domestic hot water production
Family AR is the new generation condensing boiler specifically designed to operate with high temperatures (80°C delivery and 60°C return) and therefore in radiator systems. Family AR contains Altaresa condensing technology in the aesthetics and in the special Family functions. Family AR has an Air/Gas combustion (patented): thanks to the modulating fan, the mixture of air and gas is kept optimal and constant over the entire power range, always maintaining high efficiency. Thanks to the treated aluminum post-exchanger, very high yields up to 102.9% are obtained. The climatic regulation is managed directly by the boiler control unit, via the external probe (accessory), it allows the temperature of the heating system to be suitably adapted to the external climatic conditions. The equipment is completed by anti-freeze systems (down to -3°C), circulator anti-blocking systems, three-way valve, Wellness button and rapid button which reduces the waiting times for domestic hot water.
Family AR is available with powers of 25, 29 and 35 kW.
Characteristics:
Technology, ease of control and management:
• Memory key: activates machine intelligence.
- sanitary: hot water always ready and without waste, according to the usage habits of the family.
- in heating: reduction of home heating times.
• Wellness key: maintains hot water delivery at the ideal temperature for the shower (40°C customizable +/- 5°C).
• Touch&Go function: directly from the tap, it activates pre-heating for just one water draw.
• Intelligent system filling: allows you to fill the system in complete autonomy.
Air/gas combustion (patented): optimal mixture of gas and air to obtain high and constant efficiency over the entire power range with efficiency up to 102.9%.
Condensing exchanger located downstream of the fan for further recovery of the heat contained in the exhaust fumes.
Advantages for installation:
- Efficiency ★★★★ according to Dir. 92/42/CEE.
- Low consumption circulator (IEE≤0.20)
- Climatic regulation managed directly by the boiler control unit
- Special Family functions: Wellness key, Memory key, Touch&Go function
- Intelligent system filling
- Assembly template, hydraulic fittings, power supply cable supplied.
