PRODUCT AVAILABLE TO ORDER
Technical features

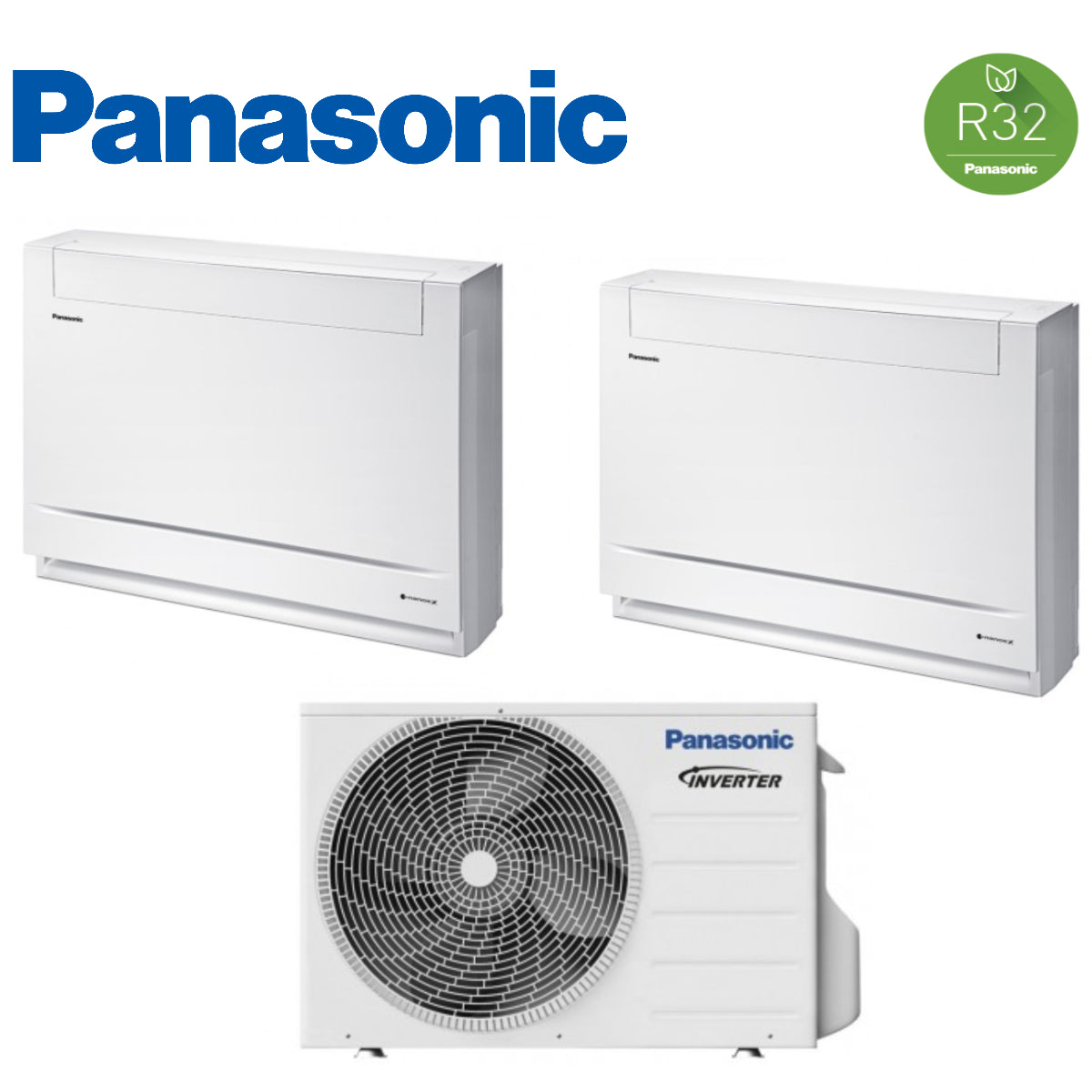

Indoor unit :
Model:
- Indoor unit catalog number : 2 x CS-Z25UFEAW
- Typology : Inverter
- Power (BTU) : 9000
- Dimensions HxWxD (mm): 600x750x207
- Weight: 13
Outdoor Unit
Model:
- Indoor unit catalog number : CS-2Z41TBE
- Max number of indoor units that can be connected: 2
Energy efficiency:
- SEER/SCOP (W/W): 8.50/4.60
- Energy Efficiency Class (cooling) : A+++
- Energy Efficiency Class (heating): A++
- Annual energy consumption1 kWh/a cooling: 169
- Annual energy consumption1 kWh/per heating: 1065
Performance:
- Nominal cooling capacity (kW): 4.10
- Nominal heating capacity (kW): 4.60
- Absorbed power in cooling/heating (kW): 65/67
- Min-max outdoor unit sound pressure (dB-A): 48/50
Characteristics:
- Power supply (V/Hz/Φ) : 230/50/1
- Refrigerant gas : R32
- Guaranteed operating range:
- Cooling °C: -10 ~ +46
- Heating °C: -15 ~ +24
- Connection pipes Liquid side Poll. (mm): 1/4(6.35)
- Gas side In. (mm): 3/8(9.52)
- Total length of connection pipes m: 6~30
- Pipe length single unit m: 3~20
- Difference in elevation (int/est) m: 10
- Length piping without adding refrigeration m:20
Dimensions:
- HxWxD (mm): 619 x 824 x 299;
- Weight : 39kg
Main features
New floor consoles with new nanoe™ X air purification system
Efficiency, comfort and healthy air all year round
Healthy air with nanoe™ X technology
Atomized aqueous microparticles, with electrostatic charge, for a healthier environment .
· Room purification can be performed simultaneously or independently of heating / cooling operations.
· Removal of bacteria and deodorization of the air (bacteria, fungi, pollen, viruses and cigarette smoke); The OH radicals in nanoe X extract hydrogen from bacteria aiding in deodorization and sterilization.
A. Deodorization
B. Inhibition of the growth of various bacteria and viruses
Energy efficiency class A++
Thanks to the Panasonic Inverter compressor, the heart of a heat pump, high levels of energy efficiency are achieved. As a result, operating costs are substantially reduced. The system can provide heat even when the outside temperature drops to -15°C.
Electric Heater vs Heat Pump.
The heat pump absorbs the external heat energy. The new floor console can provide heat even when the outside temperature drops to -15°C.
SCOP in heating mode for model Z25-UFE and Z35-UFE floor consoles compared to electric heaters at +7°C.
New - Floor console with new nanoe™ X air purification system. High efficiency A++, comfort (Super Quiet technology only 20 dB(A)) and healthy air associated with avant-garde design.

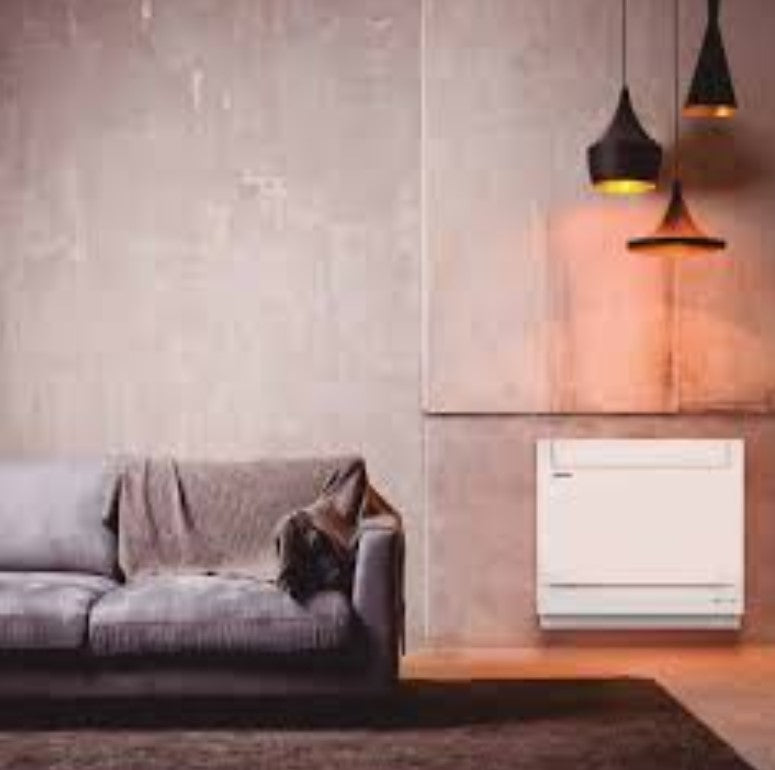

Design suitable for any environment
Refined and compact design that fits perfectly with the most modern environments
Models available:+
Design suitable for any environment
Refined and compact design that fits perfectly with the most modern environments.
Available models:
The ideal solution for replacing old boiler heating systems:
The double conditioned air outlet (upwards for cold air and downwards for hot air) improves comfort and makes the ambient temperature more uniform.
New design and new wireless control
New Panasonic WiFi Kit
Optimize comfort and energy consumption via your smartphone. With the new optional accessory CZ-TACG1 you can remotely control your air conditioner using your smartphone or tablet
For more information.
Product Guarantee: All products for sale on our site are new and packed. The warranty on this item is 24 months from the date of purchase.
