Technical features
Model:
- Indoor unit catalog code : DXK15Z6-W
- Outdoor unit catalog code : DXC15Z6-W
- Typology : DC Inverter
Energy efficiency:
- SEER/EER (W/W): 6.3/3.33
- SCOP/COP (W/W): 4.2/3.68
- Seasonal Energy Efficiency Class (Cooling): A++
- Seasonal Energy Efficiency Class (Heating) : A+
- Annual energy consumption Cooling kWh/a: 154
- Power (BTU) : 12000
Performance:
- Nominal cooling capacity (kW): 4.5
- Nominal heating capacity (kW): 5.00
- Power absorbed in cooling (kW): 1.35
- Absorbed power in heating (kW): 1.36
- Indoor unit sound pressure (Hi/Mi/Lo) (dB-A): 44/39/24
- Indoor unit sound power level dB(A): 56
- Max sound pressure level at 1 m outdoor unit dB(A): 51
- Max external unit sound power level dB(A): 63
Electrical data:
- Power supply (V/Hz/Φ) : 230/50/1
Characteristics:
- Refrigerant gas : R32
- Max. split length IU/UE: 25 meters
- Max splitting height difference UI-UE/UI-UE: 15/15 metres
Dimensions:
- Indoor Unit HxLxP (mm): 262 x 783 x 210 ; 7.5kg
- Outdoor Unit HxWxD (mm) : 595 x 780(+62) x 290 ; 36kg
General characteristics

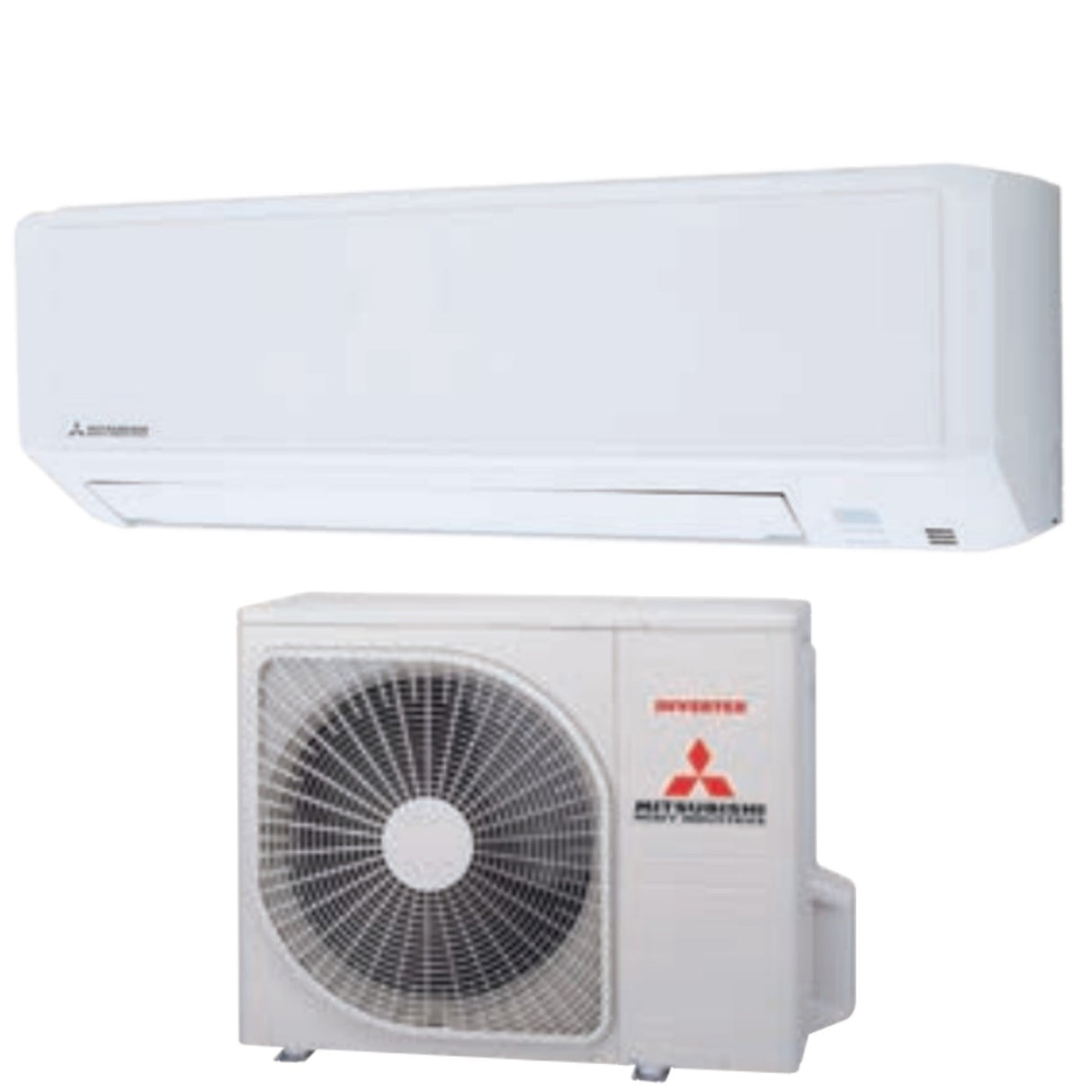

New Monosplit Wall Series DXK-W
The heat pump air conditioners in the Mitsubishi Heavy Industries residential and light commercial range are treated in every detail and designed to guarantee maximum energy savings in small and medium-sized rooms.
![](http://www.elektro-jecelj.si/images/klime/MHI/SRK25-45ZMPS.png)
ENERGY EFFICIENCY
Energy saving in all seasons.
energy class in cooling
SEER 7.30 (mod. 3.20 kW)
energy class in heating
SCOP 4.40 (mod. 3.20 kW)
COMFORT START-UP MODE
This function allows you to start the indoor unit operations 5 to 60 minutes before the switch-on time, and ensures that the set temperature is reached as soon as the unit starts up.
MAXIMUM COMPACTNESS
High-performance and compact, it is the most discreet solution for home air conditioning with its 21 cm depth for all power levels.
SELF-CLEAN OPERATION
This function allows the exchange coil of the indoor unit to dry in order to prevent the formation of mold and bacteria.
QUIETNESS
Discreet and silent, it boasts a sound pressure of 23 dB(A) at minimum speed
OPERATING RANGE
Wide scope of operation for all power sizes
