Technical Features
- Internal Unit Catalog Code: MLZ-KP25VF
- Grid Code : MLP-444W
- Power: 9000 Btu
- Cooling capacity: 2.5 kW
- Heating capacity: 3.2 kW
- Air Flow Rate : 6 ~ 9.2 m 3 /min
- Sound pressure level : 26 ~ 38 dB(A)
- Sound Power Level: 59 dB(A)
- Liquid Pipe Diameter: 6.35mm (1/4")
- Gas pipe diameter: 9.52 mm (3/8")
- Internal Unit Dimensions (HxWxD): 185x1102x360 mm
- Internal Unit Weight: 15.5 Kg
- Grid dimensions: 24x1200x424 mm
- Grill weight: 3.5 Kg
- Wi-Fi Optional : MAC-567IF-E1
- Remote Control Included
*Please note, only the internal unit will be supplied

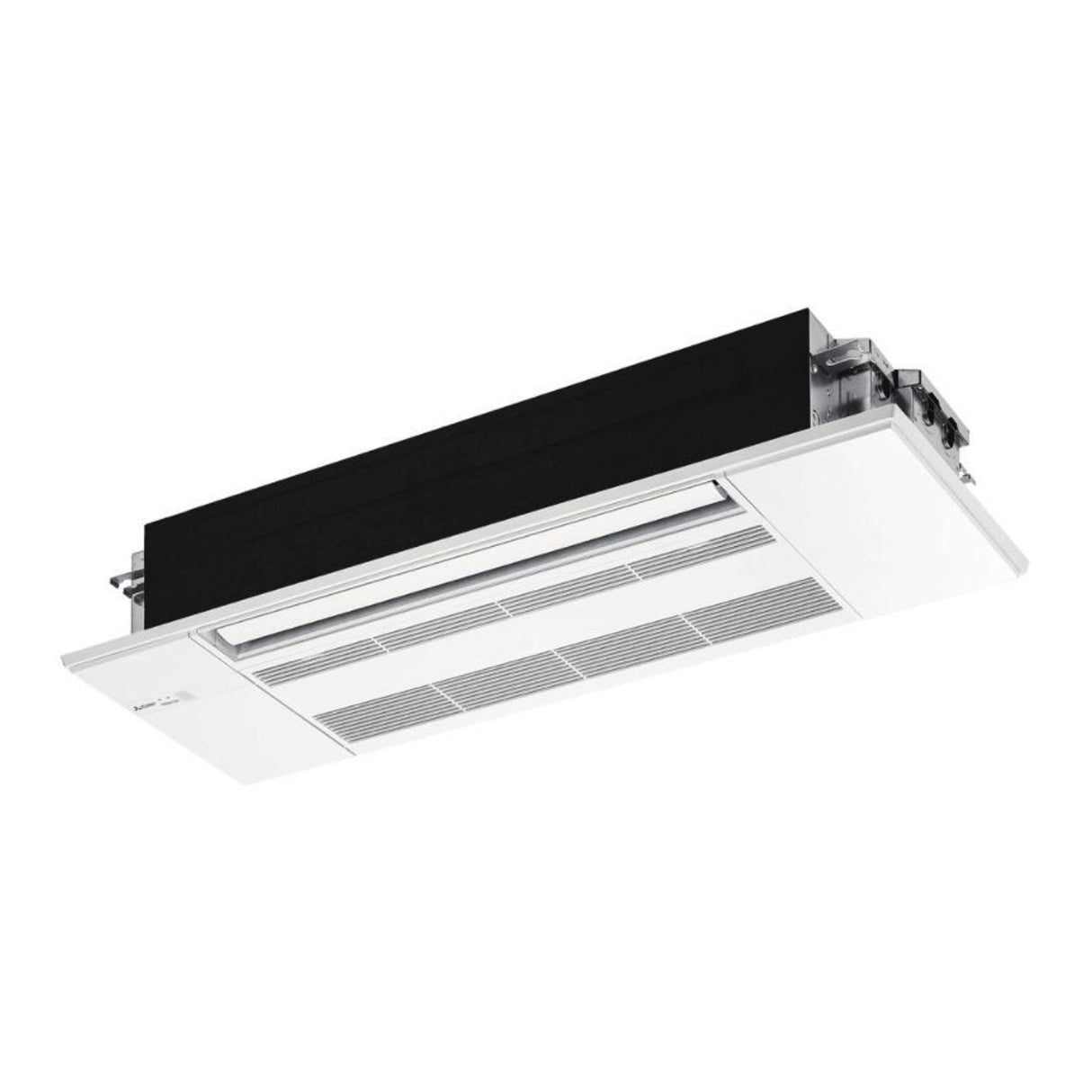

Mitsubishi Electric 1-Way Cassette Modern design and installation versatility
The MLZ-KP units are designed to be installed wherever you want, without sacrificing a valuable design and excellent performance.
Small size, big design
The height of just 175 mm and the depth of 414 mm allow installation not only in traditional false ceilings but also in small lowerings or plasterboard coves, giving prestige and design to the room where they are installed.
Comfortable air distribution
Using the infrared remote control, it is possible to fully adjust the air flow in four directions in order to avoid annoying air currents, to the full advantage of comfort. Not only that, the new MLZ-KP model is able to create a horizontal throw parallel to the ceiling, optimising comfort in the room and avoiding annoying direct currents.
Silence and optimal air distribution
An elegant and slender line, a modern and refined design, performance, silence and optimal air distribution : the 1-way cassette units find the ideal application in prestigious residential environments as well as in offices or commercial establishments. The exclusive combination with Multisplit DC Inverter systems allows you to create an ideal climate all year round with maximum comfort and minimum energy consumption.
MELCloud, the Wi-Fi control
MELCloud is the new Wi-Fi control for your Mitsubishi Electric system. Using the support of the cloud (the “Cloud”) to transmit and receive information and the optional dedicated Wi-Fi interface (MAC-567IF-E), you can easily control your system wherever you are via your PC, tablet or smartphone; all you need is an internet connection. The MELCloud service has been designed to have maximum compatibility with PCs, Tablets and Smartphones thanks to dedicated Apps or via Web Browser.
Condensate drain pump
The provision of a drain pump with a delivery head of 500 mm facilitates the drainage of condensation water even in critical conditions.
Product Warranty: All products for sale on our site are new and packaged. The warranty on this item is 24 months from the date of purchase.
