Technical features
- Indoor unit product code: MLZ-KP50VG
- Outdoor unit product code: SUZ-M50VA
- Power: 18000 Btu
- Optional Wi-Fi: MAC-587IF-E
Energy efficiency
- SEER : 6.7
- SCOP : 4.3
- Energy efficiency class in cooling: A++
- Energy efficiency class in heating: A+
- Annual energy consumption in cooling: 260 kWh/a
- Annual energy consumption in heating: 1397 kWh/a
Performance
- Cooling capacity: 5.0 kW
- Heating capacity: 6.0 kW
- Cooling absorption: 1.38 kW
- Heating absorption: 1.86 kW
- Indoor unit treated air: 6.0 ~ 11.8 m 3 /min
- Sound power level indoor unit: 64 dB(A)
- Sound power level of outdoor unit: 64 dB(A)
- Indoor unit sound pressure level : 26~48 dB(A)
- Outdoor unit sound pressure level : 48~49 dB(A)
Electrical data
- Power supply (V,Hz,Ø) : 220~240/50/1
- Refrigerant gas: R-32
- Operating range
- Cooling: -15° ~ 46° C
- Heating: -10° ~ 24° C
Installation Data
- Liquid pipe diameter: 6.35 mm (1/4")
- Gas pipe diameter: 12.70 mm (1/2")
- Maximum pipe length: 30 m
- Maximum height difference between internal unit and external unit: 30 m
Dimensions and Weight
- Internal unit dimensions (HxWxD): 185x1102x360 mm
- Internal unit weight: 7.1 Kg
- Grid dimensions: 24x1200x424 mm
- Grill weight: 3.5 Kg
- External unit dimensions (HxWxD): 714x800x285 mm
- External unit weight: 41.0 Kg

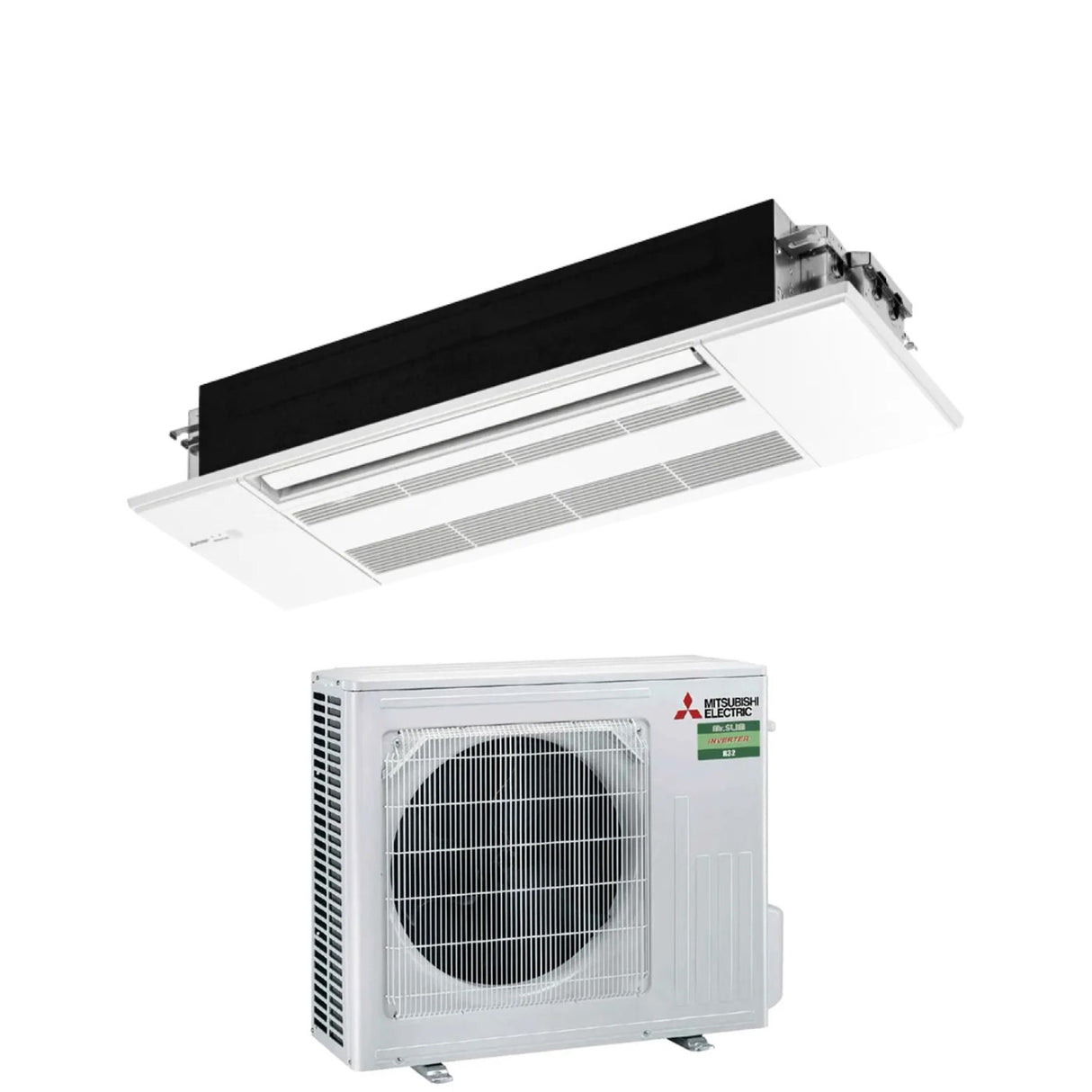

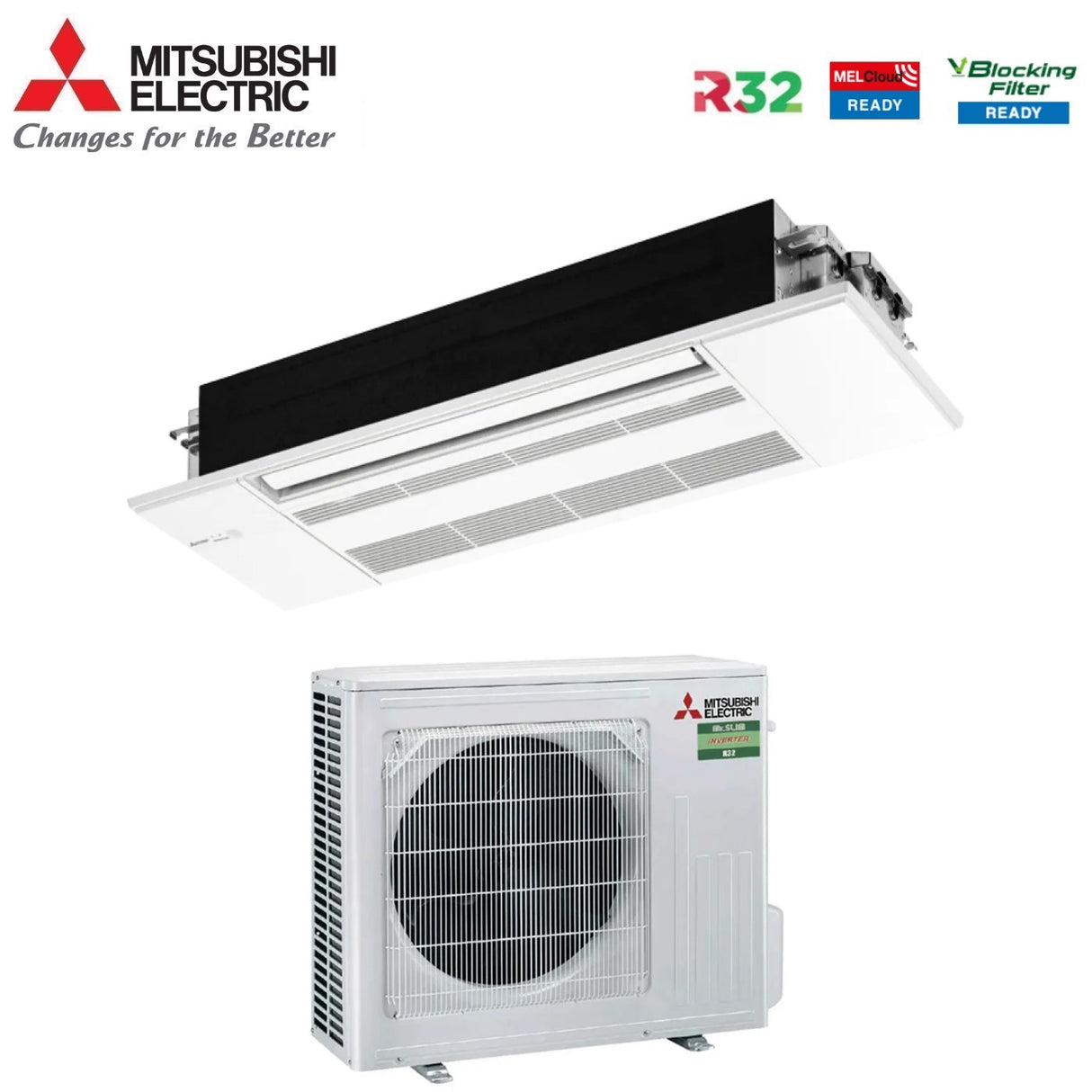

Mitsubishi Electric 1-Way Cassette Modern design and installation versatility
The MLZ-KP units are designed to be installed wherever you want, without sacrificing a valuable design and excellent performance.
Small size, big design
The height of just 175 mm and the depth of 414 mm allow installation not only in traditional false ceilings but also in small lowerings or plasterboard coves, giving prestige and design to the room where they are installed.
Comfortable air distribution
Using the infrared remote control, it is possible to fully adjust the air flow in four directions in order to avoid annoying air currents, to the full advantage of comfort. Not only that, the new MLZ-KP model is able to create a horizontal throw parallel to the ceiling, optimising comfort in the room and avoiding annoying direct currents.
V Blocking Air Purifier Filter
The new Mitsubishi Electric filter compatible with the entire residential range of wall-mounted split units and with most of the units in the commercial line. Simple to install, to always have excellent air to breathe
The V Blocking filter is able to inhibit the SARS-CoV-2 virus.
Improved technology
The V Blocking filter system inhibits 99% of suspended harmful substances: viruses, bacteria, molds and allergens. The antiviral effect is guaranteed by an electrostatic filter and a non-woven fabric filter system that allows you to effectively capture and remove small particles present in environments.
Increased air filtration capacity
V Blocking is a new purifying filter that improves the previous silver ion filter system, adding an antiviral action capable of inhibiting viruses, bacteria, mold and allergens.
The importance of breathing excellent quality air
Air quality is the measure of how free the air we breathe is from the characteristic elements of air pollution. It therefore measures how healthy the air around us is.
The air in the environments we live in every day directly influences the quality of our life.
What are the benefits of breathing good quality air?
Breathing good quality air reduces the onset of allergies, asthma, improves oxygenation and improves sleep quality.
Silence and optimal air distribution
An elegant and slender line, a modern and refined design, performance, silence and optimal air distribution : the 1-way cassette units find the ideal application in prestigious residential environments as well as in offices or commercial establishments. The exclusive combination with Multisplit DC Inverter systems allows you to create an ideal climate all year round with maximum comfort and minimum energy consumption.
MELCloud, the Wi-Fi control
Control your air conditioning system remotely, via smartphone, tablet or computer thanks to the dedicated App or via browser. Compatible with Amazon Alexa and Google Home voice assistants.
MELCloud your air conditioner everywhere
MELCloud is the remote control for your Mitsubishi Electric air conditioning system. Using the «Cloud» technology, it allows you to manage your system thanks to the dedicated interface. You can use a smartphone, a tablet or a computer, all you need is an internet connection.
A safe system
The App allows you to activate the remote control of the air conditioner only after its registration and configuration. There is no risk of intrusion by third parties.
The unit equipped with MELCloud must be associated with your personal account, and after pairing it will be possible to control your Ecodan air conditioner and/or heat pump.
With MELCloud you can directly manage or schedule your indoor units, grant limited permissions to other users (guests), monitor the status of your air conditioners and much more
A tap for every desire
An App developed for monitoring and managing Mitsubishi Electric systems via cloud such as air conditioners, Ecodan heat pumps and Lossnay ventilation systems for Residential and Commercial applications. You will only need one finger to manage your air conditioning system
MELCloud is for everyone Easy to use
All you need is a smartphone, tablet or computer, an internet connection and the MAC-587IF-E receiver equipped on your air conditioner or heat pump. Your entire air conditioning system will be at your fingertips and at your voice!
One word is enough for you!
MELCloud is compatible with Google Home. By saying "Hey Google!", or "Ok Google!" you have full control of the air conditioning system. MELCloud is compatible with Amazon Alexa. Just one word will be enough to freely manage your air conditioning units.
With the skills developed by Mitsubishi Electric, it will be very easy to turn your air conditioner on and off, change its operating modes, check the room temperature, change the set points and much more.
Condensate drain pump
The provision of a drain pump with a delivery head of 500 mm facilitates the drainage of condensation water even in critical conditions.
Product Warranty: All products for sale on our site are new and packaged. The warranty on this item is 24 months from the date of purchase.
