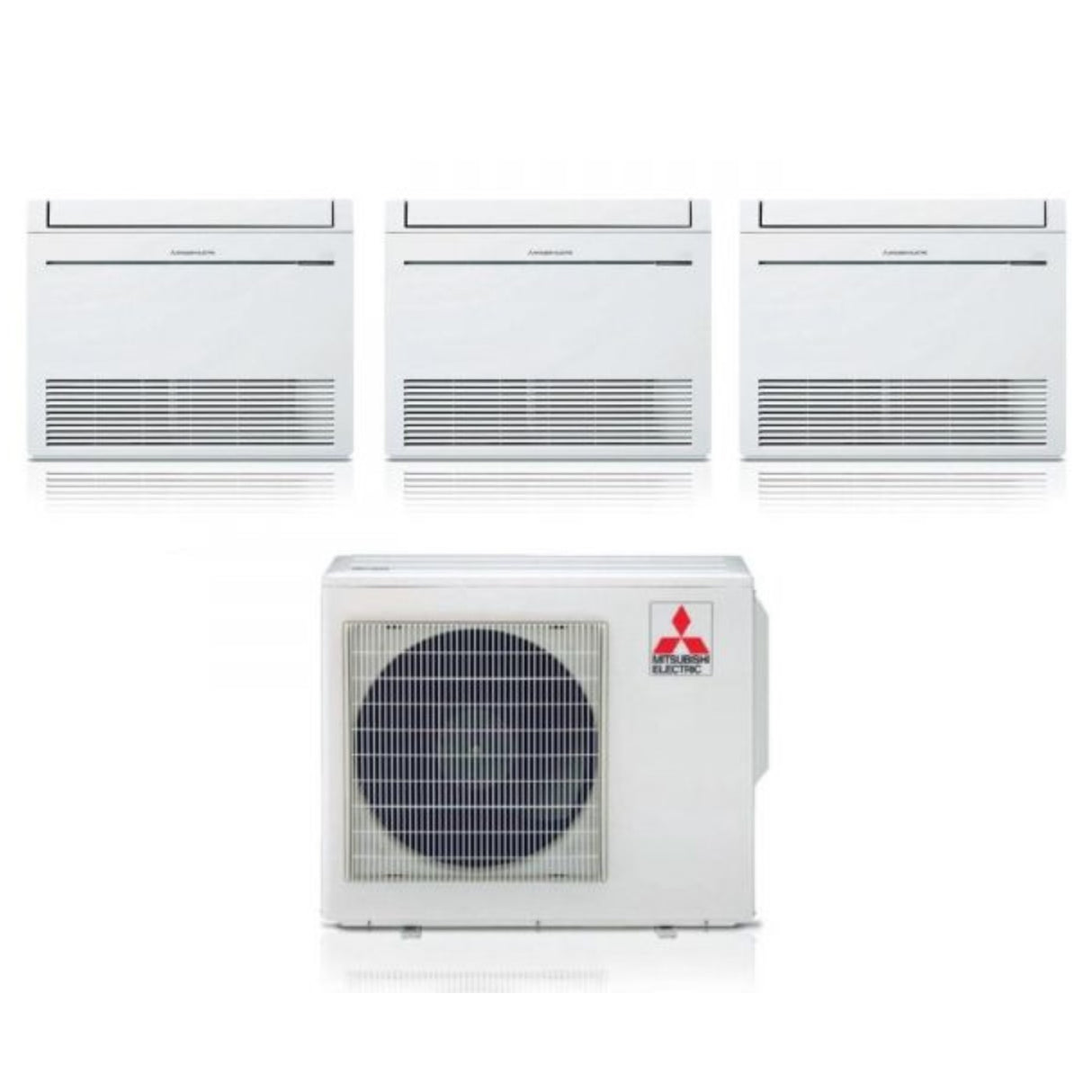

Air Conditioner Mitsubishi Floor Trial Split Inverter Series Mfz-Kt 9+12+18 With Mxz-3f68vf R-32 9000+12000+18000 - News

Important Notice on Regulations for Fluorinated Gases IN ITALY

In accordance with Regulation (EU) No. 517/2014 and Presidential Decree No. 146/2018, equipment containing fluorinated gases that is not hermetically sealed can only be sold if installed by a certified company.

By law, each sale must be recorded in the Fluorinated Gas Database, including a declaration from the buyer ensuring that the installation complies with the regulations. Therefore, before completing the order, it will be necessary to provide this mandatory declaration.

Description

Technical features

Internal Unit

1)Model:

  • Indoor Unit Catalog Code: 2x MFZ-KT25VG
  • Typology : Inverter
  • Power (BTU) : 9000
  • Weight : 14.5Kg

2) Model

  • Indoor Unit Catalog Code: 1 x MFZ-KT35VG
  • Typology : Inverter
  • Power (BTU) : 12000
  • Weight: 14.5kg

3)Model

  • Indoor Unit Catalog Code: 1 x MFZ-KT50VG
  • Typology : Inverter
  • Power (BTU) : 18000
  • Weight: 14.5kg

Outdoor Unit

Model:

  • Outdoor Unit Catalog Code: MXZ-3F68VF3
  • Max number of connectable indoor units: 3
  • Weight : 58Kg

Cooling Technical Features:

  • Nominal Capacity (min/max): 6.8Kw (2.9-8.4)
  • Nominal Absorbed Power: 1.84 Kw
  • SEER : 7.96 kW
  • Energy Efficiency Class: A++
  • Annual Energy Consumption: 299 KWh/a
  • Theoretical load: 6.8 kW

Heating Technical Features:

  • Nominal Capacity (min/max): 8.6Kw (2.6-10.6)
  • Nominal Absorbed Power: 1.91 Kw
  • SCOP : 4.12 kW
  • Energy Efficiency Class: A+
  • Annual Energy Consumption: 2312 Kwh/a
  • Theoretical load: 6.8 kW

Performances;

  • Sound Pressure min/max : 48/53 dB (A)
  • Rated Sound Power : 63dB (A)

Dimensions:

  • Indoor Unit H x W x D : 600 x 750 x 215
  • Outdoor Unit H x W x D : 710 x 840 x 330

Installation data :

  • Liquid Pipe Diameter : 6.35 mm (1/4) x3
  • Gas Pipe Diameter : 9.52 mm (3/8) x3
  • Maximum Piping Length: 60 m
  • Maximum height difference Internal Unit/External Unit: 15 m External Unit Above
  • Maximum height difference Internal unit7 External unit: 10 m External unit Below

Operating Range:

  • Cooling : 10 ~ +46 °C
  • Heating : 15 ~ +24 °C

General characteristics

MFZ-KT units are designed to optimize air distribution and offer a simple and elegant design to adapt to any type of furniture.

  • Compact And Refined Design
  • High Energy Efficiency
  • Exclusive deflector movement
  • High Efficiency Antibacterial Filter Supplied
  • Multi-split compatible

High Heating Capacity :

The MFZ-KT model has a high capacity in heating mode compared to traditional air conditioners, which makes it suitable for winter and mid-season use.

V Blocking Air Purifier Filter Included:

V Blocking is a new purifying filter that improves on the previous silver ion filtering system, adding an antivirus action capable of inhibiting viruses, bacteria, molds and allergens.

Standard Purifier Filter Supplied:

The standard purifying filter ensures the removal of coarse polluting particles such as dust and impurities from the air with an additional antibacterial, anti-mold and odor-trapping effect

Multi-Flow Vane :

The delivery vent is characterized by the presence of three different deflectors, each with a profile specifically designed to optimize the distribution of the outgoing air, maximizing comfort in both cooling and heating.


Product Guarantee: All products for sale on our site are new and packed. The warranty on this item is 24 months from the date of purchase.


Air Conditioner Mitsubishi Floor Trial Split Inverter Series Mfz-Kt 9+12+18 With Mxz-3f68vf R-32 9000+12000+18000 - News

Product form

Technical features Internal Unit 1)Model: Indoor Unit Catalog Code: 2x MFZ-KT25VG Typology : Inverter Power (BTU) : 9000 Weight :... Read more

€4.210,00 Incl. VAT

    Description

    Technical features

    Internal Unit

    1)Model:

    • Indoor Unit Catalog Code: 2x MFZ-KT25VG
    • Typology : Inverter
    • Power (BTU) : 9000
    • Weight : 14.5Kg

    2) Model

    • Indoor Unit Catalog Code: 1 x MFZ-KT35VG
    • Typology : Inverter
    • Power (BTU) : 12000
    • Weight: 14.5kg

    3)Model

    • Indoor Unit Catalog Code: 1 x MFZ-KT50VG
    • Typology : Inverter
    • Power (BTU) : 18000
    • Weight: 14.5kg

    Outdoor Unit

    Model:

    • Outdoor Unit Catalog Code: MXZ-3F68VF3
    • Max number of connectable indoor units: 3
    • Weight : 58Kg

    Cooling Technical Features:

    • Nominal Capacity (min/max): 6.8Kw (2.9-8.4)
    • Nominal Absorbed Power: 1.84 Kw
    • SEER : 7.96 kW
    • Energy Efficiency Class: A++
    • Annual Energy Consumption: 299 KWh/a
    • Theoretical load: 6.8 kW

    Heating Technical Features:

    • Nominal Capacity (min/max): 8.6Kw (2.6-10.6)
    • Nominal Absorbed Power: 1.91 Kw
    • SCOP : 4.12 kW
    • Energy Efficiency Class: A+
    • Annual Energy Consumption: 2312 Kwh/a
    • Theoretical load: 6.8 kW

    Performances;

    • Sound Pressure min/max : 48/53 dB (A)
    • Rated Sound Power : 63dB (A)

    Dimensions:

    • Indoor Unit H x W x D : 600 x 750 x 215
    • Outdoor Unit H x W x D : 710 x 840 x 330

    Installation data :

    • Liquid Pipe Diameter : 6.35 mm (1/4) x3
    • Gas Pipe Diameter : 9.52 mm (3/8) x3
    • Maximum Piping Length: 60 m
    • Maximum height difference Internal Unit/External Unit: 15 m External Unit Above
    • Maximum height difference Internal unit7 External unit: 10 m External unit Below

    Operating Range:

    • Cooling : 10 ~ +46 °C
    • Heating : 15 ~ +24 °C

    General characteristics

    MFZ-KT units are designed to optimize air distribution and offer a simple and elegant design to adapt to any type of furniture.

    • Compact And Refined Design
    • High Energy Efficiency
    • Exclusive deflector movement
    • High Efficiency Antibacterial Filter Supplied
    • Multi-split compatible

    High Heating Capacity :

    The MFZ-KT model has a high capacity in heating mode compared to traditional air conditioners, which makes it suitable for winter and mid-season use.

    V Blocking Air Purifier Filter Included:

    V Blocking is a new purifying filter that improves on the previous silver ion filtering system, adding an antivirus action capable of inhibiting viruses, bacteria, molds and allergens.

    Standard Purifier Filter Supplied:

    The standard purifying filter ensures the removal of coarse polluting particles such as dust and impurities from the air with an additional antibacterial, anti-mold and odor-trapping effect

    Multi-Flow Vane :

    The delivery vent is characterized by the presence of three different deflectors, each with a profile specifically designed to optimize the distribution of the outgoing air, maximizing comfort in both cooling and heating.


    Product Guarantee: All products for sale on our site are new and packed. The warranty on this item is 24 months from the date of purchase.


    Data sheetData sheet
    • peso: 80.0 kg
    • classe energetica raffreddamento: A++
    • classe energetica riscaldamento: A+
    • gas: R-32
    • marca: MITSUBISHI ELECTRIC
    • modello: KT 9+12+18 68
    • potenza btu: 9000+12000+18000
    • superficie riscaldabile mq: 25/35/50
