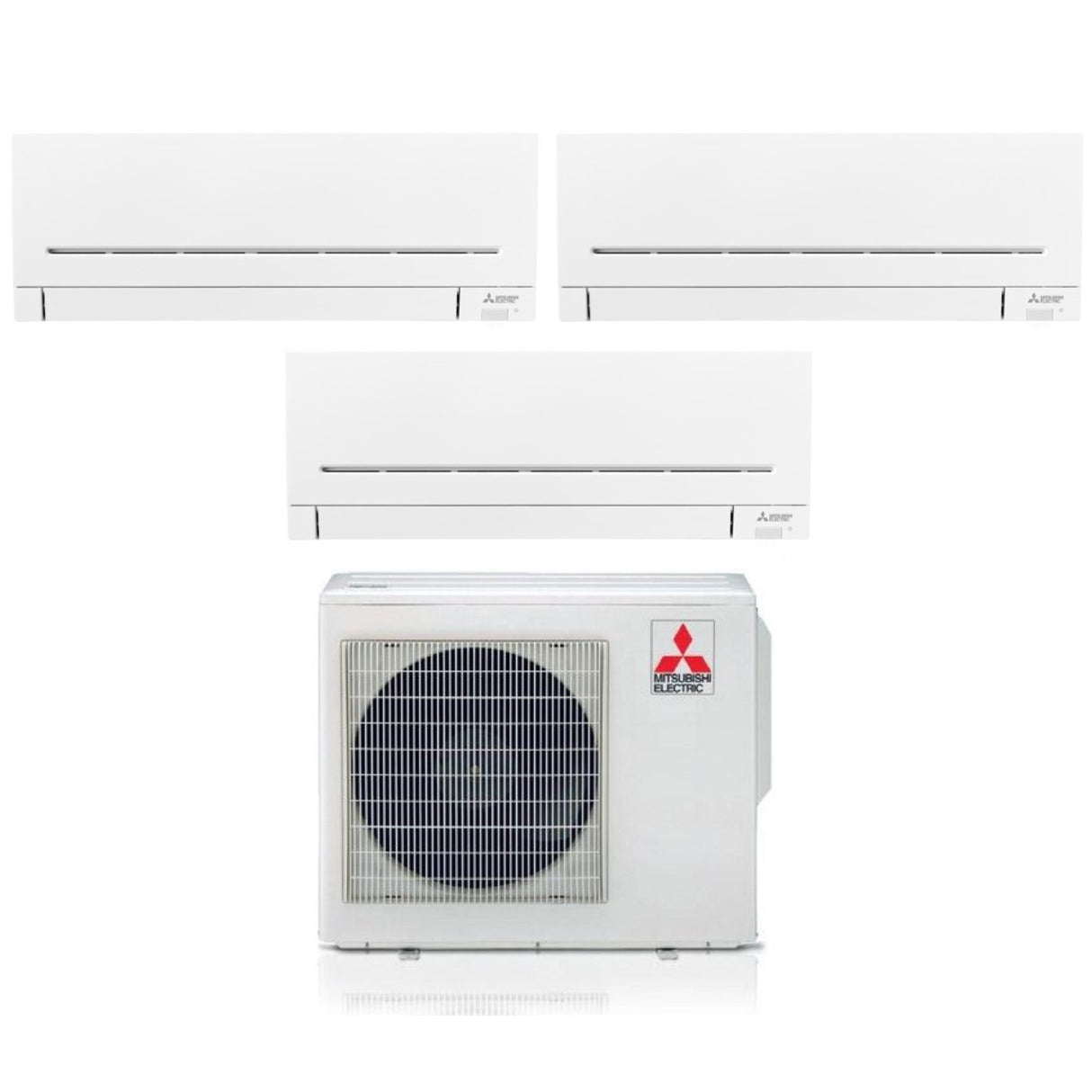

icon Mitsubishi Electric Trial Split Inverter Air Conditioner AP-VGK Series 9+12+12 with MXZ-3F68VF2 R-32 Integrated Wi-Fi 9000+12000+12000 | CaldaieMurali

Mitsubishi Electric Trial Split Inverter Air Conditioner AP-VGK Series 9+12+12 with MXZ-3F68VF2 R-32 Integrated Wi-Fi 9000+12000+12000

Important Notice on Regulations for Fluorinated Gases IN ITALY

In accordance with Regulation (EU) No. 517/2014 and Presidential Decree No. 146/2018, equipment containing fluorinated gases that is not hermetically sealed can only be sold if installed by a certified company.

By law, each sale must be recorded in the Fluorinated Gas Database, including a declaration from the buyer ensuring that the installation complies with the regulations. Therefore, before completing the order, it will be necessary to provide this mandatory declaration.

Description

Technical Features

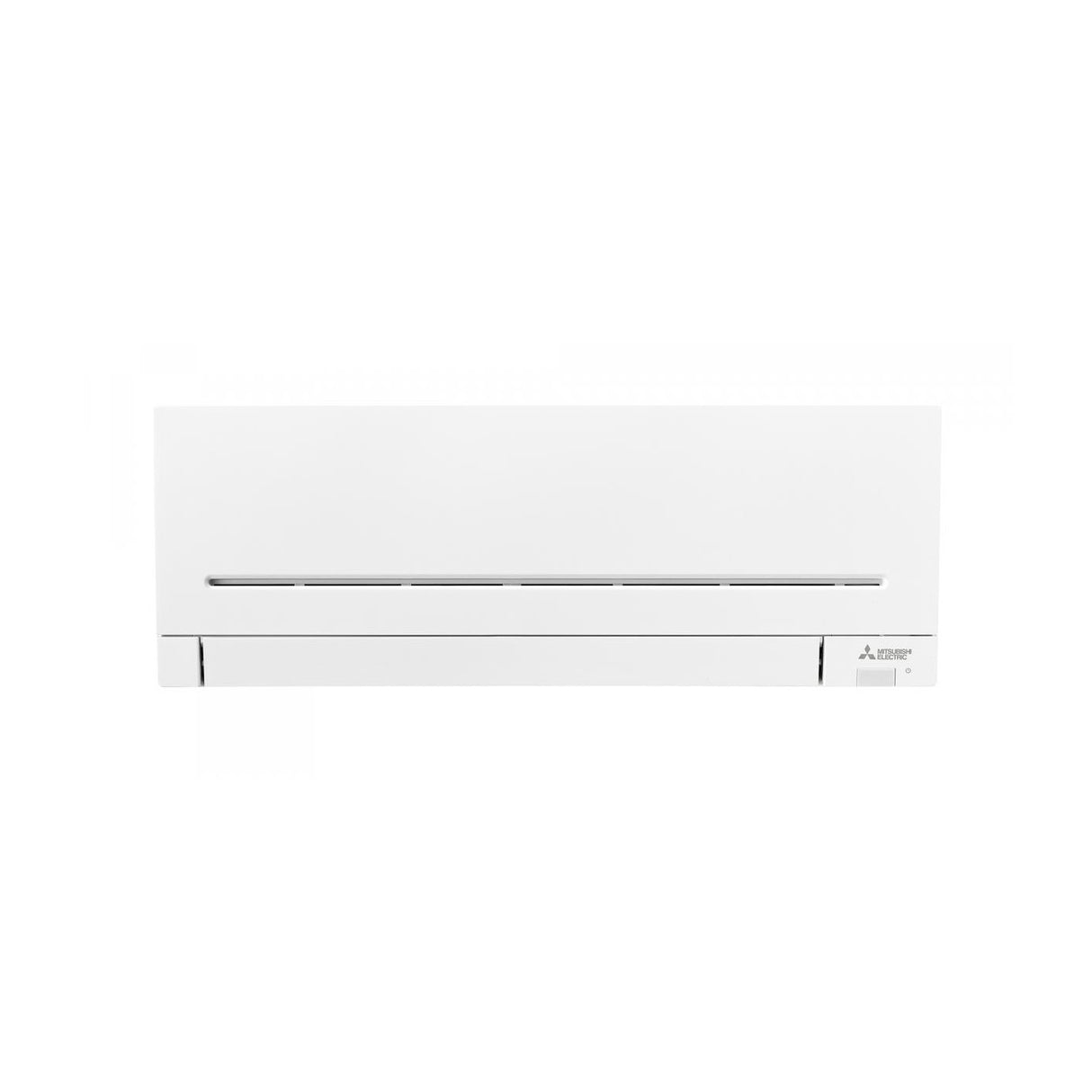

Internal units

1) Model:

  • Internal Unit Catalog Code: 1x MSZ-AP25VGK
  • Power: 9000 Btu
  • Cooling Capacity : 2.5 kW
  • Heating capacity: 3.2 kW
  • Treated Air : 4.9 ~ 12.9 m 3 /min
  • Sound Power Level: 57 dB(A)
  • Sound pressure level : 19~45 dB(A)
  • Liquid Pipe Diameter: 6.35mm (1/4")
  • Gas pipe diameter: 9.52 mm (3/8")
  • Internal Unit Dimensions (HxWxD): 299x798x219 mm
  • Indoor Unit Weight: 10.5 kg
  • Built-in Wi-Fi

2) Model:

  • Internal Unit Catalog Code: 2x MSZ-AP35VGK
  • Power: 12000 Btu
  • Cooling Capacity : 3.5 kW
  • Heating capacity: 4.0 kW
  • Treated Air : 4.9 ~ 12.9 m 3 /min
  • Sound Power Level: 57 dB(A)
  • Sound pressure level : 19~45 dB(A)
  • Liquid Pipe Diameter: 6.35mm (1/4")
  • Gas pipe diameter: 9.52 mm (3/8")
  • Internal Unit Dimensions (HxWxD): 299x798x219 mm
  • Indoor Unit Weight: 10.5 kg
  • Built-in Wi-Fi

External Unit

Model:

  • External Unit Catalog Code: MXZ-3F68VF2/3
  • Max indoor units: up to 3 indoor units

Energy Efficiency:

  • SEER : 7.96
  • SCOP : 4.12
  • Energy Efficiency Class in Cooling: A++
  • Energy Efficiency Class in Heating: A+
  • Annual energy consumption in Cooling: 299 kWh/a
  • Annual energy consumption in heating: 2312 kWh/a

Performance:

  • Cooling capacity: 6.8 kW
  • Heating capacity: 8.6 kW
  • Cooling Power Consumption: 1.84 kW
  • Heating absorption: 1.91 kW
  • Sound Power Level: 63 dB(A)
  • Sound pressure level : 48~53 dB(A)

Characteristics:

  • Power supply (V/Hz/Φ) : 220~240/50/1
  • Refrigerant gas: R-32
  • Guaranteed temperature range:
  • - Cooling: -10° ~ 46° C
  • - Heating: -15° ~ 24° C
Installation Data:
  • Liquid Tube Diameter: 6.35mm (1/4") x3
  • Gas pipe diameter: 9.52 mm (3/8") x3
  • Maximum pipe length: 60 m
  • Maximum height difference between internal unit and external unit: 15 m external unit above
  • Maximum height difference between internal unit and external unit: 10 m external unit below

Dimensions:

  • External Unit Dimensions (HxWxD): 710x840x330 mm
  • External Unit Weight: 58.0 Kg

Compact design and size

The MSZ-AP units are characterised by their ultra-compact dimensions , with only 2 dimensional levels for 6 different power levels.

MELCloud integrated

The new MSZ-AP (in the VGK version) offers the user experience of MELCloud integrated into the machine. Ready to be configured and used, it allows the user to remotely manage, thanks to the Wi-Fi controller, all the functions of the air conditioner.

Efficiency

Thanks to careful design and the introduction of R32 refrigerant, the efficiency of the new MSZ-AP units has increased significantly, reaching class A+++ in cooling (sizes 25 and 35) and A++ in heating across the entire lineup.

Air distribution

Thanks to the presence of the motorized louver, it is possible to direct the air flow to achieve maximum comfort in the room in every operating mode (sizes 25-50). Furthermore, the horizontal flow eliminates annoying air currents towards the occupants.

New backlit remote control

The backlit remote control allows for easy viewing even at night.

Silent operation

For sizes 25/35 the noise emission of the internal unit is only 19dB when operating at minimum speed, ensuring maximum acoustic comfort inside the room.

Night Mode

By activating the Night Mode function from the remote control, you can set the air conditioner to operate at night:

  • LED brightness reduction
  • Deactivate the "beep" sound
  • 3dB reduction in external unit noise emission.

Advanced filtration

Thanks to the air purifying filter in the internal unit, the new MSZ-AP model guarantees the removal of dust and bad odors. In addition, for sizes 25-50, it is possible to provide the optional silver ion air purifying filter, which captures bacteria, pollen and other allergens.

Energy monitoring

The new MSZ-AP model supports the energy consumption monitoring function thanks to the MELCloud Cloud remote control system.


Efficiency

Thanks to careful design and the introduction of R32 refrigerant, the efficiency of the new multisplit external units has increased significantly, reaching class A+++ in cooling (sizes 2F42,2F53,3F54) and A++ (sizes 2F42,2F53,3F54) in heating.


Connectivity

The extraordinary connectivity available with the new outdoor units allows to satisfy every need. The MXZ-F unit demonstrates all-round versatility , being connectable to most of the indoor unit range of the Residential and Commercial Line, whether they are wall mounted units, ceiling cassettes or ducted.

Silence

The new MXZ-F multi-split outdoor units reach a new level of operating silence, reducing noise emission by up to 4dB compared to the previous model in cooling mode and by up to 3dB in heating mode.

R32: reduced environmental impact

Thanks to the use of R32 refrigerant and a reduced pre-charge of the units compared to the previous model, the MXZ-F units introduce significantly fewer equivalent tons of CO2 into the environment.

Automatic noise reduction mode

By setting this function, it is possible to automatically decrease the noise of the outdoor unit as the internal loads to be satisfied decrease, such as during night-time cooling.

Auto-correct links
Simply press a button (MXZ-3E/F to MXZ-6D) or activate a single indoor unit (MXZ-2E/F) to ensure proper connection between indoor units and outdoor unit. In case of connection error, the system will automatically correct it.


Product Warranty: All products for sale on our site are new and packaged. The warranty on this item is 24 months from the date of purchase.
