icon Air Conditioner Mitsubishi Electric Trial Split Inverter Series Ap + Mfz-Kt Floor 9+9+12 With Mxz-3f54vf R-32 Wi-Fi Optional 9000+9000+12000 | CaldaieMurali

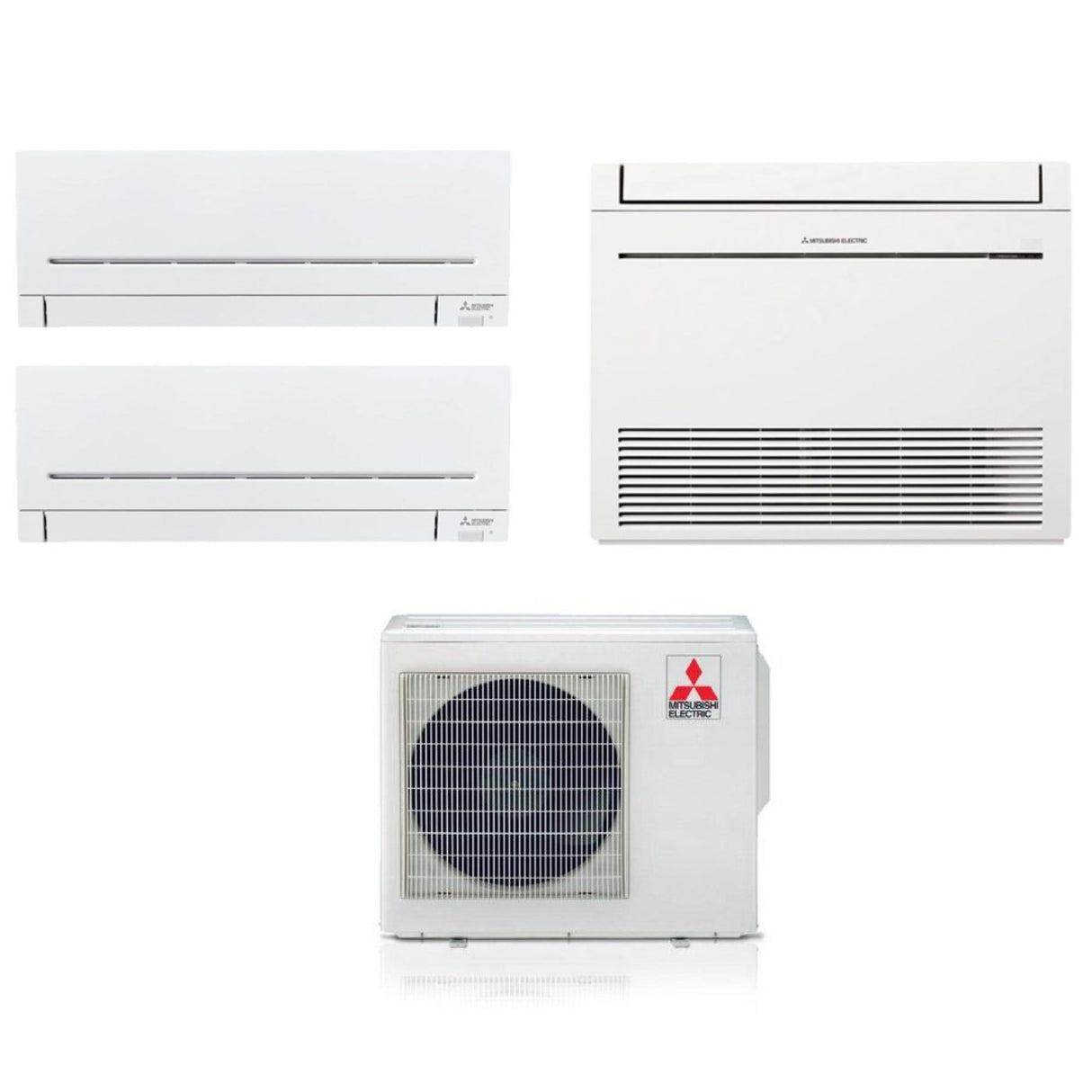

Air Conditioner Mitsubishi Electric Trial Split Inverter Series Ap + Mfz-Kt Floor 9+9+12 With Mxz-3f54vf R-32 Wi-Fi Optional 9000+9000+12000

Description

Technical features

Indoor Units

1) Model:

  • Series: AP
  • Internal Unit Code : 2 x MSZ-AP25VG
  • Sound pressure : 19 - 24 - 30 - 36 - 42 dB(A)
  • Sound Power : 57 dB(A)
  • Diameter of the liquid tube: 6.35 mm (1/4")
  • Gas Pipe Diameter: 9.52 (3/8")
  • Internal Unit Dimensions (HxLxP): 299x798x219 mm
  • Indoor Unit Weight: 10.5 Kg
  • Wi-Fi Optional ( MAC Code-567IF-E )

2) Model:

  • Internal Unit Code: 1 x MFZ-KT35VG
  • Power output in cooling mode: 3.5 kW
  • Power output in Heating: 4.3 kW
  • Sound Pressure : 19-24-31-37-41 dB(A)
  • Internal Unit Dimensions (HxLxP): 600 x 750 x 215 mm
  • Indoor Unit Weight: 14.2 Kg
  • Wi-Fi Optional ( MAC Code-567IF-E )

Outdoor Unit

Model:

  • Catalog number : MXZ-3F54VF
  • Gases : R-32
  • Minimum-max number of connectable indoor units: 3

Energy efficiency:

  • Nominal cold cooling capacity 5.4 kW
  • Nominal hot cooling capacity 7.0 kW
  • SEER 8.52
  • SCOP 4.61
  • Cooling energy class A+++
  • Heating energy class A++

Performance:

  • Max sound pressure level outdoor unit: 50 dB(A)
  • External unit sound power level : 60 dB(A)

Electrical data:

  • Feeding : 230/1/50
  • Diameter of the liquid tube: 6.35 mm (1/4")
  • Gas Pipe Diameter: 9.52 (3/8")

Dimensions

  • External Unit Dimensions (HxWxD): 710x840x330 mm
  • Weight of Outdoor Unit: 58 Kg

Multi-split DC Inverter

The Inverter system is an electronic device that allows the speed of the compressor to be varied efficiently and, consequently, the power supplied by the air conditioner, based on the cooling or heating demand.

Compared to traditional fixed speed (On/Off) air conditioners, inverter air conditioners reach the required temperature sooner and keep it stable, without annoying sudden changes, to the full advantage of comfort and electricity consumption.

High seasonal efficiency

Operating economy is the great advantage of Mitsubishi Electric air conditioners. Thanks to the DC Inverter regulation system and the careful design of the components used, energy efficiency reaches extraordinary levels. The entire range of multi-split air conditioners (MXZ-D) achieves high efficiency values ​​even on a seasonal basis.

Maximum Silence for Maximum Comfort

The DC Inverter multisplit units are characterized by the very low noise level emitted. By activating the silent mode, this level can be further reduced automatically when the demand is lower (e.g. during the night in cooling mode).

Compactness and Versatility

The dimensions of the outdoor unit are extremely compact so as not to occupy the space on the terrace or in the garden of the house. The wide development of the pipes allows a vast choice of installation site.

New MXZ outdoor unit

R32: reduced environmental impact

Thanks to the use of R32 refrigerant and a reduced pre-charge of the units compared to the previous model, the MXZ-F units introduce a significantly lower quantity of equivalent tons of CO2 into the environment.

Auto-correct links

It is enough to press a button (MXZ-3E/F to MXZ-6D) or activate only one indoor unit (MXZ-2E/F) to ensure the correct connection between indoor and outdoor units. In the event of a connection error, the system will automatically correct it.

Efficiency

Thanks to careful planning and the introduction of R32 refrigerant, the efficiency of the new multi-split outdoor units is significantly increased, reaching class A+++ in cooling (sizes 2F42,2F53,3F54,3F68,4F72) and A++ (sizes 2F42,2F53 ,3F54) in heating.

Quietness

The new MXZ-F multisplit outdoor units reach a new level of operating silence, reducing the sound emission by up to 4dB compared to the previous model in cooling mode and up to 3dB in heating mode.

Energy monitoring

The new MXZ-F model supports the energy consumption monitoring function thanks to the MELCloud remote control system, even in Multisplit R32 configuration.


MSZ-AP series

  • R32 ecological refrigerant
  • Compact design
  • High seasonal energy efficiency for the entire range
  • Optional silver ion air purifying filter
  • Minimum sound level
  • Weekly timer
  • Multi-split compatible
  • Wi-Fi compatible

Innovation and compact design



The MSZ-AP units are characterized by their ultra-compact dimensions with only 2 dimensional levels for 6 different powers.


Energy efficiency

Thanks to careful planning and the introduction of R-32 refrigerant gas, the efficiency of the new MSZ-AP units is significantly increased, reaching class A+++ in cooling (sizes 25 and 35) and A++ in heating on the whole line.

R32: a refrigerant for the future

The R32 refrigerant used in the MSZ-AP series air conditioners is characterized by a lower Global Warming Potential (GWP) than the refrigerant gases used up to now in residential air conditioning, reducing its potential negative impact on the environment. Its advantages are:

  • High energy efficiency
  • Reduction of the quantity of refrigerant gas used
  • Reduced environmental impact
  • Easily loaded and recoverable as pure gas
  • Low toxicity and flammability

Air distribution

Thanks to the presence of the motorized louver, it is possible to direct the air flow to achieve maximum comfort in any operating mode.

MELCloud - Energy consumption monitoring NEW (optional)

The new MSZ-AP model supports the energy consumption monitoring function thanks to the Cloud MELCloud remote control system, also in the Multisplit R32 configuration. It allows you to precisely regulate the air conditioning systems from Smartphones and Tablets via a dedicated app.

Silent operation

Environmental comfort is also linked to the sound level and is especially important in bedrooms or studios. For sizes 25/35 the sound emission of the indoor unit is only 19dB when operating at minimum speed, guaranteeing maximum acoustic comfort inside the room.

Night Mode

By activating the Night Mode function from the remote control, it is possible to set the air conditioner for night-time operation:

  • LED brightness removal
  • Deactivation of "beep" sound
  • 3dB noise emission reduction from the outdoor unit

Advanced filtration

Thanks to the air purifying filter in the internal unit, the new MSZ-AP model guarantees the removal of dust and bad odours. Furthermore, for sizes 25-50, it is possible to provide the optional silver ion air purifying filter, which captures bacteria, pollen and other allergens.


MFZ-KT SERIES

Simple and elegant design

The floor standing units have a design characterized by simple lines and flat surfaces that give elegance and modernity to the aesthetics and allow them to be combined perfectly with any type of furniture.

High heating capacity

The MFZ-KT model has a high capacity in heating mode compared to traditional air conditioners, which makes it suitable for winter and mid-season use.

Multi-flow vane

The delivery vent is characterized by the presence of three different deflectors, each with a profile specifically designed to optimize the distribution of the outgoing air, maximizing comfort in both cooling and heating.


Product Guarantee: All products for sale on our site are new and packed. The warranty on this item is 24 months from the date of purchase

Air Conditioner Mitsubishi Electric Trial Split Inverter Series Ap + Mfz-Kt Floor 9+9+12 With Mxz-3f54vf R-32 Wi-Fi Optional 9000+9000+12000

Product form

Technical features Indoor Units 1) Model: Series: AP Internal Unit Code : 2 x MSZ-AP25VG Sound pressure : 19 -... Read more

€3.365,00 Incl. VAT

    Description

    Technical features

    Indoor Units

    1) Model:

    • Series: AP
    • Internal Unit Code : 2 x MSZ-AP25VG
    • Sound pressure : 19 - 24 - 30 - 36 - 42 dB(A)
    • Sound Power : 57 dB(A)
    • Diameter of the liquid tube: 6.35 mm (1/4")
    • Gas Pipe Diameter: 9.52 (3/8")
    • Internal Unit Dimensions (HxLxP): 299x798x219 mm
    • Indoor Unit Weight: 10.5 Kg
    • Wi-Fi Optional ( MAC Code-567IF-E )

    2) Model:

    • Internal Unit Code: 1 x MFZ-KT35VG
    • Power output in cooling mode: 3.5 kW
    • Power output in Heating: 4.3 kW
    • Sound Pressure : 19-24-31-37-41 dB(A)
    • Internal Unit Dimensions (HxLxP): 600 x 750 x 215 mm
    • Indoor Unit Weight: 14.2 Kg
    • Wi-Fi Optional ( MAC Code-567IF-E )

    Outdoor Unit

    Model:

    • Catalog number : MXZ-3F54VF
    • Gases : R-32
    • Minimum-max number of connectable indoor units: 3

    Energy efficiency:

    • Nominal cold cooling capacity 5.4 kW
    • Nominal hot cooling capacity 7.0 kW
    • SEER 8.52
    • SCOP 4.61
    • Cooling energy class A+++
    • Heating energy class A++

    Performance:

    • Max sound pressure level outdoor unit: 50 dB(A)
    • External unit sound power level : 60 dB(A)

    Electrical data:

    • Feeding : 230/1/50
    • Diameter of the liquid tube: 6.35 mm (1/4")
    • Gas Pipe Diameter: 9.52 (3/8")

    Dimensions

    • External Unit Dimensions (HxWxD): 710x840x330 mm
    • Weight of Outdoor Unit: 58 Kg

    Multi-split DC Inverter

    The Inverter system is an electronic device that allows the speed of the compressor to be varied efficiently and, consequently, the power supplied by the air conditioner, based on the cooling or heating demand.

    Compared to traditional fixed speed (On/Off) air conditioners, inverter air conditioners reach the required temperature sooner and keep it stable, without annoying sudden changes, to the full advantage of comfort and electricity consumption.

    High seasonal efficiency

    Operating economy is the great advantage of Mitsubishi Electric air conditioners. Thanks to the DC Inverter regulation system and the careful design of the components used, energy efficiency reaches extraordinary levels. The entire range of multi-split air conditioners (MXZ-D) achieves high efficiency values ​​even on a seasonal basis.

    Maximum Silence for Maximum Comfort

    The DC Inverter multisplit units are characterized by the very low noise level emitted. By activating the silent mode, this level can be further reduced automatically when the demand is lower (e.g. during the night in cooling mode).

    Compactness and Versatility

    The dimensions of the outdoor unit are extremely compact so as not to occupy the space on the terrace or in the garden of the house. The wide development of the pipes allows a vast choice of installation site.

    New MXZ outdoor unit

    R32: reduced environmental impact

    Thanks to the use of R32 refrigerant and a reduced pre-charge of the units compared to the previous model, the MXZ-F units introduce a significantly lower quantity of equivalent tons of CO2 into the environment.

    Auto-correct links

    It is enough to press a button (MXZ-3E/F to MXZ-6D) or activate only one indoor unit (MXZ-2E/F) to ensure the correct connection between indoor and outdoor units. In the event of a connection error, the system will automatically correct it.

    Efficiency

    Thanks to careful planning and the introduction of R32 refrigerant, the efficiency of the new multi-split outdoor units is significantly increased, reaching class A+++ in cooling (sizes 2F42,2F53,3F54,3F68,4F72) and A++ (sizes 2F42,2F53 ,3F54) in heating.

    Quietness

    The new MXZ-F multisplit outdoor units reach a new level of operating silence, reducing the sound emission by up to 4dB compared to the previous model in cooling mode and up to 3dB in heating mode.

    Energy monitoring

    The new MXZ-F model supports the energy consumption monitoring function thanks to the MELCloud remote control system, even in Multisplit R32 configuration.


    MSZ-AP series

    • R32 ecological refrigerant
    • Compact design
    • High seasonal energy efficiency for the entire range
    • Optional silver ion air purifying filter
    • Minimum sound level
    • Weekly timer
    • Multi-split compatible
    • Wi-Fi compatible

    Innovation and compact design



    The MSZ-AP units are characterized by their ultra-compact dimensions with only 2 dimensional levels for 6 different powers.


    Energy efficiency

    Thanks to careful planning and the introduction of R-32 refrigerant gas, the efficiency of the new MSZ-AP units is significantly increased, reaching class A+++ in cooling (sizes 25 and 35) and A++ in heating on the whole line.

    R32: a refrigerant for the future

    The R32 refrigerant used in the MSZ-AP series air conditioners is characterized by a lower Global Warming Potential (GWP) than the refrigerant gases used up to now in residential air conditioning, reducing its potential negative impact on the environment. Its advantages are:

    • High energy efficiency
    • Reduction of the quantity of refrigerant gas used
    • Reduced environmental impact
    • Easily loaded and recoverable as pure gas
    • Low toxicity and flammability

    Air distribution

    Thanks to the presence of the motorized louver, it is possible to direct the air flow to achieve maximum comfort in any operating mode.

    MELCloud - Energy consumption monitoring NEW (optional)

    The new MSZ-AP model supports the energy consumption monitoring function thanks to the Cloud MELCloud remote control system, also in the Multisplit R32 configuration. It allows you to precisely regulate the air conditioning systems from Smartphones and Tablets via a dedicated app.

    Silent operation

    Environmental comfort is also linked to the sound level and is especially important in bedrooms or studios. For sizes 25/35 the sound emission of the indoor unit is only 19dB when operating at minimum speed, guaranteeing maximum acoustic comfort inside the room.

    Night Mode

    By activating the Night Mode function from the remote control, it is possible to set the air conditioner for night-time operation:

    • LED brightness removal
    • Deactivation of "beep" sound
    • 3dB noise emission reduction from the outdoor unit

    Advanced filtration

    Thanks to the air purifying filter in the internal unit, the new MSZ-AP model guarantees the removal of dust and bad odours. Furthermore, for sizes 25-50, it is possible to provide the optional silver ion air purifying filter, which captures bacteria, pollen and other allergens.


    MFZ-KT SERIES

    Simple and elegant design

    The floor standing units have a design characterized by simple lines and flat surfaces that give elegance and modernity to the aesthetics and allow them to be combined perfectly with any type of furniture.

    High heating capacity

    The MFZ-KT model has a high capacity in heating mode compared to traditional air conditioners, which makes it suitable for winter and mid-season use.

    Multi-flow vane

    The delivery vent is characterized by the presence of three different deflectors, each with a profile specifically designed to optimize the distribution of the outgoing air, maximizing comfort in both cooling and heating.


    Product Guarantee: All products for sale on our site are new and packed. The warranty on this item is 24 months from the date of purchase

    Data sheetData sheet
    • peso: 75.0 kg
    • classe energetica raffreddamento: A+++
    • classe energetica riscaldamento: A++
    • gas: R-32
    • marca: MITSUBISHI ELECTRIC
    • modello: AP + Floor 9+9+12
    • potenza btu: 9000+9000+12000
    • superficie riscaldabile mq: 25/25/35
