Technical features
Seers: 5.60;
Scop: 3.90;
Energy class in cooling: A+;
Energy class in cooling: A;
Power: 9000+9000+18000 Btu;
Surface Covered: from 15 to 25 m2 split 9000, from 50 to 60 m2 split 18000;
Cooling performance:
Capacity: 6.8kW;
Absorbed power: 2.19 kW;
Annual energy consumption: 425 kW;
Function range guaranteed: -10~46°C;
Heating performance:
Capacity: 8.6kW;
Absorbed power: 2.38 kW;
Annual energy consumption: 2466 kW;
Function range guaranteed: -15 ~ +24 °C;
Noise level:
Indoor Unit Sound Pressure (Min./max): 19/48 dB (A);
Indoor Unit Sound Power: 57/58 dB(A);
External Unit Sound Pressure: 50/53 dB (A);
External Unit Sound Power: 64 dB(A);
Technical data:
Maximum Absorbed Current: 18.0 A;
Refrigerant gas: R410A;
Power supply: 230/50/1V/Hz/n°;
Connections Liquid/Gas: 6.35"/9.52" inch;
Maximum Length: 60m;
Maximum height difference: 15 m;

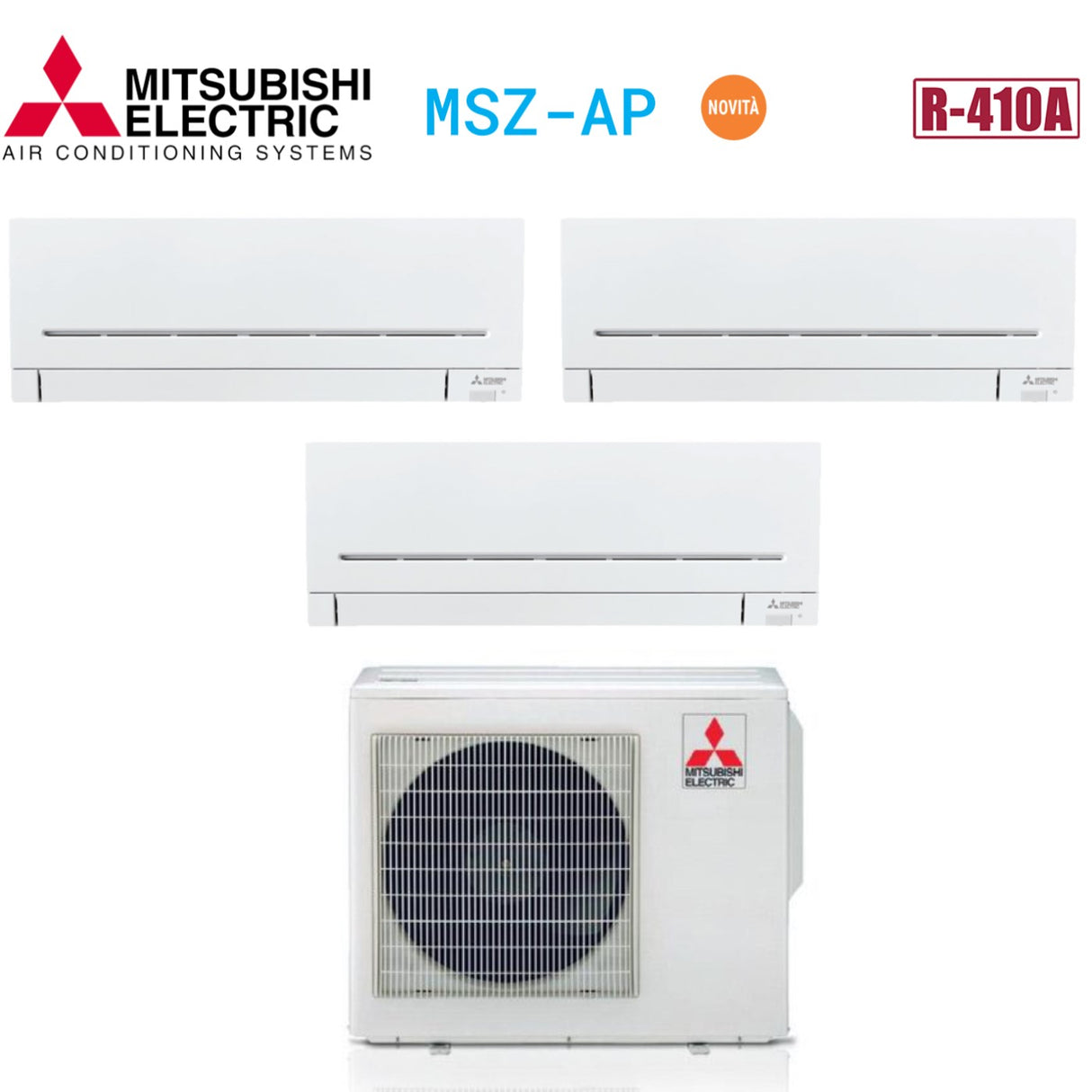

Composed of:
Indoor Unit: 2x MSZ-AP25VG + MSZ-AP50VG;
Outdoor Unit: MXZ-3E68VA;
Dimensions:
Indoor Unit 9000/18000(WxHxD): 798x299x285 mm; Weight: 10.5 Kg;
Outdoor Unit (WxHxD): 840x710x330 mm; Weight: 57 Kg;
General characteristics
Mitsubishi always ready to launch products that look to innovation and improvement while always offering maximum comfort. The new Plus 2018 MSZ-AP line is designed with elegant and ultra-compact lines, ideal for any decor.
Plus is a perfect mix of technology with low energy consumption, reaching very high levels of seasonal efficiency and class (A+++) in both cooling and heating.
The distribution of comfort is optimized through a motorized louver sensor, which directs the air flow to every corner of the room.
Finally, it turns out to be extremely silent (only 19 dB), reaching very low noise levels even when you sleep, guaranteeing maximum acoustic comfort inside the room.
Functions:
Plasma Quad Plus: is the function that effectively takes care of you by generating a magnetic field and through electrical discharges through which the air introduced into the environment passes, neutralizing viruses and bacteria, giving you only clean air;
Dc Inverter: this is the function that allows you to manage your own comfort through functions and by regulating the temperature to your liking;
Auto: Adjust the temperature automatically by recording the ambient temperature;
MELCloud (Optional): is the function that allows complete management of your air conditioner through an App, which can be downloaded on your Smartphone or Tablet, to program or manage your comfort comfortably even when you are not at home, by activating the following functions:
On / Off;
Mode (Auto/Heat/Cool/Ventilation);
Ventilation speed;
Programmable weekly timer;
Flaps inclination adjustment;
Ambient temperature detection and setting;
Weather information of the installation location;
Night Mode: this is the function set up for night-time operation by reducing the LED brightness, deactivating the "beep" sound, reducing the sound emission of the external unit by 3dB;
Advantages:
