Technical features
Indoor Units
1) Model :
- Indoor unit catalog number : (x1) SLZ-M25FA
- Nominal capacity (min-max): 2.5 (1.4-3.2) kW
- Air flow rate : 6.0 - 6.5 - 7.0 m 3 /h
- Sound pressure : 24 - 26 - 28 dB(A)
- Dimensions Indoor unit (HxWxD): 245 x 570 x 570 mm
- Indoor Unit Weight: 15 kg
- Wi-Fi Optional ( MAC Code-567IF-E )
2) Model :
- Indoor unit catalog number : (x1) SLZ-M35FA
- Rated capacity (min-max): 3.5 (0.7-3.9) kW
- Air flow rate : 6.5 - 7.5 - 8.5 m 3 /h
- Sound pressure : 25 - 28 - 31 dB(A)
- Dimensions Indoor unit (HxWxD): 245 x 570 x 570 mm
- Indoor Unit Weight: 15 kg
- Wi-Fi Optional ( MAC Code-567IF-E )
Outdoor Unit:
Model:
- Outdoor unit catalog number : MXZ-2F53VF
- Connectable indoor units : 2
Energy efficiency:
- SEER : 8.53 W
- SCOP : 4.1W
- Energy Efficiency Class (cooling) : A+++
- Energy Efficiency Class (heating): A++
Performance:
- Nominal cooling capacity : 5.2 kW
- Nominal heating capacity : 6.4 kW
- Power absorbed in cooling: 1.358 kW
- Power absorbed in heating: 1.56 kW
- Min-max outdoor unit sound pressure: 46/51 dB-A
- Nominal sound power : 62 dB-A
Characteristics:
- Power supply (V/Hz/Φ) : 230/50/1
- Refrigerant gas : R-32
- Guaranteed operating range:
- Cooling °C: -10 ~ +46
- Heating °C: -15 ~ +24
Dimensions:
- External Unit Dimensions (HxWxD): 550 x 800 x 285 mm
- Weight of Outdoor Unit: 37 Kg

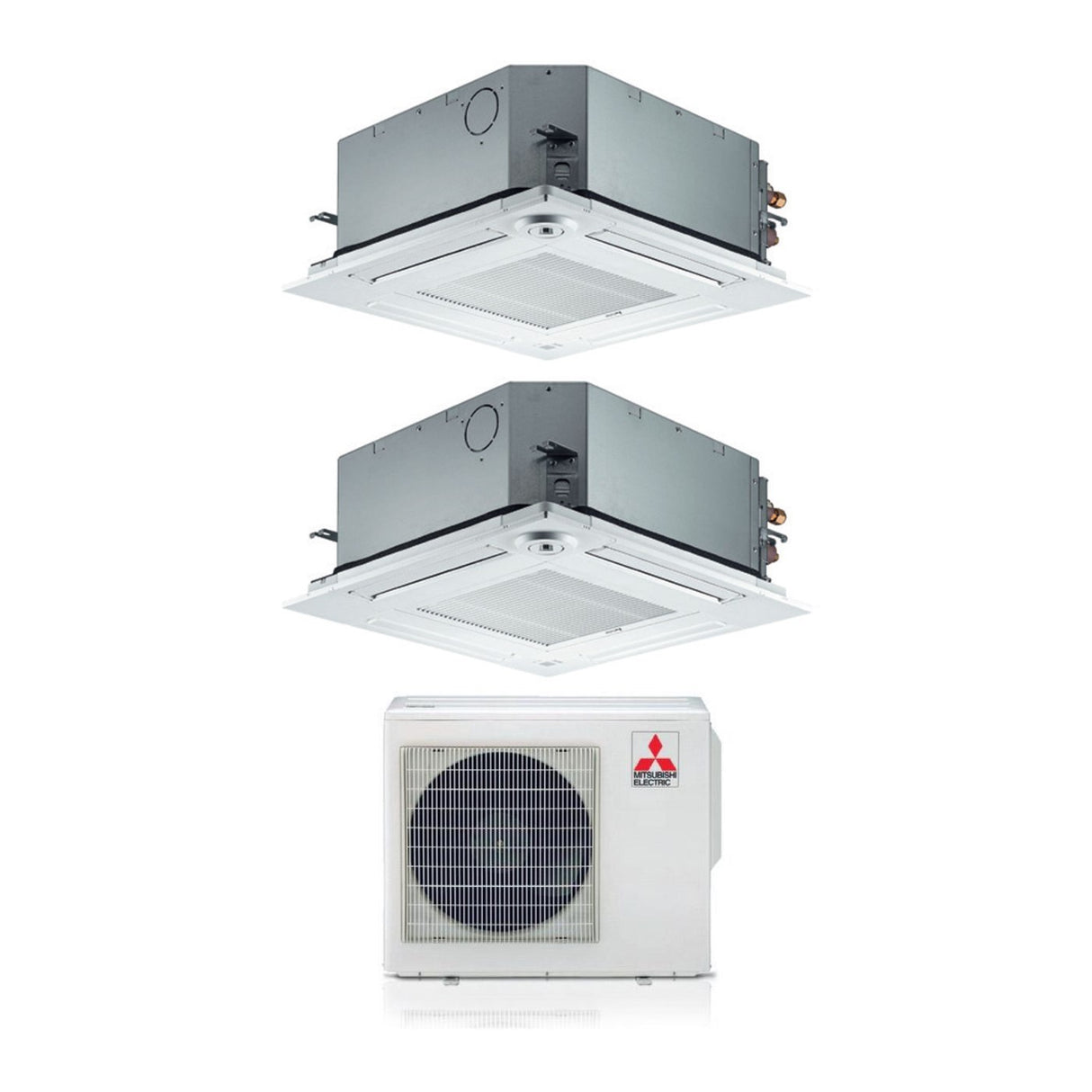

Mitsubishi cassette SLZ-M
The ideal solution for offices and commercial establishments
The linear shapes of the SLZ-M units make them ideal solutions for offices and shops, ensuring a high level of environmental comfort.
Modern and elegant design
The 4-way cassettes of the SLZ series, designed for installation in 60x60 false ceilings, are the ideal solution for offices or commercial establishments .
The use of the straight line gives the units a modern design dominated by linear shapes, making them perfectly combinable with any type of interior.
Optimized energy efficiency and sound pressure reduction
Great attention has been paid to seasonal energy efficiency , increased by approximately 10% compared to the previous model, reaching class A++ in cooling. Through the use of the new «3D turbo fan», the units offer significantly improved quietness compared to the previous model SLZ-KA
Comfortable airflow
Through the introduction of the new fan and thanks to the design of the panel and fins, it is possible to direct the air flow horizontally , directing it completely towards the ceiling and eliminating any type of draft, thus ensuring a high level of comfort
Fresh air intake
For an optimal air exchange in environments with difficult recirculation or for a better well-being of the occupants, the SLZ-KF(M) unit guarantees the possibility of introducing fresh air
Compactness and simplified installation
With a height of 245mm from the false ceiling, a feature that makes it the most compact on the market, the unit is easy to install thanks to the presence of special hooks for the temporary installation of the panel and thanks to the 850mm head of the condensate drain pump in endowment.
3D i-see sensor
Thanks to the 3D i-see sensor angular accessory, it is possible to use additional functions for energy saving and room comfort .
The sensor makes it possible to direct the air flow directly or indirectly towards the occupants and to reduce the power supplied in moments of less occupancy.
This is achieved thanks to a complete mapping of the environment , both in terms of occupancy and temperature, for an optimal distribution of the air
Mitsubishi outdoor unit MXZ-F
Unparalleled versatility and enviable silence
MXZ-F units are connectable to most of Mitsubishi Electric's Residential and Commercial line. The silence is even more efficient than previous models
Efficiency
Thanks to careful planning and the introduction of R32 refrigerant, the efficiency of the new multi-split outdoor units is significantly increased, reaching class A+++ in cooling (sizes 2F42,2F53,3F54,3F68,4F72) and A++ (sizes 2F42,2F53 ,3F54) in heating
Connectivity
The extraordinary connectivity available with the new external units allows to satisfy every need.
The MXZ-F unit demonstrates all-round versatility , being connectable to most of the indoor unit range of the Residential and Commercial Line, whether they are wall-mounted, ceiling-mounted or ducted cassette units.
Quietness
The new MXZ-F multisplit outdoor units reach a new level of operating silence, reducing the sound emission by up to 4dB compared to the previous model in cooling mode and up to 3dB in heating mode.
By setting this function, it is possible to automatically decrease the noise level of the external unit as the internal loads to be satisfied decrease, such as for example during night cooling
Energy monitoring
The new MXZ-F model supports the energy consumption monitoring function thanks to the MELCloud remote control system.
Auto-correct links
It is enough to press a button (MXZ-3E/F to MXZ-6D) or activate only one indoor unit (MXZ-2E/F) to ensure the correct connection between indoor and outdoor units.
In the event of a connection error, the system will automatically correct it.
