Mitsubishi Electric Air Conditioner Cassette Power Inverter 90x90 A 4 Way 18000 Btu Pla-M50ea + Puz-Zm50vka R-32 Wi-Fi Optional With Grid Included

• Pipe diameter Liquid : 6.35 mm (1/4")
• Gas pipe diameter: 12.70 mm (1/2")
• Maximum piping length: 50 m
• Maximum height difference Indoor Unit / Outdoor Unit: 30 m

Dimensions and weight

• Internal Unit Dimensions (HxWxD): 258x840x840 mm
• Indoor Unit Weight: 19 Kg
• Grid dimensions (HxWxD): 40x950x950 mm
• Grid weight: 5 Kg
• External Unit Dimensions (HxWxD): 630x809x300 mm
• Weight of Outdoor Unit: 46 Kg

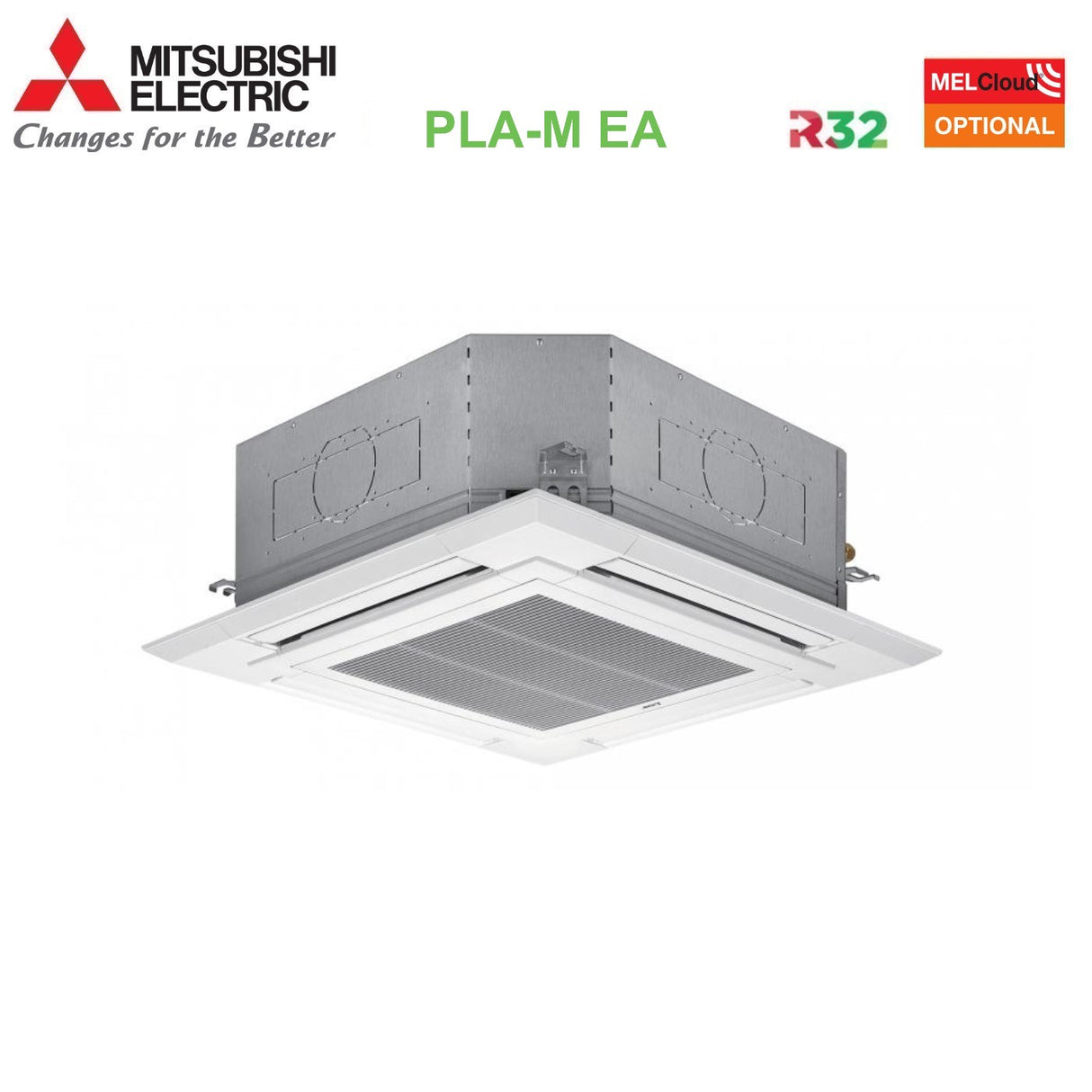

Mitsubishi Electric P Series 4 Way Cassette

Units range of new units designed for the creation of a more comfortable environment, which guarantees maximum satisfaction for users.

Horizontal flow

The new indoor unit is equipped with the "horizontal flow" function which allows to obtain a jet of air that touches the ceiling (Coanda effect), thus increasing the sensation of comfort perceived by the occupants

Condensate drain pump included

The PLA series units are not only easy to install but also The provision of a drain pump with a head of 550 mm facilitates the drainage of condensate water even in critical conditions

3D i-see sensor

The new 4-way recessed ceiling box is equipped with the exclusive “3D I-see Sensor”, a 360° rotating sensor with a data acquisition interval of 3 minutes.

It is not only able to detect the temperature , but also the presence , position and number of people in the room

Thanks to it, it is therefore possible to manage regulation logics based on the presence of occupants in the air-conditioned environment, with considerable energy savings.

Energy saving

Thanks to the Energy Saving mode, 3D I-see allows you to modulate the air conditioning power based on the number of people present in the room: when the crowding index corresponds to 30% of the total, the system is able to self-regulate allowing you to save conditioning energy equivalent to about 1°C. When the crowding index tends to 0%, the system switches off automatically, avoiding energy waste. The 3D I-see sensor also features the Seasonal airflow function which allows the maintenance of the set-point temperature by changing the operating mode from air conditioning to ventilation and guaranteeing further savings

Comfort

By activating the direct/indirect function, the user will be able to decide whether or not to direct the air flow towards the areas where the presence of people is detected. Thanks to the Seasonal airflow mode, the system is able to maintain an excellent level of comfort, avoiding cold drafts in cooling and counteracting the problem of stratification typical of heating mode

Energy Save Degree of Crowding

The temperature is controlled based on the number of people in the room detected by the 3d-i see sensor. If the degree of crowding is around 30%, a power of 1°C less is supplied

Energy Save Empty Room

When the room is empty for more than 60 minutes, the power output is reduced by 2°C

When no presence is detected for more than 120 minutes, the outdoor machine turns off automatically

MELCloud, the Wi-Fi control

MELCloud is the new Wi-Fi control for your Mitsubishi Electric system. Taking advantage of the support of the cloud, the "Cloud", to transmit and receive information and the optional dedicated MAC-567IF-E Wi-Fi interface, you can easily control your system wherever you are via PC, tablet or smartphone ; all you need is an internet connection. The MELCloud service was created to have maximum compatibility with PCs, tablets and smartphones thanks to dedicated apps or via a web browser.

One word is enough for you!

MELCloud is compatible with Google Home. Saying «Hey Google!», or «Ok Google!» you have full control of the climate system. MELCloud is compatible with Amazon Alexa. A word will be enough to freely manage your air conditioning units

R32 Power Inverter outdoor units

The new R32 Power Inverter Commercial range outdoor units offer numerous advantages.

High seasonal efficiency : The use of R32 refrigerant guarantees an increase in seasonal efficiency in cooling

Increased piping length : Increased installation flexibility for sizes 60-140 thanks to increased piping length

Nominal heating capacity down to -3°C : Nominal capacity is maintained down to -3°C, making it easier to use in cold climates

• Compatibility with fan motor for head

• MelCloud energy monitoring

Power Inverters

Energy efficiency finds its maximum expression in the Power Inverter series. The wide operating range and maximum installation flexibility, thanks to particularly long refrigerant lines and the possibility of reusing existing pipes, complete the offer. The Power Inverter Units are equipped with innovative Power Receiver technology and rotary compressors to obtain maximum efficiency

Product Guarantee: All products for sale on our site are new and packed. The warranty on this item is 24 months from the date of purchase.
