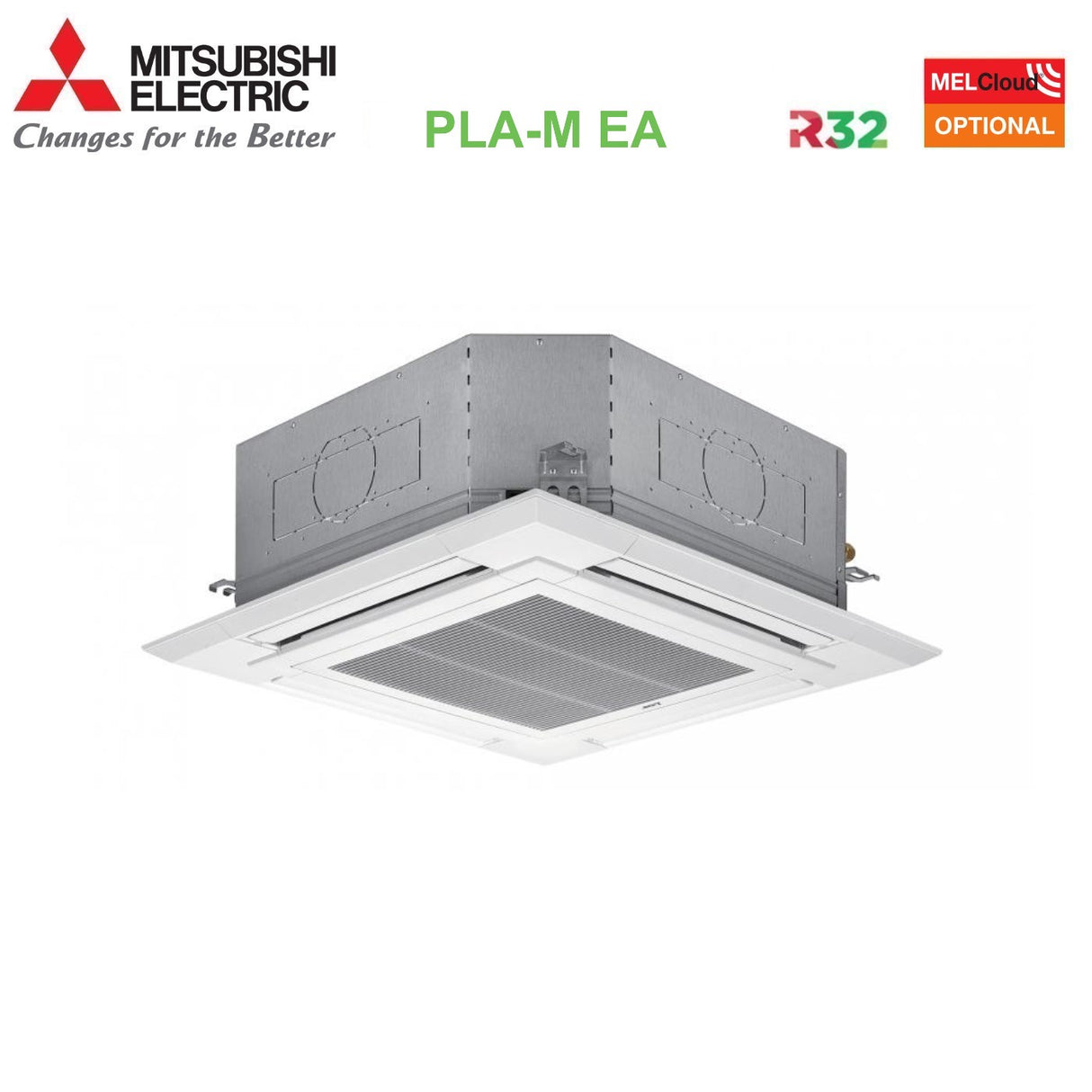

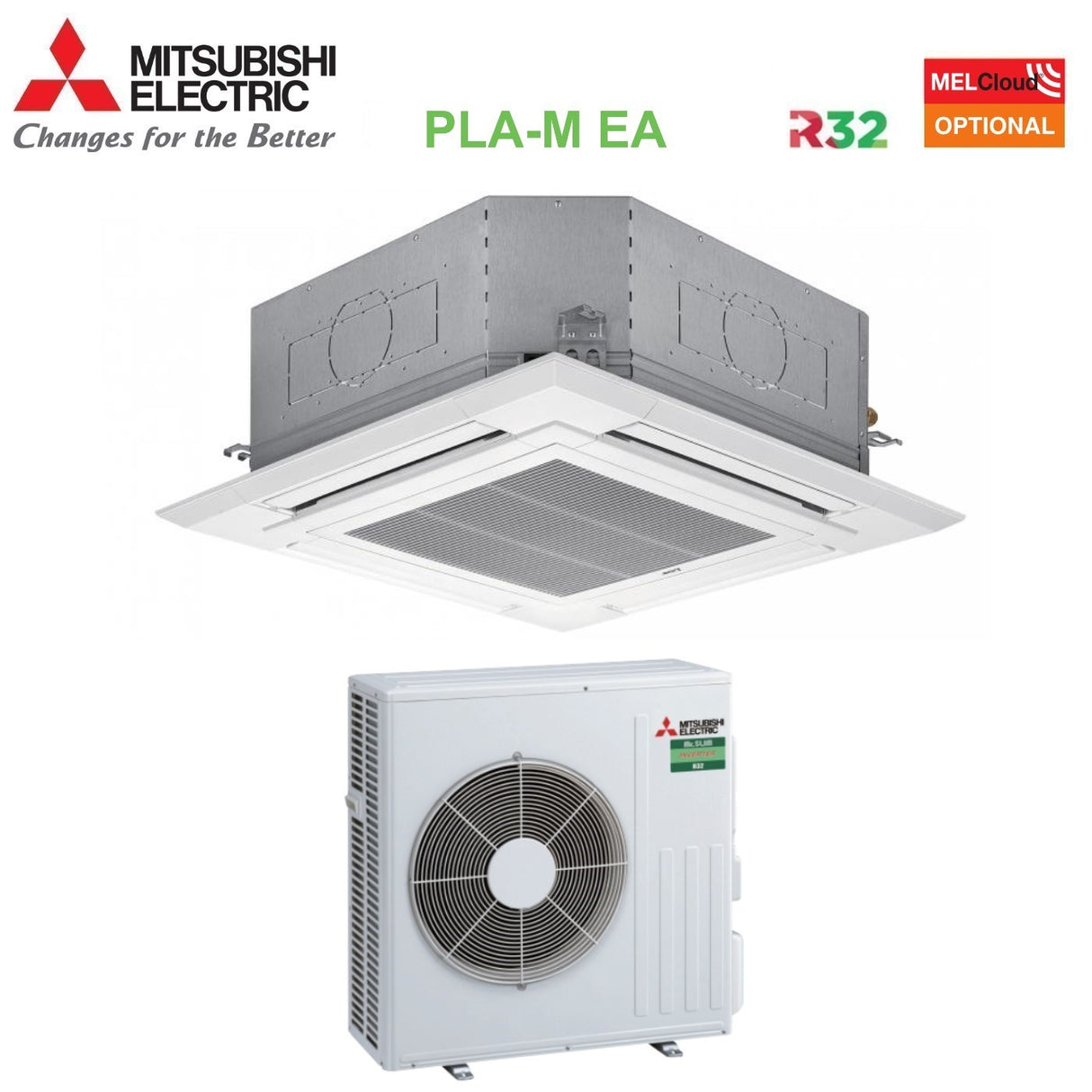

Mitsubishi Electric Cassette Air Conditioner 90x90 4-Way 21000 Btu PLA-M60EA + SUZ-M60VA R-32 Wi-Fi Optional with Grille Included

Description

The Product Is Available To Order


Technical Features
  • Indoor unit catalog code: PLA-M60EA
  • Outdoor unit catalog code: SUZ-M60VA
  • Panel: PLP-6EA
  • Power: 21000 btu
  • Optional Wi-Fi card: MAC-567IF-E
Optional Controls
  • Remote Control : PAR-SE9FA-E
  • Infrared Receiver : PAR-SL100A-E
  • Wired Control: PAC-YT52CRA-K
  • Deluxe Wired Control : PAR-40MAA
  • White Prism Remote Control: PAR-CT01MAA-SB
  • Black Prism Remote Control: PAR-CT01MAA-PB
Energy Efficiency
  • SEER : 6.6
  • SCOP : 4.4
  • Energy Efficiency Class in Cooling: A++
  • Energy Efficiency Class in Heating: A+
  • Annual Energy Consumption in Cooling: 320 kWh/a
  • Annual Energy Consumption in Heating: 1458 kWh/a
Performance
  • Cooling capacity: 6.1 kW
  • Heating capacity: 7.0 kW
  • Cooling Power Consumption: 1.84 kW
  • Heating absorption: 1.84 kW
  • Treated Air Indoor Unit: 12~18 m 3 /min
  • Sound Power Level Indoor Unit: 54 dB(A)
  • Sound Power Level Outdoor Unit: 65 dB(A)
  • Sound pressure level Indoor unit : 27~32 dB(A)
  • Sound pressure level Outdoor unit: 49 dB(A)

Electrical Data

  • Power supply (V,Hz,Ø) : 220~240/50/1
  • Refrigerant gas: R32
  • Operating range
  • - Cooling: -15° ~ 46° C
  • - Heating: -10° ~ 24°C
Installation Data
  • Liquid Pipe Diameter: 6.35mm (1/4")
  • Gas pipe diameter: 15.88 mm (5/8")
  • Maximum length of pipes: 30 m
  • Maximum height difference between internal unit and external unit: 30 m

Dimensions and Weight

  • Internal Unit Dimensions (HxWxD): 258x840x840 mm
  • Internal Unit Weight: 21 Kg
  • Grid dimensions (HxWxD): 40x950x950 mm
  • Grill weight: 5 Kg
  • External Unit Dimensions (HxWxD): 880x840x330 mm
  • External Unit Weight: 54 Kg

Mitsubishi Electric 4-Way Cassette P Series

Range of new units designed to create a more comfortable environment, ensuring maximum satisfaction for users.

Cassetta PLA-SM


Horizontal flow

The new internal unit is equipped with the “horizontal flow” function which allows for a throw of air that touches the ceiling (Coanda effect), thus increasing the sensation of comfort perceived by the occupants.

Flusso Orizzontale


Condensate drain pump included

The PLA series units are not only easy to install but also The provision of a drain pump with a head of 550 mm facilitates the drainage of condensate water even in critical conditions.


3D i-see sensor

The new 4-way ceiling-mounted cassette is equipped with the exclusive “3D I-see Sensor”, a 360° rotating sensor with a 3-minute data acquisition interval.

It is not only able to detect the temperature , but also the presence , position and number of people in the room.

Thanks to it, it is therefore possible to manage regulation logics based on the presence of occupants in the air-conditioned environment, with significant energy savings.

3D sensor


Energy Saving

Thanks to the Energy saving mode, 3D I-see allows you to modulate the air conditioning power based on the number of people present in the room: when the crowding index corresponds to 30% of the total, the system is able to self-regulate, allowing an air conditioning energy saving equivalent to approximately 1°C. When the crowding index tends to 0%, the system switches off automatically, avoiding energy waste. The 3D I-see sensor also has the Seasonal airflow function that allows you to maintain the set-point temperature by changing the operating mode from air conditioning to ventilation and ensuring further savings.

Rilevamento Presenza


Comfort

By activating the direct/indirect function, the user will be able to decide whether or not to direct the air flow towards the areas where the presence of people is detected. Thanks to the Seasonal airflow mode, the system is able to maintain an excellent level of comfort, avoiding cold currents in cooling and counteracting the problem of stratification typical of the heating mode.

Getto Aria


Energy Save Crowding Level

The temperature is controlled based on the number of people detected in the room by the 3d-i see sensor. If the crowding level is around 30%, a power of 1°C lower is delivered

Energy Save Empty Room

When the room is empty for more than 60 minutes, the power output is reduced by 2°C

When no presence is detected for more than 120 minutes, the outdoor machine will automatically turn off


MELCloud, the Wi-Fi control

MELCloud is the new Wi-Fi control for your Mitsubishi Electric system. Using the support of the cloud, the “Cloud”, to transmit and receive information and the optional dedicated Wi-Fi interface MAC-567IF-E, you can easily control your system wherever you are via your PC, tablet or smartphone; all you need is an internet connection. The MELCloud service has been designed to have maximum compatibility with PCs, Tablets and Smartphones thanks to dedicated Apps or via Web Browser.

One word is enough for you!

MELCloud is compatible with Google Home. Saying "Hey Google!" or "Ok Google!" gives you full control of your air conditioning system. MELCloud is compatible with Amazon Alexa. Just one word is enough to freely manage your air conditioning units

MelCloud HR


Product Warranty: All products for sale on our site are new and packaged. The warranty on this item is 24 months from the date of purchase.

Mitsubishi Electric Cassette Air Conditioner 90x90 4-Way 21000 Btu PLA-M60EA + SUZ-M60VA R-32 Wi-Fi Optional with Grille Included

Product form

The Product Is Available To Order Technical Features Indoor unit catalog code: PLA-M60EA Outdoor unit catalog code: SUZ-M60VA Panel: PLP-6EA... Read more

€2.510,00 Incl. VAT

    Description

    The Product Is Available To Order


    Technical Features
    • Indoor unit catalog code: PLA-M60EA
    • Outdoor unit catalog code: SUZ-M60VA
    • Panel: PLP-6EA
    • Power: 21000 btu
    • Optional Wi-Fi card: MAC-567IF-E
    Optional Controls
    • Remote Control : PAR-SE9FA-E
    • Infrared Receiver : PAR-SL100A-E
    • Wired Control: PAC-YT52CRA-K
    • Deluxe Wired Control : PAR-40MAA
    • White Prism Remote Control: PAR-CT01MAA-SB
    • Black Prism Remote Control: PAR-CT01MAA-PB
    Energy Efficiency
    • SEER : 6.6
    • SCOP : 4.4
    • Energy Efficiency Class in Cooling: A++
    • Energy Efficiency Class in Heating: A+
    • Annual Energy Consumption in Cooling: 320 kWh/a
    • Annual Energy Consumption in Heating: 1458 kWh/a
    Performance
    • Cooling capacity: 6.1 kW
    • Heating capacity: 7.0 kW
    • Cooling Power Consumption: 1.84 kW
    • Heating absorption: 1.84 kW
    • Treated Air Indoor Unit: 12~18 m 3 /min
    • Sound Power Level Indoor Unit: 54 dB(A)
    • Sound Power Level Outdoor Unit: 65 dB(A)
    • Sound pressure level Indoor unit : 27~32 dB(A)
    • Sound pressure level Outdoor unit: 49 dB(A)

    Electrical Data

    • Power supply (V,Hz,Ø) : 220~240/50/1
    • Refrigerant gas: R32
    • Operating range
    • - Cooling: -15° ~ 46° C
    • - Heating: -10° ~ 24°C
    Installation Data
    • Liquid Pipe Diameter: 6.35mm (1/4")
    • Gas pipe diameter: 15.88 mm (5/8")
    • Maximum length of pipes: 30 m
    • Maximum height difference between internal unit and external unit: 30 m

    Dimensions and Weight

    • Internal Unit Dimensions (HxWxD): 258x840x840 mm
    • Internal Unit Weight: 21 Kg
    • Grid dimensions (HxWxD): 40x950x950 mm
    • Grill weight: 5 Kg
    • External Unit Dimensions (HxWxD): 880x840x330 mm
    • External Unit Weight: 54 Kg

    Mitsubishi Electric 4-Way Cassette P Series

    Range of new units designed to create a more comfortable environment, ensuring maximum satisfaction for users.

    Cassetta PLA-SM


    Horizontal flow

    The new internal unit is equipped with the “horizontal flow” function which allows for a throw of air that touches the ceiling (Coanda effect), thus increasing the sensation of comfort perceived by the occupants.

    Flusso Orizzontale


    Condensate drain pump included

    The PLA series units are not only easy to install but also The provision of a drain pump with a head of 550 mm facilitates the drainage of condensate water even in critical conditions.


    3D i-see sensor

    The new 4-way ceiling-mounted cassette is equipped with the exclusive “3D I-see Sensor”, a 360° rotating sensor with a 3-minute data acquisition interval.

    It is not only able to detect the temperature , but also the presence , position and number of people in the room.

    Thanks to it, it is therefore possible to manage regulation logics based on the presence of occupants in the air-conditioned environment, with significant energy savings.

    3D sensor


    Energy Saving

    Thanks to the Energy saving mode, 3D I-see allows you to modulate the air conditioning power based on the number of people present in the room: when the crowding index corresponds to 30% of the total, the system is able to self-regulate, allowing an air conditioning energy saving equivalent to approximately 1°C. When the crowding index tends to 0%, the system switches off automatically, avoiding energy waste. The 3D I-see sensor also has the Seasonal airflow function that allows you to maintain the set-point temperature by changing the operating mode from air conditioning to ventilation and ensuring further savings.

    Rilevamento Presenza


    Comfort

    By activating the direct/indirect function, the user will be able to decide whether or not to direct the air flow towards the areas where the presence of people is detected. Thanks to the Seasonal airflow mode, the system is able to maintain an excellent level of comfort, avoiding cold currents in cooling and counteracting the problem of stratification typical of the heating mode.

    Getto Aria


    Energy Save Crowding Level

    The temperature is controlled based on the number of people detected in the room by the 3d-i see sensor. If the crowding level is around 30%, a power of 1°C lower is delivered

    Energy Save Empty Room

    When the room is empty for more than 60 minutes, the power output is reduced by 2°C

    When no presence is detected for more than 120 minutes, the outdoor machine will automatically turn off


    MELCloud, the Wi-Fi control

    MELCloud is the new Wi-Fi control for your Mitsubishi Electric system. Using the support of the cloud, the “Cloud”, to transmit and receive information and the optional dedicated Wi-Fi interface MAC-567IF-E, you can easily control your system wherever you are via your PC, tablet or smartphone; all you need is an internet connection. The MELCloud service has been designed to have maximum compatibility with PCs, Tablets and Smartphones thanks to dedicated Apps or via Web Browser.

    One word is enough for you!

    MELCloud is compatible with Google Home. Saying "Hey Google!" or "Ok Google!" gives you full control of your air conditioning system. MELCloud is compatible with Amazon Alexa. Just one word is enough to freely manage your air conditioning units

    MelCloud HR


    Product Warranty: All products for sale on our site are new and packaged. The warranty on this item is 24 months from the date of purchase.

    Data sheetData sheet
    • peso: 80.0 kg
    • classe energetica raffreddamento: A++
    • classe energetica riscaldamento: A+
    • gas: R-32
    • marca: MITSUBISHI ELECTRIC
    • metri quadri : 60 - 80 m2
    • modello: PLA-M60EA + SUZ-M60VA
    • potenza btu: 21000
